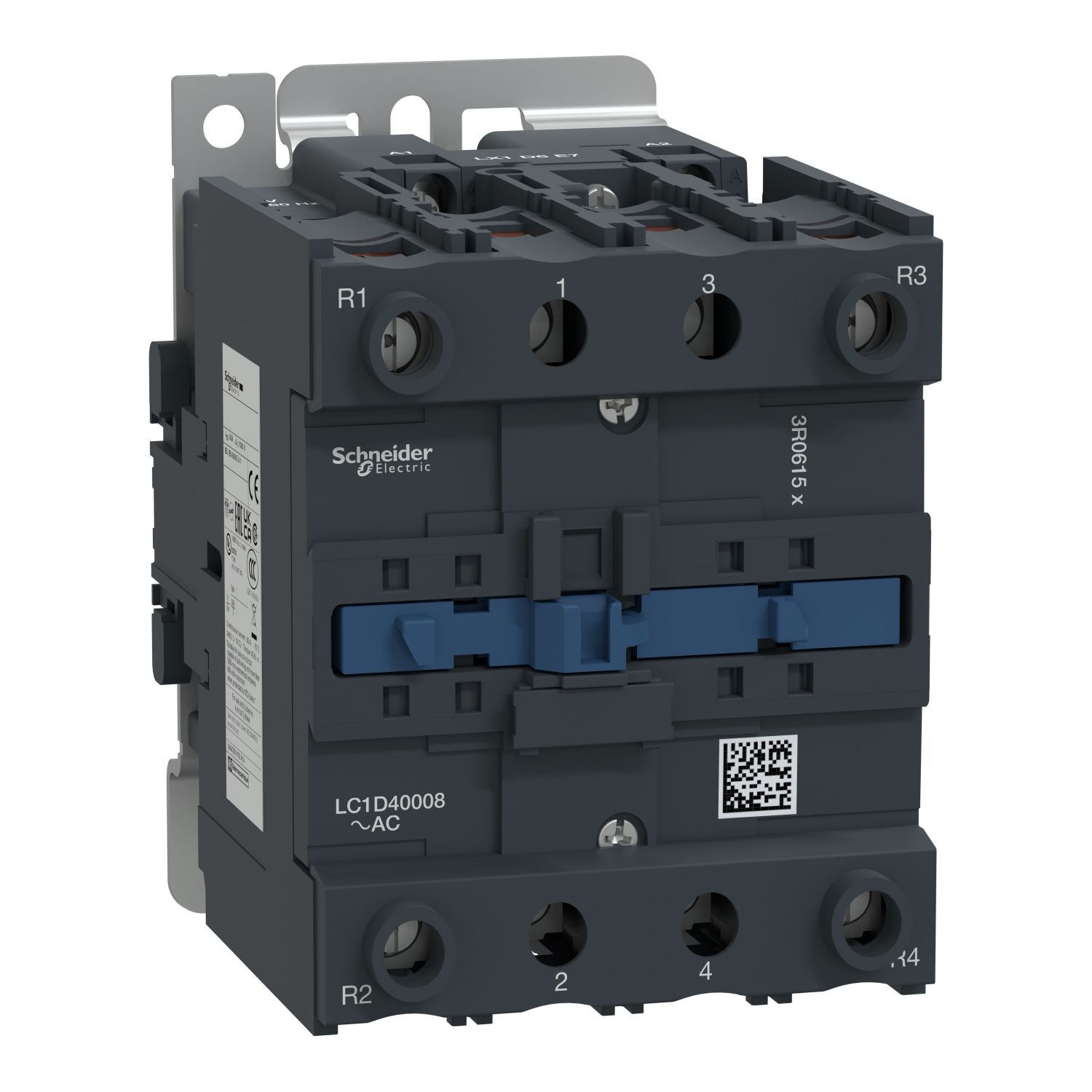

Picture of TeSys; TeSys Deca, Contactor, 4P(2NO+2NC),AC-1 <=440V 60 A 240V AC 50/60Hz coil
SKU:

LC1D40008U7

TeSys; TeSys Deca, Contactor, 4P(2NO+2NC),AC-1 <=440V 60 A 240V AC 50/60Hz coil

Old price: $1,229.80 INC GST
$774.77 INC GST
Available for Shipping : 14-Jan-2026
Product Selector
TeSys; TeSys Deca, Contactor, 4P(2NO+2NC),AC-1 <=440V 60 A 240V AC 50/60Hz coil
  • Designed to meet needs of demanding applications
  • New modern look & feel of all machines
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
  • Compatible for all the voltages on the market
  • Multiple international certifications
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Jan-2026
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
TeSys Deca contactor, 4 poles (2NO/2NC),for load control applications in category AC-1. and for non-inductive load control applications up to 60A@60℃. It provides a 240V 50/60Hz standard AC coil,without built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Very compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
[Ie] rated operational current 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category AC-1
[Uc] control circuit voltage 240 V AC 50/60 Hz
Device short name LC1D
Range TeSys
Range of product TeSys Deca
Poles description 4P
Product or component type contactor
Contactor application resistive load
[Ue] rated operational voltage power circuit: <= 1000 V AC 25...400 Hz
Complementary
Compatibility code LC1D
Electrical durability 1.4 Mcycles 60 A AC-1 at Ue <= 440 V
Associated fuse rating 80 A gG at <= 690 V coordination type 2 for power circuit, 80 A gG at <= 690 V coordination type 1 for power circuit
Control circuit type AC at 50/60 Hz
Protective cover without
[Ui] rated insulation voltage power circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified
Overvoltage category III
Coil technology without built-in suppressor module
Inrush power in VA 245-245 VA 50 Hz cos phi 0.75 (at 20 °C), 245-245 VA 60 Hz cos phi 0.75 (at 20 °C)
Average impedance 1.5 mOhm - Ith 60 A 50 Hz for power circuit
Power dissipation per pole 5.4 W AC-1
Heat dissipation 4-5 W at 50/60 Hz
[Icw] rated short-time withstand current 165 A 40 °C - 1 min for power circuit, 72 A 40 °C - 10 min for power circuit, 720 A 40 °C - 1 s for power circuit, 320 A 40 °C - 10 s for power circuit
Mechanical durability 6 Mcycles
Tightening torque control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 5 N.m - on screw clamp terminals - cable 1-25 mm² hexagonal screw head 4 mm, power circuit: 8 N.m - on screw clamp terminals - cable 25-35 mm² hexagonal screw head 4 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Operating time 12...26 ms closing, 4...19 ms opening
Irms rated making capacity 800 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 800 A at 440 V for power circuit conforming to IEC 60947
Pollution degree 3
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits 0.85...1.1 Uc (-40-55 °C):operational AC 60 Hz, 0.8...1.1 Uc (-40-55 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-55 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current 60 A (at 60 °C) for power circuit
Hold-in power consumption in VA 15-15 VA 50 Hz cos phi 0.3 (at 20 °C), 13-13 VA 60 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate 3600 cyc/h 60 °C
Connections - terminals power circuit: screw clamp terminals 2 1-25 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 2 1-25 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 1-25 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
Pole contact composition 2 NO + 2 NC
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Contact compatibility M1
Mounting support plate, rail
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor opened (2 Gn, 5...300 Hz) , shocks contactor closed (10 Gn for 11 ms) , shocks contactor open (8 Gn for 11 ms)
Climatic withstand conforming to IACS E10 exposure to damp heat
Standards GB/T 14048.4, CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1
Height 127 mm
Permissible ambient air temperature around the device 60-70 °C with derating, -40-60 °C
Operating altitude 0...3000 m
Net weight 1.44 kg
Product certifications EU-RO-MR by DNV-GL, CB, UKCA, EAC, CCC, CSA, UL
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Depth 125 mm
Width 85 mm
Flame retardance V1 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.5 cm
Package 1 Width 13.5 cm
Package 1 Length 11.0 cm
Package 1 Weight 1.464 kg
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 79.0 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 127.128 kg
