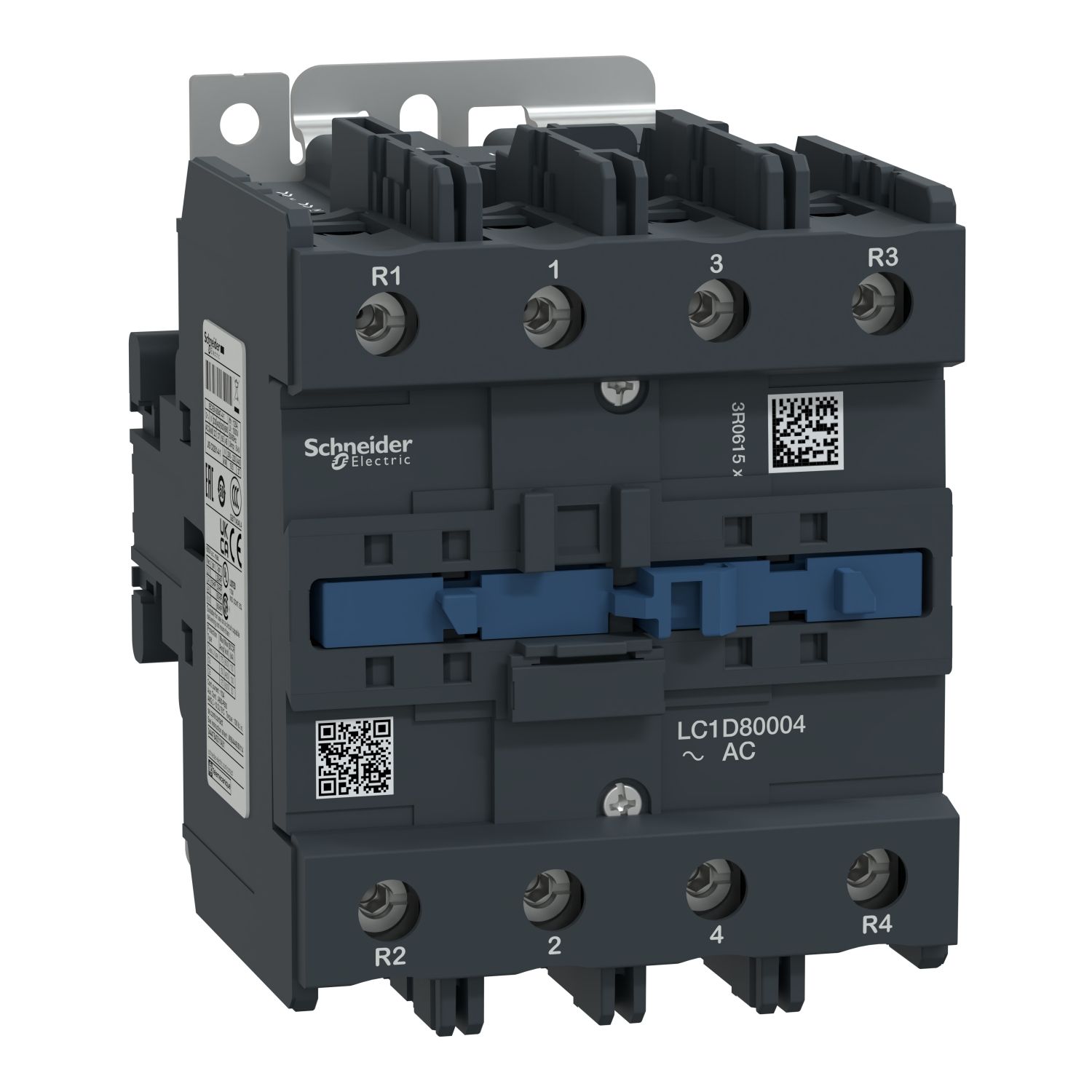

Picture of Contactor, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 110V AC 50Hz coil, screw clamp terminal
SKU:

LC1D80004F5

Contactor, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 110V AC 50Hz coil, screw clamp terminal

$1,537.69
Available for Shipping : 16-Dec-2024
Product Selector
Contactor, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 110V AC 50Hz coil, screw clamp terminal
  • Designed to meet needs of demanding applications
  • Wide range of accessaries to satisfy different customer usage
  • Digital customer experience for technical documents
  • New modern look & feel of all machines
  • Easier to install and operate with multi-standard screws
  • Multiple and flexible mounting methods depending on exact need
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
TeSys Deca contactor, 4P(4NO) for category AC-1 applications up to 125A @440V. It provides with 110V 50 Hz coil, with no auxiliary contacts, power and control connections by screw clamp terminals. It procures high reliability and durability with 10 Mcycles mechanical durability and 0.8 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 96mm x 125mm (H x W x D), mounting on rail or plate. Multi standards certified(UL,LROS,DNV,GOST,RINA,CSA,CCC,BV,GL) and Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
[Ie] rated operational current 55 A (at <60 °C) at <= 400 V AC AC-4 for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category AC-4, AC-3e, AC-3, AC-1
[Uc] control circuit voltage 110 V AC 50 Hz
Device short name LC1D
Range TeSys
Range of product TeSys Deca
Poles description 4P
Product or component type contactor
Contactor application resistive load
[Ue] rated operational voltage power circuit: <= 690 V AC, power circuit: <= 300 V DC 25...400 Hz
Complementary
Compatibility code LC1D
Electrical durability 0.8 Mcycles 125 A AC-1 at Ue <= 440 V
Associated fuse rating 160 A gG at <= 690 V coordination type 2 for power circuit, 200 A gG at <= 690 V coordination type 1 for power circuit
Control circuit type AC at 50 Hz
Protective cover without
[Ui] rated insulation voltage power circuit: 1000 V conforming to IEC 60947-4-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified
Overvoltage category III
Coil technology without built-in suppressor module
Inrush power in VA 200-200 VA 50 Hz cos phi 0.75 (at 20 °C)
Average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit
Power dissipation per pole 12.5 W AC-1
Heat dissipation 6-10 W at 50 Hz
[Icw] rated short-time withstand current 320 A 40 °C - 1 min for power circuit, 135 A 40 °C - 10 min for power circuit, 990 A 40 °C - 1 s for power circuit, 640 A 40 °C - 10 s for power circuit
Mechanical durability 10 Mcycles
Tightening torque control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 12 N.m - on connector hexagonal screw head 4 mm, power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Operating time 6...20 ms opening, 20...35 ms closing
Irms rated making capacity 1100 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947
Pollution degree 3
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits 1...1.1 Uc (55-70 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40-55 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50 Hz
[Ith] conventional free air thermal current 125 A (at 60 °C) for power circuit
Motor power kW 45 kW at 415...440 V AC 50/60 Hz, 55 kW at 500 V AC 50/60 Hz, 45 kW at 660...690 V AC 50/60 Hz, 37 kW at 380...400 V AC 50/60 Hz, 22 kW at 220...230 V AC 50/60 Hz
Hold-in power consumption in VA 20-20 VA 50 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate 3600 cyc/h 60 °C
Connections - terminals power circuit: connector 2 4-25 mm² - cable stiffness: solid without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: solid without cable end, power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
Pole contact composition 4 NO
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Contact compatibility M1
Mounting support plate, rail
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness shocks contactor closed (10 Gn for 11 ms) , vibrations contactor closed (3 Gn, 5...300 Hz) , shocks contactor open (8 Gn for 11 ms) , vibrations contactor open (2 Gn, 5...300 Hz)
Climatic withstand conforming to IACS E10 exposure to damp heat
Standards UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height 127 mm
Permissible ambient air temperature around the device 60-70 °C with derating, -40-60 °C
Operating altitude 0...3000 m
Net weight 1.76 kg
Product certifications CCC, BV, GOST, CSA, RINA, GL, UL, DNV, LROS (Lloyds register of shipping)
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Depth 125 mm
Width 96 mm
Flame retardance V1 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.6 cm
Package 1 Width 13.2 cm
Package 1 Length 11.0 cm
Package 1 Weight 1.722 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.065 kg
