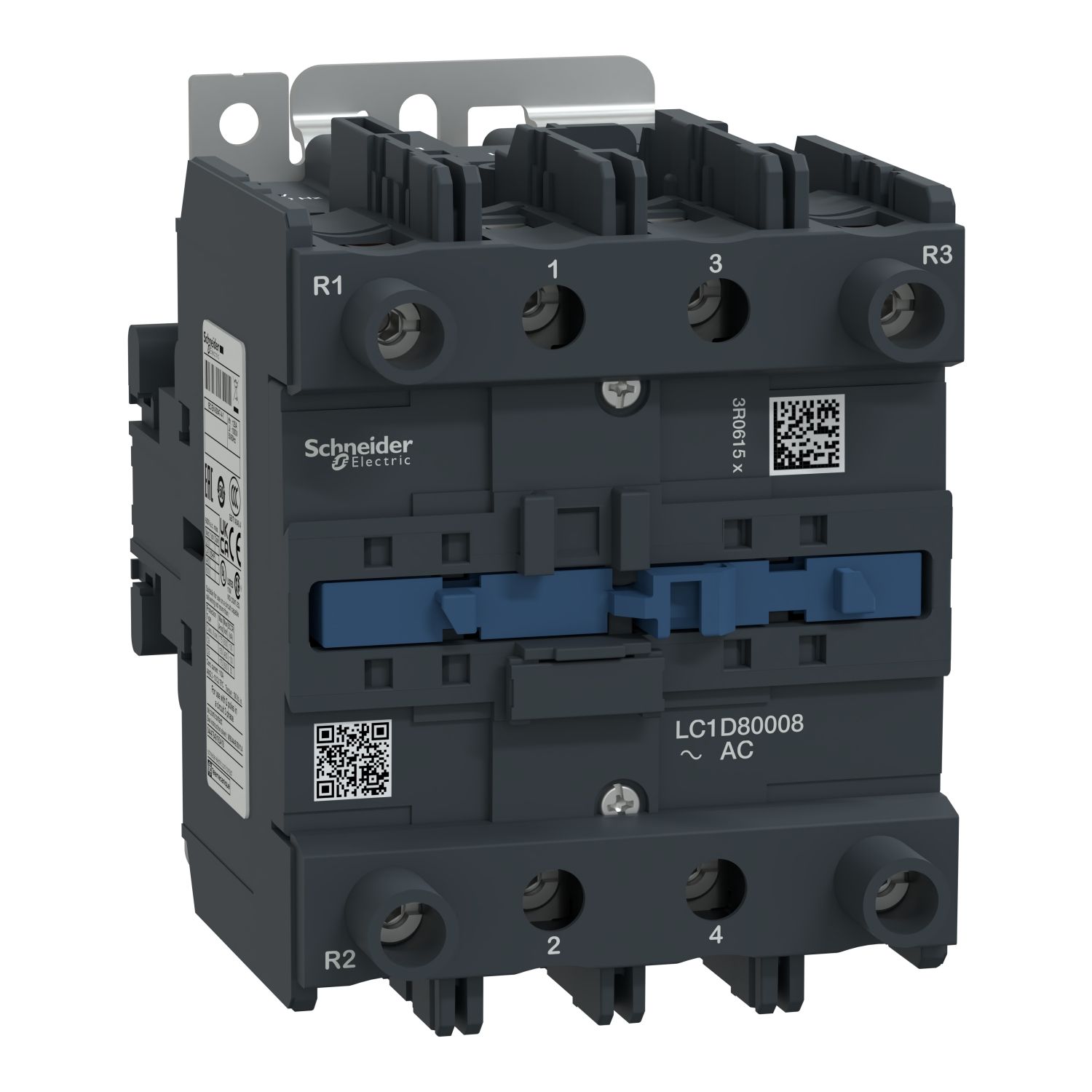

Picture of Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 125A, 120V AC 50/60Hz coil, screw clamp terminal
SKU:

LC1D80008G7

Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 125A, 120V AC 50/60Hz coil, screw clamp terminal

Old price: $1,460.80 INC GST
$920.30 INC GST
Available for Shipping : 13-Jan-2026
Product Selector
Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 125A, 120V AC 50/60Hz coil, screw clamp terminal
  • Long durability with high operating rate
  • Reliable performance under high environment
  • Green Premium product
  • Multi sdandards certified makes it possible to wide application
  • Easy installation and maintenance with compact design
  • Multiple and flexible mounting methods depending on exact need
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 13-Jan-2026
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
TeSys Deca contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys Deca contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 110A resistive load rating. Contactor is supplied with a 120 VAC 50/60 Hz coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.78 inches wide and 5.51 inches deep. It weighs 4.06 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Products specifications

Attribute name Attribute value
Main
[Ie] rated operational current 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category AC-1
[Uc] control circuit voltage 120 V AC 50/60 Hz
Device short name LC1D
Range TeSys
Range of product TeSys Deca
Poles description 4P
Product or component type contactor
Contactor application resistive load
[Ue] rated operational voltage power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code LC1D
Electrical durability 0.8 Mcycles 125 A AC-1 at Ue <= 440 V
Associated fuse rating 160 A gG at <= 690 V coordination type 2 for power circuit, 200 A gG at <= 690 V coordination type 1 for power circuit
Control circuit type AC at 50/60 Hz
Protective cover without
[Ui] rated insulation voltage power circuit: 1000 V conforming to IEC 60947-4-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified
Overvoltage category III
Coil technology without built-in suppressor module
Inrush power in VA 245-245 VA 50 Hz cos phi 0.75 (at 20 °C), 245-245 VA 60 Hz cos phi 0.75 (at 20 °C)
Average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit
Power dissipation per pole 12.5 W AC-1
Heat dissipation 6-10 W at 50/60 Hz
[Icw] rated short-time withstand current 320 A 40 °C - 1 min for power circuit, 135 A 40 °C - 10 min for power circuit, 990 A 40 °C - 1 s for power circuit, 640 A 40 °C - 10 s for power circuit
Mechanical durability 4 Mcycles
Tightening torque control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 12 N.m - on connector hexagonal screw head 4 mm, power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Operating time 6...20 ms opening, 20...35 ms closing
Irms rated making capacity 1100 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947
Pollution degree 3
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits 0.8...1.1 Uc (-40-55 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-55 °C):drop-out AC 50/60 Hz, 0.85...1.1 Uc (-40-55 °C):operational AC 60 Hz
[Ith] conventional free air thermal current 125 A (at 60 °C) for power circuit
Hold-in power consumption in VA 26-26 VA 50 Hz cos phi 0.3 (at 20 °C), 26-26 VA 60 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate 3600 cyc/h 60 °C
Connections - terminals power circuit: connector 2 4-25 mm² - cable stiffness: solid without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: solid without cable end, power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
Pole contact composition 2 NO + 2 NC
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Contact compatibility M1
Mounting support plate, rail
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness shocks contactor closed (10 Gn for 11 ms) , vibrations contactor closed (3 Gn, 5...300 Hz) , shocks contactor open (8 Gn for 11 ms) , vibrations contactor open (2 Gn, 5...300 Hz)
Climatic withstand conforming to IACS E10 exposure to damp heat
Standards GB/T 14048.4, CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1
Height 127 mm
Permissible ambient air temperature around the device 60-70 °C with derating, -40-60 °C
Operating altitude 0...3000 m
Net weight 1.84 kg
Product certifications EU-RO-MR by DNV-GL, CB, UKCA, EAC, CCC, CSA, UL
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Depth 140 mm
Width 96 mm
Flame retardance V1 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.000 cm
Package 1 Width 13.500 cm
Package 1 Length 15.500 cm
Package 1 Weight 1.785 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.182 kg
Unit Type of Package 3 3
Number of Units in Package 3 80
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 154.920 kg
