Picture of TeSys; TeSys Deca, Contactor, 4P(4 NO), AC-1, 0 to 440V, 60A, 230VAC 50/60Hz coil
Picture of TeSys; TeSys Deca, Contactor, 4P(4 NO), AC-1, 0 to 440V, 60A, 230VAC 50/60Hz coil
Picture of TeSys; TeSys Deca, Contactor, 4P(4 NO), AC-1, 0 to 440V, 60A, 230VAC 50/60Hz coil
Picture of TeSys; TeSys Deca, Contactor, 4P(4 NO), AC-1, 0 to 440V, 60A, 230VAC 50/60Hz coil
Picture of TeSys; TeSys Deca, Contactor, 4P(4 NO), AC-1, 0 to 440V, 60A, 230VAC 50/60Hz coil
SKU:

LC1DT60AP7

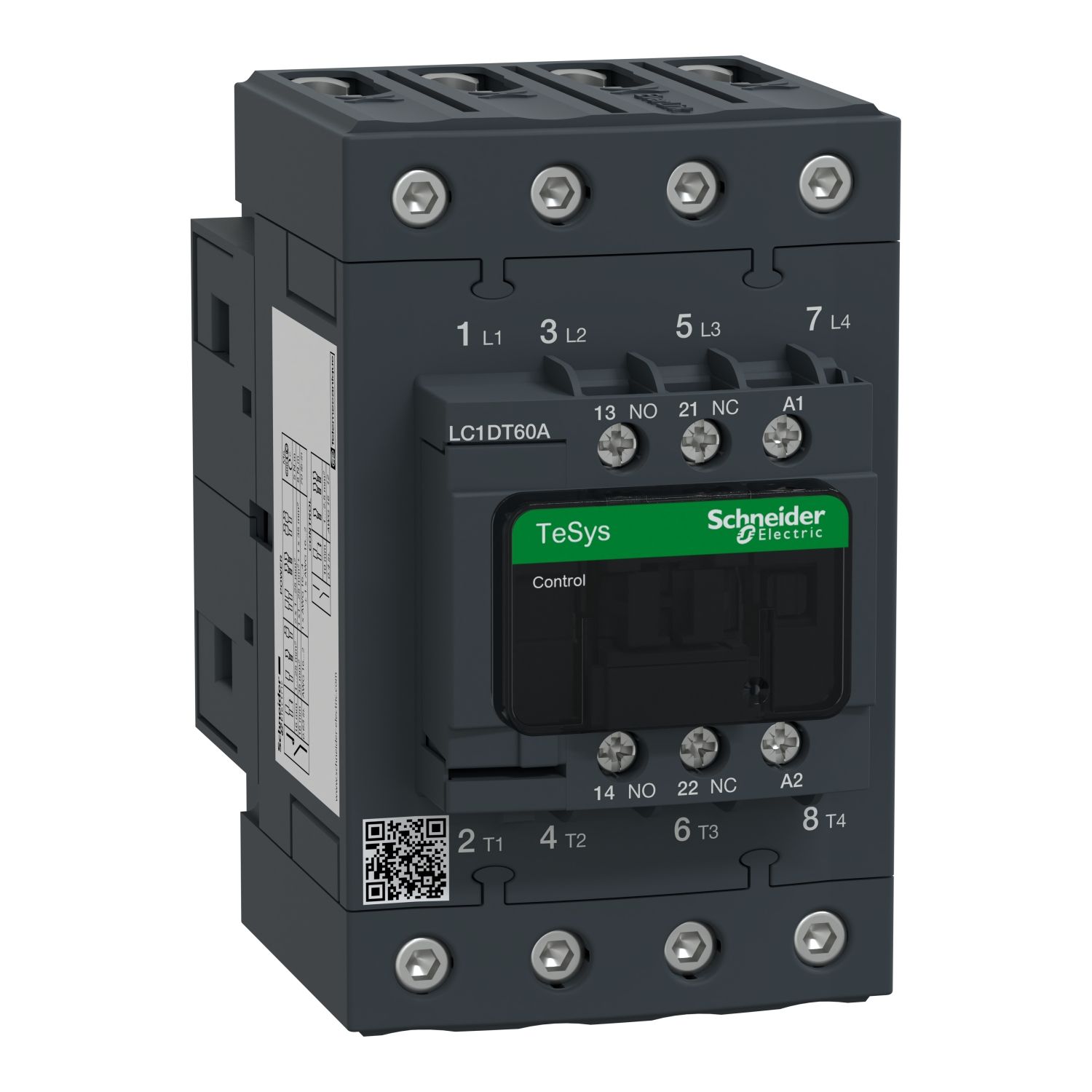

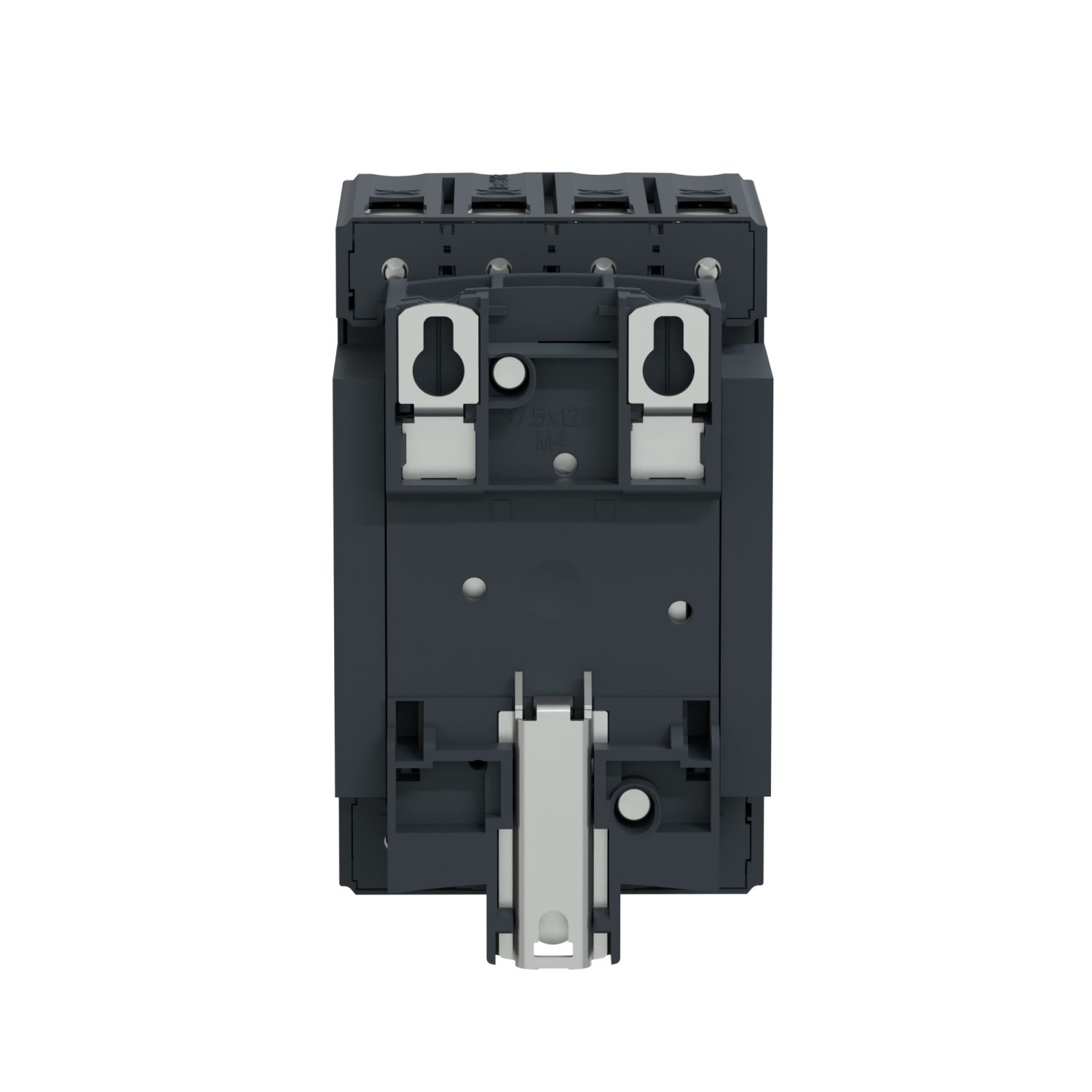

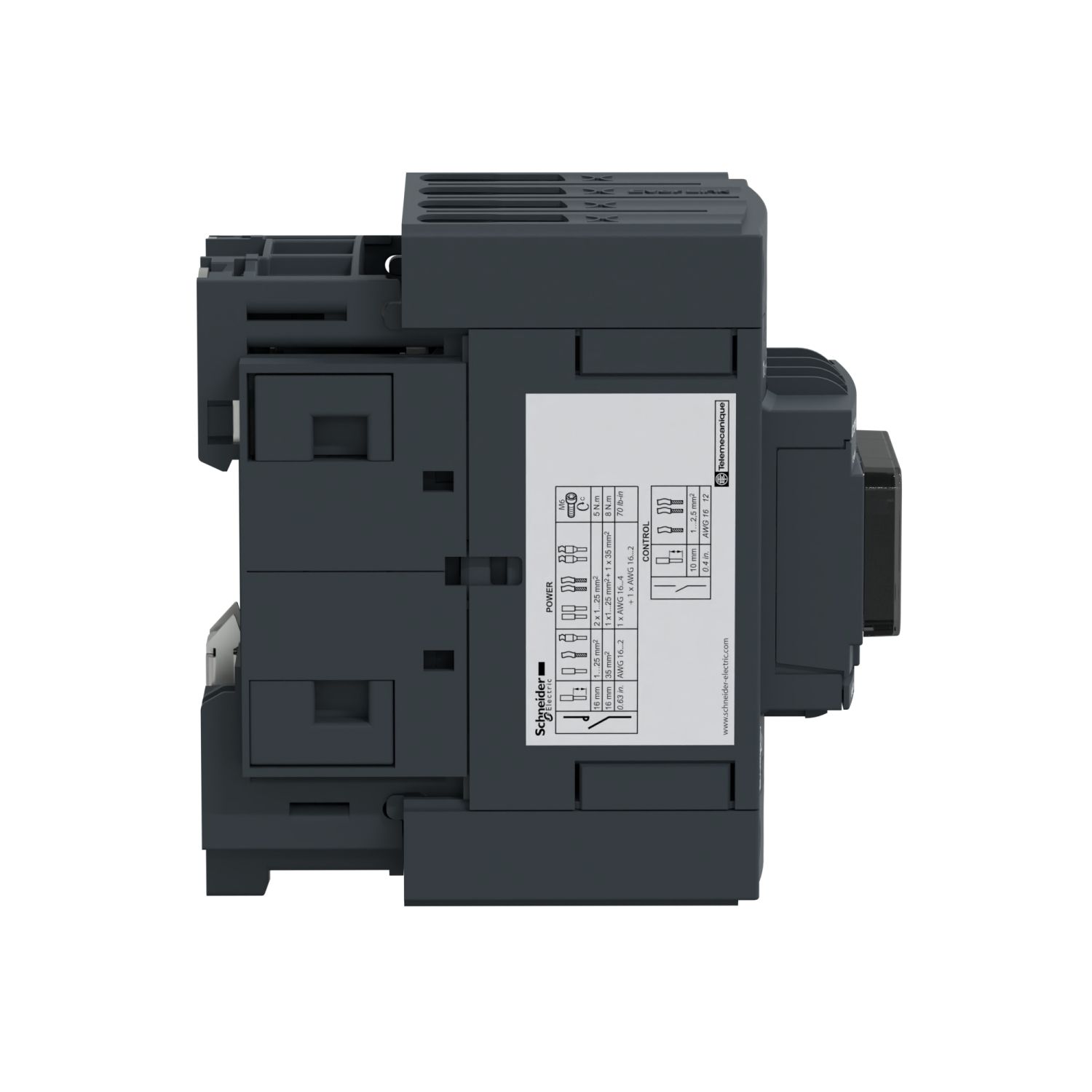

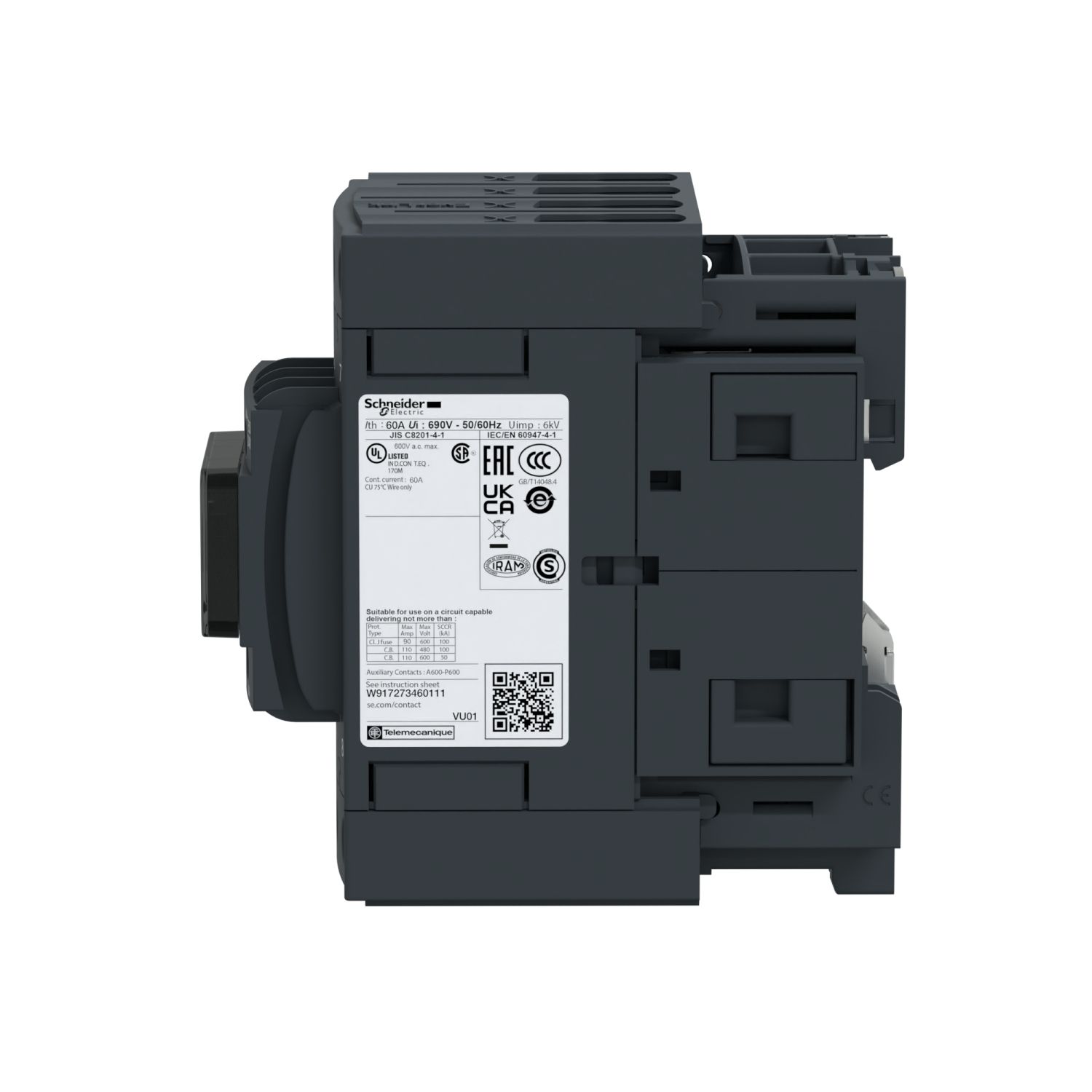

TeSys; TeSys Deca, Contactor, 4P(4 NO), AC-1, 0 to 440V, 60A, 230VAC 50/60Hz coil

$647.80
Product Selector
TeSys; TeSys Deca, Contactor, 4P(4 NO), AC-1, 0 to 440V, 60A, 230VAC 50/60Hz coil
  • New modern look & feel of all machines
  • Designed to meet the requirements of industrial and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 07-Nov-2024
Catalogue
Image of product
Image of product
Instruction sheet
End of life manual
CAD
Image of product
Product environmental
Product Page Link
Product Data Sheet
TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 60A/440V AC-1. It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connections by EverLink BTR screw terminals and control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
[Ie] rated operational current60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation categoryAC-1
[Uc] control circuit voltage230 V AC 50/60 Hz
Device short nameLC1D
RangeTeSys Deca, TeSys
Range of productTeSys Deca
Poles description4P
Product or component typecontactor
Contactor applicationresistive load
[Ue] rated operational voltagepower circuit: <= 300 V DC, power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility codeLC1D
Electrical durability1.4 Mcycles 60 A AC-1 at Ue <= 440 V
Signalling circuit frequency25...400 Hz
Associated fuse rating80 A gG at <= 690 V coordination type 2 for power circuit, 80 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Control circuit typeAC at 50/60 Hz
Protective coverwith
[Ui] rated insulation voltagepower circuit: 690 V conforming to IEC 60947-4-1, signalling circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified
Overvoltage categoryIII
Auxiliary contacts typetype mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Coil technologywithout built-in suppressor module
Inrush power in VA160-160 VA 50 Hz cos phi 0.75 (at 20 °C), 140-140 VA 60 Hz cos phi 0.75 (at 20 °C)
Auxiliary contact composition1 NO + 1 NC
Average impedance1.6 mOhm - Ith 60 A 50 Hz for power circuit
Power dissipation per pole5.8 W AC-1
Minimum switching current5 mA for signalling circuit
Non-overlap time1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Heat dissipation4-5 W at 50/60 Hz
[Icw] rated short-time withstand current140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit, 165 A 40 °C - 1 min for power circuit, 72 A 40 °C - 10 min for power circuit, 720 A 40 °C - 1 s for power circuit, 320 A 40 °C - 10 s for power circuit
Mechanical durability6 Mcycles
Tightening torquepower circuit: 2.5 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2, control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2, power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm, power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm, control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver Philips No 2, control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver flat Ø 6 mm
Minimum switching voltage17 V for signalling circuit
Operating time12...26 ms closing, 4...19 ms opening
Irms rated making capacity800 A at 440 V for power circuit conforming to IEC 60947, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity800 A at 440 V for power circuit conforming to IEC 60947
Pollution degree3
Safety reliability levelB10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits1...1.1 Uc (60-70 °C):operational AC 50/60 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current60 A (at 60 °C) for power circuit, 10 A (at 60 °C) for signalling circuit
Hold-in power consumption in VA15-15 VA 50 Hz cos phi 0.3 (at 20 °C), 13-13 VA 60 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate3600 cyc/h 60 °C
Connections - terminalspower circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid without cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid without cable end, power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with cable end, power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible without cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
Pole contact composition4 NO
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947
Insulation resistance> 10 MOhm for signalling circuit
Contact compatibilityM6
Mounting supportplate, rail
Environment
Fire resistance850 °C conforming to IEC 60695-2-1
Mechanical robustnessshocks contactor open (10 Gn for 11 ms) , shocks contactor closed (15 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
Climatic withstandconforming to IEC 60947-1 Annex Q category D exposure to damp heat,  conforming to IACS E10 exposure to damp heat
StandardsIEC 60335-1, UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height122 mm
Permissible ambient air temperature around the device60-70 °C with derating, -40-60 °C
Operating altitude0...3000 m
Net weight1.09 kg
Product certificationsRINA, DNV, BV, CSA, CCC, LROS (Lloyds register of shipping), UL, GOST, GL
IP degree of protectionIP20 front face conforming to IEC 60529
Protective treatmentTH conforming to IEC 60068-2-30
Depth120 mm
Width70 mm
Flame retardanceV1 conforming to UL 94
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.500 cm
Package 1 Width13.500 cm
Package 1 Length15.000 cm
Package 1 Weight1.090 kg
Unit Type of Package 22
Number of Units in Package 27
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight8.204 kg
Unit Type of Package 33
Number of Units in Package 3112
Package 3 Height75.000 cm
Package 3 Width60.000 cm
Package 3 Length80.000 cm
Package 3 Weight139.264 kg

Related products

Picture of TeSys, Auxiliary contact block, TeSys Deca, 2NC, side mounting, screw clamp terminals

TeSys, Auxiliary contact block, TeSys Deca, 2NC, side mounting, screw clamp terminals

LAD8N02
$67.81
View Detail
Picture of TeSys, Auxiliary contact block, TeSys Deca, 1NO + 1NC, side mounting, screw clamp terminals

TeSys, Auxiliary contact block, TeSys Deca, 1NO + 1NC, side mounting, screw clamp terminals

LAD8N11
$67.81
View Detail
Picture of TeSys, Auxiliary contact block, TeSys Deca, 2NO, side mounting, screw clamp terminals

TeSys, Auxiliary contact block, TeSys Deca, 2NO, side mounting, screw clamp terminals

LAD8N20
$67.73
View Detail
Picture of TeSys; TeSys Deca, Auxiliary contact block, 2NC, front mounting, screw clamp terminals

TeSys; TeSys Deca, Auxiliary contact block, 2NC, front mounting, screw clamp terminals

LADN02
$46.04
View Detail
Picture of TeSys; TeSys Deca, Auxiliary contact block, 4NC, front mounting, screw clamp terminals

TeSys; TeSys Deca, Auxiliary contact block, 4NC, front mounting, screw clamp terminals

LADN04
$80.81
View Detail
Picture of TeSys; TeSys Deca, Auxiliary contact block, 1NO + 1NC, front mounting, screw clamp terminals

TeSys; TeSys Deca, Auxiliary contact block, 1NO + 1NC, front mounting, screw clamp terminals

LADN11
$34.85
View Detail
Picture of TeSys; TeSys Deca, Auxiliary contact block, 1NO + 3NC, front mounting, screw clamp terminals

TeSys; TeSys Deca, Auxiliary contact block, 1NO + 3NC, front mounting, screw clamp terminals

LADN13
$82.12
View Detail
Picture of TeSys; TeSys Deca, Auxiliary contact block, 2NO, front mounting, screw clamp terminals

TeSys; TeSys Deca, Auxiliary contact block, 2NO, front mounting, screw clamp terminals

LADN20
$45.96
View Detail
