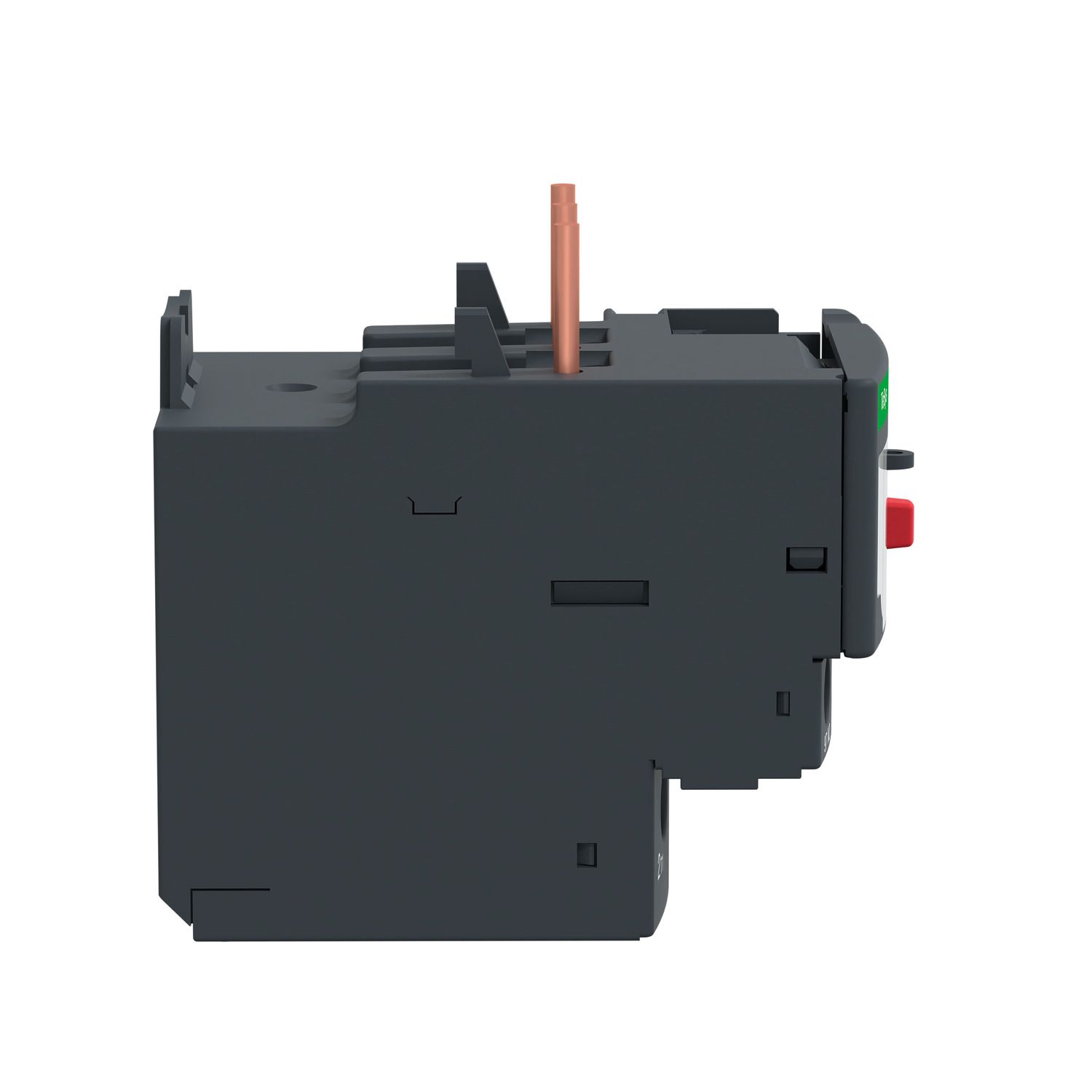

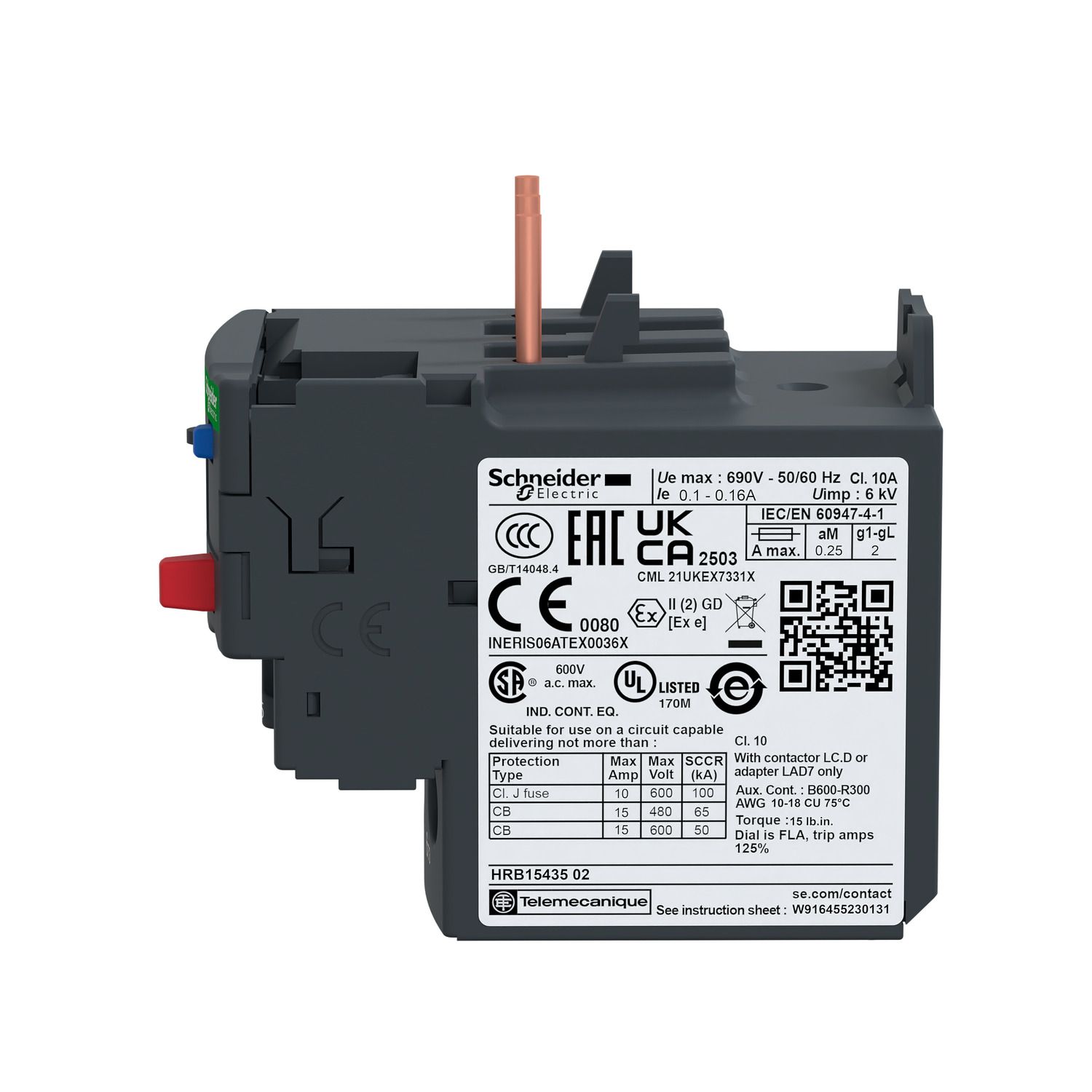

Picture of Thermal overload relay, TeSys Deca, 690VAC, 23 to 32A, 1NO+1NC, class 20, for D25 to D38, screw clamp terminal
Picture of Thermal overload relay, TeSys Deca, 690VAC, 23 to 32A, 1NO+1NC, class 20, for D25 to D38, screw clamp terminal

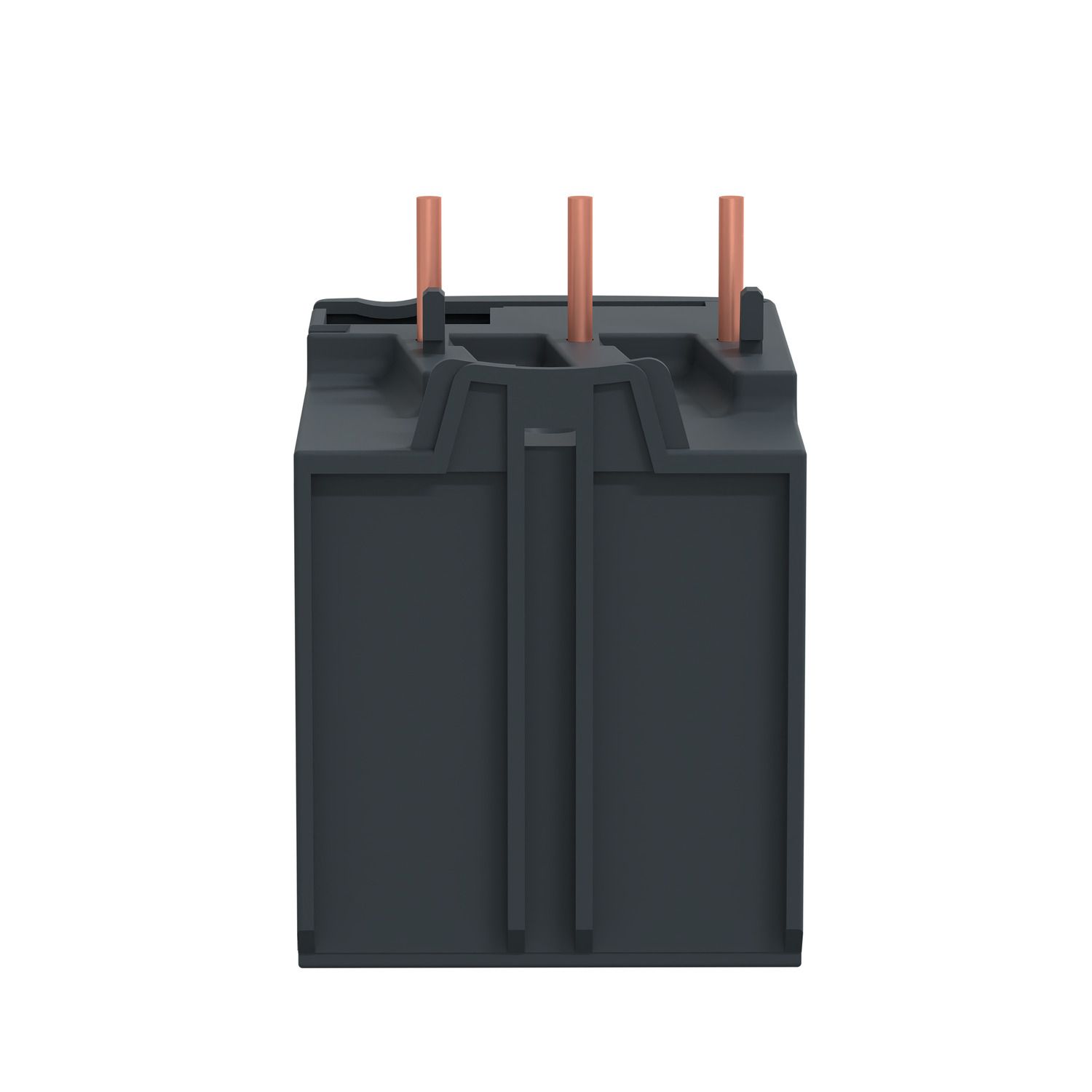

Picture of Thermal overload relay, TeSys Deca, 690VAC, 23 to 32A, 1NO+1NC, class 20, for D25 to D38, screw clamp terminal

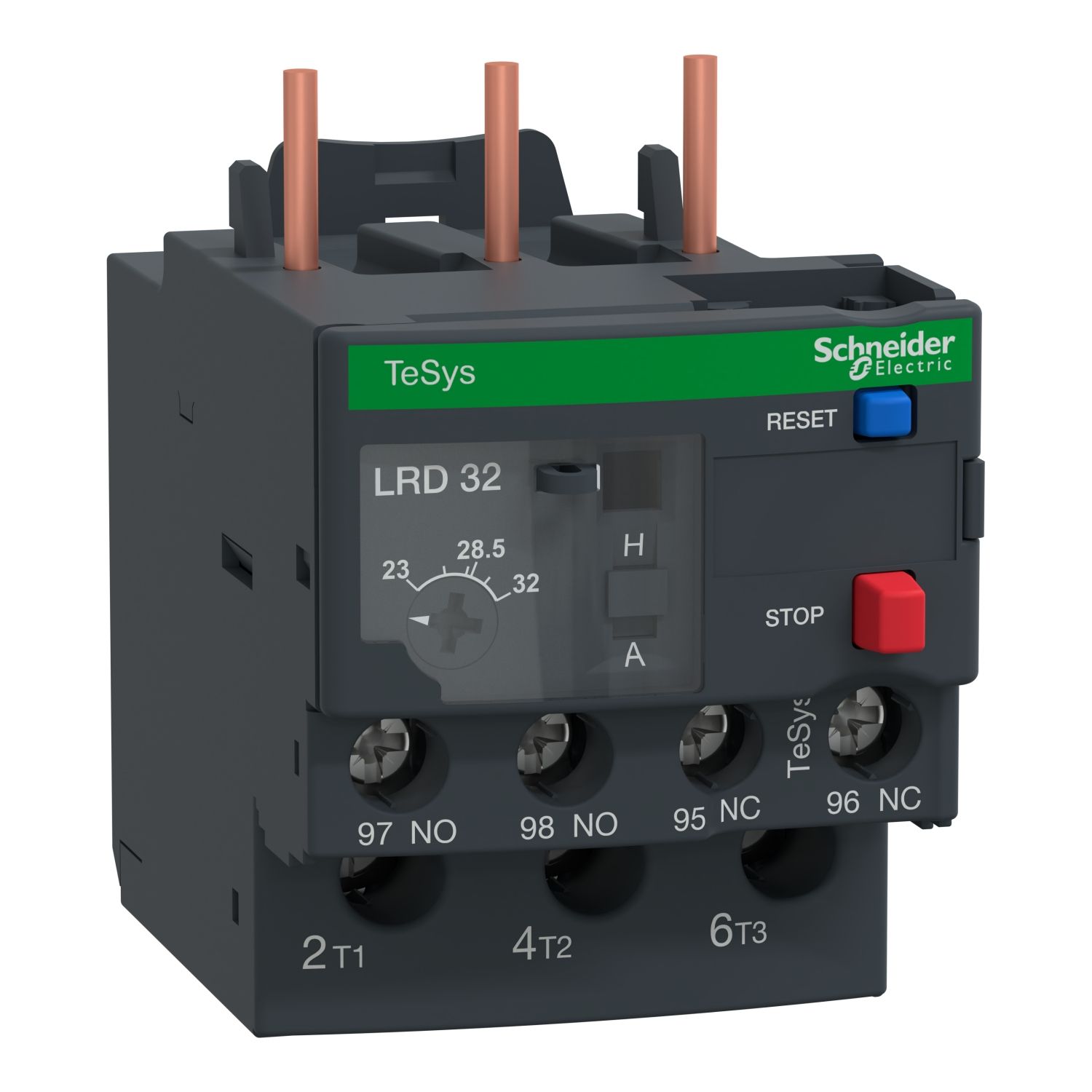

Picture of Thermal overload relay, TeSys Deca, 690VAC, 23 to 32A, 1NO+1NC, class 20, for D25 to D38, screw clamp terminal
Picture of Thermal overload relay, TeSys Deca, 690VAC, 23 to 32A, 1NO+1NC, class 20, for D25 to D38, screw clamp terminal
SKU:

LRD32L

Thermal overload relay, TeSys Deca, 690VAC, 23 to 32A, 1NO+1NC, class 20, for D25 to D38, screw clamp terminal

$268.68
Product Selector
Thermal overload relay, TeSys Deca, 690VAC, 23 to 32A, 1NO+1NC, class 20, for D25 to D38, screw clamp terminal
  • Tesys Deca thermal overload relays are designed to protect a.c. circuits and motors against overloads.
  • New modern look & feel of all machines
  • Easier to install and operate with multi-standard screws
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
  • Multiple international certifications
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 06-Nov-2024
User guide
End of life manual
Instruction sheet
Image of product
Image of product
Image of product
Product environmental
Catalogue
Product Page Link
Product Data Sheet
TeSys LRD thermal overload relay, 32A/690V, thermal setting range 23-32A, tripping class 20, for protection of 3-phase motors 15kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D25-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B205 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Products specifications

Attribute nameAttribute value
Main
Device short nameLRD
Product compatibilityLC1D25, LC1D38, LC1D32
[Ui] rated insulation voltagepower circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V conforming to UL, power circuit: 600 V conforming to CSA
RangeTeSys Deca, TeSys
Thermal overload classclass 20 conforming to IEC 60947-4-1
Product nameTeSys Deca, TeSys LRD
Product or component typedifferential thermal overload relay
Relay applicationmotor protection
Network typeAC, DC
Thermal protection adjustment range23-32 A
Complementary
Temperature compensation-20-60 °C
Depth76 mm
Width45 mm
Compatibility codeLRD
Mounting supportunder contactor, rail, with specific accessories, plate, with specific accessories
Control typeblue push-button: reset, red push-button: stop
Tightening torquepower circuit: 2.5 N.m - on screw clamp terminals, control circuit: 1.7 N.m - on screw clamp terminals
Tripping threshold1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Permissible current0.22 A at 125 V DC-13 for signalling circuit, 3 A at 120 V AC-15 for signalling circuit
[Uimp] rated impulse withstand voltage6 kV
Net weight0.144 kg
Associated fuse rating4 A BS for signalling circuit, 4 A gG for signalling circuit
[Ue] rated operational voltage690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Phase failure sensitivitytripping current 130 % of Ir on two phase, the last one at 0
Connections - terminalspower circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² solid without cable end, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end
[Ith] conventional free air thermal current5 A for signalling circuit
Auxiliary contact composition1 NO + 1 NC
Height66 mm
Network frequency0...400 Hz
Environment
Ambient air temperature for storage-60-70 °C
IP degree of protectionIP20 conforming to IEC 60529
Dielectric strength1.89 kV at 50 Hz conforming to IEC 60947-1
Ambient air temperature for operation-20-60 °C without derating conforming to IEC 60947-4-1
Climatic withstandconforming to IACS E10
StandardsEN 50495, CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1
Mechanical robustnessvibrations: 3 GN conforming to IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
Product certificationsUKCA, ATEX INERIS, ABS, EAC, CSA, UL, IEC
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.3 cm
Package 1 Width7.2 cm
Package 1 Length4.5 cm
Package 1 Weight178.0 g
Unit Type of Package 22
Number of Units in Package 224
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight4.69 kg
Unit Type of Package 33
Number of Units in Package 3768
Package 3 Height80.0 cm
Package 3 Width75.0 cm
Package 3 Length120.0 cm
Package 3 Weight111.36 kg
