Picture of Operator control unit, TeSys T, for LTMR controller
SKU:

LTMCU

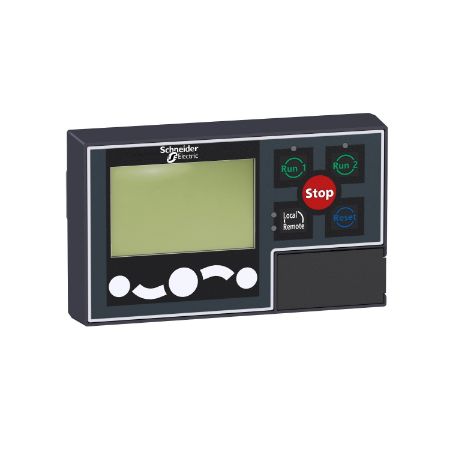

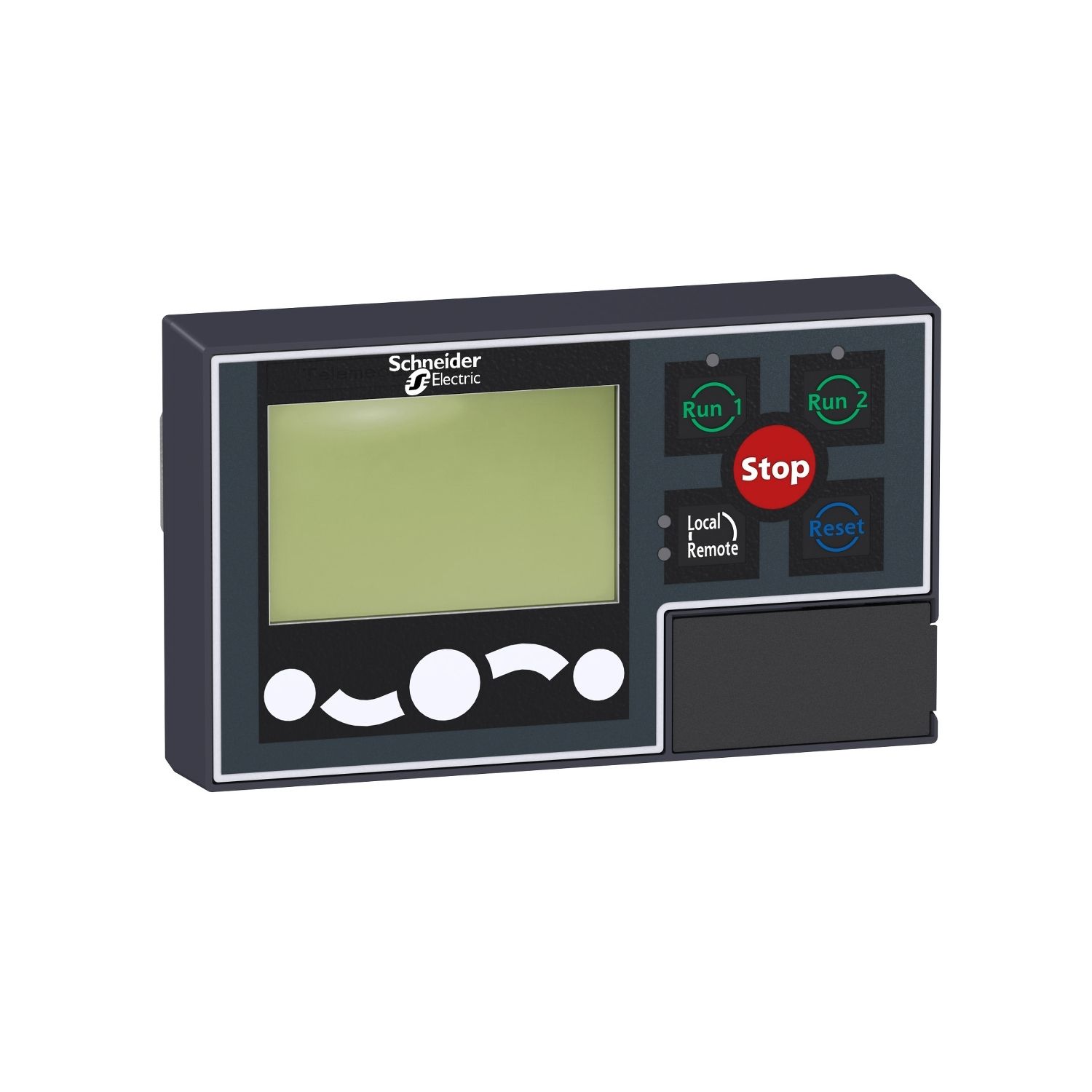

Operator control unit, TeSys T, for LTMR controller

$849.95
Available for Shipping : 24-Nov-2024
Operator control unit, TeSys T, for LTMR controller
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
Instruction sheet
End of life manual
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. It manages most critical processes while reducing downtime and increasing productivity as well as predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This motor management system is also a flexible system that supports six communication protocols which are Modbus™, CANopen, DeviceNet™, Profibus™, Ethernet/IP, and Modbus/TCP. TeSys T motor management system consist of several components which include the LTMR controller, the expansion module, HMI and software along with several accessories. The LTMR controller is the main component of the system that manages the basic functions. This includes the measurement of the ground current, motor temperature, three phase current of the motor, the controller also includes logic inputs and outputs which is used in fault management. The expansion module is directly connected to the controller and provides additional inputs as well as measure the voltage between the phases which allow the controller the monitor additional functions. TeSys T is highly reliable and has a very long product life thanks to a state-of-the-art component selection, to the all in one design and to the advanced electronic protection. TeSys T can be integrated in many different types of harsh environment such as dusty atmospheres, marine applications, high vibration applications and corrosive atmospheres and is used in Metal/Mining/Mineral, Oil & Gas, Water Wastewater. This is a TeSys operactor control unit that is used in conjuction with LTMR controller to configure the parameters, display the information about the controller, display detected faults and control the motor locally. This operator unit has LCD screen to display the information along with 5 control keys and 4 LED indicators and has 2 ports for RJ45 connectors that are used to connect to the PC and controller. The dimensions of this device are 70 mm (H) X 117 mm (W) X 50 mm (D) and it weighs 0.4 kg.

Products specifications

Attribute name Attribute value
Main
Device short name LTMCU
Display type backlit LCD
Control button type 10 push-button
Local signalling 4 LEDs
Device connection connection to a PC, RJ45 connector on front, connection to a LTM R controller, RJ45 connector on rear
Range TeSys
Product or component type operator control unit
Range compatibility TeSys T LTMR motor controller
Complementary
Depth 50 mm
Width 117 mm
Compatibility code LTMCU
Maximum supply current 140 mA
Mounting mode flush-mounted
Electromagnetic compatibility fast transient bursts (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-4, surges (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-5, conducted RF disturbances, level 3, 10 V, conforming to EN/IEC 61000-4-6, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2
IP degree of protection IP20 (rear) conforming to EN/IEC 60947-4-1, IP54 (front) conforming to EN/IEC 60947-4-1
Net weight 0.4 kg
Supply via the controller
Power dissipation 1 W
Standards EN/IEC 61131-2, CSA C22.2 No 60947-4-1, UL 60947-4-1A
Height 70 mm
Product certifications CE, UL, NOM, CSA, EAC, C-Tick
Environment
Fire resistance 650 °C conforming to EN/IEC 60947-1
Protective treatment TC 12 humidity cycles at 55 °C conforming to EN/IEC 60068-2-30
Ambient air temperature for storage -40-80 °C
Relative humidity 15-95 %
Flame retardance V2 conforming to UL 94
Ambient air temperature for operation -20-60 °C
Mechanical robustness vibrations: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 13.5 cm
Package 1 Length 7.0 cm
Package 1 Weight 265.0 g
Unit Type of Package 2 2
Number of Units in Package 2 32
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.065 kg
Unit Type of Package 3 3
Number of Units in Package 3 768
Package 3 Height 95.0 cm
Package 3 Width 80.0 cm
Package 3 Length 120.0 cm
Package 3 Weight 226.56 kg
