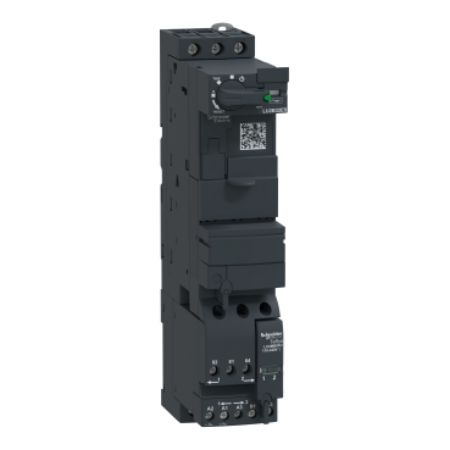

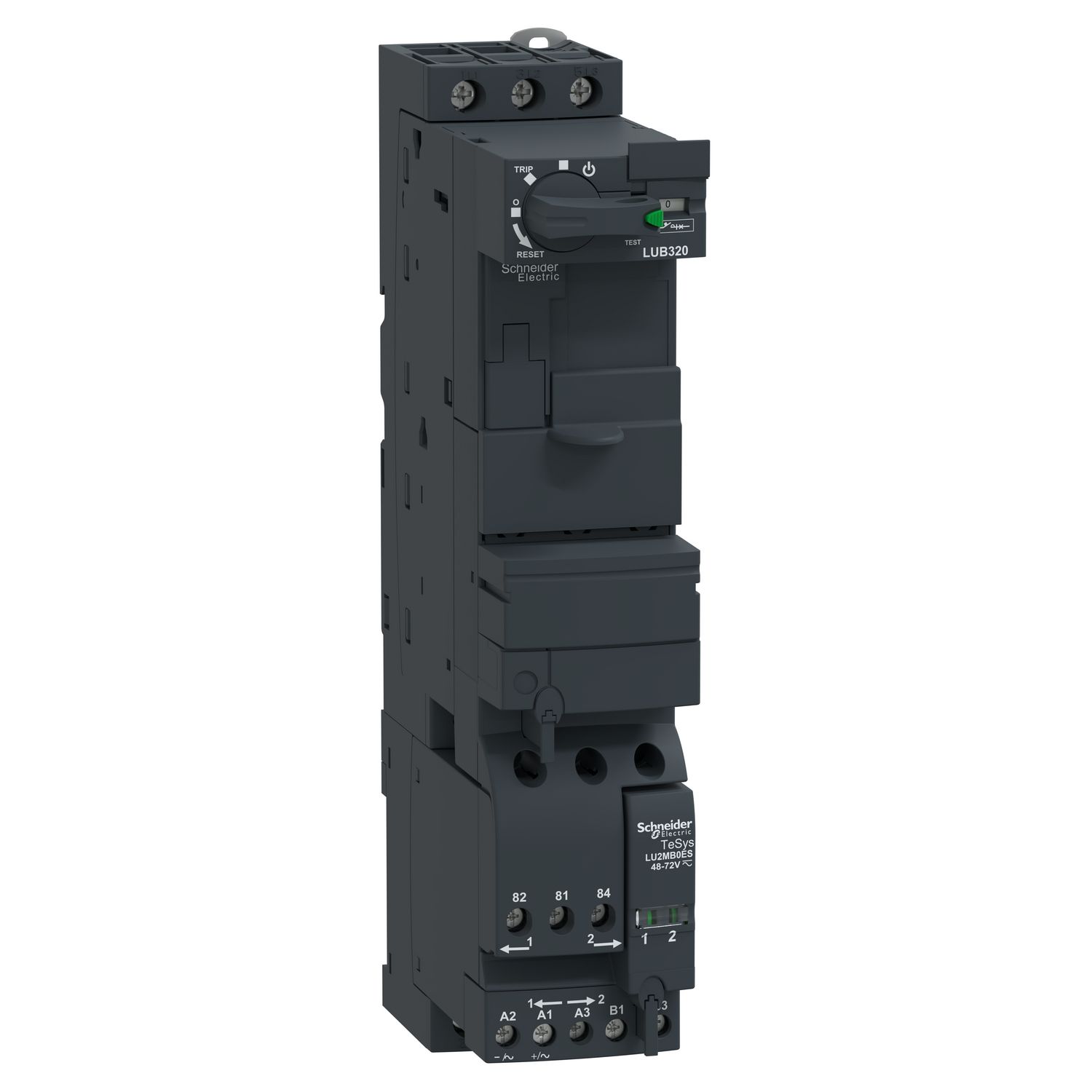

Picture of Reversing power base, TeSys Ultra, 3P, 1NO + 1NC, 32A, 690VAC, 48 to 72VAC/DC coil
SKU:

LU2B32ES

Reversing power base, TeSys Ultra, 3P, 1NO + 1NC, 32A, 690VAC, 48 to 72VAC/DC coil

$995.52
Available for Shipping : 12-Dec-2024
Reversing power base, TeSys Ultra, 3P, 1NO + 1NC, 32A, 690VAC, 48 to 72VAC/DC coil
  • Protection against overload and short-circuit
  • Control unit includes electronic components and the current adjustment dial
  • Modular, plug & play structure helps you to perform quick maintenance
  • Direct access to detailed information for every motor starter of your installation
  • Advanced motor management system
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
Instruction sheet
Product Page Link
Product Data Sheet
TeSys U standard reversing power base, 3 poles (3NO), rated 32A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 15kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" reversing starter controller with basic or advanced protection and control functions. It is equipped with a reverser module LU2MB0ES to be supplied with 48V AC / 48-72V DC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
