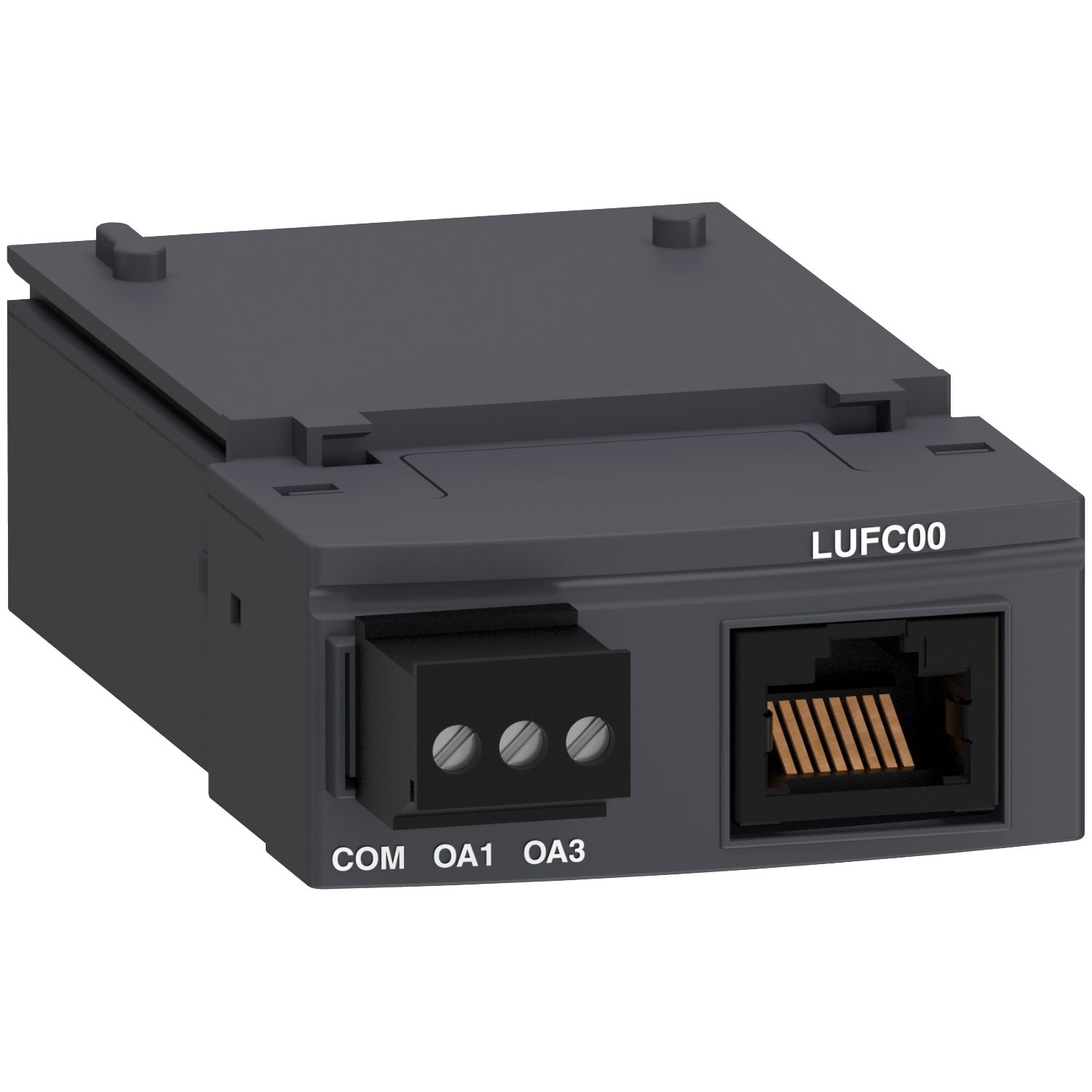

Picture of Parallel wiring module, TeSys Ultra, Plug-in type, Front side, for motor starter
SKU:

LUFC00

Parallel wiring module, TeSys Ultra, Plug-in type, Front side, for motor starter

$155.44
Available for Shipping : 17-Nov-2024
Parallel wiring module, TeSys Ultra, Plug-in type, Front side, for motor starter
  • Provides a RJ45 connector located in front side of module
  • Screw terminal block is provided for the local control of the starter controller
  • Modular, plug & play structure helps you to perform quick maintenance
  • Direct access to detailed information for every motor starter of your installation
  • Advanced motor management system
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
TeSys U parallel liaison module, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a 24V DC control unit LUC*BL type. It provides a RJ45 connector located in front side of module, for the connection to PLC wiring architectures (Modicon TM3, Modicon Telefast, Modicon STB). A screw terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for LUB power base or LU9MRC for LU2B power base. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LUF
Product compatibility LUCC, LUCB, LUCL, LUCA, LUCD, LUCM
Range TeSys
Range of product TeSys Ultra
Product or component type parallel wiring module
Complementary
Compatibility code LUF
Bus type parallel
Mounting mode plug-in
Function available parallel wiring module
Mounting location front side
Net weight 0.045 kg
Current consumption 1 mA
Environment
IP degree of protection IP20 conforming to IEC 60529
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.3 cm
Package 1 Width 4.8 cm
Package 1 Length 9.5 cm
Package 1 Weight 46.0 g
Unit Type of Package 2 2
Number of Units in Package 2 62
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.167 kg

Related products

Picture of preformed cordset, Modicon M340, 40 way terminal, 2 x HE10 connector, 0.5m

preformed cordset, Modicon M340, 40 way terminal, 2 x HE10 connector, 0.5m

BMXFCC053
$214.21
View Detail
Picture of preformed cordset, Modicon M340, 40 way terminal, 2 x HE10 connector, 10m

preformed cordset, Modicon M340, 40 way terminal, 2 x HE10 connector, 10m

BMXFCC1003
$608.98
View Detail
Picture of rolled ribbon cable - 3 m - for Modicon Premium

rolled ribbon cable - 3 m - for Modicon Premium

ABFH20H300
$114.36
View Detail
Picture of connecting cable - Modicon Premium - 2 m - for sub-base ABE7H16R20

connecting cable - Modicon Premium - 2 m - for sub-base ABE7H16R20

TSXCDP203
$314.32
View Detail
Picture of preformed cable - 3 m - for Modicon Premium PLC servodrive

preformed cable - 3 m - for Modicon Premium PLC servodrive

TSXCDP301
$218.95
View Detail
Picture of preformed cordset, Modicon M340, 40 way terminal, 2 x HE10 connector, 3m

preformed cordset, Modicon M340, 40 way terminal, 2 x HE10 connector, 3m

BMXFCC303
$266.92
View Detail
Picture of preformed cordset, Modicon M340, 40 way terminal, 2 x HE10 connector, 5m

preformed cordset, Modicon M340, 40 way terminal, 2 x HE10 connector, 5m

BMXFCC503
$411.61
View Detail

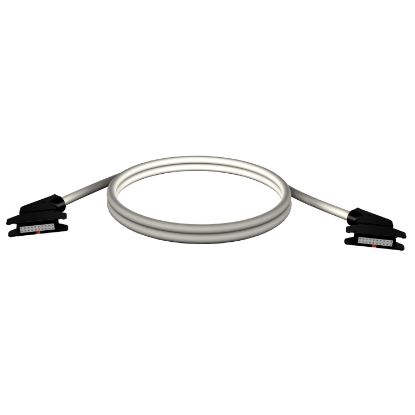

Picture of connecting cable - Modicon Premium - 0.5 m - for sub-base ABE7H16R20
