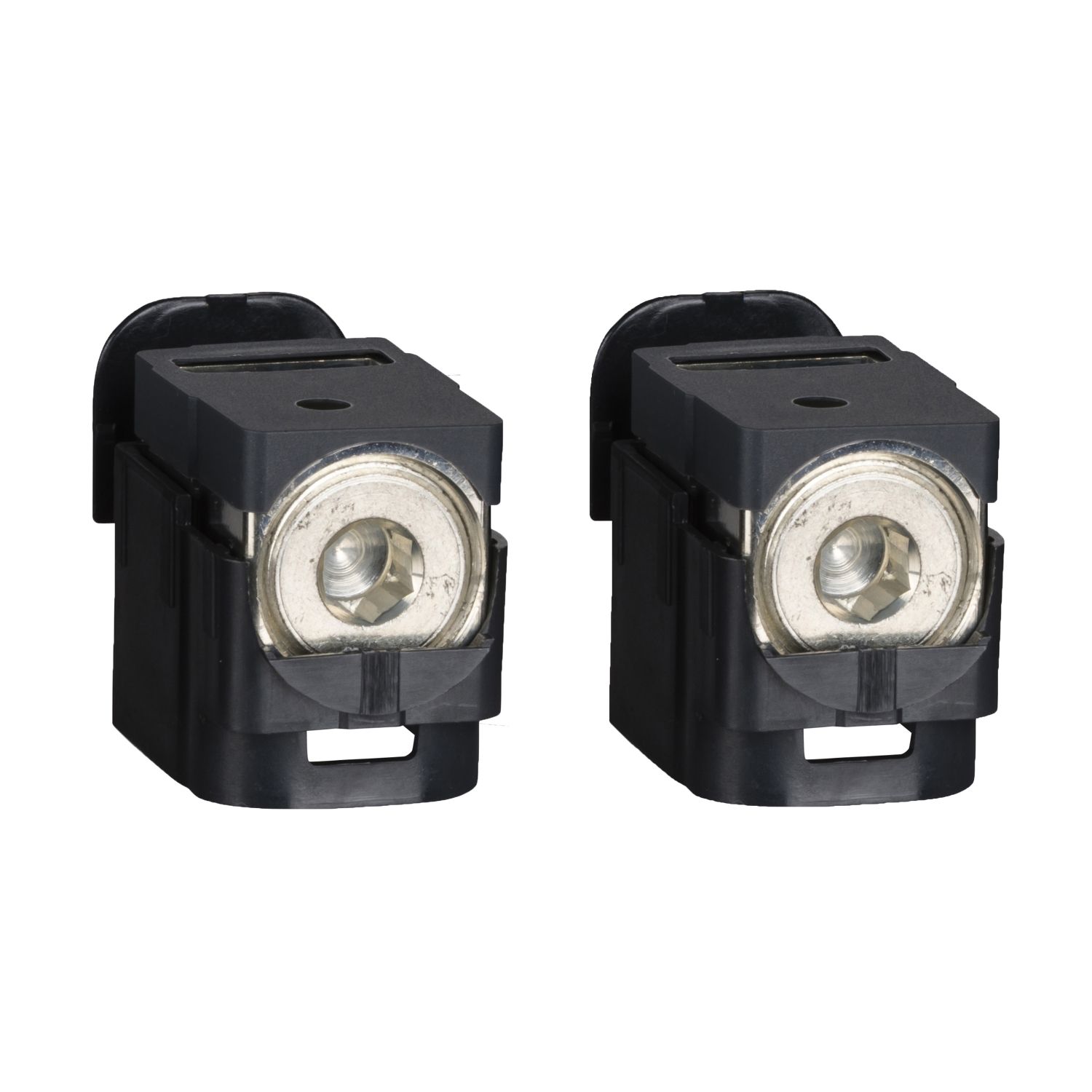

Picture of Aluminium bare cable connectors, ComPacT NSX, for 1 cable 25mm² to 95mm², 250A, set of 2 parts
SKU:

LV429255

Aluminium bare cable connectors, ComPacT NSX, for 1 cable 25mm² to 95mm², 250A, set of 2 parts

$29.64
Aluminium bare cable connectors, ComPacT NSX, for 1 cable 25mm² to 95mm², 250A, set of 2 parts
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
User guide
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
These accessories are aluminium bare cable connectors for Compact NSX 100/160/250. These connectors can receive 1 copper or aluminium cables from 25mm² to 95mm². The connectors snap directly on to the device terminals or are secured by clips to terminal extensions. The rated current is up to 250 A. They are sold by set of 2 parts.

Products specifications

Attribute nameAttribute value
Main
Quantity per setset of 2
Poles description2P
RangeComPacT
Product or component typebare cable connector
Accessory / separate part categoryconnection accessory
Range compatibilityComPact Compact NSX250 DC, ComPact Compact NSX160 DC, ComPact Compact NSX100 DC, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX250 new generation, ComPacT new generation ComPacT NSX160 new generation, ComPacT new generation ComPacT NSX100 new generation
Range of productComPact NSX100...250 DC, ComPact NSX100...250, ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation
Complementary
[In] rated current250-250 A
Connections - terminalsscrew terminal1 cable(s) 25-95 mm²
Conductor materialaluminium
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2.0 cm
Package 1 Width13.0 cm
Package 1 Length31.0 cm
Package 1 Weight141.0 g
Unit Type of Package 22
Number of Units in Package 2100
Package 2 Height30.0 cm
Package 2 Width40.0 cm
Package 2 Length60.0 cm
Package 2 Weight14.866 kg
