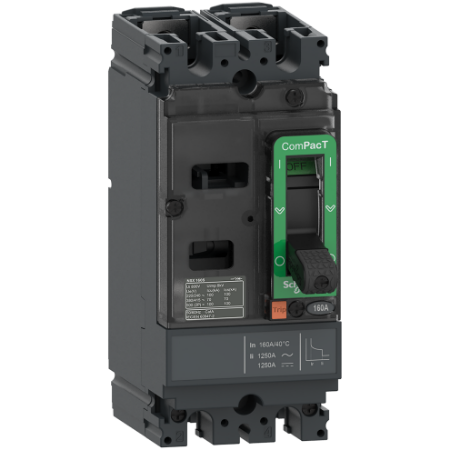

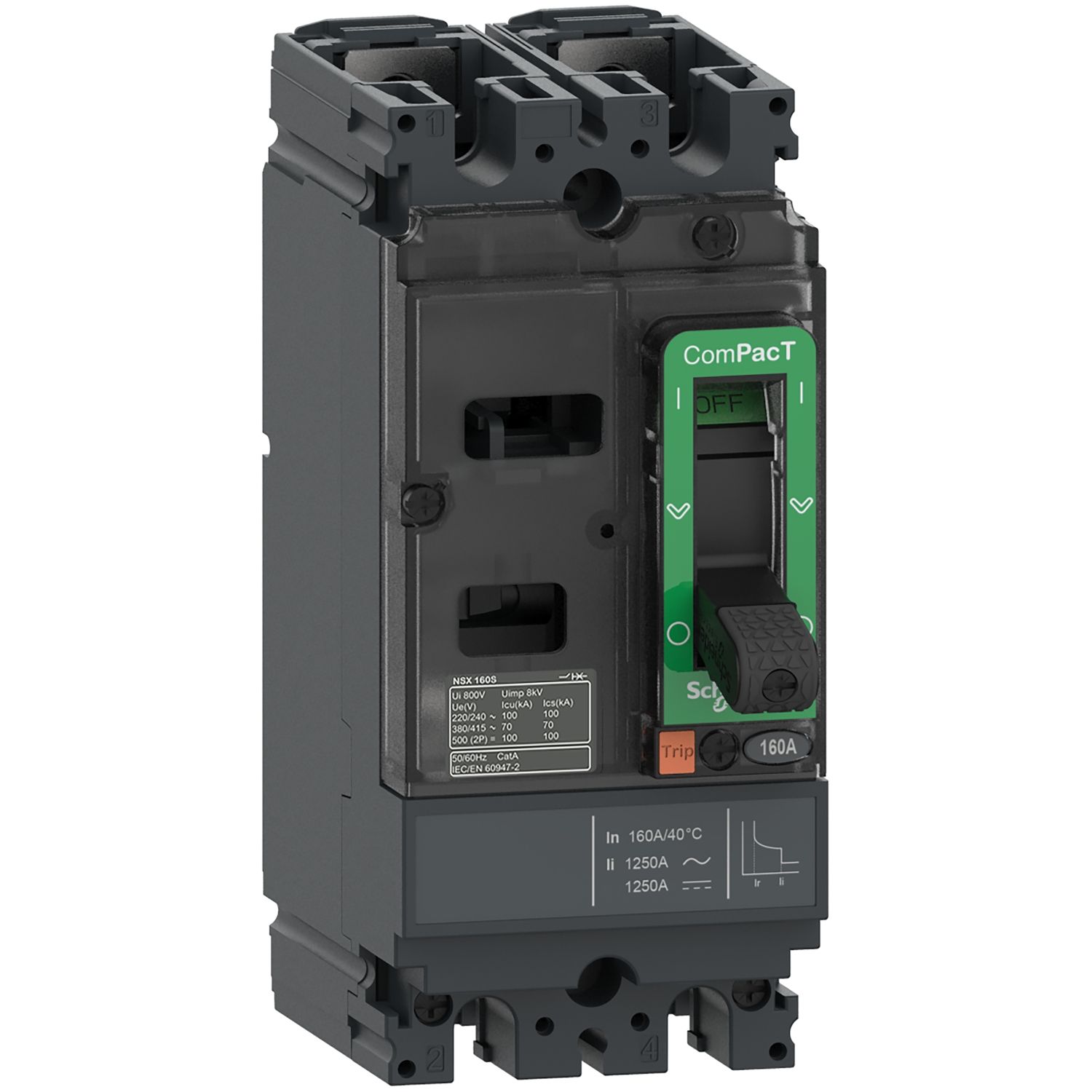

Picture of Circuit breaker, ComPacT NSX100F AC/DC, 18kA/415VAC, 2 poles, TMD trip unit 20A
SKU:

C10F2TM020

Circuit breaker, ComPacT NSX100F AC/DC, 18kA/415VAC, 2 poles, TMD trip unit 20A

$226.26
Available for Shipping : 10-Dec-2024
Product Selector
Circuit breaker, ComPacT NSX100F AC/DC, 18kA/415VAC, 2 poles, TMD trip unit 20A
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
User guide
Instruction sheet
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
ComPacT NSX 100F is a complete 2 poles fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 18kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 20A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an fixed thermal overload protection and a fixed magnetic protection. The dimension is 161mm x 70mm x 86mm (H x W x D). It is compliant with international standards (EN/IEC 60947), CCC, EAC and marine specifications.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Suitability for isolation yes conforming to EN/IEC 60947-2
Trip unit technology thermal-magnetic
Utilisation category category A
Network type DC, AC
Device short name NSX100F
Breaking capacity code F 18 kA 415 V AC
Breaking capacity 36 kA Icu at 500 V DC 50/60 Hz 2 poles in series conforming to IEC 60947-2, 36 kA Icu at 250 V DC 50/60 Hz 1 pole conforming to IEC 60947-2, 5 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 500/525 V AC 50/60 Hz 2P conforming to IEC 60947-2, 15 kA Icu at 440 V AC 50/60 Hz 1P conforming to IEC 60947-2, 18 kA Icu at 380/415 V AC 50/60 Hz 1P conforming to IEC 60947-2, 36 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Mounting mode fixed
Control type toggle
Range ComPacT new generation
Protected poles description 2D
Range of product ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation
Trip unit name TM-D
Poles description 2P
Product name ComPacT NSX new generation
Product or component type circuit breaker
Trip unit protection functions LI
[Ue] rated operational voltage 500 V DC, 690 V AC 50/60 Hz
[In] rated current 20 A at 40 °C
Network frequency 50/60 Hz
Complementary
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Compatibility code NSX100
Trip unit rating 20-20 A at 40 °C
Long time pick-up adjustment type Ir fixed
Electrical durability 10000 cycles at 277 V In, 20000 cycles at 277 V In/2
Downside connection front
Earth-leakage protection without
Height 161 mm
[Ics] rated service breaking capacity 36 kA at 500 V DC 50/60 Hz conforming to IEC 60947-2, 36 kA at 250 V DC 50/60 Hz conforming to IEC 60947-2, 5 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 18 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage 750 V AC 50/60 Hz conforming to IEC 60947-2
Net weight 1.2 kg
Long time delay adjustment type fixed
Power dissipation per pole 6.42 W
Connection pitch 35 mm
Mechanical durability 20000 cycles
Upside connection front
Long time pick-up adjustment range 1 x In
Protection type I : for short-circuit protection (magnetic), L : for overload protection (thermal)
Depth 86 mm
Width 70 mm
Mounting position flat on the back, horizontal and vertical
Instantaneous pick-up adjustment type Ii fixed
Instantaneous pick-up adjustment range 190 A
Mounting support backplate
Environment
Relative humidity 0-95 %
Ambient air temperature for storage -50-85 °C
Overvoltage category class II
Operating altitude 2000 m...5000 m with derating, 0...2000 m without derating
Electrical shock protection class class II
Product certifications Marine, EAC, CCC
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to IEC 62262
Standards EN/IEC 60947
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 13.000 cm
Package 1 Length 17.500 cm
Package 1 Weight 1.280 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 15.670 kg

Related products

Picture of Shunt trip release MX, ComPacT NSX, 220/240VAC 50/60Hz, 208/277VAC 60Hz, screwless spring terminal connections

Shunt trip release MX, ComPacT NSX, 220/240VAC 50/60Hz, 208/277VAC 60Hz, screwless spring terminal connections

LV429387
$355.15
View Detail
Picture of Shunt trip release MX, ComPacT NSX, 380/415VAC 50/60Hz, 440/480VAC 60Hz, screwless spring terminal connections

Shunt trip release MX, ComPacT NSX, 380/415VAC 50/60Hz, 440/480VAC 60Hz, screwless spring terminal connections

LV429388
$355.15
View Detail

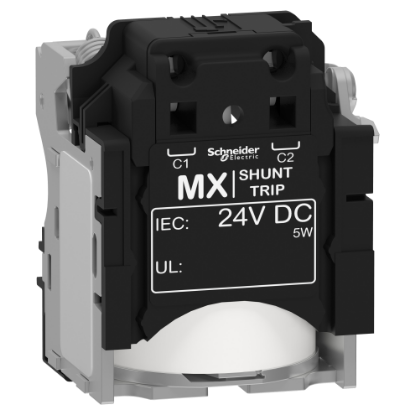

Picture of Shunt trip release MX, ComPacT NSX, 24VDC, screwless spring terminal connections

Shunt trip release MX, ComPacT NSX, 24VDC, screwless spring terminal connections

LV429390
$355.15
View Detail
Picture of Undervoltage release MN, ComPacT NSX, 220/240VAC 50/60Hz, 208/277VAC 60Hz, screwless spring terminal connections

Undervoltage release MN, ComPacT NSX, 220/240VAC 50/60Hz, 208/277VAC 60Hz, screwless spring terminal connections

LV429407
$430.42
View Detail
Picture of Undervoltage release MN, ComPacT NSX, 380/415VAC 50/60Hz, 440/480VAC 60Hz, screwless spring terminal connections

Undervoltage release MN, ComPacT NSX, 380/415VAC 50/60Hz, 440/480VAC 60Hz, screwless spring terminal connections

LV429408
$430.42
View Detail

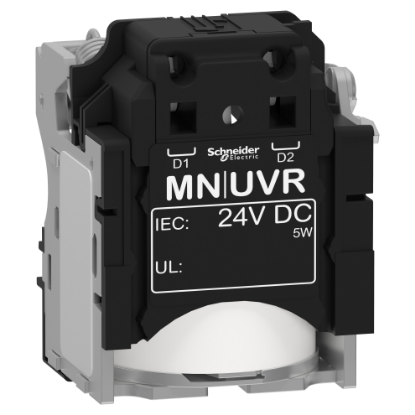

Picture of Undervoltage release MN, ComPacT NSX, rated voltage 24VDC, screwless spring terminal connections

Undervoltage release MN, ComPacT NSX, rated voltage 24VDC, screwless spring terminal connections

LV429410
$430.42
View Detail
Picture of Low level auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type

Low level auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type

29452
$185.81
View Detail

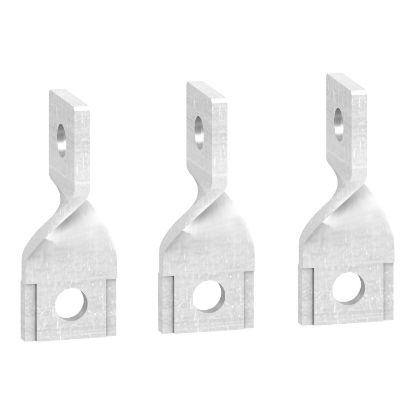

Picture of Terminal extensions, ComPacT NSX 100/160/250, edgewise, set of 3 parts
