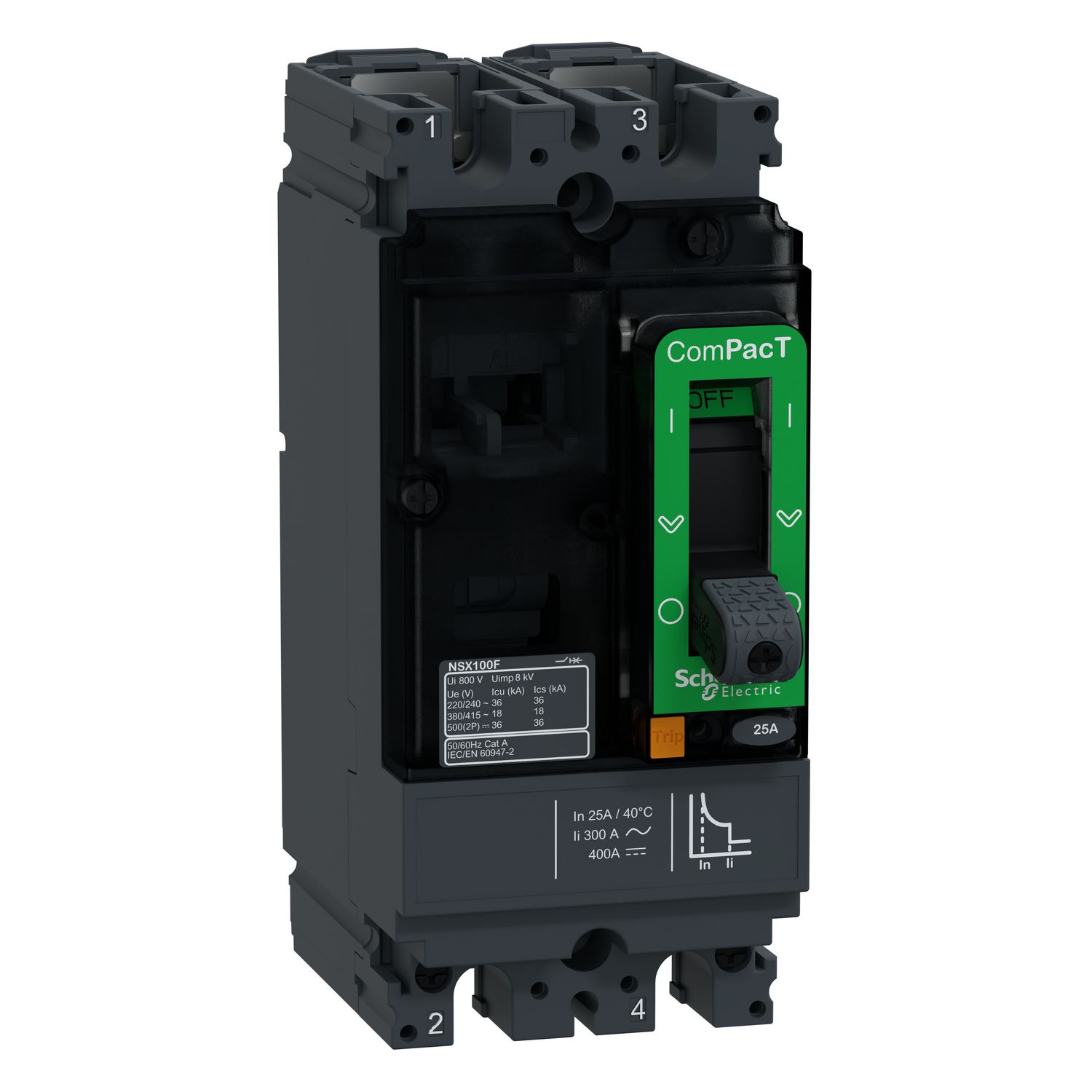

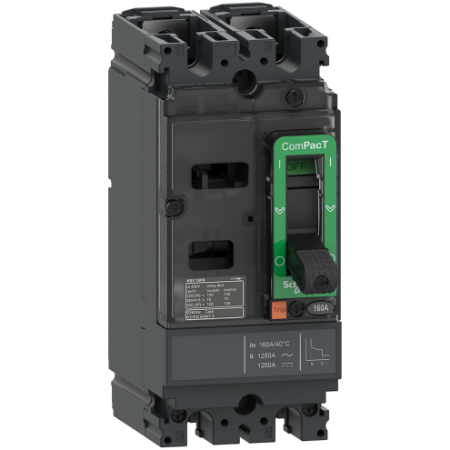

Picture of Circuit breaker, ComPacT NSX100F AC/DC, 18kA/415VAC, 2 poles, TMD trip unit 25A
SKU:

C10F2TM025

Circuit breaker, ComPacT NSX100F AC/DC, 18kA/415VAC, 2 poles, TMD trip unit 25A

$226.26
Product Selector
Circuit breaker, ComPacT NSX100F AC/DC, 18kA/415VAC, 2 poles, TMD trip unit 25A
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Product environmental
End of life manual
User guide
Instruction sheet
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
ComPacT NSX 100F is a complete 2 poles fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 18kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 25A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an fixed thermal overload protection and a fixed magnetic protection. The dimension is 161mm x 70mm x 86mm (H x W x D). It is compliant with international standards (EN/IEC 60947), CCC, EAC and marine specifications.

Products specifications

Attribute nameAttribute value
Main
Device applicationdistribution
Suitability for isolationyes conforming to EN/IEC 60947-2
Trip unit technologythermal-magnetic
Utilisation categorycategory A
Network typeDC, AC
Device short nameNSX100F
Breaking capacity codeF 18 kA 415 V AC
Breaking capacity36 kA Icu at 500 V DC 50/60 Hz 2 poles in series conforming to IEC 60947-2, 36 kA Icu at 250 V DC 50/60 Hz 1 pole conforming to IEC 60947-2, 5 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 500/525 V AC 50/60 Hz 2P conforming to IEC 60947-2, 15 kA Icu at 440 V AC 50/60 Hz 1P conforming to IEC 60947-2, 18 kA Icu at 380/415 V AC 50/60 Hz 1P conforming to IEC 60947-2, 36 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Mounting modefixed
Control typetoggle
RangeComPacT new generation
Protected poles description2D
Range of productComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation
Trip unit nameTM-D
Poles description2P
Product nameComPacT NSX new generation
Product or component typecircuit breaker
Trip unit protection functionsLI
[Ue] rated operational voltage500 V DC, 690 V AC 50/60 Hz
[In] rated current25 A at 40 °C
Network frequency50/60 Hz
Complementary
[Uimp] rated impulse withstand voltage8 kV conforming to IEC 60947-2
Compatibility codeNSX100
Trip unit rating25-25 A at 40 °C
Long time pick-up adjustment type Irfixed
Electrical durability10000 cycles at 277 V In, 20000 cycles at 277 V In/2
Downside connectionfront
Earth-leakage protectionwithout
Height161 mm
[Ics] rated service breaking capacity36 kA at 500 V DC 50/60 Hz conforming to IEC 60947-2, 36 kA at 250 V DC 50/60 Hz conforming to IEC 60947-2, 5 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 18 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage750 V AC 50/60 Hz conforming to IEC 60947-2
Net weight1.2 kg
Long time delay adjustment typefixed
Power dissipation per pole4.01 W
Connection pitch35 mm
Mechanical durability20000 cycles
Upside connectionfront
Long time pick-up adjustment range1 x In
Protection typeI : for short-circuit protection (magnetic), L : for overload protection (thermal)
Depth86 mm
Width70 mm
Mounting positionflat on the back, horizontal and vertical
Instantaneous pick-up adjustment type Iifixed
Instantaneous pick-up adjustment range300 A
Mounting supportbackplate
Environment
Relative humidity0-95 %
Ambient air temperature for storage-50-85 °C
Overvoltage categoryclass II
Operating altitude2000 m...5000 m with derating, 0...2000 m without derating
Electrical shock protection classclass II
Product certificationsMarine, EAC, CCC
Pollution degree3 conforming to IEC 60664-1
IP degree of protectionIP40 conforming to IEC 60529
Ambient air temperature for operation-25-70 °C
IK degree of protectionIK07 conforming to IEC 62262
StandardsEN/IEC 60947
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.200 cm
Package 1 Width13.000 cm
Package 1 Length17.600 cm
Package 1 Weight1.287 kg
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight15.810 kg
