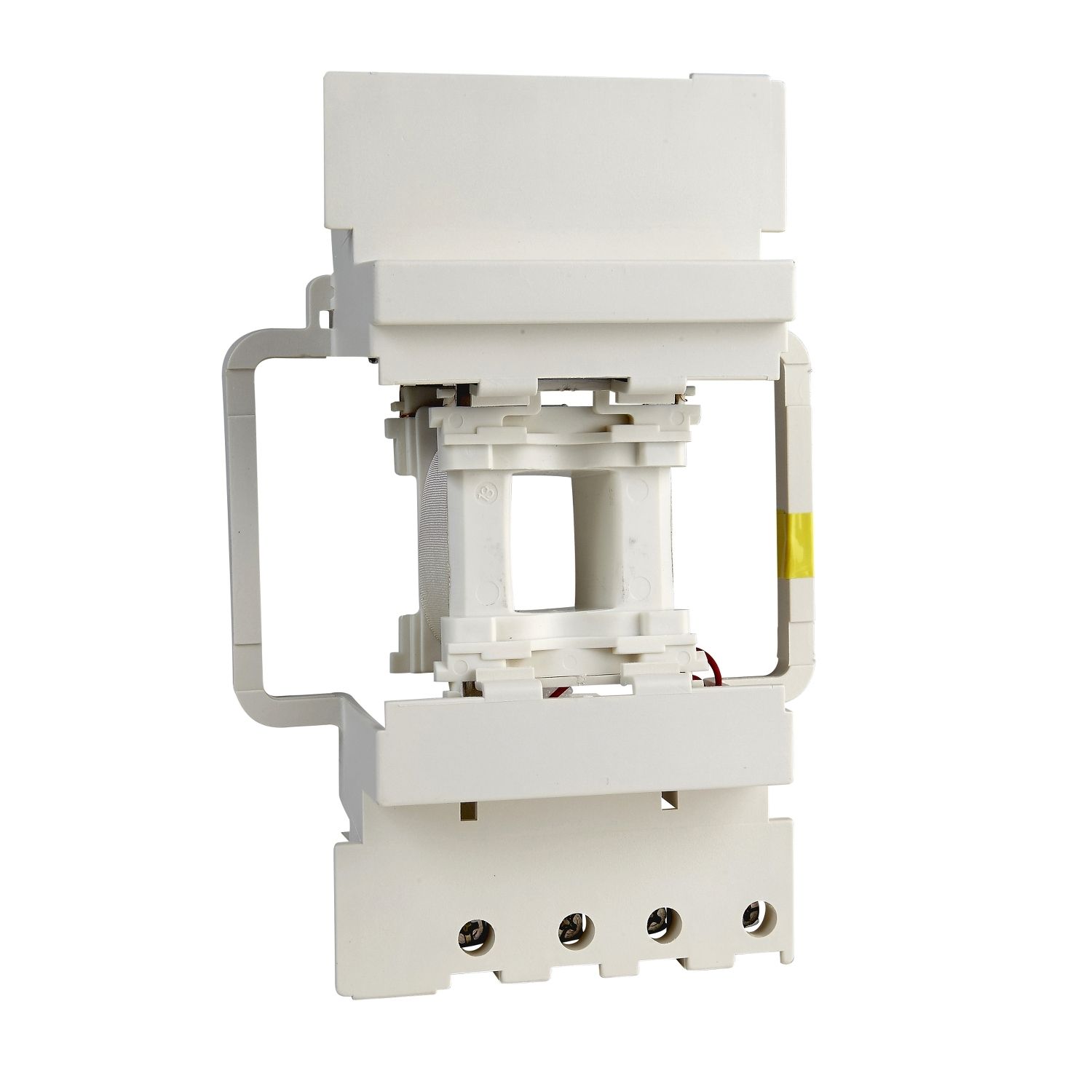

Picture of TeSys; TeSys Deca, contactor coil, LX1D8, 220 V AC 50/60 Hz for 115 & 150 A contactor
SKU:

LX1D8M7

TeSys; TeSys Deca, contactor coil, LX1D8, 220 V AC 50/60 Hz for 115 & 150 A contactor

$157.20
Available for Shipping : 05-Dec-2024
TeSys; TeSys Deca, contactor coil, LX1D8, 220 V AC 50/60 Hz for 115 & 150 A contactor
  • Spare coil for Deca contactor
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Product Page Link
Product Data Sheet
This product is TeSys Deca replacement AC coil 220V 50/60Hz for TeSys Deca contactors. It is applied on 3 and 4-pole contactors LC1D115. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LX1D8
Product compatibility LC1D115, LC1D150
Mechanical durability 8 Mcycles
Maximum operating rate 1200 cyc/h 60 °C
Inductance of closed circuit 210.72 H
Range TeSys
Product or component type contactor coil
Control circuit type AC at 50/60 Hz
Range of product TeSys Deca
[Uc] control circuit voltage 220 V AC 50/60 Hz
Average resistance 9895 Ohm at 20 °C
Complementary
Heat dissipation 3-4.5 W at 50/60 Hz
Hold-in power consumption in VA 2-18 VA 50 Hz cos phi 0.9 (at 20 °C), 2-18 VA 60 Hz cos phi 0.9 (at 20 °C)
Coil technology without built-in suppressor module
Inrush power in VA 280-350 VA 50 Hz cos phi 0.9 (at 20 °C), 280-350 VA 60 Hz cos phi 0.9 (at 20 °C)
Control circuit voltage limits operational: 0.8...1.15 Uc at 50/60 Hz (at <55 °C), drop-out: 0.3...0.5 Uc at 50/60 Hz (at <55 °C)
Environment
Ambient air temperature for operation -5-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.200 cm
Package 1 Width 11.500 cm
Package 1 Length 17.000 cm
Package 1 Weight 296.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.544 kg
