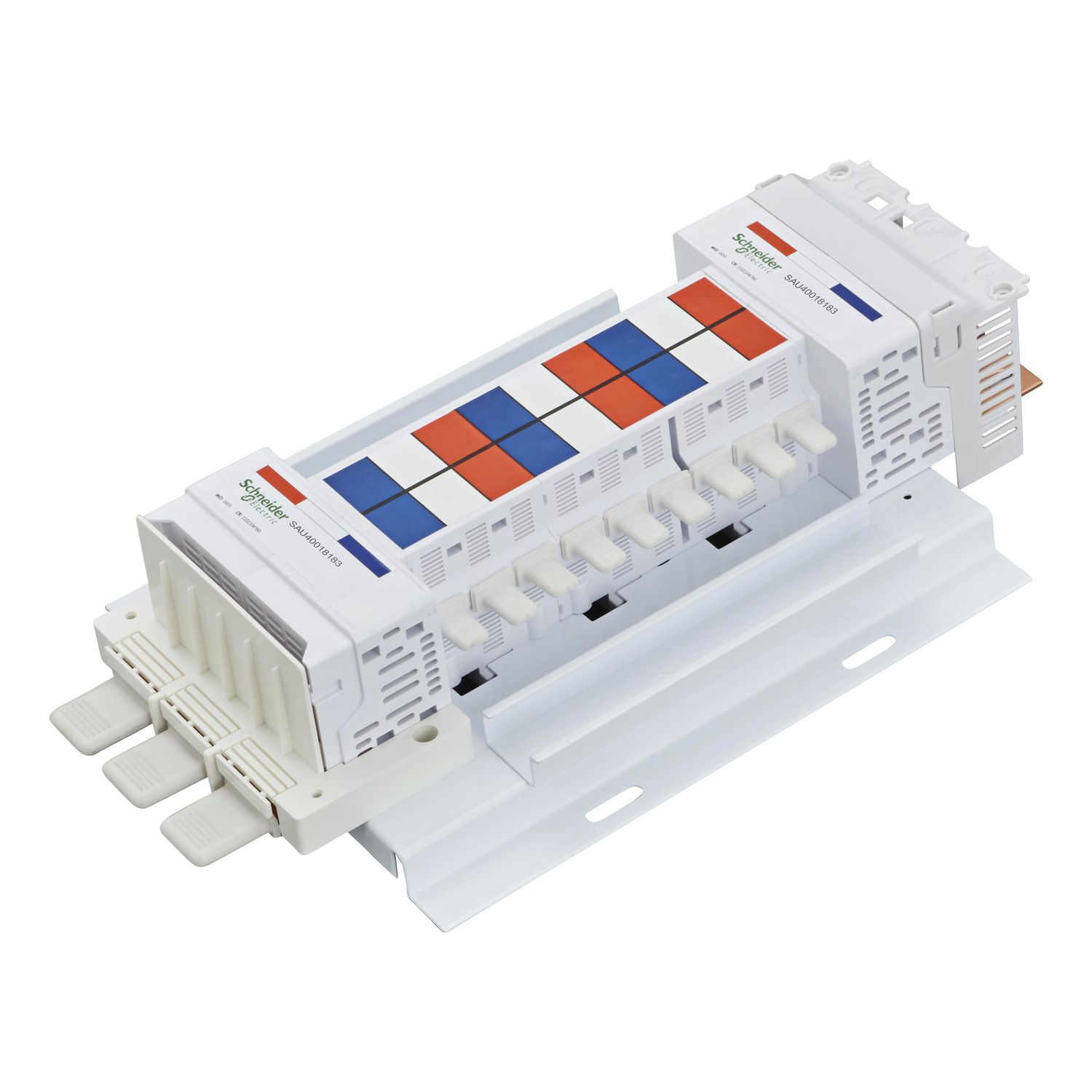

Picture of Acti9, SAU Chassis 3PH 400A, 18mm for iC60 MCB & RCBO, 18 Poles, Dual Feed
SKU:

SAU40018183DF

Acti9, SAU Chassis 3PH 400A, 18mm for iC60 MCB & RCBO, 18 Poles, Dual Feed

$350.81
Available for Shipping : 11-Dec-2024
Product Selector
Acti9, SAU Chassis 3PH 400A, 18mm for iC60 MCB & RCBO, 18 Poles, Dual Feed
Be the first to review this product
Manufacturer: Schneider Electric
Product Page Link
Product Data Sheet
This Acti9 SAU Chassis product can be mounted on Distribution boards The Ie rated operational current 250A and Ue rated operational voltage of 415V at 50 Hz This chassis can have both top or bottom feeding This Chassis is compatibility with incomer 3Ph and ootgoer 1Ph or 3P devices The number of outgoing ways in Chassis is 18 with pitch of 18mm. This chassis has IP2X protection when used with relavant accessories. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV. This product complies with AS NZS 61439-2 standard. The total dimensions are (L) 448mm x (W) 215mm.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Range Acti9
Product or component type chassis
Complementary
Number of poles 18, 18 x 18 mm
Protection device type residual current circuit breaker with overcurrent protection (RCBO) as outgoer, miniature circuit breaker (MCB) as outgoer
Depth 95 mm
Width 245 mm
Incomer device MCCB - 3P, switch disconnector - 3P
Location of connection dual feed
[In] rated current 400 A
Short-circuit withstand 25 kA 0.1 s
Rated voltage 415 V 50 Hz
Net weight 2.28 kg
Length 448 mm
[Ui] rated insulation voltage 500 V
Number of ways 1 way (outgoer) - 1P or 3P, 1 way (incomer) - 3P
Network type AC
[Uimp] rated impulse withstand voltage 6 kV
Busbar pitch 18 mm
Environment
Standards AS/NZS 61439
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.5 cm
Package 1 Width 24.5 cm
Package 1 Length 44.8 cm
Package 1 Weight 2.1 kg
