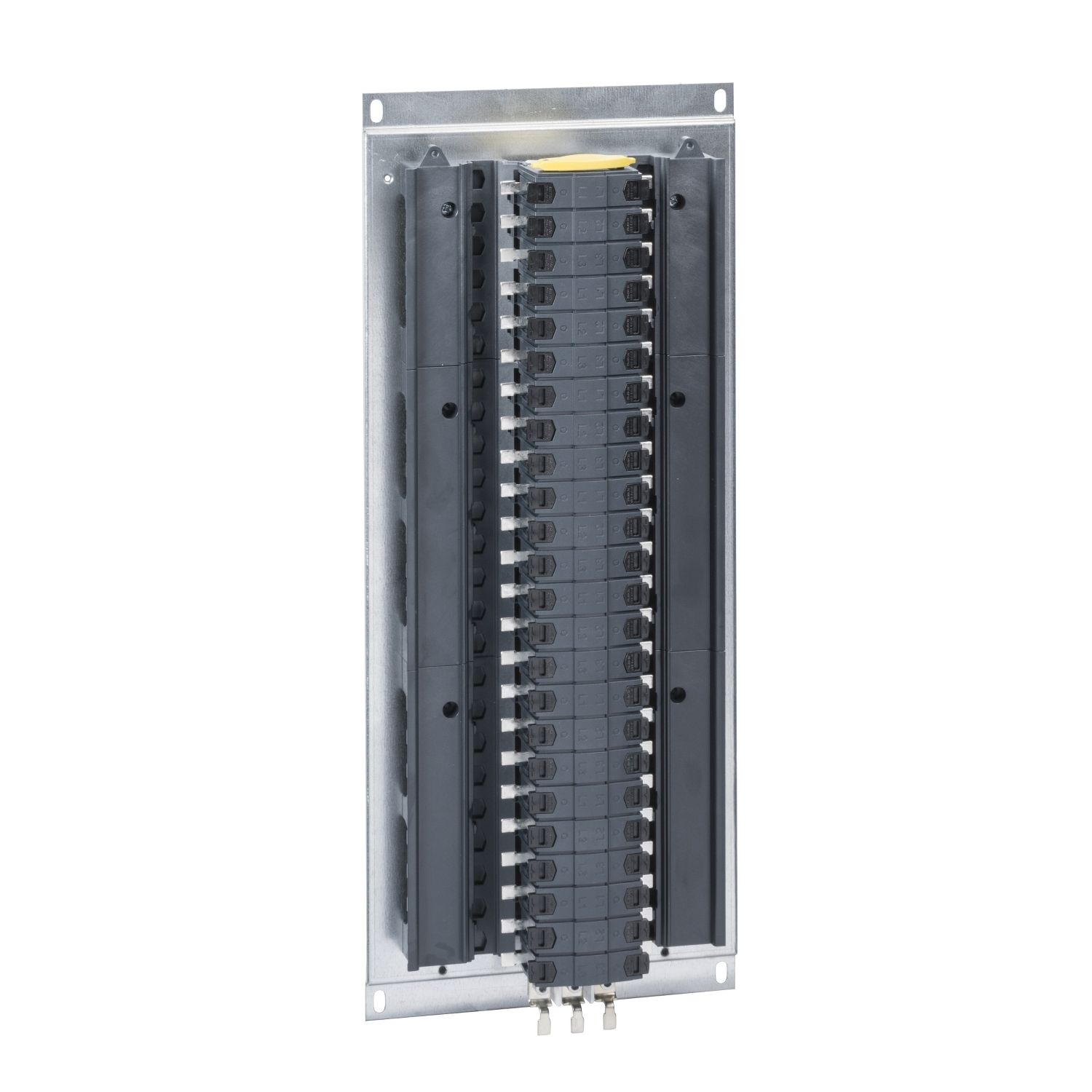

Picture of Acti9, Isobar B - panel fixing pan assembly - 16 ways TP&N
SKU:

SEA9BN16TNA

Acti9, Isobar B - panel fixing pan assembly - 16 ways TP&N

$536.23
Available for Shipping : 24-Nov-2024
Acti9, Isobar B - panel fixing pan assembly - 16 ways TP&N
  • Acti9 Isobar Chassis , 250A, 48 ways
  • A three phase Chassis compliant to local standands and wiring regulations
  • Chassis fully compliant with Acti9 iC60 Circuit protection devices and system
  • Encapsulated chassis with isolation feature for additional safety
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Product Page Link
Product Data Sheet
This Acti9 Isobar B product is a pan assembly which can be installed in Acti9 Isobar B distribution board. It provides 16 ways of 3P+N. It contains switch disconnector, residual current circuit breaker (RCCB), residual current circuit breaker with overcurrent protection (RCBO) and miniature circuit breakers (MCB). It is dedicated for 3 phase without distributed neutral, up to 63A. It can protect a residual current circuit breaker up to 45A and a miniature circuit breaker up to 63A. It is provided without mounting plate. It comes with terminal block. The length is 506mm.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Range Acti9
Product or component type pan assembly
Complementary
Protection device type miniature circuit breaker (MCB) 63 A max , residual current circuit breaker with overcurrent protection (RCBO) 45 A max
Depth 90 mm
Width 210 mm
Incomer device 3P MCCB,  3P terminal block,  3P switch disconnector
[In] rated current 250 A
Provided equipment mounting plate
Number of poles 48 x 18 mm
Length 506 mm
Range compatibility Acti 9 Acti9 Isobar B distribution board
Number of ways 16 ways (outgoer), 1 way (incomer) - 3P + N
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.5 cm
Package 1 Width 21.5 cm
Package 1 Length 51 cm
Package 1 Weight 3.422 kg
Unit Type of Package 2 2
Number of Units in Package 2 72
Package 2 Height 112 cm
Package 2 Width 100 cm
Package 2 Length 120 cm
Package 2 Weight 266.384 kg
