SKU:

SER8350A0B00

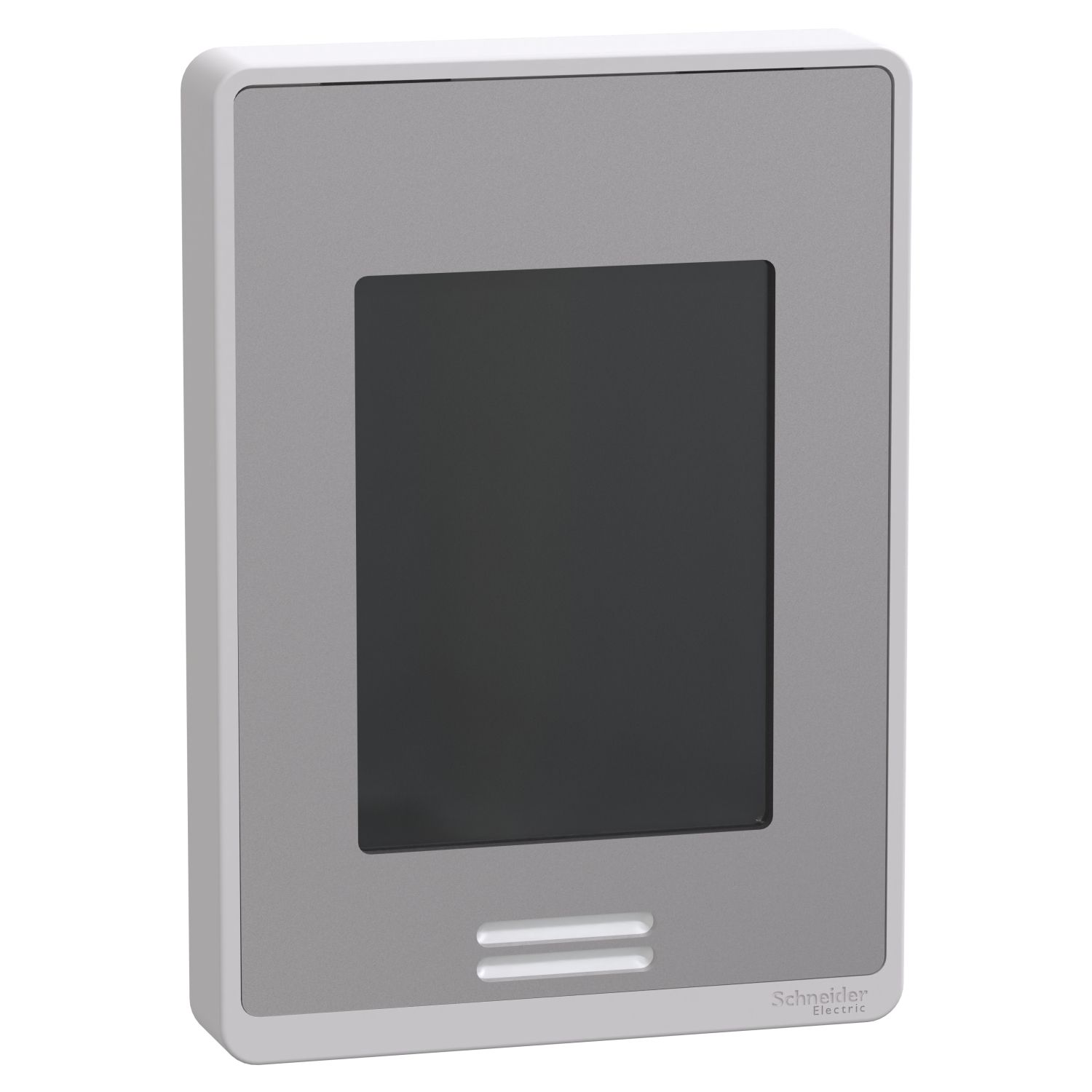

Line-Voltage Fan Coil Room Controller: BACnet MS/TP, RH sensor & control, Silver Case/Fascia

Please Contact Sales to buy this Product. click here
Line-Voltage Fan Coil Room Controller: BACnet MS/TP, RH sensor & control, Silver Case/Fascia
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
This SER8350 Line Voltage fan coil unit room controller works with VC3000 relay pack. With touch color screen. Silver Fascia & Casing. BACnet communication to connect with BMS

Products specifications

Attribute nameAttribute value
Main
Device short nameSER8300
Device applicationline voltage fan coil
Depth25 mm
Temperature resolution0.1 °C
Humidity setting range30-95 %
Market segmentschool, residential, office, non-critical buildings, healthcare, buildings, small commercial, lodging/hotel
Width86 mm
[In] rated current4 A
Temperature setting range4.5-32 °C heating, 12-37.5 °C cooling
Sensor typebulk polymer humidity, space RH sensor humidity, 10 kOhm T2 NTC thermistor temperature
Relative humidity0-95 %
Input voltage0...10 V DC
Output current1 A relay output
Ambient air temperature for storage-30-50 °C
AWG gaugeAWG 24...AWG 18
Directives2014/53/EU - radio equipment directive, 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Communication port protocolModbus RTU, BACnet MS/TP
Input type5 x analog, 2 x dry contact
RangeEcoStruxure Building Expert
Net weight340 g
Product nameSE8000 Series
Humidity measurement driftless than 1 % yearly
Output type4 xuniversal, 5 xrelay output
Product or component typeroom controller
Targeted regionNorth America.
Output voltage0...10 V DC for analog output, 24 V AC for relay output
StandardsETSI EN 301 489-17:v2.2.1, 2012, UL 60730-2-9, FCC part 15 Subpart C, ETSI EN 301 489-1:v1.9.2, ETSI EN 300 328, ICES-003, FCC part 15 Subpart B, EN/IEC 60730-1
Calibration certificate1 pt
Ambient air temperature for operation0-50 °C
Height120 mm
Housing coloursilver
Complementary
Surface treatmentuntreated
Surface finishmatt
EconomizerYes
PIR coverNo
Humidity controlYes
SchedulingNo
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2.5 cm
Package 1 Width8.6 cm
Package 1 Length12 cm
Package 1 Weight43 g
