SKU:

SER8350A0B11

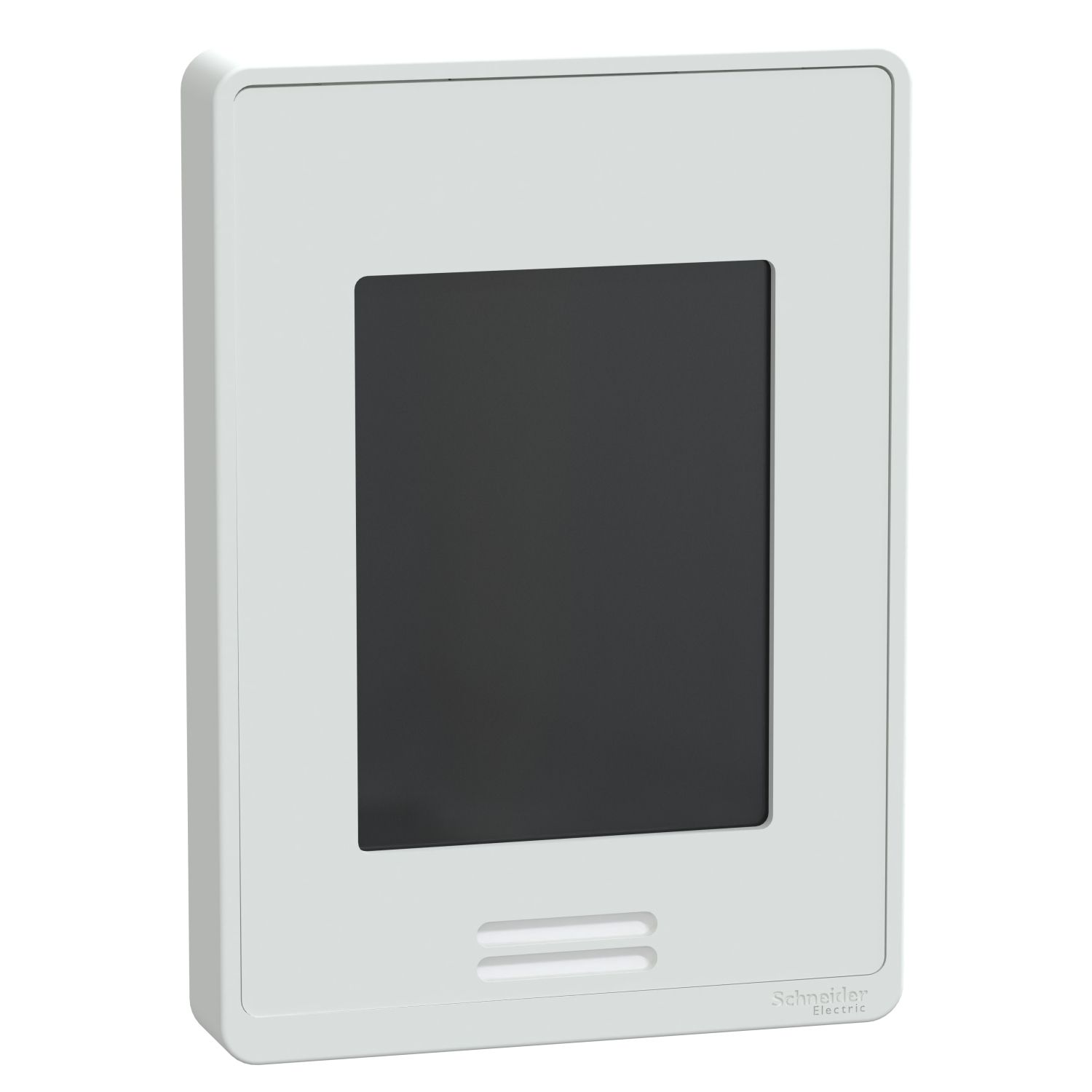

Line-Voltage Fan Coil Room Controller: BACnet MS/TP, RH sensor & control, White Case/Fascia

Please Contact Sales to buy this Product. click here

Line-Voltage Fan Coil Room Controller: BACnet MS/TP, RH sensor & control, White Case/Fascia

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 26-Sep-2024

Product environmental

Catalogue

Product Page Link

Product Data Sheet

SER8300 Series room controllers are used for Line Voltage Fan Coil Unit control. The room controllers rated supply voltage is 7V DC at 2.4watts. The room controller is colored white and is equiped with a communication port that uses BACnet MS/TP protocol. Its Room and Outdoor Air Temperature Display Range is between -40 and 50 oC. The measurement accuracy is +/- 0.5%. The temperature setting range is 12 to 37.5oC for cooling and 4.5 to 32 oC for heating. The room controller is equiped with 3 digital inputs. The product follows the following standards: IEC 61326-1: 2005, FCC part 15 subpart C, RSS 210 issue 8, FCC part 15 subpart B, ICES-003, EN 60950-1: 2006/A2, EN 60950-1: 2013, ETSI EN 301 489-1: v1.9.2. The product follows the directives: 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive. The ambient air temperature for operation is between 0 and 50oC. The relative humidity for operating or storage is between 0 and 75% non condensing. The humidity reading range is 10 to 90% RH non-condensing.

Products specifications

Attribute name	Attribute value
Main
Device short name	SER8300
Device application	line voltage fan coil
Depth	25 mm
Temperature resolution	0.1 °C
Humidity setting range	30-95 %
Market segment	school, residential, office, non-critical buildings, healthcare, buildings, small commercial, lodging/hotel
Width	86 mm
[In] rated current	4 A
Temperature setting range	4.5-32 °C heating, 12-37.5 °C cooling
Sensor type	bulk polymer humidity, space RH sensor humidity, 10 kOhm T2 NTC thermistor temperature
Relative humidity	0-95 %
Input voltage	0...10 V DC
Output current	1 A relay output
Ambient air temperature for storage	-30-50 °C
AWG gauge	AWG 24...AWG 18
Directives	2014/53/EU - radio equipment directive, 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Communication port protocol	Modbus RTU, BACnet MS/TP
Input type	5 x analog, 2 x dry contact
Range	EcoStruxure Building Expert
Net weight	340 g
Product name	SE8000 Series
Humidity measurement drift	less than 1 % yearly
Output type	4 xuniversal, 5 xrelay output
Product or component type	room controller
Targeted region	North America.
Output voltage	0...10 V DC for analog output, 24 V AC for relay output
Standards	ETSI EN 301 489-17:v2.2.1, 2012, UL 60730-2-9, FCC part 15 Subpart C, ETSI EN 301 489-1:v1.9.2, ETSI EN 300 328, ICES-003, FCC part 15 Subpart B, EN/IEC 60730-1
Calibration certificate	1 pt
Ambient air temperature for operation	0-50 °C
Height	120 mm
Housing colour	white
Complementary
Surface treatment	untreated
Surface finish	matt

Economizer	Yes
PIR cover	No
Humidity control	Yes
Scheduling	No
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.9 cm
Package 1 Width	10.7 cm
Package 1 Length	15.5 cm
Package 1 Weight	213.2 g
