SKU:

SR3PACKBD

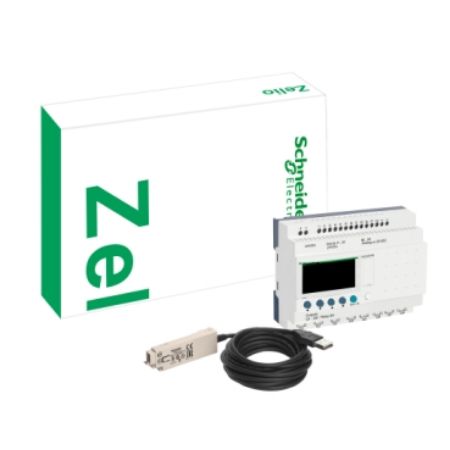

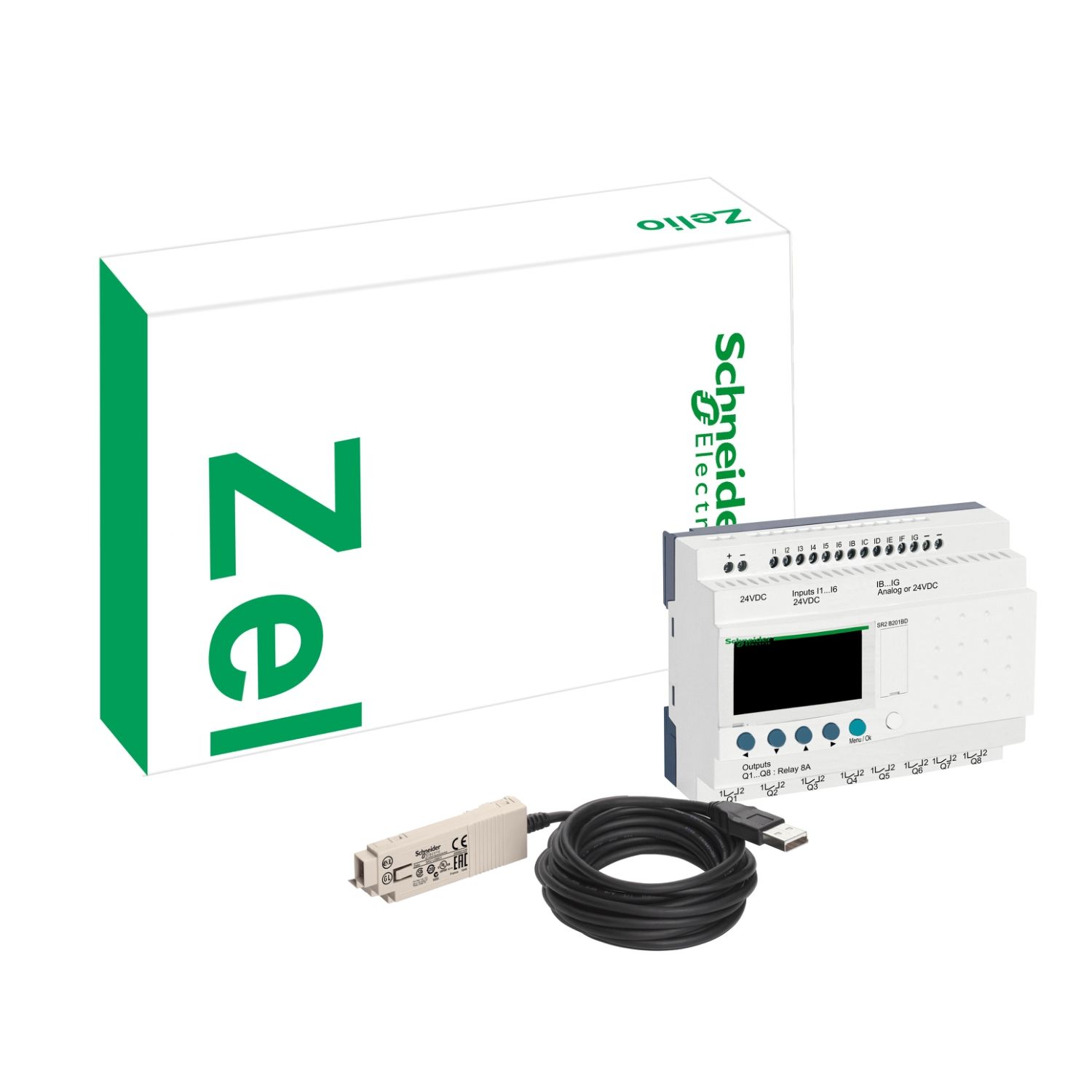

Zelio Logic, smart relay discovery pack, 10 I/O, 24 V DC

$526.32 INC GST

Qty:

Available for Shipping : 19-Mar-2025

Product Selector

Zelio Logic, smart relay discovery pack, 10 I/O, 24 V DC

Be the first to review this product

Manufacturer: Telemecanique

Catalogue

Product environmental

End of life manual

User guide

Product Page Link

Product Data Sheet

This product is part of Smart Relay - Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This Zelio Logic modular discovery pack features 10 I/Os, local display, 120 with ladder and 0 to 200 with FBD programming control scheme lines. It is a smart relay with rated supply voltage of 24V DC and cycle time of 6ms to 90ms. It offers 6 resistive discrete inputs with voltage of 24V DC and 4 relay outputs from 24V to 250V AC and 5V to 30V DC. It is an IP20 and IP40 rated product. It weighs 0.7kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.

Products specifications

Attribute name	Attribute value
Main
Discrete input number	6 conforming to IEC 61131-2 Type 1
Range of product	Zelio Logic
Product or component type	modular discovery packs
Number of outputs	4 relay
Complementary
Counting frequency	1 kHz for discrete input
Operating rate in Hz	10 Hz (no load) for relay output, 0.1 Hz (at Ie) for relay output
[Uimp] rated impulse withstand voltage	4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Analogue input resolution	8 bits
Temperature probe type	Pt 500, KTY81 210/220/221/222/250, NTC 1000k at 25 °C, NTC 10k at 25 °C
Tightening torque	0.5 N.m
Operating distance	10 m between stations, with screened cable (sensor not isolated) for analogue input circuit
Supply voltage limits	19.2-30 V
Current state 0 guaranteed	<= 0.75 mA (I1...IA and IH...IR discrete input circuit), <= 0.5 mA (IB...IG used as discrete input circuit)
Input compatibility	3-wire proximity sensors PNP for discrete input
Electrical durability	DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1, AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1
Conversion time	smart relay cycle time for analogue input circuit
Voltage state 0 guaranteed	<= 5 V, <= 5 V for IB...IG used as discrete input circuit, <= 5 V for I1...IA and IH...IR discrete input circuit
Local display	with
Power dissipation in W	8 W with extensions, 3 W without extension
Clock	with
Analogue input type	common mode
Backup time	10 years at 25 °C
Discrete input voltage	24 V DC
Output thermal current	8 A for all 4 outputs for relay output
Analogue input range	0...10 V, 0...24 V
Discrete input type	resistive
Contacts type and composition	NO for relay output
[Us] rated supply voltage	24 V
Checks	program memory on each power up
Repeat accuracy	+/- 2 % at 55 °C for analogue input circuit
Maximum permissible voltage	30 V for analogue input circuit
Reverse polarity protection	with
Kit composition	cable PC SR2USB01 for connection to PC, SR3B101BD
Cycle time	6-90 ms
Switching capacity in mA	>= 10 mA at 12 V (relay output)
Maximum supply current	100 mA (without extension), 100 mA (with extensions)
Mechanical durability	10000000 cycles for relay output
Overvoltage category	III conforming to IEC 60664-1
Voltage state 1 guaranteed	>= 15 V for IB...IG used as discrete input circuit, >= 15 V for I1...IA and IH...IR discrete input circuit
Connections - terminals	screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
Analogue input number	4
Output voltage limits	5...30 V DC (relay output), 24...250 V AC (relay output)
Input/output number	10
Net weight	0.7 kg
Response time	5 ms (from state 1 to state 0) for relay output, 10 ms (from state 0 to state 1) for relay output
Current state 1 guaranteed	>= 2.2 mA (I1...IA and IH...IR discrete input circuit), >= 1.2 mA (IB...IG used as discrete input circuit)
Discrete input current	4 mA
Clock drift	6 s/month at 25-25 °C, 12 min/year at 0-55 °C
Number or control scheme lines	0-200 with FBD programming, 120-120 with ladder programming
LSB value	39 mV for analogue input circuit
Conversion error	+/- 6.2 % at 55 °C for analogue input circuit, +/- 5 % at 25 °C for analogue input circuit
Input impedance	7.4 kOhm for I1...IA and IH...IR discrete input circuit, 12 kOhm for IB...IG used as discrete input circuit, 12 kOhm for IB...IG used as analogue input circuit
Environment
Relative humidity	95-95 % without condensation or dripping water
Ambient air temperature for storage	-40-70 °C
Pollution degree	2 conforming to IEC 61131-2
IP degree of protection	IP40 (front panel) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Ambient air temperature for operation	-20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2
Disturbance radiated/conducted	class B conforming to EN 55022-11 group 1
Operating altitude	2000 m
Maximum altitude transport	3048 m
Environmental characteristic	low voltage directive conforming to IEC 61131-2, EMC directive conforming to IEC 61131-2 zone B, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-2
Immunity to microbreaks	1 ms
Standards	IEC 61000-4-4 level 3, IEC 61000-4-12, IEC 61000-4-2 level 3, IEC 61000-4-5, IEC 61000-4-11, IEC 61000-4-6 level 3, IEC 61000-4-3, IEC 60068-2-6 Fc, IEC 60068-2-27 Ea
Product certifications	C-Tick, GOST, CSA, UL, GL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.200 cm
Package 1 Width	15.500 cm
Package 1 Length	23.300 cm
Package 1 Weight	392.000 g
Unit Type of Package 2	2
Number of Units in Package 2	10
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.409 kg
