SKU:

SXWASB24HP10001

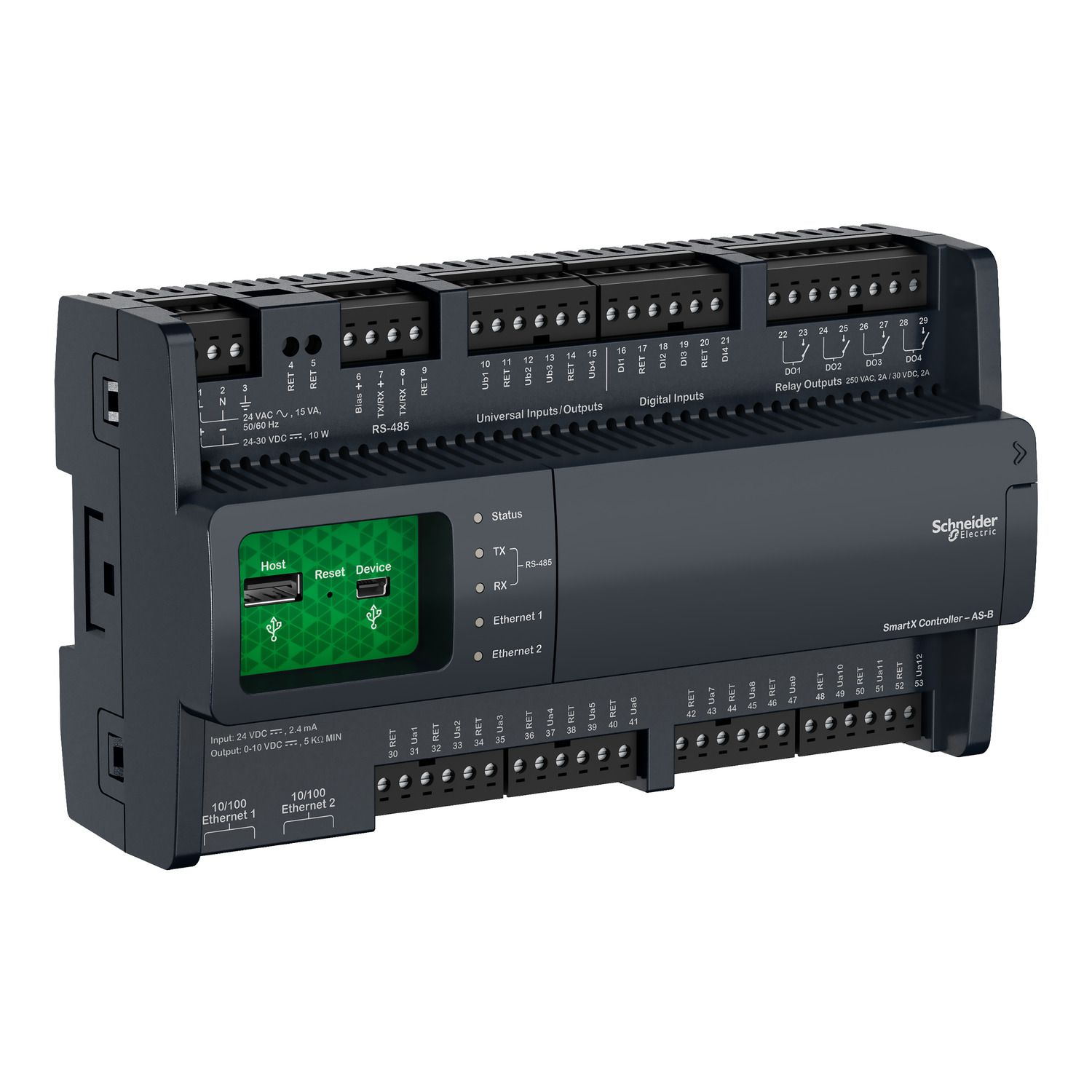

SpaceLogic automation server, AS-B-24H, 24 I/O points, BACnet, MS/TP, modbus, manual override, display, scalable

Please Contact Sales to buy this Product. click here

SpaceLogic automation server, AS-B-24H, 24 I/O points, BACnet, MS/TP, modbus, manual override, display, scalable

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 12-Oct-2024

End of life manual

CAD

Product environmental

Declaration of conformity

Instruction sheet

Product Page Link

Product Data Sheet

The SpaceLogic AS-B server is at the core of an EcoStruxure BMS. It performs functionality, such as control logic, trend logging and alarm supervision. It provides built-in I/O, and supports communication and connectivity to the field buses. It is a powerful device with built-in power supply and I/O, which makes it suitable for control applications at the plant room level of a BMS. The SpaceLogic AS-B server can act as a standalone server or controller using its built-in I/O and also monitor and manage field bus devices. Its dimensions are 110 mm (4.3 in.) in height, 198 mm (7.8 in.) in width and 64 mm (2.5 in.) in depth. The AS-B-24H-P model features 24 I/O points with a versatile mix of I/O points and a variety of connectivity options. It supports the SpaceLogic IP-IO modules for I/O expansion and the SpaceLogic Zigbee Adapter for Zigbee wireless connectivity. Its dimensions are 110 mm (4.3 in.) in height, 198 mm (7.8 in.) in width and 64 mm (2.5 in.) in depth. Available spare parts are terminal blocks (SXWASBCON10001) and an installer kit (SXWASBINS10001). The AS-B-24H-P model is hardware only; an AS-B software package needs to be purchased separately. Available spare parts are the AS-B connector kit (SXWASBCON10001) and AS-B installer kit (SXWASBINS10001).

Products specifications

Attribute name	Attribute value
Main
Number of port	2 ETHERNET
IP degree of protection	IP20
Device short name	AS-B-24H-P
Clock drift	+/- 52 s/month
Display type	FSTN transflective LCD
Width	198 mm
Product weight	5.04 kg
Relative humidity	0-95 % non-condensing
Power consumption in VA	15 VA
Ambient air temperature for storage	-20-70 °C
Memory type	2 GB flash, 256 MB FRAM
Height	114 mm
Depth	64 mm
Range	EcoStruxure Building Operation
Number of inputs	4 digital
Input/output type	16 universal I/O
Product or component type	controller system
Display resolution	128 x 64 pixels
Power consumption in W	10 W
Communication service	Modbus TCP client, Modbus TCP server, SMTPS e-mail notification, SMTP e-mail notification, SNMP network management
Ambient air temperature for operation	0-50 °C
Number of outputs	4 relay
[Us] rated supply voltage	21...33 V DC, 19...29 V AC
Network frequency	60 Hz, 50 Hz
Product certifications	RCM, CE, cULus, FCC part 15 class B, BTL, ICES-003
Complementary
Supply	power supply: 24 V, <0.5 A
Analogue input type	configurable voltage, current or probe 10 kOhm with shunt, configurable voltage, current or probe 1 kOhm connection of probes, configurable voltage, current or probe 1.8 kOhm connection of probes, configurable voltage, current or probe 2.2 kOhm connection of probes, configurable voltage, current or probe 10 kOhm connection of probes, configurable voltage, current or probe 20 kOhm connection of probes, configurable voltage, current or probe 0...10 V input voltage, configurable voltage, current or probe 0...20 mA
Product compatibility	Xenta, Honeywell, Johnson Control, Continuum, Balco, I/NET, Satchwell
Realtime clock	with
Web services	TLS 1.0, HTTP server, programmable scripts : alarm summaries, report management
Display colour	monochrome
Display type	FSTN transflective LCD 36 x 17 mm
Material	ABS/PC
Integrated connection type	serial link with RS485 connector, Ethernet with RJ45 connector, USB type mini B, USB 2.0 type A
Processor name	Spear 320s
Flame retardance	UL94V0-5VB
Communication port protocol	HTTP RJ45, HTTPS RJ45, Modbus TCP slave RS485, Modbus TCP master RS485, BACnet
Standards	FCC CFR 47 part 15, UL 916
Mounting support	DIN rail
Switching frequency	25 Hz
Electrical connection	terminal with a manual overide switch, plug-in sub-base
Product brand	Schneider Electric
Environment
Temperature probe type	Pt 1000 - 50...150 °C, Ni 1000 - 50...150 °C, LG-Ni 1000 - 50...150 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	19.8 cm
Package 1 Width	11 cm
Package 1 Length	6.4 cm
Package 1 Weight	504 g
