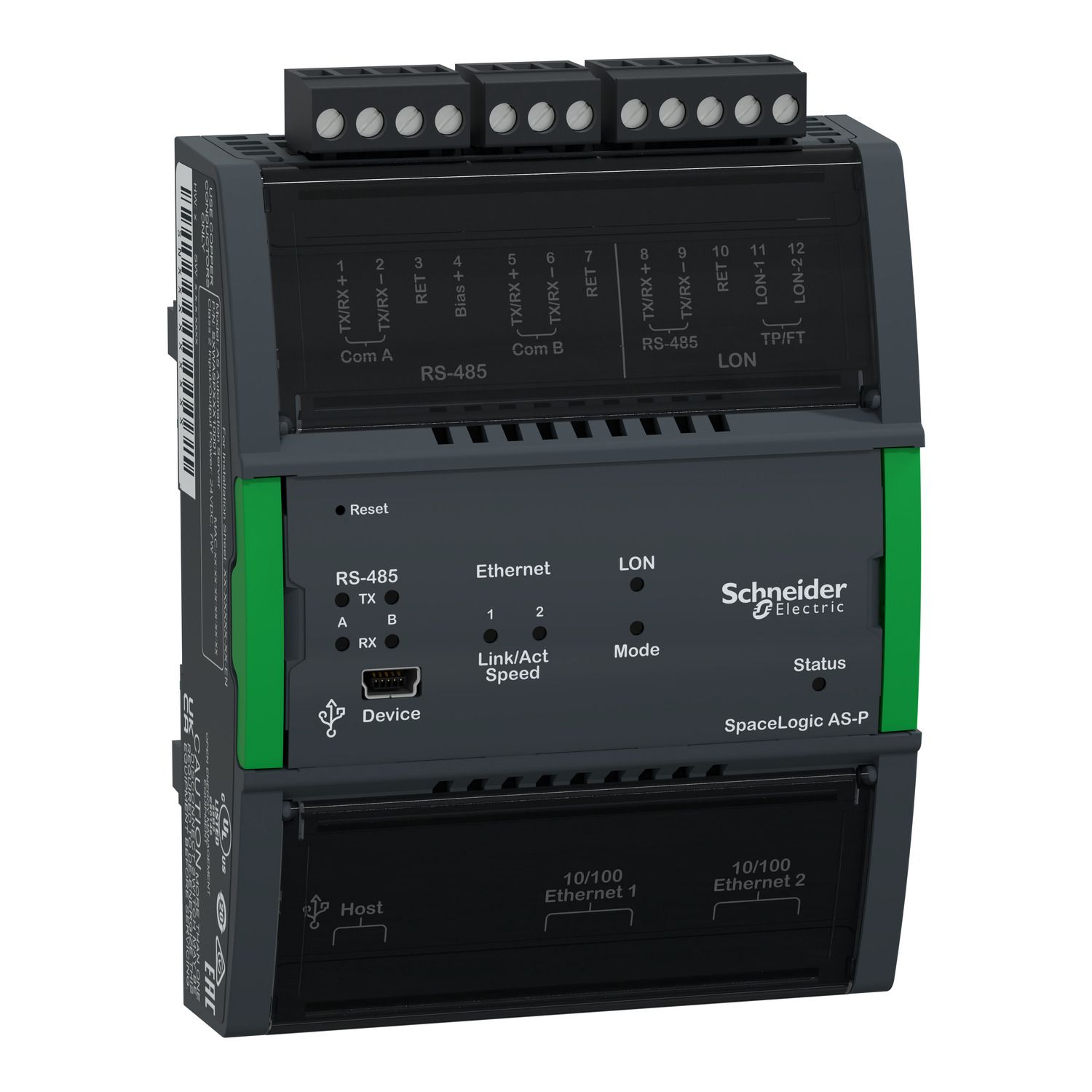

Picture of Automation server, SpaceLogic, AS-P, LonWorks, 2 RS-485 ports, 2 10/100 ethernet ports
SKU:

SXWASPXXX10001

Automation server, SpaceLogic, AS-P, LonWorks, 2 RS-485 ports, 2 10/100 ethernet ports

Please Contact Sales to buy this Product. click here
Automation server, SpaceLogic, AS-P, LonWorks, 2 RS-485 ports, 2 10/100 ethernet ports
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Declaration of conformity
Instruction sheet
Product environmental
End of life manual
CAD
Product Page Link
Product Data Sheet
The SpaceLogic AS-P server is at the core of an EcoStruxure BMS and performs key functionality. The server performs functionality such as control logic, trend logging and alarm supervision. It supports communication and connectivity to the I/O and field buses. The SpaceLogic AS-P server can act as a standalone server, control I/O modules, monitor and manage field bus devices. This model features two ethernet ports, two RS-485 ports, one LonWorks port, one I/O bus port, one USB device port and one USB host port. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. Plastic flame rating is UL94-5VB and the ingress protecton rating is IP20. A terminal base TB-ASP-W1 is required for each SpaceLogic AS-P.

Products specifications

Attribute nameAttribute value
Main
IP degree of protectionIP20
Device short nameAS-P
Ambient air temperature for storage-20-70 °C
Flame retardanceUL94V0-5VB
RangeEcoStruxure Building Operation
Communication serviceModbus TCP server, Modbus TCP client, SMTPS e-mail notification, SMTP e-mail notification, SNMP network management
StandardsFCC CFR 47 part 15, UL 916, UL 94
Ambient air temperature for operation0-50 °C
Height114 mm
Depth64 mm
Width90 mm
Memory type4 GB flash, 512 MB RAM
Current consumption400 mA
Net weight321 g
Product or component typecontroller
Product brandSchneider Electric
Product certificationsICES-003, FCC part 15 class B, cULus, CE, BTL
Complementary
Web servicesprogrammable scripts : alarm summaries, report management, HTTP server, TLS 1.0
Product mountingDIN rail, on base
Communication port protocolLON TP/FT-10, HTTP RJ45, HTTPS RJ45, Modbus TCP slave RS485, Modbus TCP master RS485, BACnet
MaterialABS/PC
I/O limit processor capacity464 I/O, 29 modules
Environment
Relative humidity0-95 %
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height11.7 cm
Package 1 Width5.7 cm
Package 1 Length9.1 cm
Package 1 Weight271.0 g
Unit Type of Package 22
Number of Units in Package 236
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight10.513 kg

Related products

Picture of SmartDriver, EcoStruxure Building Operation, license for 1 SpaceLogic server

SmartDriver, EcoStruxure Building Operation, license for 1 SpaceLogic server

SXWSWSDRVX0001
Please Contact Sales to buy this Product. click here
View Detail
Picture of Software license, EcoStruxure Building Operation , alarm notifications via SNMP, up to 1 enterprise server

Software license, EcoStruxure Building Operation , alarm notifications via SNMP, up to 1 enterprise server

SXWSWSNMP00001
Please Contact Sales to buy this Product. click here
View Detail
Picture of SNMP Alarming Option, EcoStruxure Building Operation, Licence for 1 SpaceLogic server

SNMP Alarming Option, EcoStruxure Building Operation, Licence for 1 SpaceLogic server

SXWSWSNMPX0001
Please Contact Sales to buy this Product. click here
View Detail
Picture of Wireless Adapter, SpaceLogic, for the AS-P, AS-B and RP controllers

Wireless Adapter, SpaceLogic, for the AS-P, AS-B and RP controllers

SXWZBAUSB10001
Please Contact Sales to buy this Product. click here
View Detail
Picture of Controller, SpaceLogic RP-V, RP-V-4A, BACnet/IP, 4 points, 4 universal inputs

Controller, SpaceLogic RP-V, RP-V-4A, BACnet/IP, 4 points, 4 universal inputs

SXWRPV4A10001
Please Contact Sales to buy this Product. click here
View Detail

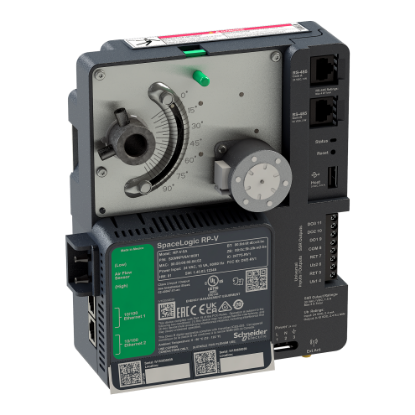

Picture of Controller, SpaceLogic RP-V, RP-V-5A, BACnet/IP, 5 points, 2 universal inputs, 3 digital outputs
