SKU:

SXWMPC18A10001

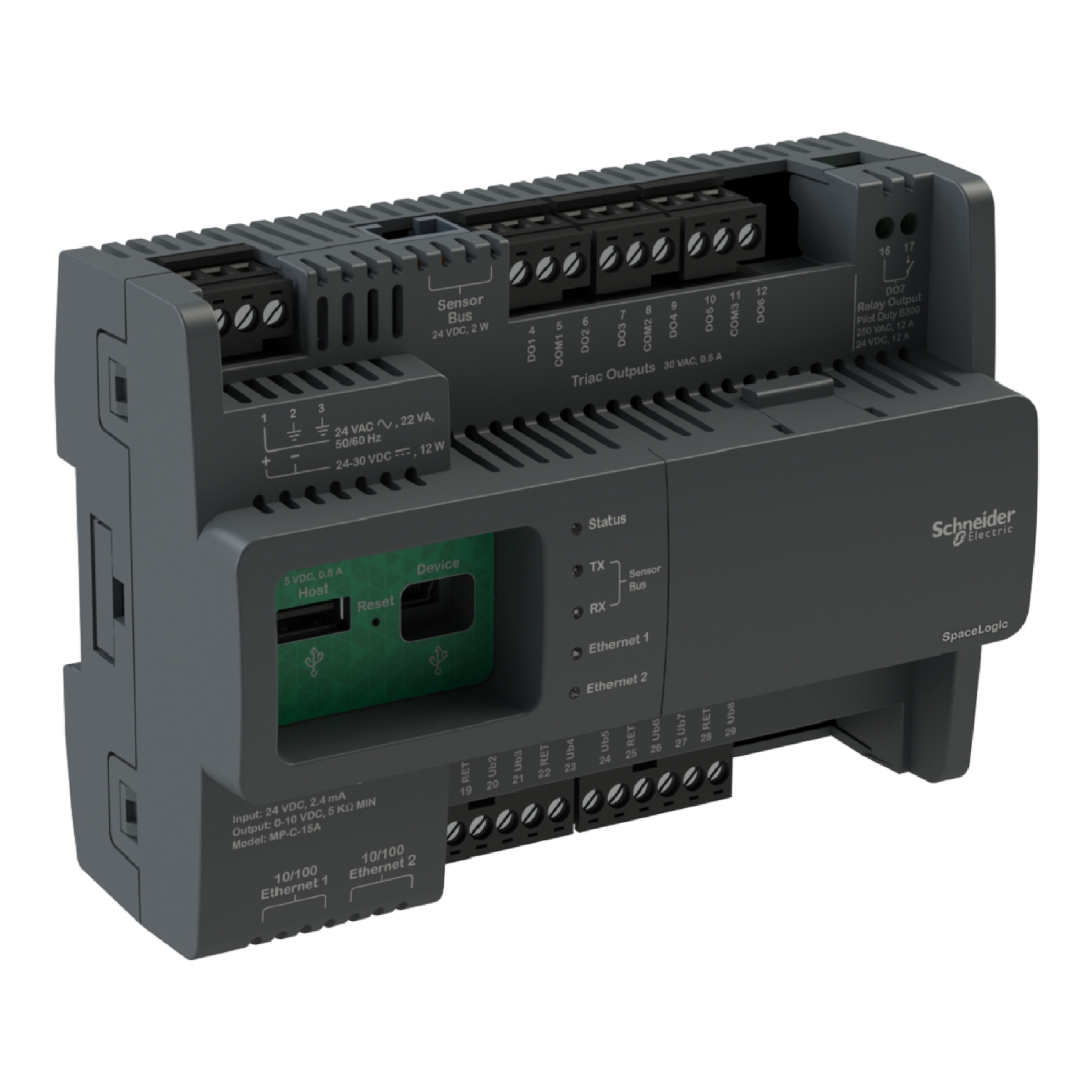

Controller, SpaceLogic IP, MP-C, BACnet/IP, 18 points, 10 universal input/output Type Ub, 4 digital Triac outputs, 1 high power relay output

$3,149.95

Qty:

Available for Shipping : 24-Nov-2024

Controller, SpaceLogic IP, MP-C, BACnet/IP, 18 points, 10 universal input/output Type Ub, 4 digital Triac outputs, 1 high power relay output

Be the first to review this product

Manufacturer: Schneider Electric

Product environmental

Declaration of conformity

CAD

End of life manual

Instruction sheet

Product Page Link

Product Data Sheet

SpaceLogic MP-C Controller is a multi-purpose, fully programmable, IP based field controller ideal for plant room HVAC control. The MP-C models offer a flexible mix of I/O point types that suit a wide range of HVAC applications. It can be used as a standalone BACnet/IP controller or as part of an EcoStruxure BMS with a SpaceLogic AS-P or AS-B server or an Enterprise Server. The MP-C models support an optional display that provides insight and control of the inputs and outputs. The MP-C-18A has 10 Universal I/O Type Ub, 4 DO Triacs, 3 Form A Relays and 1 HP Relay I/O point. It supports the SpaceLogic IP-IO Expansion Modules for extended I/O point count. Its dimensions are 110 mm (4.3 in.) in height, 153 mm (6.0 in.) in width and 64 mm (2.5 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be mounted in a DIN rail or other flat surface inside a cabinet. Available spare parts are terminal blocks (SXWMPCCON10001), DIN-RAIL-CLIP/end clip (SXWDINEND10001), eCommission Bluetooth Adapter (SXWBTAECXX10001).

Products specifications

Attribute name	Attribute value
Main
Maximum number of I/O expansion module	3
Number of port	1 , connector type: USB device port Mini-B, 1 , connector type: USB type A female, 2 , connector type: RJ45
IP degree of protection	IP20
Device short name	MP-C-18A
Device application	air flow control, low voltage rooftop, low voltage heat pump, low voltage fan coil
Clock drift	+/- 1 min/month
Width	153 mm
Input voltage	-0.5...24 V DC for universal input
Output current	0.5 A max triac output
Power consumption in VA	22 VA
Ambient air temperature for storage	-40-70 °C

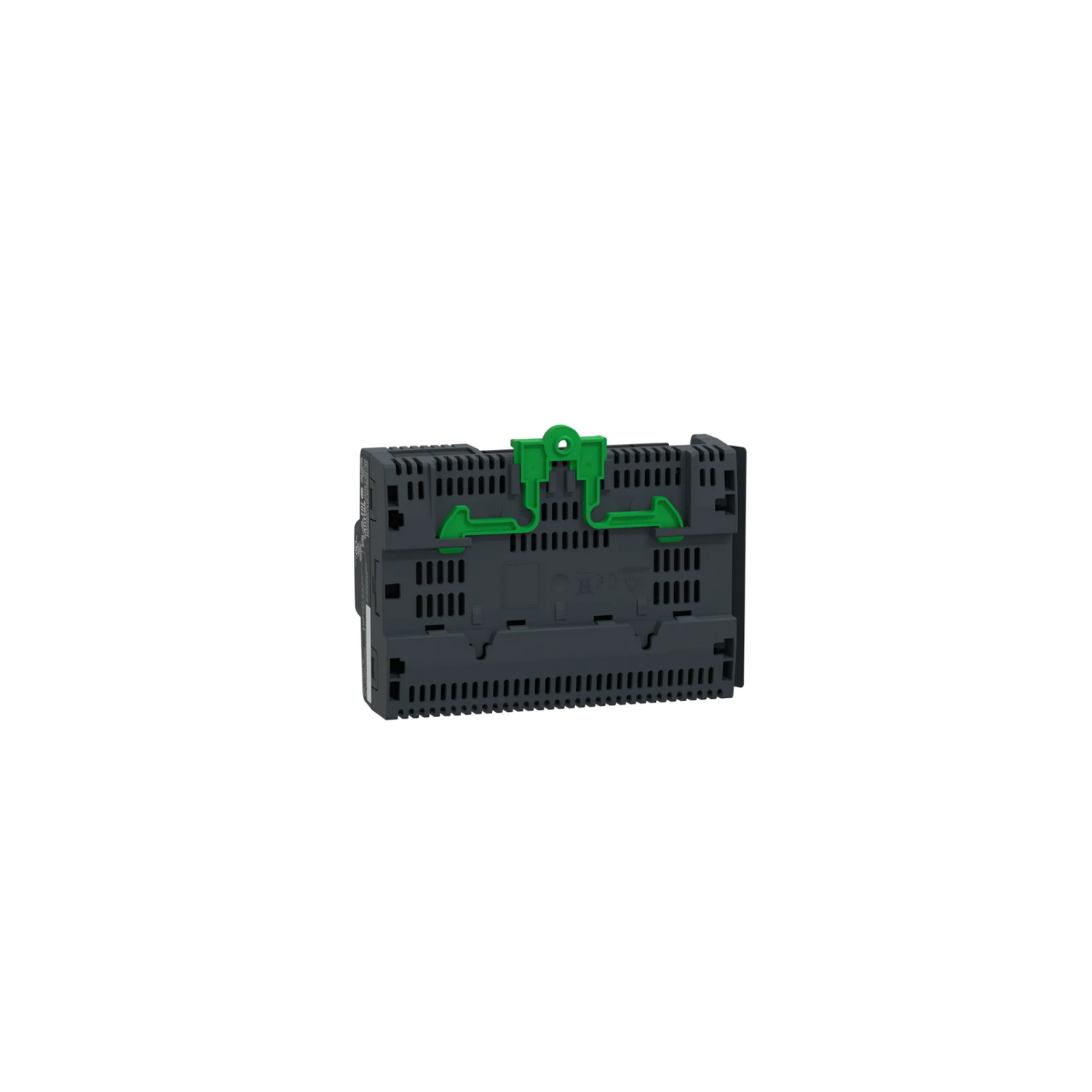

Mounting mode	panel-mounted, DIN rail mount
Memory type	128 MB RAM, 32 MB flash, 123 kB backup
Function available	smart sensor input, programmable
Topology	Rapid Spanning Tree Protocol (RSTP), daisy chain, star
Depth	64 mm
Input/output type	10 universal I/O
Product or component type	field controller
Protection type	internal fuse, MOV suppression
Power consumption in W	12 W
Number of outputs	1 relay output, 3 form A relay output, 4 triac output
Communication port support	ETHERNET 10/100BASE-TX
[Us] rated supply voltage	21...33 V DC, 24...30 V DC, 24 V AC +/- 20 %
Network frequency	60 Hz, 50 Hz
Product certifications	UL listed, cUL listed, CE, RCM
Complementary
Flame retardance	UL94-5V
Backup time	7 days
Communication port protocol	BACnet IP
Range compatibility	SpaceLogic IP controller
Standards	FCC part 15 Subpart B class B, EN 50491-5-2, EN 61000-6-3, EN 50491-3, EN 60730-2-11, EN 60730-1, EN 50491-5-3, EN 61000-6-2, ICES-003, UL 916

Output voltage	24 V AC for triac output, -0.5...24 V DC for universal output, 30 V DC,2 A for form A relay output, 250 V AC,2 A for form A relay output, 24 V DC,12 A for high power relay output, 250 V AC,12 A for high power relay output
Model	MP-C-18A
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	70 cm
Package 1 Width	124 cm
Package 1 Length	163 cm
Package 1 Weight	435 g
