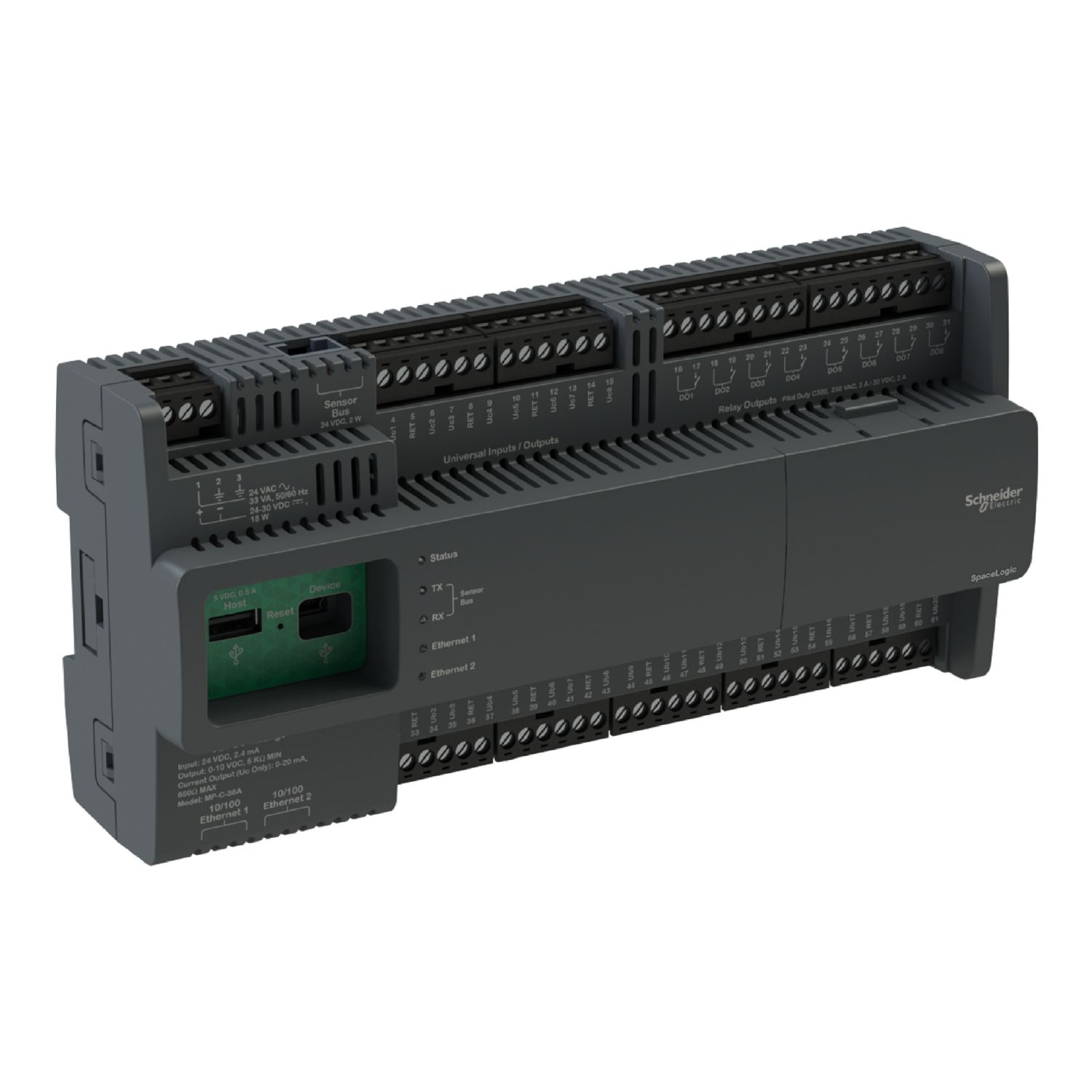

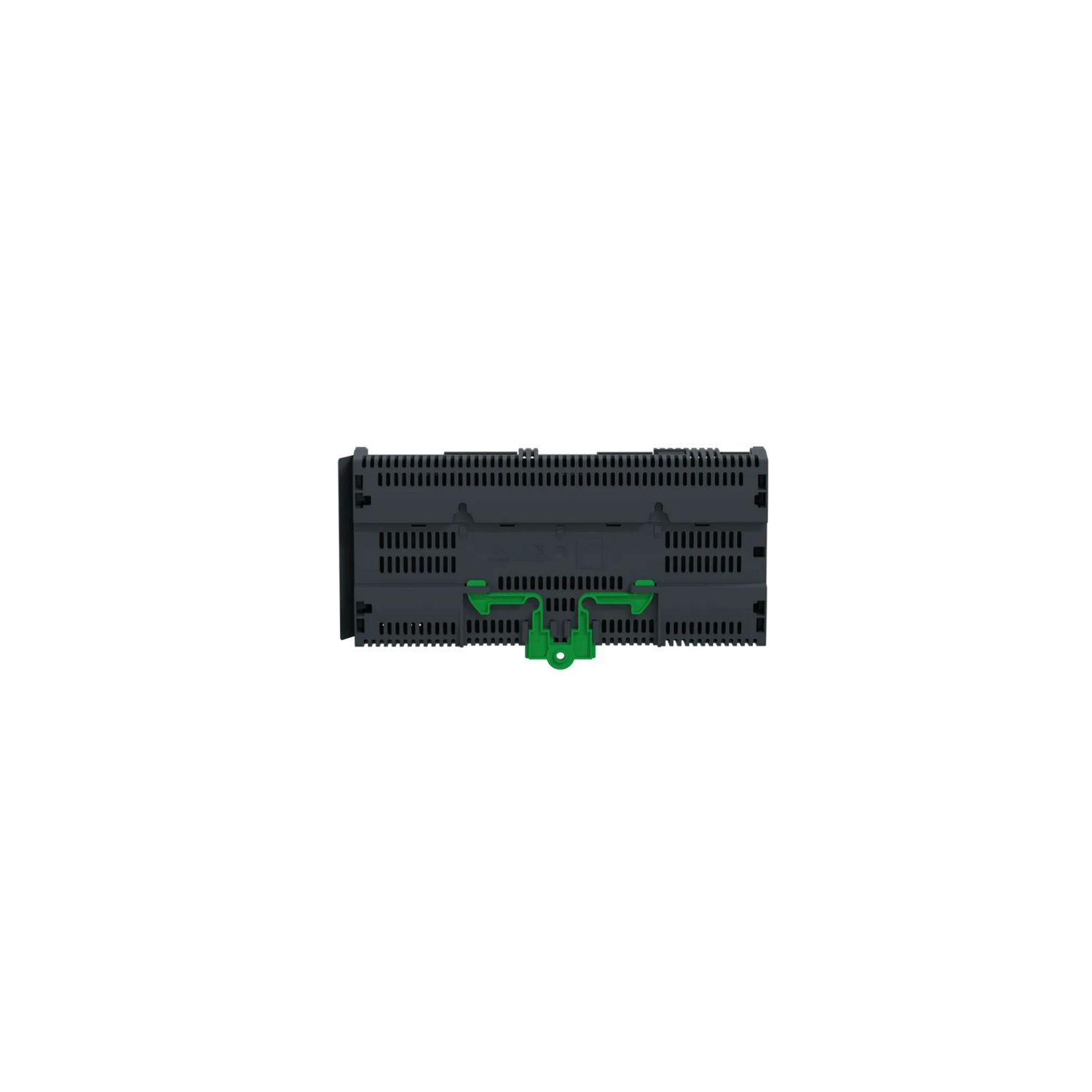

Picture of Controller, SpaceLogic IP, MP-C, BACnet/IP, 24 points, 4 universal input/output Type Uc, 4 Form A relay outputs, 16 universal input/output Type Ub
SKU:

SXWMPC24A10001

Controller, SpaceLogic IP, MP-C, BACnet/IP, 24 points, 4 universal input/output Type Uc, 4 Form A relay outputs, 16 universal input/output Type Ub

Please Contact Sales to buy this Product. click here
Controller, SpaceLogic IP, MP-C, BACnet/IP, 24 points, 4 universal input/output Type Uc, 4 Form A relay outputs, 16 universal input/output Type Ub
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Declaration of conformity
Product environmental
CAD
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
SpaceLogic MP-C Controller is a multi-purpose, fully programmable, IP based field controller ideal for plant room HVAC control. The MP-C models offer a flexible mix of I/O point types that suit a wide range of HVAC applications. It can be used as a standalone BACnet/IP controller or as part of an EcoStruxure BMS with a SpaceLogic AS-P or AS-B server or an Enterprise Server. The MP-C models support an optional display that provides insight and control of the inputs and outputs. The MP-C-24A has 16 Universal I/O Type Ub, 4 Universal I/O Type Uc and 4 Form A Relay I/O points. It supports the SpaceLogic IP-IO Expansion Modules for extended I/O point count. Its dimensions are 110 mm (4.3 in.) in height, 243 mm (9.2 in.) in width and 64 mm (2.5 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be mounted in a DIN rail or other flat surface inside a cabinet. Available spare parts are terminal blocks (SXWMPCCON10001), DIN-RAIL-CLIP/end clip (SXWDINEND10001), eCommission Bluetooth Adapter (SXWBTAECXX10001).

Products specifications

Attribute nameAttribute value
Main
Maximum number of I/O expansion module3
Number of port1 , connector type: USB device port Mini-B, 1 , connector type: USB type A female, 2 , connector type: RJ45
IP degree of protectionIP20
Device short nameMP-C-24A
Device applicationair flow control, low voltage rooftop
Clock drift+/- 1 min/month
Width234 mm
Input voltage-0.5...24 V DC for universal input
Power consumption in VA28 VA
Ambient air temperature for storage-40-70 °C
Mounting modepanel-mounted, DIN rail mount
Memory type128 MB RAM, 32 MB flash, 123 kB backup
Function availablesmart sensor input, programmable
TopologyRapid Spanning Tree Protocol (RSTP), daisy chain, star
Depth64 mm
Input/output type4 universal I/O, 16 universal I/O
Product or component typefield controller
Protection typeinternal fuse, MOV suppression
Power consumption in W15 W
Number of outputs4 form A relay output
Communication port supportETHERNET 10/100BASE-TX
[Us] rated supply voltage21...33 V DC, 24...30 V DC, 24 V AC +/- 20 %
Network frequency60 Hz, 50 Hz
Product certificationsUL listed, cUL listed, CE, RCM
Complementary
Flame retardanceUL94-5V
Backup time7 days
Communication port protocolBACnet IP
Range compatibilitySpaceLogic IP controller
StandardsFCC part 15 Subpart B class B, EN 50491-5-2, EN 61000-6-3, EN 50491-3, EN 60730-2-11, EN 60730-1, EN 50491-5-3, EN 61000-6-2, ICES-003, UL 916
Output voltage-0.5...24 V DC for universal output, 30 V DC,2 A for form A relay output, 250 V AC,2 A for form A relay output
ModelMP-C-24A
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.0 cm
Package 1 Width12.4 cm
Package 1 Length23.8 cm
Package 1 Weight557.0 g

Related products

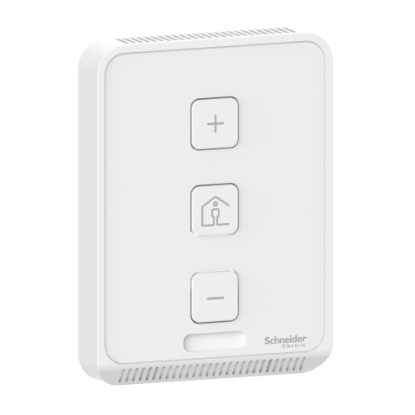

Picture of Cover Plate for Sensor Base for SmartX IP Controllers Override Setpoint with Occupancy Sensor - Sensor Base not included

Cover Plate for Sensor Base for SmartX IP Controllers Override Setpoint with Occupancy Sensor - Sensor Base not included

SXWSC3PSELXX
Please Contact Sales to buy this Product. click here
View Detail

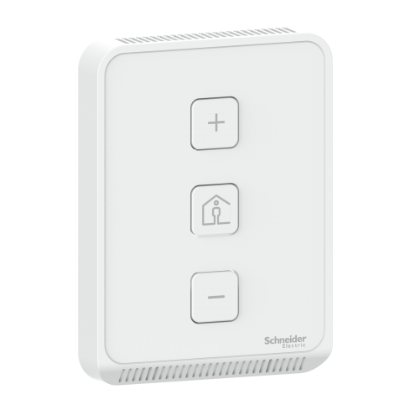

Picture of Cover Plate for Sensor Base for SmartX IP Controllers Override Setpoint - Sensor Base not Included

Cover Plate for Sensor Base for SmartX IP Controllers Override Setpoint - Sensor Base not Included

SXWSC3XSELXX
Please Contact Sales to buy this Product. click here
View Detail

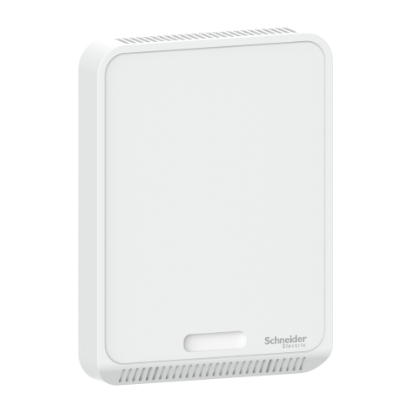

Picture of Cover Plate for Sensor Base for SmartX IP Controllers Blank with Occupancy Sensor - Sensor Base not inluded

Cover Plate for Sensor Base for SmartX IP Controllers Blank with Occupancy Sensor - Sensor Base not inluded

SXWSCBPSELXX
Please Contact Sales to buy this Product. click here
View Detail

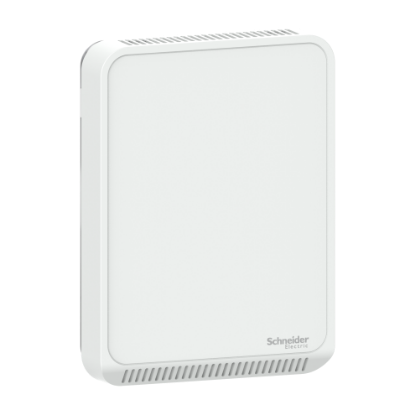

Picture of Cover Plate for Sensor Base for SmartX IP Controllers Blank - Sensor Base not inluded

Cover Plate for Sensor Base for SmartX IP Controllers Blank - Sensor Base not inluded

SXWSCBXSELXX
Please Contact Sales to buy this Product. click here
View Detail
Picture of Cover Plate for Sensor Base for SmartX IP Controllers Color Touchscreen with Occupancy Sensor - Sensor Base not included

Cover Plate for Sensor Base for SmartX IP Controllers Color Touchscreen with Occupancy Sensor - Sensor Base not included

SXWSCDPSELXX
Please Contact Sales to buy this Product. click here
View Detail

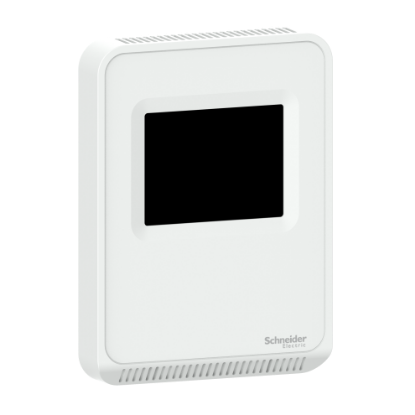

Picture of Cover Plate for Sensor Base for SmartX IP Controllers Color Touchscreen - Sensor Base not included
