SKU:

SXWMPV9AX10002

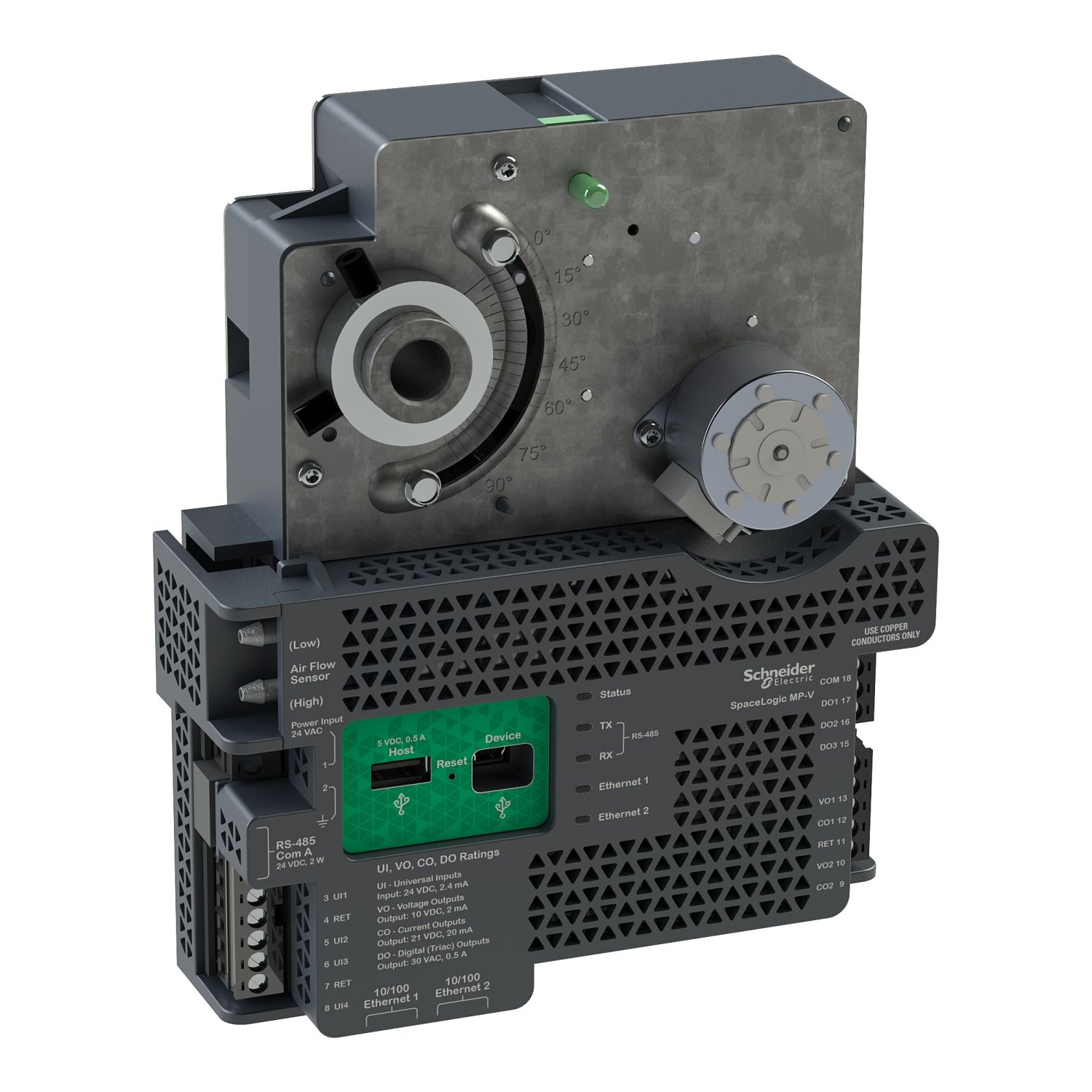

Controller, SpaceLogic MP-V, BACnet/IP/MSTP, 9 points, 4 universal inputs, 3 digital Triac outputs, 2 analog output

Please Contact Sales to buy this Product. click here

Controller, SpaceLogic MP-V, BACnet/IP/MSTP, 9 points, 4 universal inputs, 3 digital Triac outputs, 2 analog output

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 12-Oct-2024

End of life manual

CAD

Product environmental

Instruction sheet

Declaration of conformity

Product Page Link

Product Data Sheet

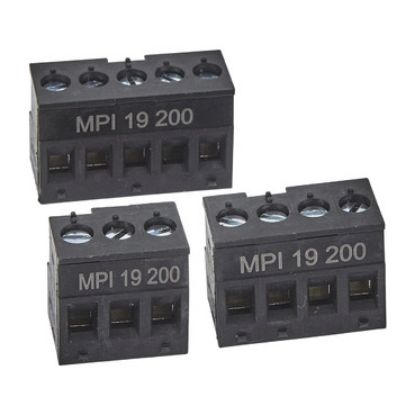

SpaceLogic MP-V controller is a room controller, fully programmable, BACnet IP based field controller dedicated for VAV applications. Configurability between BACnet IP or MS/TP as system bus communication. See compatibility matrix in release notes for supported EBO and FW versions. MP-V integrates a controller, onboard I/O, a damper actuator, and an air flow sensor in a single compact package for ease of installation. The MP-V-9A has 4 universal inputs, 3 digital triac outputs and 2 analog outputs with integrated actuator & air flow sensor. Its dimensions are 190 mm (7.5 in.) in height, 150 mm (5.9 in.) in width and 63 mm (2.5 in.) in depth. It is a UL 916 (Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be installed directly over the damper shaft of the VAV box. Available spare parts are terminal blocks (SXWMPVCON10001), Adapter for damper shaft (AM-135), eCommission Bluetooth Adapter (SXWBTAECXX10001). In-line air filer (01-2100-272)
