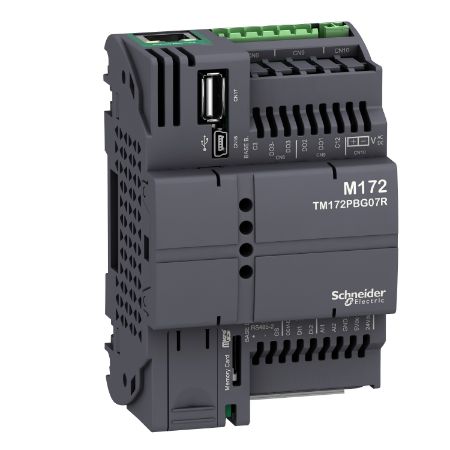

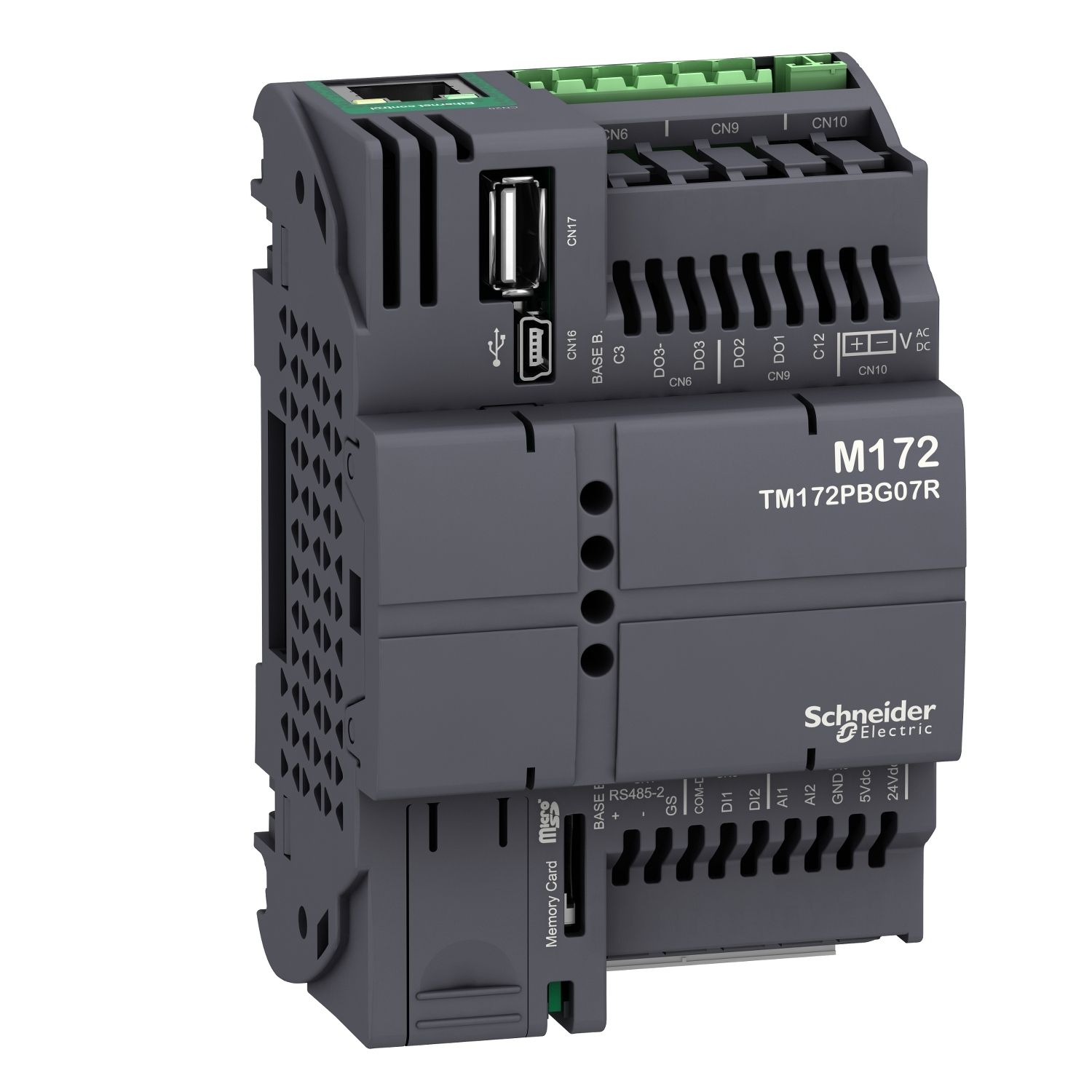

Controller, Modicon M171/M172/M173, performance blind 7 IO, Ethernet, Modbus

$430.63

Qty:

Available for Shipping : 10-Dec-2024

Controller, Modicon M171/M172/M173, performance blind 7 IO, Ethernet, Modbus

Be the first to review this product

Manufacturer: Schneider Electric

Product environmental

End of life manual

Brochure

Instruction sheet

Catalogue

User guide

Product Page Link

Product Data Sheet

This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 2 discrete inputs with sink or source (positive/negative) up to 2kHz discrete logic. It is a module with discrete input voltage of 24V AC/DC, 5mA. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 72mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.175kg. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Products specifications

Attribute name	Attribute value
Main
Discrete output current	3 A for relay SPDT, 3 A for relay SPST
Number of inputs/outputs	7
Range of product	Modicon M171/M172
Product specific application	HVAC
Discrete input number	2
Analogue input number	2 configurable by pair
Product or component type	programmable controllers
Variant	programmable
Discrete output number	2 for relay outputs SPST with same common, 1 for relay outputs SPDT with independent common
Complementary
Measurement accuracy	hOhm 750 hOhm...1500 hOhm +/- 24 hOhm, hOhm 0...750 hOhm +/- 8.5 hOhm, Pt 1000 400...850 °C +/- 10 °C, Pt 1000 100…400 °C +/- 2.4 °C, Pt 1000 - 50...100 °C +/- 1.5 °C, Pt 1000 - 100...-50 °C +/- 2.5 °C, Pt 1000 - 200...-100 °C +/- 10 °C, PTC - 55...155 °C +/- 1.1 °C, NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C, NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C, NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C, daOhm 0...300 daOhm +/- 2.5 daOhm, 0...5 V +/- 1 % of full scale +/- 1 digit, 0...10 V +/- 1 % of full scale +/- 1 digit, 4...20 mA +/- 1 % of full scale +/- 1 digit, 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit, 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit
Input/output number	3 digital output(s), 2 analog input(s), 2 digital input(s)
[Us] rated supply voltage	20...38 V DC, 24 V +/- 10 % AC
Display type	without display
Discrete input voltage	24 V AC/DC
Height	110 mm
Discrete input logic	sink or source (positive/negative) up to 2 kHz
Depth	60.5 mm
Overvoltage category	II
Analogue input type	direct input at 10 kOhm (Dry contact), current 0...20 mA/4...20 mA - resolution: 1 digit at < 150 Ohm, Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C at 1500 Ohm, PTC temperature probe - 55...150 °C - resolution: 0.1 °C at 1500 Ohm, impedance 0...300 daOhm - resolution: 1 daOhm at 1500 Ohm, impedance 0...1500 hOhm - resolution: 1 hOhm at 10 kOhm, voltage 0...5 V - resolution: 1 digit at > 20 kOhm (absolute or ratiometric), voltage 0...10 V - resolution: 1 digit at > 10 kOhm, NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C), NTC NK103 Beta 3977 temperature probe - 40...137 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C)
Realtime clock	built-in clock, clock drift <= 30 s/month at -20-60 °C
Width	72 mm
Discrete input current	5 mA AC/DC
Input impedance	20 kOhm
Local signalling	1 LED (green) for power, 1 LED (green) for programmable, 1 LED (yellow) for programmable, 1 LED (red) for programmable
Sensor power supply	24-24 V DC at 100 mA supplied by the controller, 5-5 V DC at 40 mA supplied by the controller
Number of port	1 Ethernet - RJ45 (Modbus TCP and BACnet IP with webserver), 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP), 1 USB type mini B - USB device port Mini-B, 1 USB type A - USB type A female, 1 CAN port - screw terminal block
Net weight	0.175 kg
Mounting support	panel mounting with accessory, DIN rail
Power consumption in W	10 W at 24 V AC/DC
Environment
IP degree of protection	IP20
Relative humidity	5-95 % non-condensing
Ambient air temperature for storage	-30-70 °C
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation	-20-60 °C
Pollution degree	2
Operating altitude	0...2000 m
Standards	UL94 (material V0), IEC 61000-4-4, UL 60730-2-9, IEC 61000-4-11, CAN/CSA-E60730-1, EN 60068-2-27, CSA E60730-2-9, EN 60730-2-9, EN 60068-2-6 Fc, IEC 61000-4-2, IEC 61000-4-5, EN 60730-1, IEC 61000-4-3, UL 60730-1, IEC 61000-4-6
Product certifications	EAC, CSA, cURus, RCM, CE
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7.500 cm
Package 1 Width	9.500 cm
Package 1 Length	13.500 cm
Package 1 Weight	223.000 g
Unit Type of Package 2	2
Number of Units in Package 2	15
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	3.650 kg
