TM172PBG28R

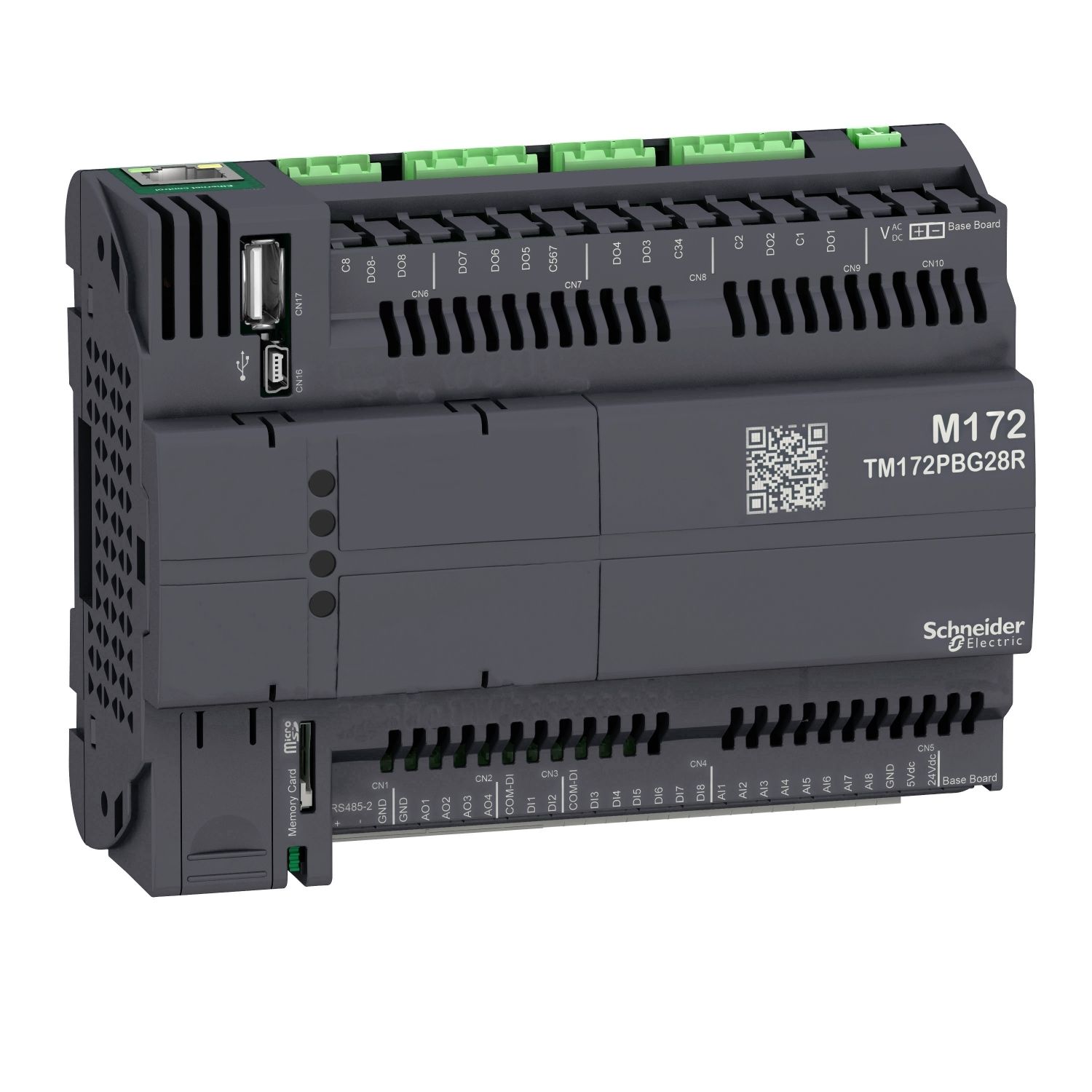

Controller, Modicon M171/M172/M173, performance, blind, 28 IO, Ethernet, Modbus

$816.53

Qty:

Available for Shipping : 24-Nov-2024

Controller, Modicon M171/M172/M173, performance, blind, 28 IO, Ethernet, Modbus

Be the first to review this product

Manufacturer: Schneider Electric

End of life manual

Brochure

Catalogue

Instruction sheet

Product environmental

User guide

Product Page Link

Product Data Sheet

This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 8 discrete inputs with sink or source (positive/negative) discrete logic. It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 8 configurable by pair analogue input and 2 analogue outputs of 4mA to 20mA, ±0V to ±10V. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 144mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.3kg. The main application of this module is HVAC control. This product is certified by CE, EAC, CSA and CURus. It meets EN/IEC 60730 standard. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Products specifications

Attribute name	Attribute value
Main
Discrete output current	3 A for relay SPST, 1 A for relay SPDT
Number of inputs/outputs	28
Range of product	Modicon M171/M172
Product specific application	HVAC and pumping solution
Discrete input number	8
Analogue input number	8 configurable by pair
Product or component type	programmable controllers
Variant	programmable
Discrete output number	2 for relay outputs SPST with independent common, 2 for relay outputs SPST with same common, 3 for relay outputs SPST with same common, 1 for relay outputs SPDT with independent common
Analogue output number	2 voltage/current, range: 4...20 mA or 0...10 V or PWM (2 kHz), 2 voltage, range: 0...10 V
Complementary
Input/output number	8 digital output(s), 4 analog output(s), 8 analog input(s), 8 digital input(s)
[Us] rated supply voltage	20...38 V DC, 24 V +/- 10 % AC
Display type	without display
Discrete input voltage	24 V AC/DC
Height	110 mm
Discrete input logic	sink or source (positive/negative)
Depth	60.5 mm
Overvoltage category	II
Analogue input type	Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C, voltage 0...5 V (absolute or ratiometric), PTC temperature probe - 55...150 °C - resolution: 0.1 °C, current 0...20 mA/4...20 mA, NTC temperature probe - 40...150 °C - resolution: 0.1 °C, voltage 0...10 V, NTC temperature probe - 50...110 °C - resolution: 0.1 °C (extended), impedance 0...300 daOhm, impedance 0...1500 hOhm
Realtime clock	built-in clock at -20-60 °C
Width	144 mm
Discrete input current	2.5 mA
Input impedance	20 kOhm
Local signalling	1 LED (green) for power, 1 LED (green) for programmable, 1 LED (yellow) for programmable, 1 LED (red) for programmable
Sensor power supply	24-24 V DC at 150 mA supplied by the controller, 5-5 V DC at 50 mA supplied by the controller
Number of port	1 Ethernet - RJ45 (Modbus TCP and BACnet IP with webserver), 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP), 1 USB type mini B - USB device port Mini-B, 1 USB type A - USB type A female, 1 CAN port - screw terminal block
Net weight	0.3 kg
Mounting support	panel mounting with accessory, DIN rail
Power consumption in W	15 W at 24 V AC/DC
Environment
IP degree of protection	IP20
Relative humidity	5-95 % non-condensing
Ambient air temperature for storage	-30-70 °C
Directives	2006/95/EC - low voltage directive, 86/188/EEC - physical agents (noise) directive
Ambient air temperature for operation	-20-65 °C with derating conforming to UL 60730-1, -20-60 °C conforming to UL 60730-1
Pollution degree	2
Operating altitude	0...2000 m
Standards	UL94 (material V0), EN 60730-2-9, CSA E60730-2-9, IEC 61000-4-6, IEC 61000-4-11, CAN/CSA-E60730-1, IEC 61000-4-4, UL 60730-2-9, UL 60730-1, EN 60068-2-6 Fc, EN 60730-1, EN 60068-2-27, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-5
Product certifications	cURus, CE, RCM, EAC, CSA
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	13.200 cm
Package 1 Width	9.000 cm
Package 1 Length	18.500 cm
Package 1 Weight	372.000 g
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	2.450 kg
