SKU:

TM172PDG28S

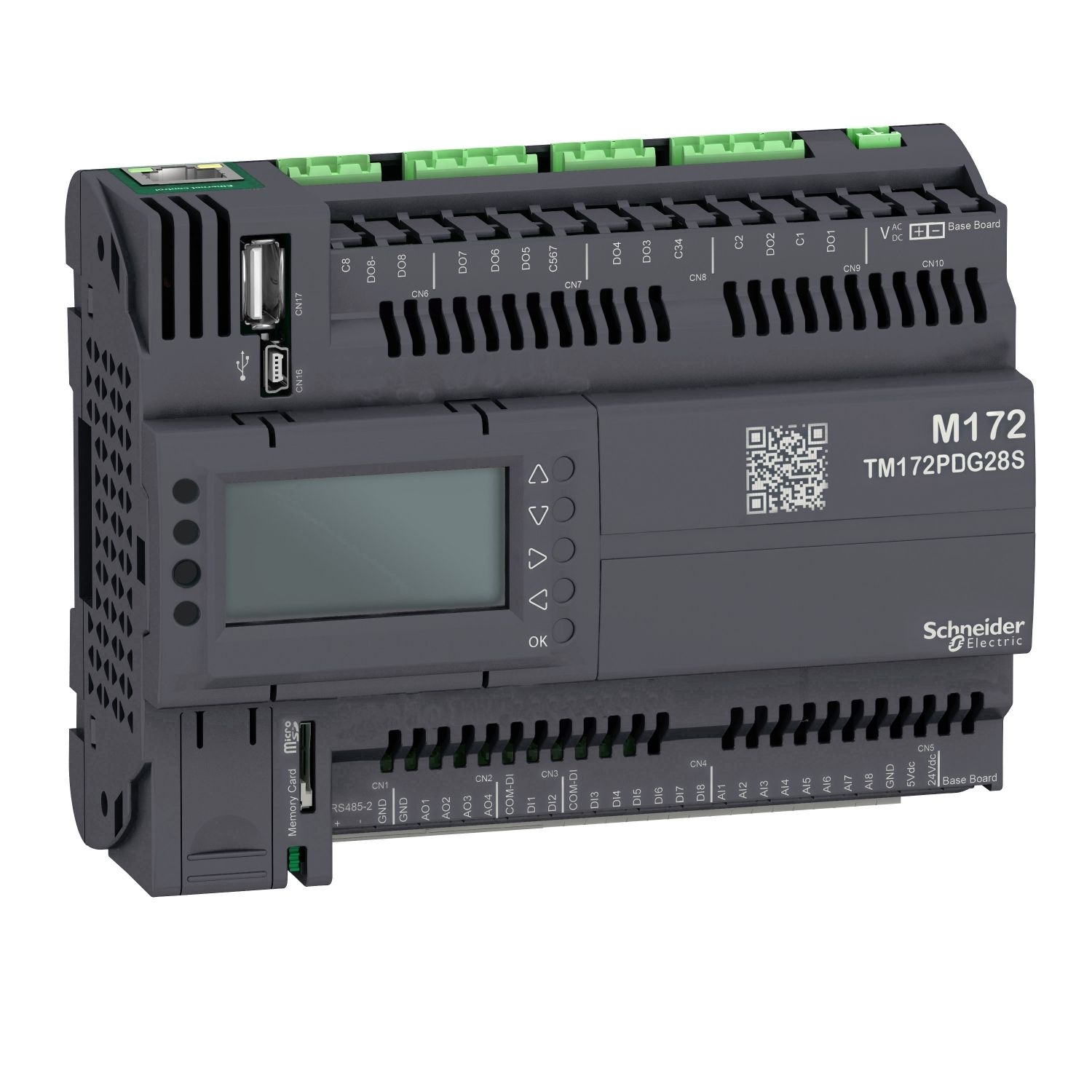

Controller, Modicon M171/M172/M173, performance display 28 IO, Modbus, solid state relay

$1,015.20

Qty:

Availability: Please contact our sales team on 1300 724 622.

Controller, Modicon M171/M172/M173, performance display 28 IO, Modbus, solid state relay

Be the first to review this product

Manufacturer: Schneider Electric

End of life manual

Product environmental

Instruction sheet

User guide

Product Page Link

Product Data Sheet

Products specifications

Attribute name	Attribute value
Main
Discrete output current	3 A for relay SPST, 1 A for relay SPDT, 0.5 A for solid state, isolated
Number of inputs/outputs	28
Range of product	Modicon M171/M172
Product specific application	HVAC and pumping solution
Discrete input number	8
Analogue input number	8 configurable by pair
Product or component type	programmable controllers
Variant	programmable
Discrete output number	2 for solid state, isolated SSR with independent common, 2 for relay outputs SPST with same common, 3 for relay outputs SPST with same common, 1 for relay outputs SPDT with independent common
Analogue output number	2 voltage/current, range: 4...20 mA or 0...10 V or PWM (2 kHz), 2 voltage, range: 0...10 V
Complementary
Input/output number	8 digital output(s), 4 analog output(s), 8 analog input(s), 8 digital input(s)
[Us] rated supply voltage	20...38 V DC, 24 V +/- 10 % AC
Display type	backlit LCD - 128 x 64 pixels
Discrete input voltage	24 V AC/DC
Height	110 mm
Discrete input logic	sink or source (positive/negative)
Depth	60.5 mm
Overvoltage category	II
Analogue input type	Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C, voltage 0...5 V (absolute or ratiometric), PTC temperature probe - 55...150 °C - resolution: 0.1 °C, current 0...20 mA/4...20 mA, NTC temperature probe - 40...150 °C - resolution: 0.1 °C, voltage 0...10 V, NTC temperature probe - 50...110 °C - resolution: 0.1 °C (extended), impedance 0...300 daOhm, impedance 0...1500 hOhm
Realtime clock	built-in clock at -20-55 °C
Width	144 mm
Discrete input current	2.5 mA
Input impedance	20 kOhm
Local signalling	1 LED (green) for power, 1 LED (green) for programmable, 1 LED (yellow) for programmable, 1 LED (red) for programmable
Sensor power supply	24-24 V DC at 150 mA supplied by the controller, 5-5 V DC at 50 mA supplied by the controller
Number of port	1 Ethernet - RJ45 (Modbus TCP and BACnet IP with webserver), 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP), 1 USB type mini B - USB device port Mini-B, 1 USB type A - USB type A female, 1 CAN port - screw terminal block
Net weight	0.3 kg
Mounting support	panel mounting with accessory, DIN rail
Power consumption in W	15 W at 24 V AC/DC
Environment
IP degree of protection	IP20
Relative humidity	5-95 % non-condensing
Ambient air temperature for storage	-30-70 °C
Directives	86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive
Ambient air temperature for operation	-20-55 °C conforming to UL 60730-1
Pollution degree	2
Operating altitude	0...2000 m
Standards	UL94 (material V0), EN/IEC 60730
Product certifications	CE, CSA, cURus, EAC
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	9.0 cm
Package 1 Width	13.5 cm
Package 1 Length	18.6 cm
Package 1 Weight	392.0 g
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	15.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	2.755 kg
