SKU:

TM172PDG42S

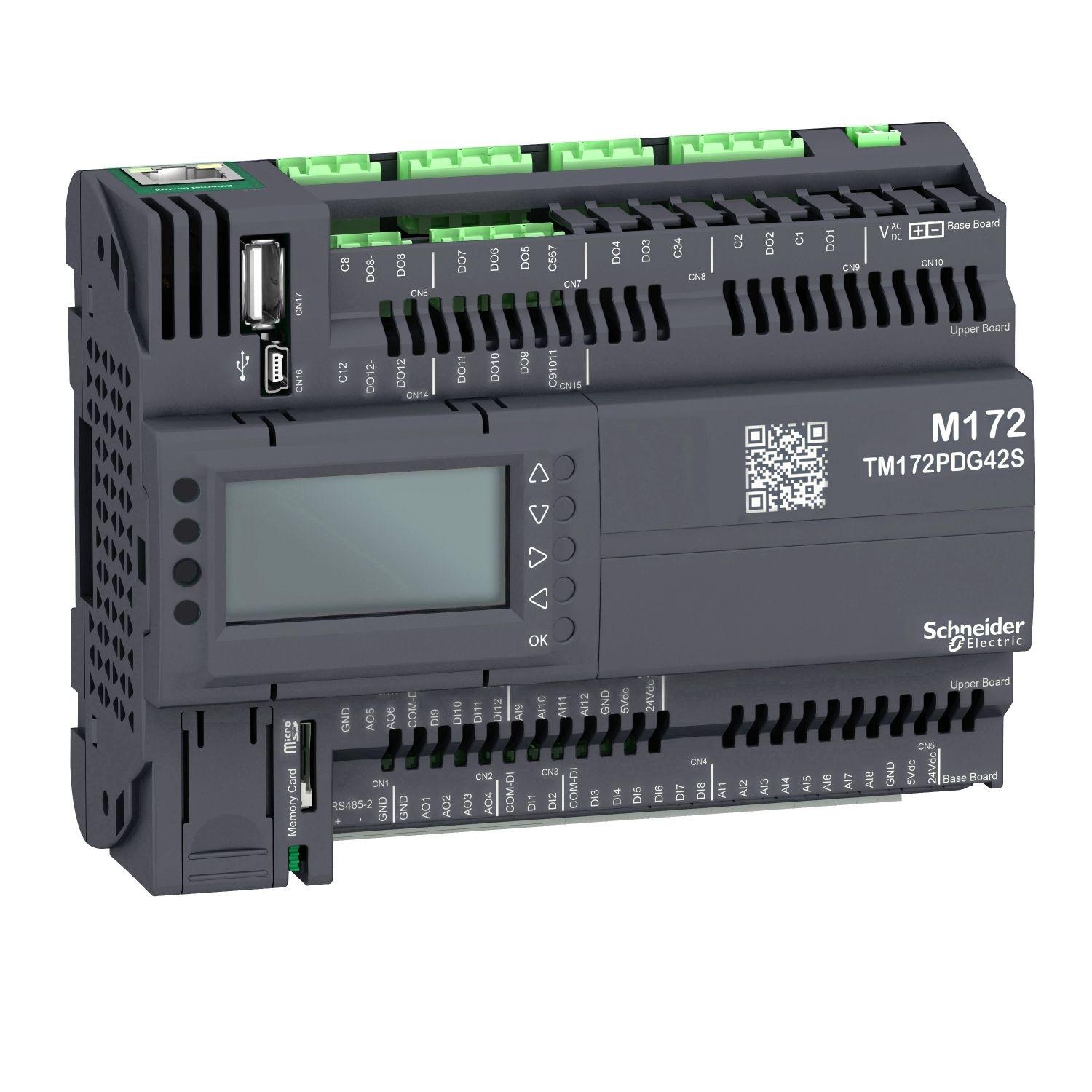

Controller, Modicon M171/M172/M173, performance display 42 IO, Modbus, solid state relay

$1,237.79

Qty:

Available for Shipping : 18-Dec-2024

Controller, Modicon M171/M172/M173, performance display 42 IO, Modbus, solid state relay

Be the first to review this product

Manufacturer: Schneider Electric

End of life manual

Brochure

Catalogue

Product environmental

Instruction sheet

User guide

Product Page Link

Product Data Sheet

This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 12 discrete inputs with sink or source (positive/negative) discrete logic. It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 12 configurable by pair analogue input and 2 analogue outputs of 4mA to 20mA, ±0V to ±10V. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 144mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.385kg. The main application of this module is HVAC and pumping solution. This product is certified by CE, EAC, CSA and CURus. It meets EN/IEC 60730 standard. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Products specifications

Attribute name	Attribute value
Main
Discrete output current	3 A for relay SPST, 1 A for relay SPDT, 0.5 A for solid state, isolated
Number of inputs/outputs	42
Range of product	Modicon M171/M172
Product specific application	HVAC and pumping solution
Discrete input number	12
Analogue input number	12 configurable by pair
Product or component type	programmable controllers
Variant	programmable
Discrete output number	3 for relay outputs SPST with independent common, 2 for relay outputs SPDT with same common, 2 for solid state, isolated SSR with independent common, 5 for relay outputs SPST with same common
Analogue output number	2 voltage/current, range: 4...20 mA or 0...10 V or PWM (2 kHz), 4 voltage, range: 0...10 V
Complementary
Input/output number	12 digital output(s), 12 digital input(s), 6 analog output(s), 12 analog input(s)
[Us] rated supply voltage	20...38 V DC, 24 V +/- 10 % AC
Display type	backlit LCD - 128 x 64 pixels
Discrete input voltage	24 V AC/DC
Height	110 mm
Discrete input logic	sink or source (positive/negative)
Depth	60.5 mm
Overvoltage category	II
Analogue input type	Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C, voltage 0...5 V (absolute or ratiometric), PTC temperature probe - 55...150 °C - resolution: 0.1 °C, current 0...20 mA/4...20 mA, NTC temperature probe - 40...150 °C - resolution: 0.1 °C, voltage 0...10 V, NTC temperature probe - 50...110 °C - resolution: 0.1 °C (extended), direct input, impedance 0...300 daOhm, impedance 0...1500 hOhm
Realtime clock	built-in clock at -20-55 °C
Width	144 mm
Discrete input current	2.5 mA
Input impedance	20 kOhm
Local signalling	1 LED (green) for power, 1 LED (green) for programmable, 1 LED (yellow) for programmable, 1 LED (red) for programmable
Sensor power supply	24-24 V DC at 150 mA supplied by the controller, 5-5 V DC at 50 mA supplied by the controller
Number of port	1 Ethernet - RJ45 (Modbus TCP and BACnet IP with webserver), 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP), 1 USB type mini B - USB device port Mini-B, 1 USB type A - USB type A female, 1 CAN port - screw terminal block
Net weight	0.385 kg
Mounting support	DIN rail, panel mounting with accessory
Power consumption in W	15 W at 24 V AC/DC
Environment
IP degree of protection	IP20
Relative humidity	5-95 % non-condensing
Ambient air temperature for storage	-30-70 °C
Directives	86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive
Ambient air temperature for operation	-20-55 °C conforming to UL 60730-1
Pollution degree	2
Operating altitude	0...2000 m
Standards	UL94 (material V0), EN/IEC 60730
Product certifications	EAC, CE, CSA, cURus
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	13.100 cm
Package 1 Width	9.100 cm
Package 1 Length	18.700 cm
Package 1 Weight	445.000 g
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	2.950 kg
