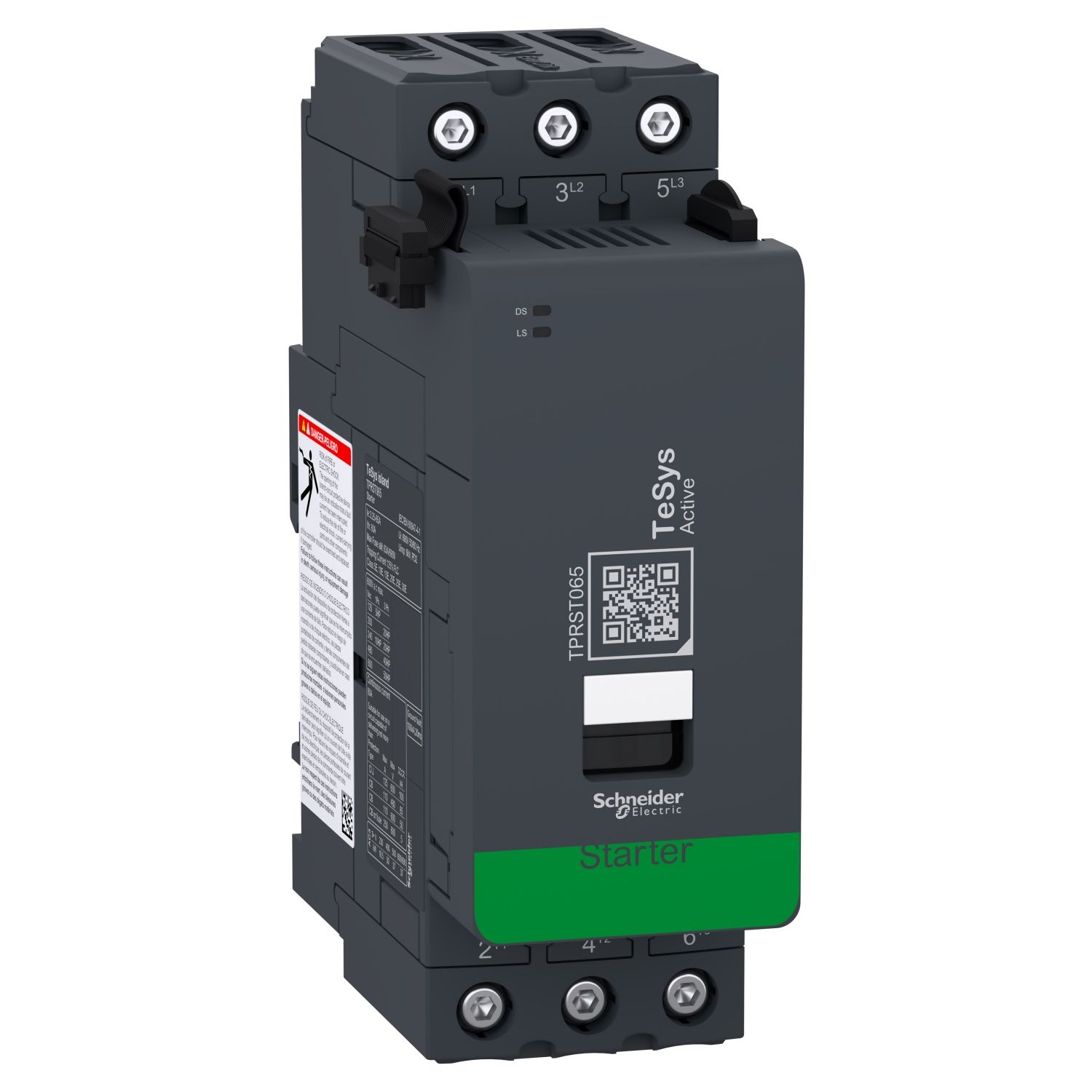

Picture of Motor starter, TeSys island, 80A at AC-1, 65A at AC-3, 30kW, 40hp, DOL type
SKU:

TPRST065

Motor starter, TeSys island, 80A at AC-1, 65A at AC-3, 30kW, 40hp, DOL type

Please Contact Sales to buy this Product. click here
Motor starter, TeSys island, 80A at AC-1, 65A at AC-3, 30kW, 40hp, DOL type
  • Upstream voltage presence detection
  • Power and energy monitoring when connected with TPRVM voltage module
  • Manages motors and other electrical loads up to 80 A (AC-3) / 37 kW/40 hp
  • All adjustments and setting are digitized, no mechanical dials or dip switches
  • Embedded Cybersecurity (Achilles Level 2)
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
User guide
End of life manual
Product environmental
Instruction sheet
Quick start guide
Product Page Link
Product Data Sheet
TeSys island direct starter, 3 poles, 65A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 65A and motors up to 30kW@400V / 40hp@480V. It provides motor protection functions including thermal overload (setting 3.35-65A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
[Icw] rated short-time withstand current110 A 40 °C - 10 min, 260 A 40 °C - 1 min, 520 A 40 °C - 10 s, 900 A 40 °C - 1 s
Device short nameTPRST
[Ue] rated operational voltage<= 690 V AC 47...63 Hz
Function availablepower and energy monitoring when connected with TPRVM voltage module, electrical line and load protection, upstream voltage presence detection
Motor starter typedirect on line
Device presentationoperational only when connected to a bus coupler, direct starter connected to an automation controller through a bus coupler
RangeTeSys
Thermal overload classclass 5…30
Irms rated making capacity1000 A at 440 V conforming to IEC 60947
Rated breaking capacity1000 A at 440 V conforming to IEC 60947
[Ith] conventional free air thermal current80 A (at 50 °C)
Poles description3P (3 NO)
[Ui] rated insulation voltage600 V conforming to CSA C22.2 No 60947-4-1, 600 V conforming to UL 60947-4-1, 690 V conforming to IEC 60947-4-1
Motor power hp50 hp at 600 V AC 60 Hz for 3 phases motors, 40 hp at 480 V AC 60 Hz for 3 phases motors, 20 hp at 240 V AC 60 Hz for 3 phases motors, 20 hp at 208 V AC 60 Hz for 3 phases motors, 10 hp at 240 V AC 60 Hz for 1 phase motors, 5 hp at 120 V AC 60 Hz for 1 phase motors
Motor power kW37 kW at 690 V 50 Hz (AC-3), 37 kW at 500 V 50 Hz (AC-3), 30 kW at 440 V 50 Hz (AC-3), 30 kW at 380...415 V 50 Hz (AC-3), 18.5 kW at 230 V 50 Hz (AC-3)
Product compatibilityTPRVM voltage interface module, TPRBC bus coupler
Thermal protection adjustment range3.35-65 A
Overvoltage categoryIII
[Ie] rated operational current80 A (at <50 °C) at <= 440 V AC-1, 65 A (at <50 °C) at <= 440 V AC-3
Utilisation categoryAC-4, AC-3, AC-2, AC-1
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
Product nameTeSys island
Product or component typemotor starter
[Uc] control circuit voltage24 V DC supplied by the bus coupler
Resetremotely or automatically
Average impedance1.5 mOhm - Ith 80 A 50 Hz
Power dissipation per pole9.6 W AC-1 - Ith 80 A, 6.3 W AC-3 - Ith 65 A
Power dissipation in W20.8 W at Ie AC-3
Current consumption500 mA contactor closing, 80 mA contactor sealed
Complementary
Protection typeground current, phase unbalance, phase loss, phase reversal, rapid restart lockout, phase sequence, rapid cycle lockout, stall, long start, jam, undercurrent, overcurrent, motor overheat, thermal overload protection
Tightening torque8-8 N.m - cable 25-35 mm² hexagonal 4 mm, 5-5 N.m - cable 1-25 mm² hexagonal 4 mm
Mechanical durability6 Mcycles
Electrical durability0.5 Mcycles 80 A AC-1 at Ue 440 V, 1.4 Mcycles 65 A AC-3 at Ue 440 V
Metering typetrue power factor with voltage module, active and reactive energy with voltage module, active and reactive power with voltage module, max voltage Vmax, max current Imax, average voltage Vavg, average current Iavg, number of device power cycles, number of switching cycles, number of faults, time device switch ON, time device ON
Connections - terminalsEverLink BTR screw connectors 2 cable(s) 1-25 mm² (AWG 16...AWG 4) flexible with cable end, EverLink BTR screw connectors 1 cable(s) 1-35 mm² (AWG 16...AWG 2) flexible with cable end, EverLink BTR screw connectors 2 cable(s) 1-25 mm² (AWG 16...AWG 4) flexible without cable end, EverLink BTR screw connectors 1 cable(s) 1-35 mm² (AWG 16...AWG 2) flexible without cable end, EverLink BTR screw connectors 2 cable(s) 1-25 mm² (AWG 16...AWG 4) rigid, EverLink BTR screw connectors 1 cable(s) 1-35 mm² (AWG 16...AWG 2) rigid
StandardsCSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-1
Safety reliability levelB10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Product certificationsCCC, EAC, UL, CSA
Height167 mm
Depth125 mm
Width55 mm
Operating time< 80 ms opening, < 80 ms closing
Local signalling1 LED (green/red) for LS (load status), 1 LED (green/red) for DS (device status)
Maximum operating rate3600 cyc/mn AC-3
Net weight1.248 kg
Mounting modehorizontal and vertical (35 mm symmetrical DIN rail)
Environment
Fire resistance650 °C conforming to IEC 60695-2-12, 850 °C conforming to IEC 60695-2-1, 960 °C conforming to UL 94
IP degree of protectionIP20
Relative humidity5-95 %
Protective treatmentTC
Ambient air temperature for storage-25-70 °C
Pollution degree2
Electromagnetic compatibilityconducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6, surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5, surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4, radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
Ambient air temperature for operation50-60 °C with current derating, -10-50 °C without derating
Operating altitude0...2000 m without derating
Vibration resistance1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
Shock resistance15 gn (duration = 11 ms) conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.5 cm
Package 1 Width13.5 cm
Package 1 Length17.5 cm
Package 1 Weight1.32 kg
Unit Type of Package 22
Number of Units in Package 28
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight10.892 kg

Related products

Picture of Bus coupler, TeSys island, 24VDC, 3A, Profibus DP

Bus coupler, TeSys island, 24VDC, 3A, Profibus DP

TPRBCPFB
Please Contact Sales to buy this Product. click here
View Detail
Picture of Bus coupler, TeSys island, 24VDC, 3A, Profinet IO

Bus coupler, TeSys island, 24VDC, 3A, Profinet IO

TPRBCPFN
Please Contact Sales to buy this Product. click here
View Detail
Picture of Bus coupler, TeSys island, 24VDC, Ethernet switch (EtherNet IP / Modbus TCP)

Bus coupler, TeSys island, 24VDC, Ethernet switch (EtherNet IP / Modbus TCP)

TPRBCEIP
Please Contact Sales to buy this Product. click here
View Detail
Picture of TeSys; Linergy, Kit for assembling 3P reversing contactors, LC1D40A-D80A with screw clamp terminals, without electrical interlock

TeSys; Linergy, Kit for assembling 3P reversing contactors, LC1D40A-D80A with screw clamp terminals, without electrical interlock

LAD9R3
$189.35
View Detail

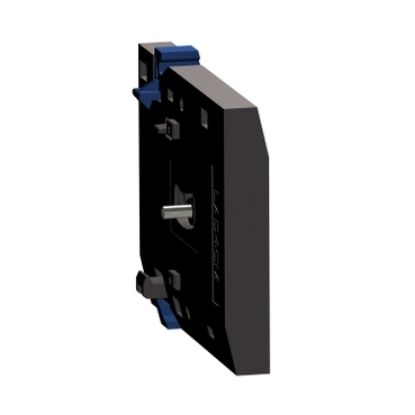

Picture of TeSys, Mechanical interlock, TeSys Deca contactors LC1D40A-D80A LC1DT60A-DT80A
