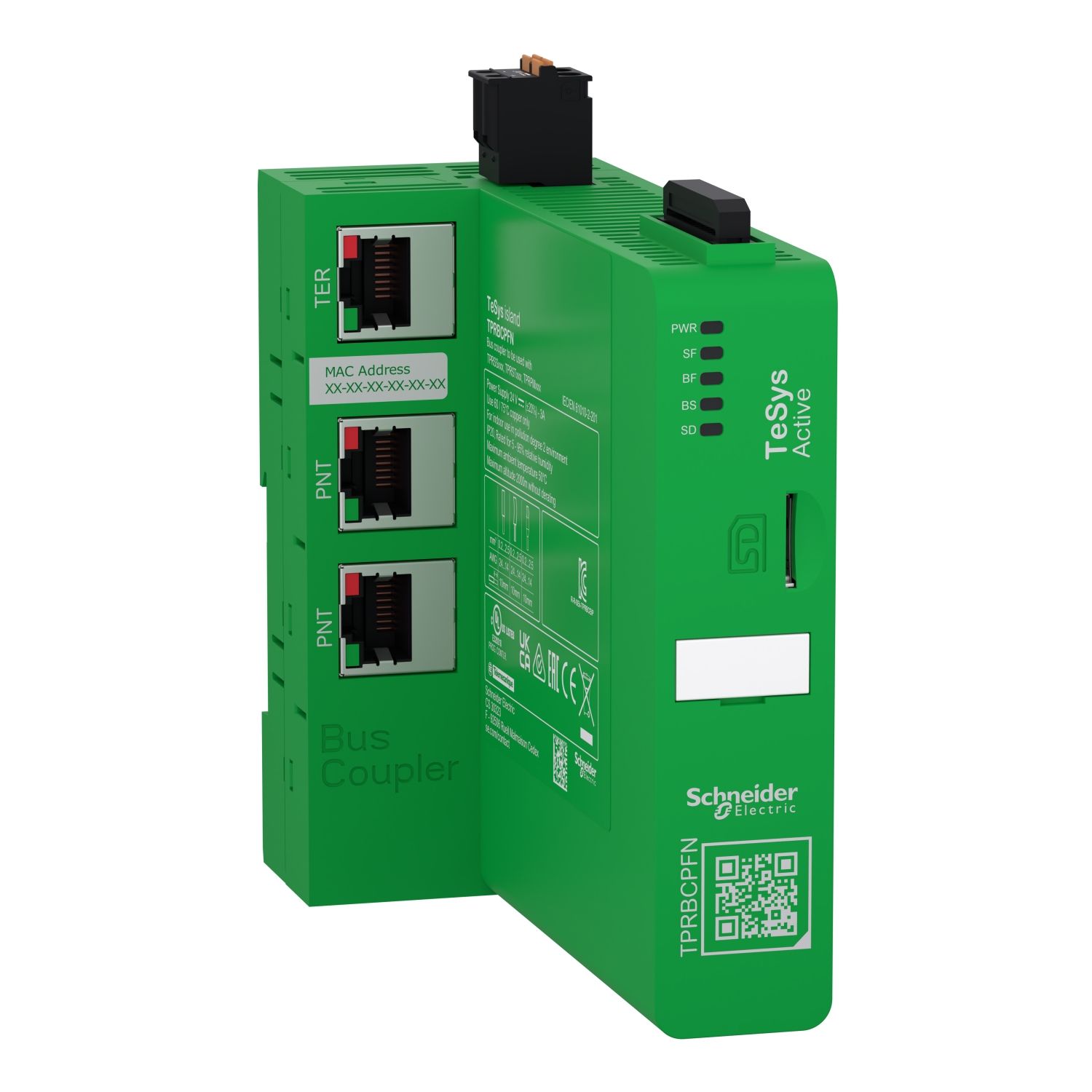

Picture of Bus coupler, TeSys island, 24VDC, 3A, Profinet IO
SKU:

TPRBCPFN

Bus coupler, TeSys island, 24VDC, 3A, Profinet IO

$748.40
Available for Shipping : 05-Jan-2025
Bus coupler, TeSys island, 24VDC, 3A, Profinet IO
  • Full integration with SoMove/MachineExpert for the programming of the island
  • One single 24V DC power supply for the complete island
  • Manages motors and other electrical loads up to 80 A (AC-3) / 37 kW/40 hp
  • All adjustments and setting are digitized, no mechanical dials or dip switches
  • Embedded Cybersecurity (Achilles Level 2)
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
User guide
End of life manual
Product environmental
Quick start guide
Product Page Link
Product Data Sheet
TeSys island bus coupler, point of connection between a TeSys island configuration (group of starters) and an automation system over PROFINET IO. It performs all functions for the application (TeSys avatars), selectable and configurable through SoMove or MachineExpert. For diagnostics and maintenance of the TeSys island, a web server (OMT) is embedded. To be supplied externally by 24V DC, it provides two RJ45 ports for PROFINET IO, one RJ45 service port over Ethernet, one micro SD card port, and a port for the internal bus interconnecting the modules of the island. Mounting on DIN rail, together with the other modules of the TeSys island configuration, the bus coupler is the module on the most left position. Multi standards certified (IEC, UL, CSA, CCC, EAC), cybersecurity Achilles Level 2 certified, Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name TPRBC
Supply voltage limits 20.4-28.8 V DC
Function available one service port with an embedded webserver for maintenance, two fieldbus ports for communication with an automation controller, one single 24V DC power supply for the complete island, full integration with SoMove for the control of the island
Device presentation management of the complete island up to 20 modules, point of connection between a group of starters and an automation controller
Range TeSys
Power dissipation in W 7 W maximum
Protection type reverse polarity protection for power supply, external fuse, 3 A fast fuse for power supply
[Us] rated supply voltage 24 V DC
Integrated connection type 1 micro SD card port, 1 RJ45, connector female for protocol Ethernet TCP/IP, service port, 2 RJ45, connector female for protocol Profinet IO, fieldbus port
Product compatibility TPRDG digital IO module, TPRAN analog IO module, TPRVM voltage interface module, TPRSM SIL interface module, TPRPM power module, TPRSS SIL motor starter, TPRST motor starter
Communication port protocol Profinet IO
Communication service SNTP client, DHCP client, net load class 1, conformance class A (CC-A)
Local signalling 1 LED green/red with SD marking for SD card access (SD), 1 LED green/red with BS marking for internal bus status, 1 LED green/red with BF marking for network status, 1 LED green/red with SF marking for system fault, 1 LED green/yellow with PWR marking for power supply status
Product name TeSys island
Product or component type bus coupler
Rated current 3 A maximum
Complementary
Connections - terminals power supply: removable spring terminal block 2 cable(s) 2.5-2.5 mm² (AWG 14) rigid or flexible
Standards EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, EN/IEC 60947-4-1
Product certifications PNO, Achilles: level 2, EAC, CSA, UL
Height 118 mm
Depth 114 mm
Width 50 mm
Cybersecurity Achilles certified
Net weight 0.204 kg
Mounting mode horizontal and vertical (35 mm symmetrical rail)
Environment
Fire resistance 960 °C conforming to UL 94
IP degree of protection IP20
Relative humidity 5-95 %
Protective treatment TC
Ambient air temperature for storage -25-70 °C
Pollution degree 2
Electromagnetic compatibility power supply: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, communication: surge immunity test (common mode), level 3, 1 kV, conforming to EN/IEC 61000-4-5, power supply: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4, communication: fast transients immunity test, level 3, 1 kV, conforming to EN/IEC 61000-4-4, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
Ambient air temperature for operation -10-60 °C
Operating altitude 0...2000 m without derating
Vibration resistance 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn (duration = 11 ms) conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.8 cm
Package 1 Width 13.7 cm
Package 1 Length 15.5 cm
Package 1 Weight 283.0 g

Related products

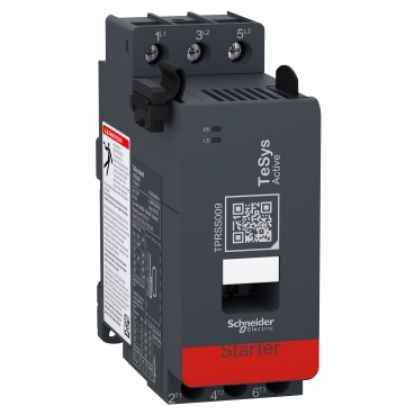

Picture of SIL motor starter, TeSys island, 15A at AC-1, 9A at AC-3, 4kW, 5hp, DOL type

SIL motor starter, TeSys island, 15A at AC-1, 9A at AC-3, 4kW, 5hp, DOL type

TPRSS009
$324.01
View Detail

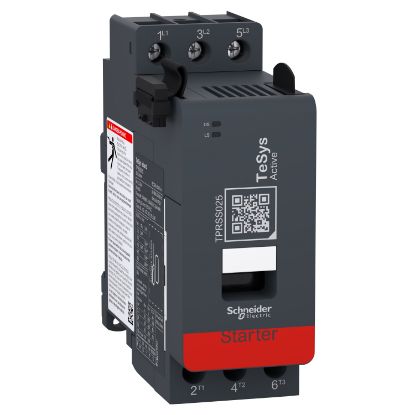

Picture of SIL motor starter, TeSys island, 30A at AC-1, 25A at AC-3, 11kW, 15hp, DOL type

SIL motor starter, TeSys island, 30A at AC-1, 25A at AC-3, 11kW, 15hp, DOL type

TPRSS025
$405.60
View Detail
Picture of SIL motor starter, TeSys island, 40A at AC-1, 38A at AC-3, 18.5kW, 20hp, DOL type

SIL motor starter, TeSys island, 40A at AC-1, 38A at AC-3, 18.5kW, 20hp, DOL type

TPRSS038
$575.12
View Detail
Picture of SIL motor starter, TeSys island, 80A at AC-1, 65A at AC-3, 30kW, 40hp, DOL type

SIL motor starter, TeSys island, 80A at AC-1, 65A at AC-3, 30kW, 40hp, DOL type

TPRSS065
$914.52
View Detail

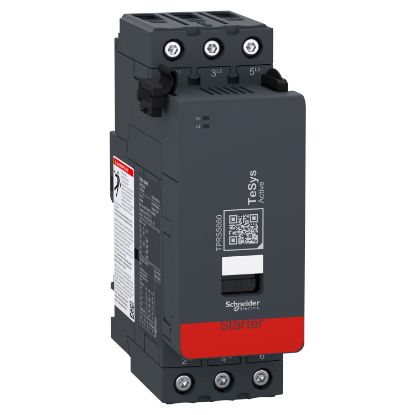

Picture of SIL motor starter, TeSys island, 80A at AC-1, 66A at AC-3, 37kW, 40hp, DOL type
