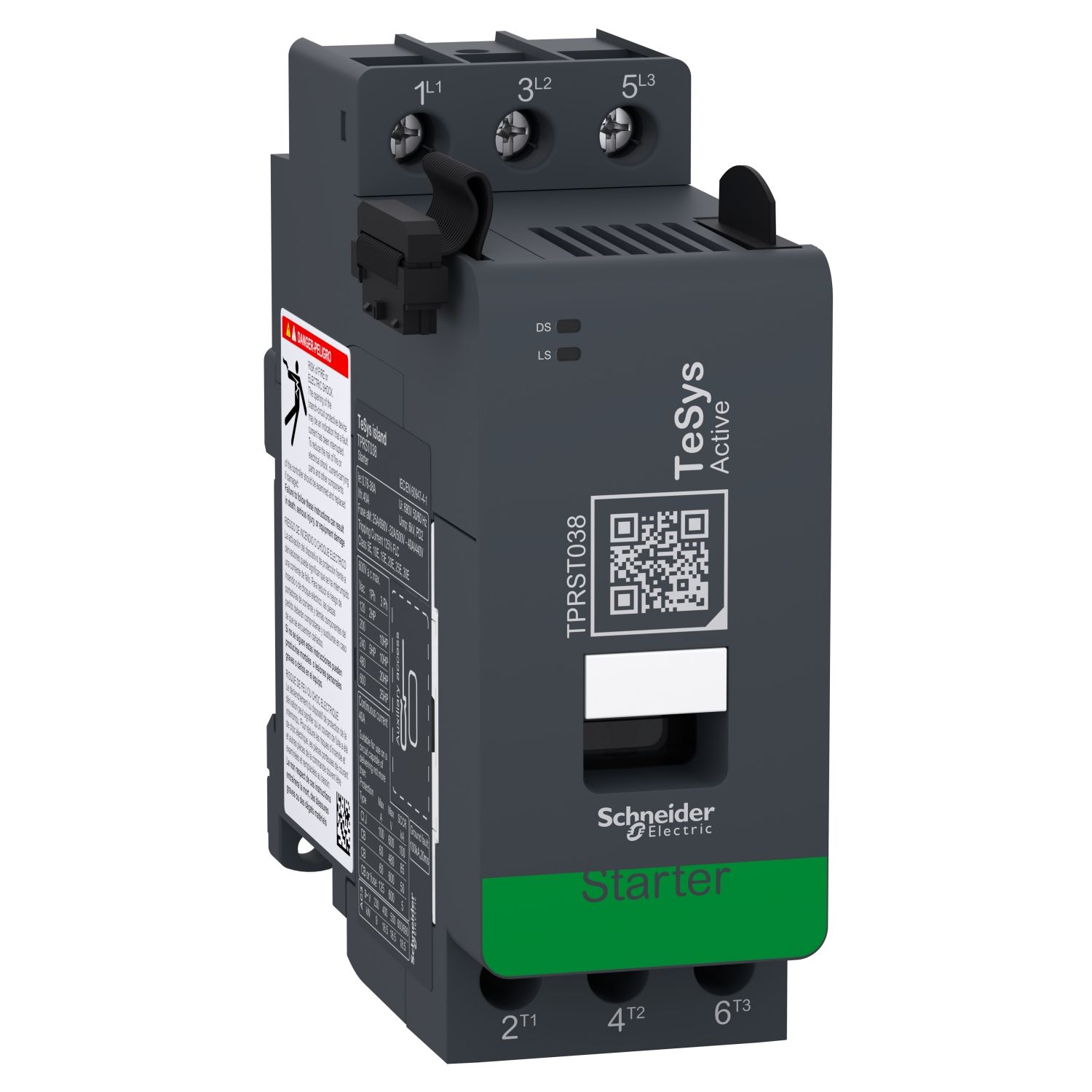

Picture of Motor starter, TeSys island, 40A at AC-1, 38A at AC-3, 18.5kW, 20hp, DOL type
SKU:

TPRST038

Motor starter, TeSys island, 40A at AC-1, 38A at AC-3, 18.5kW, 20hp, DOL type

$501.86
Available for Shipping : 12-Nov-2024
Motor starter, TeSys island, 40A at AC-1, 38A at AC-3, 18.5kW, 20hp, DOL type
  • Upstream voltage presence detection
  • Power and energy monitoring when connected with TPRVM voltage module
  • Manages motors and other electrical loads up to 80 A (AC-3) / 37 kW/40 hp
  • All adjustments and setting are digitized, no mechanical dials or dip switches
  • Embedded Cybersecurity (Achilles Level 2)
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
End of life manual
Product environmental
Instruction sheet
Quick start guide
Product Page Link
Product Data Sheet
TeSys island direct starter, 3 poles, 38A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 38A and motors up to 18,5kW@400V / 20hp@480V. It provides motor protection functions including thermal overload (setting 0.76-38A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
[Icw] rated short-time withstand current 60 A 40 °C - 10 min, 150 A 40 °C - 1 min, 310 A 40 °C - 10 s, 430 A 40 °C - 1 s
Device short name TPRST
[Ue] rated operational voltage <= 690 V AC 47...63 Hz for overvoltage cat. II, <= 480 V AC 47...63 Hz for overvoltage cat. III
Function available power and energy monitoring when connected with TPRVM voltage module, electrical line and load protection, upstream voltage presence detection
Motor starter type direct on line
Device presentation operational only when connected to a bus coupler, direct starter connected to an automation controller through a bus coupler
Range TeSys
Thermal overload class class 5…30
Irms rated making capacity 550 A at 440 V conforming to IEC 60947
Rated breaking capacity 550 A at 440 V conforming to IEC 60947
[Ith] conventional free air thermal current 40 A (at 50 °C)
Poles description 3P (3 NO)
[Ui] rated insulation voltage 600 V conforming to CSA C22.2 No 60947-4-1, 600 V conforming to UL 60947-4-1, 690 V conforming to IEC 60947-4-1
Motor power hp 25 hp at 600 V AC 60 Hz for 3 phases motors, 20 hp at 480 V AC 60 Hz for 3 phases motors, 10 hp at 240 V AC 60 Hz for 3 phases motors, 10 hp at 208 V AC 60 Hz for 3 phases motors, 5 hp at 240 V AC 60 Hz for 1 phase motors, 2 hp at 120 V AC 60 Hz for 1 phase motors
Motor power kW 18.5 kW at 690 V 50 Hz (AC-3), 18.5 kW at 500 V 50 Hz (AC-3), 18.5 kW at 440 V 50 Hz (AC-3), 18.5 kW at 380...415 V 50 Hz (AC-3), 9 kW at 230 V 50 Hz (AC-3)
Product compatibility TPRVM voltage interface module, TPRBC bus coupler
Thermal protection adjustment range 0.76-38 A
Overvoltage category II for Ue <= 690 V, III for Ue <= 480 V
[Ie] rated operational current 40 A (at <50 °C) at <= 440 V AC-1, 38 A (at <50 °C) at <= 440 V AC-3
Utilisation category AC-4, AC-3, AC-2, AC-1
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Product name TeSys island
Product or component type motor starter
[Uc] control circuit voltage 24 V DC supplied by the bus coupler
Reset remotely or automatically
Average impedance 2 mOhm - Ith 40 A 50 Hz
Power dissipation per pole 3.2 W AC-1 - Ith 40 A, 2.9 W AC-3 - Ith 38 A
Power dissipation in W 11.8 W at Ie AC-3
Current consumption 160 mA contactor closing, 160 mA contactor sealed
Complementary
Protection type ground current, phase unbalance, phase reversal, phase loss, rapid restart lockout, phase sequence, rapid cycle lockout, stall, long start, jam, undercurrent, overcurrent, motor overheat, thermal overload protection
Tightening torque 2.5-2.5 N.m - with screwdriver Philips No 3, 2.5-2.5 N.m - with screwdriver flat Ø 6 mm
Mechanical durability 30 Mcycles
Electrical durability 2 Mcycles 40 A AC-1 at Ue 440 V, 1.4 Mcycles 38 A AC-3 at Ue 440 V
Metering type true power factor with voltage module, active and reactive energy with voltage module, active and reactive power with voltage module, max voltage Vmax, max current Imax, average voltage Vavg, average current Iavg, number of device power cycles, number of switching cycles, number of faults, time device switch ON, time device ON
Connections - terminals screw-clamp terminals 2 cable(s) 1.5-6 mm² (AWG 16...AWG 10) flexible with cable end, screw-clamp terminals 1 cable(s) 1.5-10 mm² (AWG 16...AWG 10) flexible with cable end, screw-clamp terminals 2 cable(s) 2.5-10 mm² (AWG 14...AWG 8) flexible without cable end, screw-clamp terminals 1 cable(s) 2.5-10 mm² (AWG 14...AWG 8) flexible without cable end, screw-clamp terminals 2 cable(s) 1.5-10 mm² (AWG 16...AWG 8) rigid, screw-clamp terminals 1 cable(s) 1.5-10 mm² (AWG 16...AWG 8) rigid
Standards CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-1
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Product certifications CSA, UL, EAC, CCC
Height 121 mm
Depth 115 mm
Width 45 mm
Operating time < 30 ms opening, < 100 ms closing
Local signalling 1 LED (green/red) for LS (load status), 1 LED (green/red) for DS (device status)
Maximum operating rate 3600 cyc/mn AC-3
Net weight 0.718 kg
Mounting mode horizontal and vertical (35 mm symmetrical DIN rail)
Environment
Fire resistance 650 °C conforming to IEC 60695-2-12, 850 °C conforming to IEC 60695-2-1, 960 °C conforming to UL 94
IP degree of protection IP20
Relative humidity 5-95 %
Protective treatment TC
Ambient air temperature for storage -25-70 °C
Pollution degree 2
Electromagnetic compatibility conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6, surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5, surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4, radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
Ambient air temperature for operation 50-60 °C with current derating, -10-50 °C without derating
Operating altitude 0...2000 m without derating
Vibration resistance 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn (duration = 11 ms) conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 12.5 cm
Package 1 Length 13.0 cm
Package 1 Weight 770.0 g
Unit Type of Package 2 2
Number of Units in Package 2 14
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 11.1 kg
