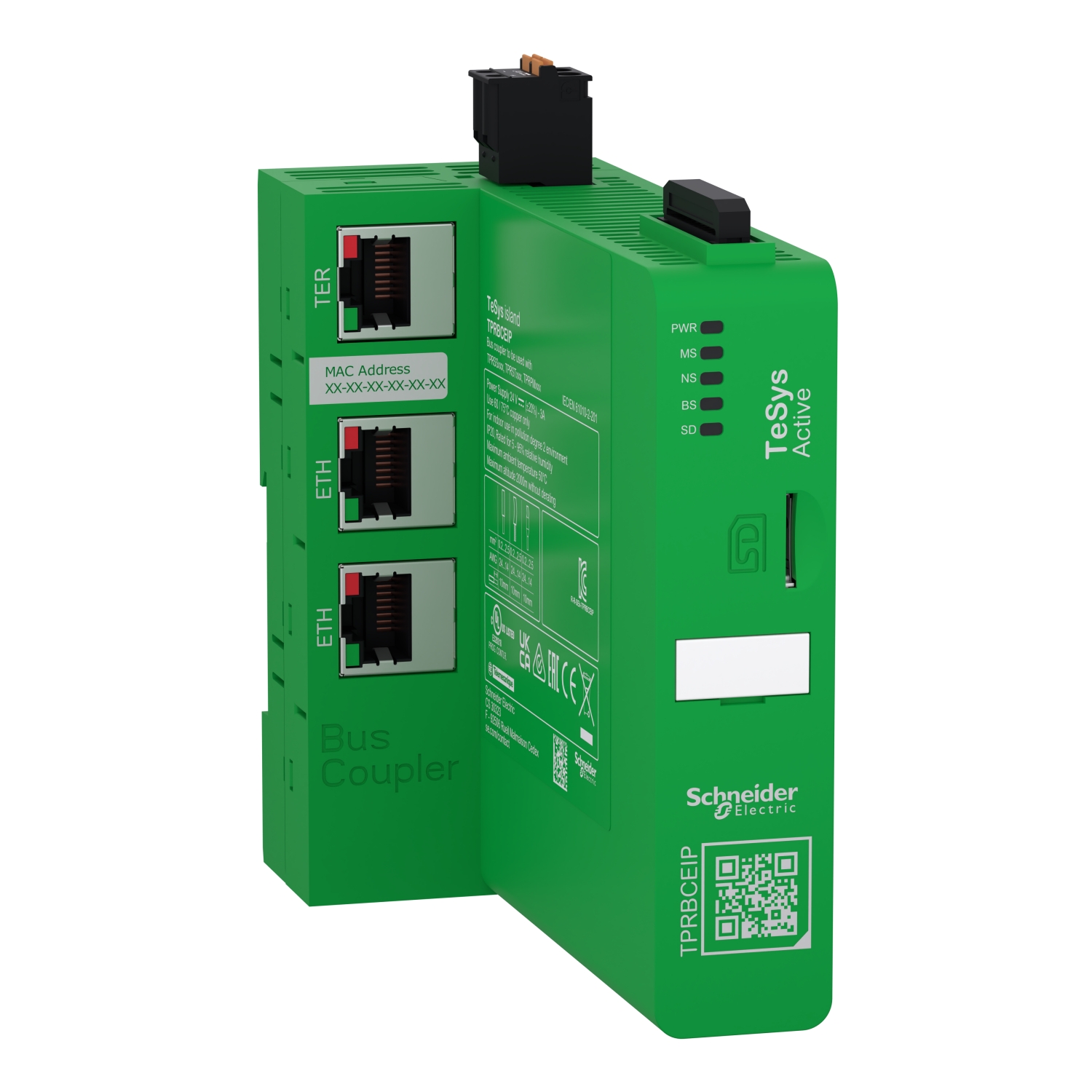

Picture of Bus coupler, TeSys island, 24VDC, Ethernet switch (EtherNet IP / Modbus TCP)
SKU:

TPRBCEIP

Bus coupler, TeSys island, 24VDC, Ethernet switch (EtherNet IP / Modbus TCP)

$748.40
Available for Shipping : 14-Nov-2024
Bus coupler, TeSys island, 24VDC, Ethernet switch (EtherNet IP / Modbus TCP)
  • Full integration with SoMove/MachineExpert for the programming of the island
  • One single 24V DC power supply for the complete island
  • Manages motors and other electrical loads up to 80 A (AC-3) / 37 kW/40 hp
  • All adjustments and setting are digitized, no mechanical dials or dip switches
  • Embedded Cybersecurity (Achilles Level 2)
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
End of life manual
Instruction sheet
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
TeSys island bus coupler, point of connection between a TeSys island configuration (group of starters) and an automation system over EtherNet/IP or Modbus TCP. It performs all functions for the application (TeSys avatars), selectable and configurable through SoMove or MachineExpert. For diagnostics and maintenance of the TeSys island, a web server (OMT) is embedded. To be supplied externally by 24V DC, it provides two RJ45 ports for EtherNet/IP or Modbus TCP, one RJ45 service port over Ethernet, one micro SD card port, and a port for the internal bus interconnecting the modules of the island. Mounting on DIN rail, together with the other modules of the TeSys island configuration, the bus coupler is the module on the most left position. Multi standards certified (IEC, UL, CSA, CCC, EAC), cybersecurity Achilles Level 2 certified, Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name TPRBC
Supply voltage limits 20.4-28.8 V DC
Function available one service port with an embedded webserver for maintenance, two fieldbus ports for communication with an automation controller, one single 24V DC power supply for the complete island, full integration with SoMove/MachineExpert for the programming of the island
Device presentation management of the complete island up to 20 modules, point of connection between a group of starters and an automation controller
Range TeSys
Power dissipation in W 7 W maximum
Protection type reverse polarity protection for power supply, external fuse, 3 A fast fuse for power supply
[Us] rated supply voltage 24 V DC
Integrated connection type 1 micro SD card port, 1 RJ45, connector female for protocol Ethernet TCP/IP, service port, 2 RJ45, connector female for protocol Ethernet IP/Modbus TCP 10/100BASE-T, fieldbus port
Product compatibility TPRDG digital IO module, TPRAN analog IO module, TPRVM voltage interface module, TPRSM SIL interface module, TPRPM power module, TPRSS SIL motor starter, TPRST motor starter
Communication port protocol Modbus TCP, EtherNet/IP
Communication service auto MDI/MDX function, SNTP client, SNMP client, BOOTP client, DHCP client, Modbus TCP server, Ethernet/IP adapter
Local signalling 1 LED green/red with SD marking for SD card access (SD), 1 LED green/red with BS marking for internal bus status, 1 LED green/red with NS marking for network status, 1 LED green/red with MS marking for module status, 1 LED green/yellow with PWR marking for power supply status
Product name TeSys island
Product or component type bus coupler
Exchange mode half duplex, full duplex, autonegotiation Ethernet
Rated current 3 A maximum
Complementary
Connections - terminals power supply: removable spring terminal block 2 cable(s) 2.5-2.5 mm² (AWG 14) rigid or flexible
Standards EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, EN/IEC 60947-4-1
Product certifications Achilles: level 2, EAC, CSA, UL
Height 118 mm
Depth 114 mm
Width 50 mm
Cybersecurity Achilles certified
Net weight 0.204 kg
Mounting mode horizontal and vertical (35 mm symmetrical rail)
Environment
Fire resistance 960 °C conforming to UL 94
IP degree of protection IP20
Relative humidity 5-95 %
Protective treatment TC
Ambient air temperature for storage -25-70 °C
Pollution degree 2
Electromagnetic compatibility power supply: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, communication: surge immunity test (common mode), level 3, 1 kV, conforming to EN/IEC 61000-4-5, power supply: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4, communication: fast transients immunity test, level 3, 1 kV, conforming to EN/IEC 61000-4-4, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
Ambient air temperature for operation -10-60 °C
Operating altitude 0...2000 m without derating
Vibration resistance 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn (duration = 11 ms) conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 13.500 cm
Package 1 Length 15.500 cm
Package 1 Weight 279.000 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.230 kg
