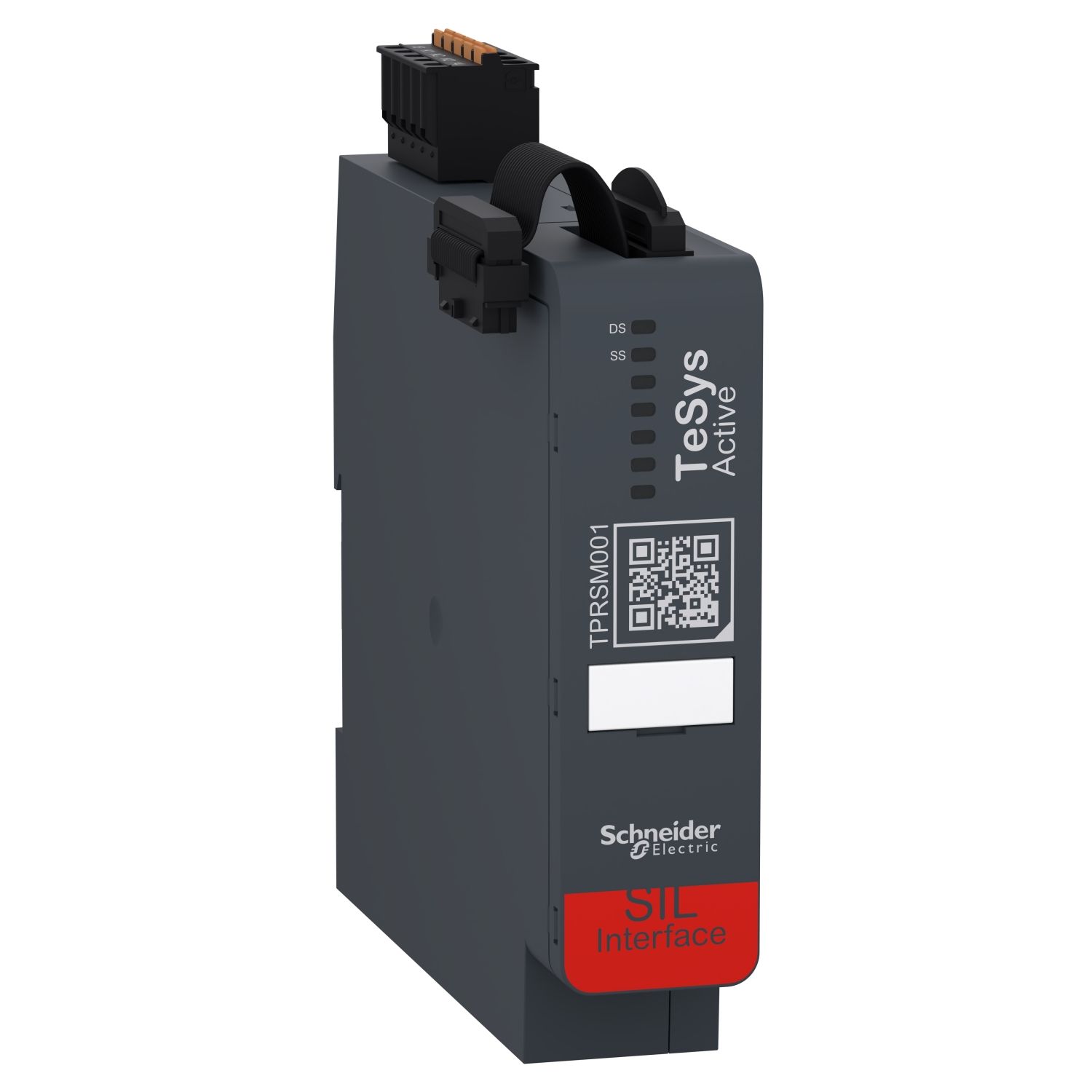

Picture of SIL interface module, TeSys island, 24VDC, Isolated switching input for safe stop
SKU:

TPRSM001

SIL interface module, TeSys island, 24VDC, Isolated switching input for safe stop

$393.36
Available for Shipping : 17-Nov-2024
SIL interface module, TeSys island, 24VDC, Isolated switching input for safe stop
  • Monitoring of the mains voltage powering the island
  • Reporting of the voltage to the bus coupler to enable power & energy monitoring
  • Manages motors and other electrical loads up to 80 A (AC-3) / 37 kW/40 hp
  • All adjustments and setting are digitized, no mechanical dials or dip switches
  • Embedded Cybersecurity (Achilles Level 2)
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
End of life manual
Instruction sheet
Product environmental
Declaration of conformity
Quick start guide
Product Page Link
Product Data Sheet
TeSys island SIL interface module, 2 inputs, 1 output. Connected to a TPRBC bus coupler, it allows integration into safety related systems conforming to ISO 13849-1. It is used in connection to one or several SIL motor starter TPRSS. Two isolated switching inputs with common point, 0-24V DC. One relay type output, 1NO, instantaneous opening, potential free. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Related products

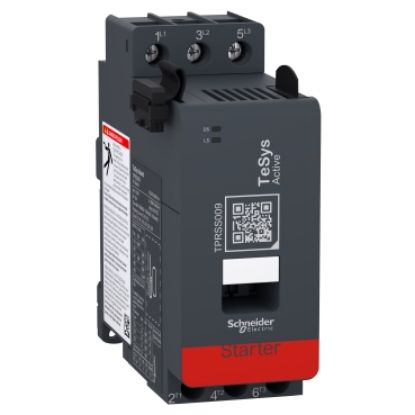

Picture of SIL motor starter, TeSys island, 15A at AC-1, 9A at AC-3, 4kW, 5hp, DOL type

SIL motor starter, TeSys island, 15A at AC-1, 9A at AC-3, 4kW, 5hp, DOL type

TPRSS009
$324.01
View Detail
Picture of SIL motor starter, TeSys island, 30A at AC-1, 25A at AC-3, 11kW, 15hp, DOL type

SIL motor starter, TeSys island, 30A at AC-1, 25A at AC-3, 11kW, 15hp, DOL type

TPRSS025
$405.60
View Detail

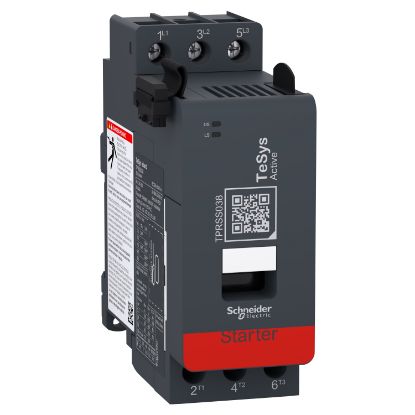

Picture of SIL motor starter, TeSys island, 40A at AC-1, 38A at AC-3, 18.5kW, 20hp, DOL type

SIL motor starter, TeSys island, 40A at AC-1, 38A at AC-3, 18.5kW, 20hp, DOL type

TPRSS038
$575.12
View Detail

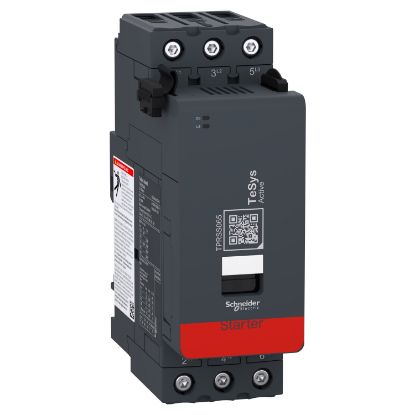

Picture of SIL motor starter, TeSys island, 80A at AC-1, 65A at AC-3, 30kW, 40hp, DOL type

SIL motor starter, TeSys island, 80A at AC-1, 65A at AC-3, 30kW, 40hp, DOL type

TPRSS065
$914.52
View Detail
Picture of SIL motor starter, TeSys island, 80A at AC-1, 66A at AC-3, 37kW, 40hp, DOL type

SIL motor starter, TeSys island, 80A at AC-1, 66A at AC-3, 37kW, 40hp, DOL type

TPRSS080
$974.27
View Detail
Picture of Bus coupler, TeSys island, 24VDC, Ethernet switch (EtherNet IP / Modbus TCP)

Bus coupler, TeSys island, 24VDC, Ethernet switch (EtherNet IP / Modbus TCP)

TPRBCEIP
$748.40
View Detail
Picture of Bus coupler, TeSys island, 24VDC, 3A, Profibus DP

Bus coupler, TeSys island, 24VDC, 3A, Profibus DP

TPRBCPFB
$839.40
View Detail
Picture of Bus coupler, TeSys island, 24VDC, 3A, Profinet IO

Bus coupler, TeSys island, 24VDC, 3A, Profinet IO

TPRBCPFN
$748.40
View Detail
