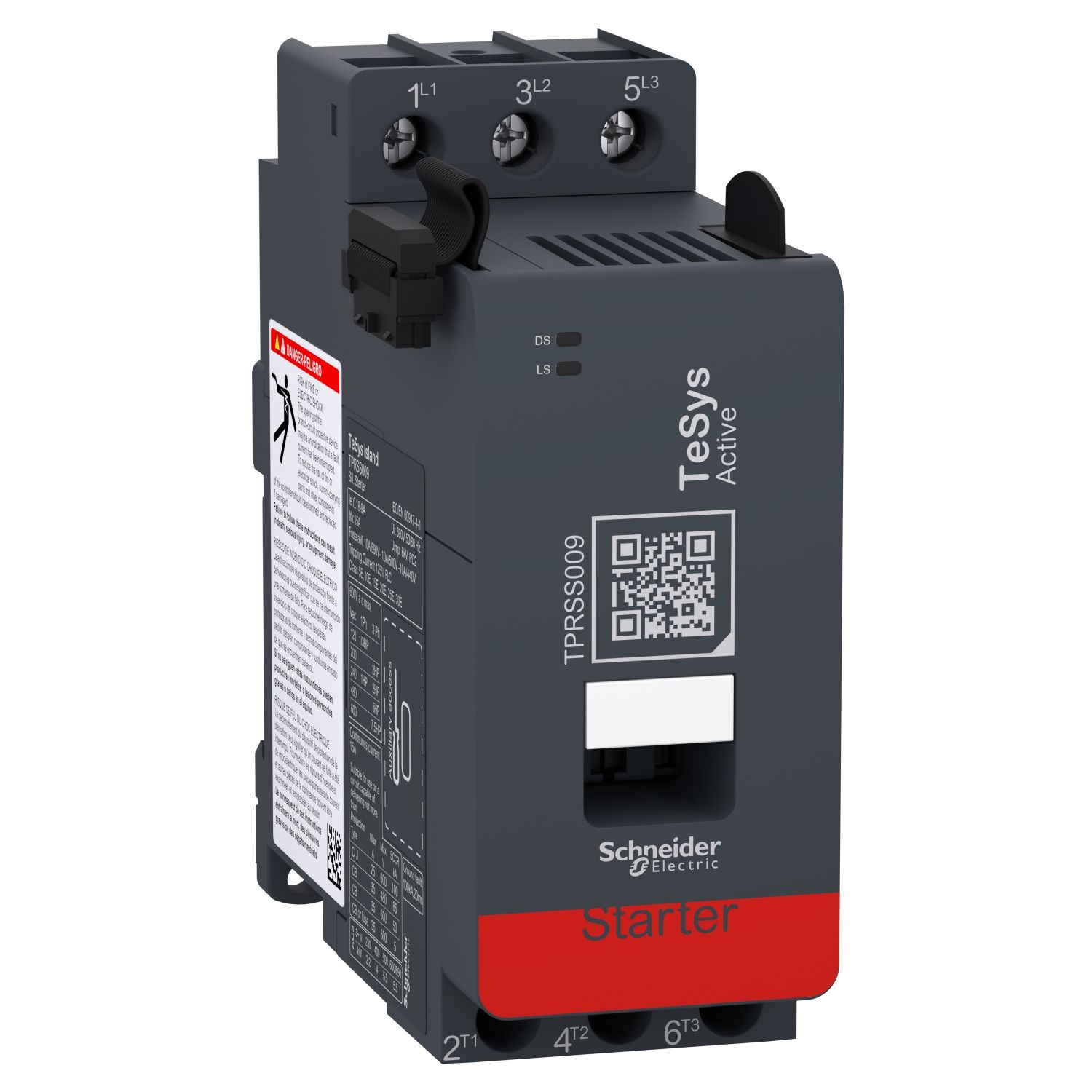

Picture of SIL motor starter, TeSys island, 15A at AC-1, 9A at AC-3, 4kW, 5hp, DOL type
SKU:

TPRSS009

SIL motor starter, TeSys island, 15A at AC-1, 9A at AC-3, 4kW, 5hp, DOL type

Please Contact Sales to buy this Product. click here
SIL motor starter, TeSys island, 15A at AC-1, 9A at AC-3, 4kW, 5hp, DOL type
  • Upstream voltage presence detection
  • Safe stop function available when connected with a TPRSM module
  • Manages motors and other electrical loads up to 80 A (AC-3) / 37 kW/40 hp
  • All adjustments and setting are digitized, no mechanical dials or dip switches
  • Embedded Cybersecurity (Achilles Level 2)
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
User guide
End of life manual
Product environmental
Instruction sheet
Quick start guide
Declaration of conformity
Product Page Link
Product Data Sheet
TeSys island direct SIL starter, 3 poles, 9A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 9A and motors up to 4kW@400V / 5hp@480V. In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 0.18-9A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
[Icw] rated short-time withstand current30 A 40 °C - 10 min, 61 A 40 °C - 1 min, 105 A 40 °C - 10 s, 210 A 40 °C - 1 s
Device short nameTPRSS
[Ue] rated operational voltage<= 690 V AC 47...63 Hz
Function availablesafe stop function available when connected with a TPRSM module, power and energy monitoring when connected with TPRVM voltage module, electrical line and load protection, upstream voltage presence detection
Motor starter typedirect on line
Device presentationoperational only when connected to a bus coupler, direct starter connected to an automation controller through a bus coupler
RangeTeSys
Thermal overload classclass 5…30
Irms rated making capacity250 A at 440 V conforming to IEC 60947
Rated breaking capacity250 A at 440 V conforming to IEC 60947
[Ith] conventional free air thermal current15 A (at 50 °C)
Poles description3P (3 NO)
[Ui] rated insulation voltage600 V conforming to CSA C22.2 No 60947-4-1, 600 V conforming to UL 60947-4-1, 690 V conforming to IEC 60947-4-1
Motor power hp7.5 hp at 600 V AC 60 Hz for 3 phases motors, 5 hp at 480 V AC 60 Hz for 3 phases motors, 2 hp at 240 V AC 60 Hz for 3 phases motors, 2 hp at 208 V AC 60 Hz for 3 phases motors, 1 hp at 240 V AC 60 Hz for 1 phase motors, 0.33 hp at 120 V AC 60 Hz for 1 phase motors
Motor power kW5.5 kW at 690 V 50 Hz (AC-3), 5.5 kW at 500 V 50 Hz (AC-3), 4 kW at 440 V 50 Hz (AC-3), 4 kW at 380...415 V 50 Hz (AC-3), 2.2 kW at 230 V 50 Hz (AC-3)
Product compatibilityTPRSM SIL interface module, TPRVM voltage interface module, TPRBC bus coupler
Thermal protection adjustment range0.18-9 A
Overvoltage categoryIII
[Ie] rated operational current15 A (at <50 °C) at <= 440 V AC-1, 9 A (at <50 °C) at <= 440 V AC-3
Utilisation categoryAC-4, AC-3, AC-2, AC-1
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
Product nameTeSys island
Product or component typeSIL motor starter
[Uc] control circuit voltage24 V DC supplied by the bus coupler
Resetremotely or automatically
Average impedance2.5 mOhm - Ith 15 A 50 Hz
Power dissipation per pole0.56 W AC-1 - Ith 15 A, 0.2 W AC-3 - Ith 9 A
Power dissipation in W3.5 W at Ie AC-3
Current consumption160 mA contactor closing, 160 mA contactor sealed
Complementary
Protection typeground current, phase unbalance, phase reversal, phase loss, phase sequence, rapid restart lockout, rapid cycle lockout, stall, long start, jam, undercurrent, overcurrent, motor overheat, thermal overload protection
Tightening torque1.7-1.7 N.m - with screwdriver Philips No 2, 1.7-1.7 N.m - with screwdriver flat Ø 6 mm
Mechanical durability30 Mcycles
Electrical durability1.2 Mcycles 15 A AC-1 at Ue 440 V, 2 Mcycles 9 A AC-3 at Ue 440 V
Metering typetrue power factor with voltage module, active and reactive energy with voltage module, active and reactive power with voltage module, max voltage Vmax, max current Imax, average voltage Vavg, average current Iavg, number of device power cycles, number of switching cycles, number of faults, time device switch ON, time device ON
Connections - terminalsscrew-clamp terminals 2 cable(s) 1-2.5 mm² (AWG 16...AWG 14) flexible with cable end, screw-clamp terminals 1 cable(s) 1-4 mm² (AWG 16...AWG 12) flexible with cable end, screw-clamp terminals 2 cable(s) 1.5-4 mm² (AWG 16...AWG 12) flexible without cable end, screw-clamp terminals 1 cable(s) 1.5-4 mm² (AWG 16...AWG 12) flexible without cable end, screw-clamp terminals 2 cable(s) 1-4 mm² (AWG 16...AWG 12) rigid, screw-clamp terminals 1 cable(s) 1-4 mm² (AWG 16...AWG 12) rigid
StandardsCSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-1
Safety reliability levelB10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Product certificationsCCC, CSA, UL, EAC
Height116 mm
Safety levelPL = d category 2 conforming to ISO 13849-1 in single channel system architecture, SILCL 2 conforming to IEC 62061 in single channel system architecture, SIL 2 conforming to IEC 61508 in single channel system architecture
Depth115 mm
Width45 mm
Operating time< 30 ms opening, < 100 ms closing
Safety functionsafe stop: category 1 conforming to IEC 60204-1 when associated with a TPRSM module, safe stop: category 0 conforming to IEC 60204-1 when associated with a TPRSM module
Local signalling1 LED (green/red) for LS (load status), 1 LED (green/red) for DS (device status)
Maximum operating rate3600 cyc/mn AC-3
Net weight0.656 kg
Mounting modehorizontal and vertical (35 mm symmetrical DIN rail)
Environment
Fire resistance650 °C conforming to IEC 60695-2-12, 850 °C conforming to IEC 60695-2-1, 960 °C conforming to UL 94
IP degree of protectionIP20
Relative humidity5-95 %
Protective treatmentTC
Ambient air temperature for storage-25-70 °C
Pollution degree2
Electromagnetic compatibilityconducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6, surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5, surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4, radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
Ambient air temperature for operation50-60 °C with current derating, -10-50 °C without derating
Operating altitude0...2000 m without derating
Vibration resistance1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
Shock resistance15 gn (duration = 11 ms) conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5 cm
Package 1 Width12.5 cm
Package 1 Length13 cm
Package 1 Weight712 g
Unit Type of Package 22
Number of Units in Package 214
Package 2 Height15 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight10.252 kg
