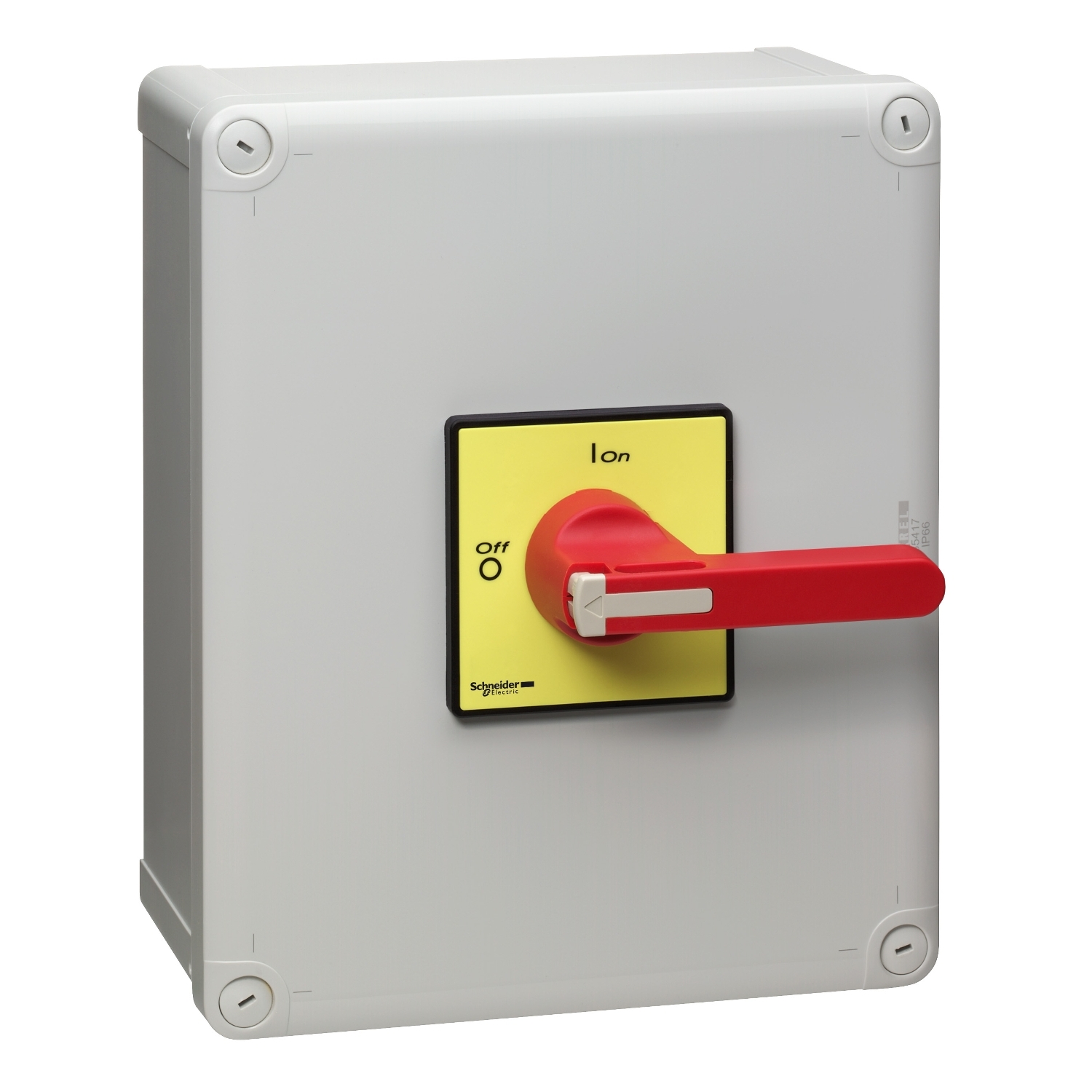

Picture of TeSys, TeSys Vario enclosed, emergency switch disconnector, 100A, IP65, long handle
SKU:

VCF5GEN

TeSys, TeSys Vario enclosed, emergency switch disconnector, 100A, IP65, long handle

$857.18
Available for Shipping : 17-Nov-2024
TeSys, TeSys Vario enclosed, emergency switch disconnector, 100A, IP65, long handle
  • High protection degree of waterproof and dustproof for harsh environment
  • Environmentally friendly materials
  • Easy operation with padlockable handle
  • Simple and reliable installation
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 100A 690V, for main and emergency stop switching in motor applications up to 37kW@400V AC-23. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V5 with 1 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name VCF
Control type rotary handle
Range TeSys
Type of operator long handle
Poles description 3P
Performance level high performance
Product name TeSys VARIO
Product or component type enclosed emergency stop switch disconnector
Handle colour red
Handle front plate colour yellow
Rotary handle padlocking 1 to 3 padlocks 4-8 mm
Complementary
[Icw] rated short-time withstand current 1500 A at 400 V duration: 1 s
Tightening torque 22.6-22.6 N.m - on screw clamp terminals
Fire resistance 960 °C conforming to IEC 60595-2-1
Compatibility code enclosed switch disconnector
Mechanical durability 30000 cycles
[Ie] rated operational current 68.5 A (AC-23A) at 400 V
Environmental characteristic standard environment
Electrical durability 30000 cycles DC-1...5, 30000 cycles AC-21
Base dimension 90 x 90 mm
Marking 0 - 1
Intermittent duty class 30
Height 291 mm
Rated conditional short-circuit current 10 kA at 400 V - associated fuse 125 A gG, 10 kA at 400 V - associated fuse 125 A aM
Rated operational power in W 30 kW at 400 V (AC-3), 37 kW at 400 V (AC-23)
Breaking capacity 1000 A at 400 V (AC-23A), 1000 A at 400 V (AC-22A), 1000 A at 400 V (AC-21A)
Depth 191 mm
Width 241 mm
Suitability for isolation yes
[Icm] rated short-circuit making capacity 2.8 kA at 400 V at Ipeak
Connections - terminals screw clamp terminals95-95 mm² - solid, screw clamp terminals70-70 mm² - flexible - with cable end
[Uimp] rated impulse withstand voltage 8 kV
Making capacity 1250 A at 400 V AC-23A, 1250 A at 400 V AC-22A, 1250 A at 400 V AC-21A
Net weight 2.19 kg
[Ithe] conventional enclosed thermal current 100 A
[Ue] rated operational voltage 690 V AC
Environment
Mechanical robustness shocks 11 ms (30 Gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Protective treatment TC
IP degree of protection IP65 conforming to IEC 60529
Ambient air temperature for operation -20-50 °C
Standards IEC 60204, IEC 60947-4-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.000 cm
Package 1 Width 25.000 cm
Package 1 Length 20.000 cm
Package 1 Weight 2.897 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 6.522 kg
Unit Type of Package 3 3
Number of Units in Package 3 8
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 38.372 kg
