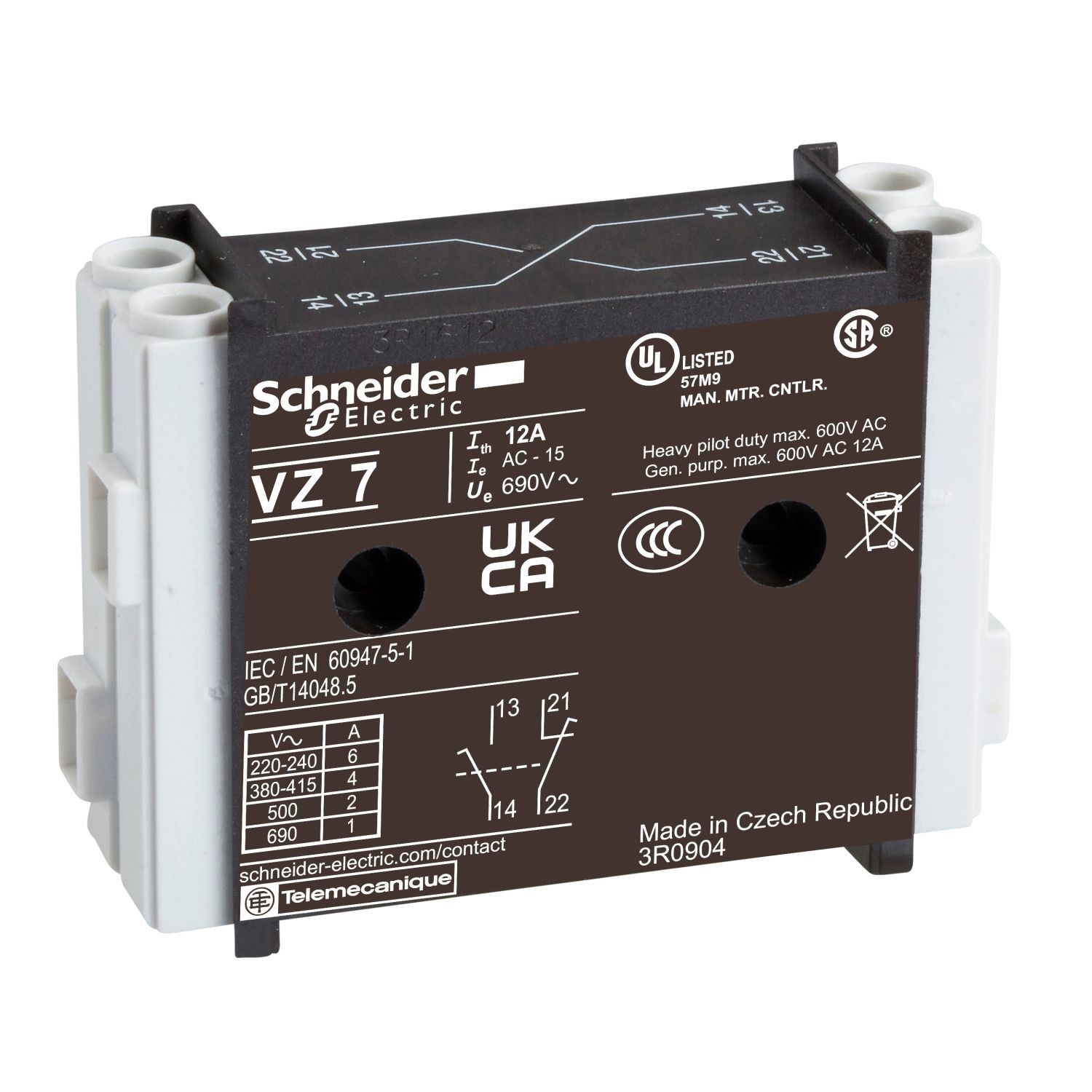

TeSys, TeSys VARIO - auxiliary contact block - 1 NC early-break+1 NO late-make

$70.92
Available for Shipping : 24-Nov-2024
TeSys, TeSys VARIO - auxiliary contact block - 1 NC early-break+1 NO late-make
  • Auxiliary contacts is highly reliable with late make N/O, early break N/C contacts
  • Simple mounting method and ready-to-use
  • Multi standards certified
  • Compliant with Green Premium
Manufacturer: Schneider Electric
TeSys Vario add-on module, auxiliary contact block, for TeSys Vario V02 to V6 switch bodies. It provides 1NO+1NC contacts (late make NO, early break NC) rated for AC operation until 12A/690V and DC operation until 8A/250V. To be mounted on one side of the switch body. A maximum of 2 additional auxiliary contact block modules VZ7 or VZ20 can be attached to the switch body, one in each side. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name VZ
Product compatibility V3, V0, V01, V4, V1, V6, V02, V5, V2
Contacts type and composition 1 NO + 1 NC
Contact operation early-break 1 NC, late-make 1 NO
Range TeSys
Performance level high performance
Product or component type auxiliary contact block
Network type DC, AC
Network frequency 50/60 Hz
Complementary
Depth 48.5 mm
Tightening torque 0.7-0.7 N.m - on screw clamp terminals
Width 20 mm
Compatibility code auxiliary contact
Mechanical durability 100000 cycles
Electrical durability 100000 cycles AC-15, 30000 cycles DC-11
Connections - terminals screw clamp terminals 2 cable(s) 1-2.5 mm² - solid, screw clamp terminals 2 cable(s) 0.75-1.5 mm² - flexible - with cable end
Mounting location right, left
[Uimp] rated impulse withstand voltage 8 kV
Net weight 0.05 kg
[Ithe] conventional enclosed thermal current 10 A
[Ith] conventional free air thermal current 12 A
Height 65 mm
[Ue] rated operational voltage 690 V AC 50/60 Hz
Environment
Fire resistance 960 °C conforming to IEC 60695-2-1
Protective treatment TC
IP degree of protection IP20 conforming to IEC 60529
Standards IEC 60947-5
Ambient air temperature for operation -20-50 °C
Product certifications UKCA, UL, CSA, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 3.7 cm
Package 1 Length 9.0 cm
Package 1 Weight 52.0 g
Unit Type of Package 2 2
Number of Units in Package 2 69
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.931 kg
