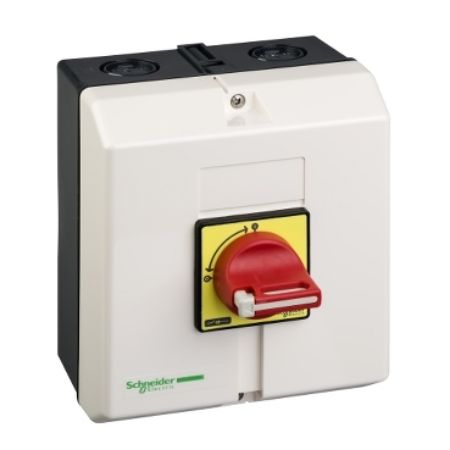

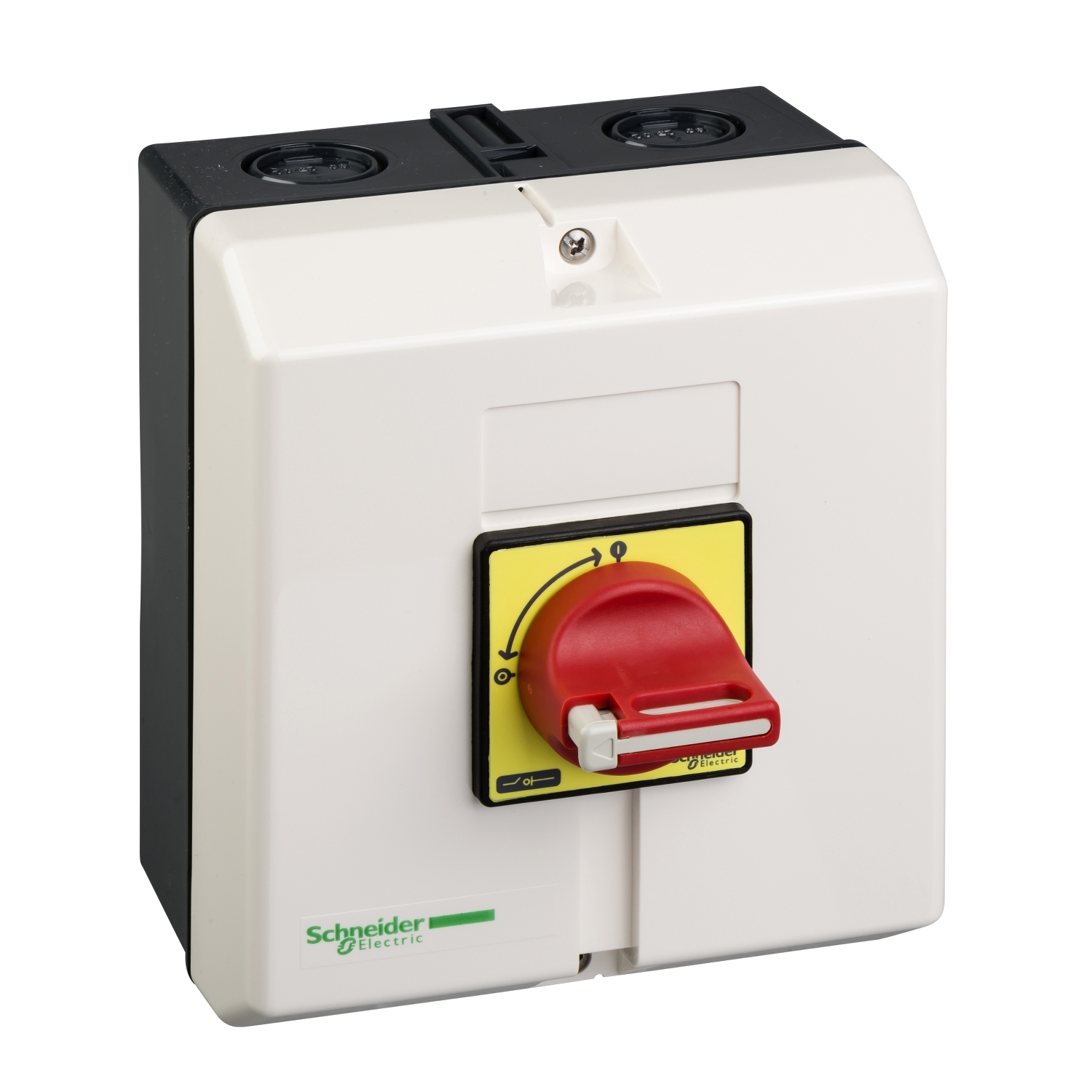

TeSys, TeSys Vario enclosed, emergency switch disconnector, 50A, IP65

$480.12
Available for Shipping : 25-Nov-2024
TeSys, TeSys Vario enclosed, emergency switch disconnector, 50A, IP65
  • High protection degree of waterproof and dustproof for harsh environment
  • Environmentally friendly materials
  • Easy operation with padlockable handle
  • Simple and reliable installation
Manufacturer: Schneider Electric
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 50A 690V, for main and emergency stop switching in motor applications AC-23 up to 22kW@400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V3 with 3 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name VCF
Control type rotary handle
Range TeSys
Poles description 3P
Performance level high performance
Product name TeSys VARIO
Product or component type enclosed emergency stop switch disconnector
Handle colour red
Handle front plate colour yellow
Rotary handle padlocking 1 to 3 padlocks 4-8 mm
Complementary
[Icw] rated short-time withstand current 756 A at 400 V duration: 1 s
Tightening torque 4-4 N.m - on screw clamp terminals
Fire resistance 960 °C conforming to IEC 60595-2-1
Compatibility code enclosed switch disconnector
Mechanical durability 30000 cycles
[Ie] rated operational current 41.5 A (AC-23A) at 400 V
Environmental characteristic standard environment
Electrical durability 30000 cycles DC-1...5, 30000 cycles AC-21
Base dimension 60 x 60 mm
Marking 0 - 1
Intermittent duty class 30
Height 180 mm
Rated conditional short-circuit current 10 kA at 400 V - associated fuse 63 A gG, 10 kA at 400 V - associated fuse 63 A aM
Rated operational power in W 18.5 kW at 400 V (AC-3), 22 kW at 400 V (AC-23)
Breaking capacity 500 A at 400 V (AC-23A), 500 A at 400 V (AC-22A), 500 A at 400 V (AC-21A)
Depth 152 mm
Width 157 mm
Suitability for isolation yes
[Icm] rated short-circuit making capacity 2.1 kA at 400 V at Ipeak
Connections - terminals screw clamp terminals25-25 mm² - solid, screw clamp terminals16-16 mm² - flexible - with cable end
[Uimp] rated impulse withstand voltage 8 kV
Making capacity 630 A at 400 V AC-23A, 630 A at 400 V AC-22A, 630 A at 400 V AC-21A
Net weight 0.93 kg
[Ithe] conventional enclosed thermal current 50 A
[Ue] rated operational voltage 690 V AC
Environment
Mechanical robustness shocks 11 ms (30 Gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Protective treatment TC
IP degree of protection IP65 conforming to IEC 60529
Ambient air temperature for operation -20-50 °C
Standards IEC 60204, IEC 60947-4-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.000 cm
Package 1 Width 20.000 cm
Package 1 Length 20.000 cm
Package 1 Weight 918.000 g
Unit Type of Package 2 2
Number of Units in Package 2 32
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 42.376 kg
