Picture of Enclosed switch disconnector,TeSys Control,for ON/OFF,10A,IP65
SKU:

VBF02GE

Enclosed switch disconnector,TeSys Control,for ON/OFF,10A,IP65

$190.98
Available for Shipping : 03-Dec-2024
Enclosed switch disconnector,TeSys Control,for ON/OFF,10A,IP65
  • High protection degree of waterproof and dustproof for harsh environment
  • Environmentally friendly materials
  • Easy operation with padlockable handle
  • Simple and reliable installation
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet

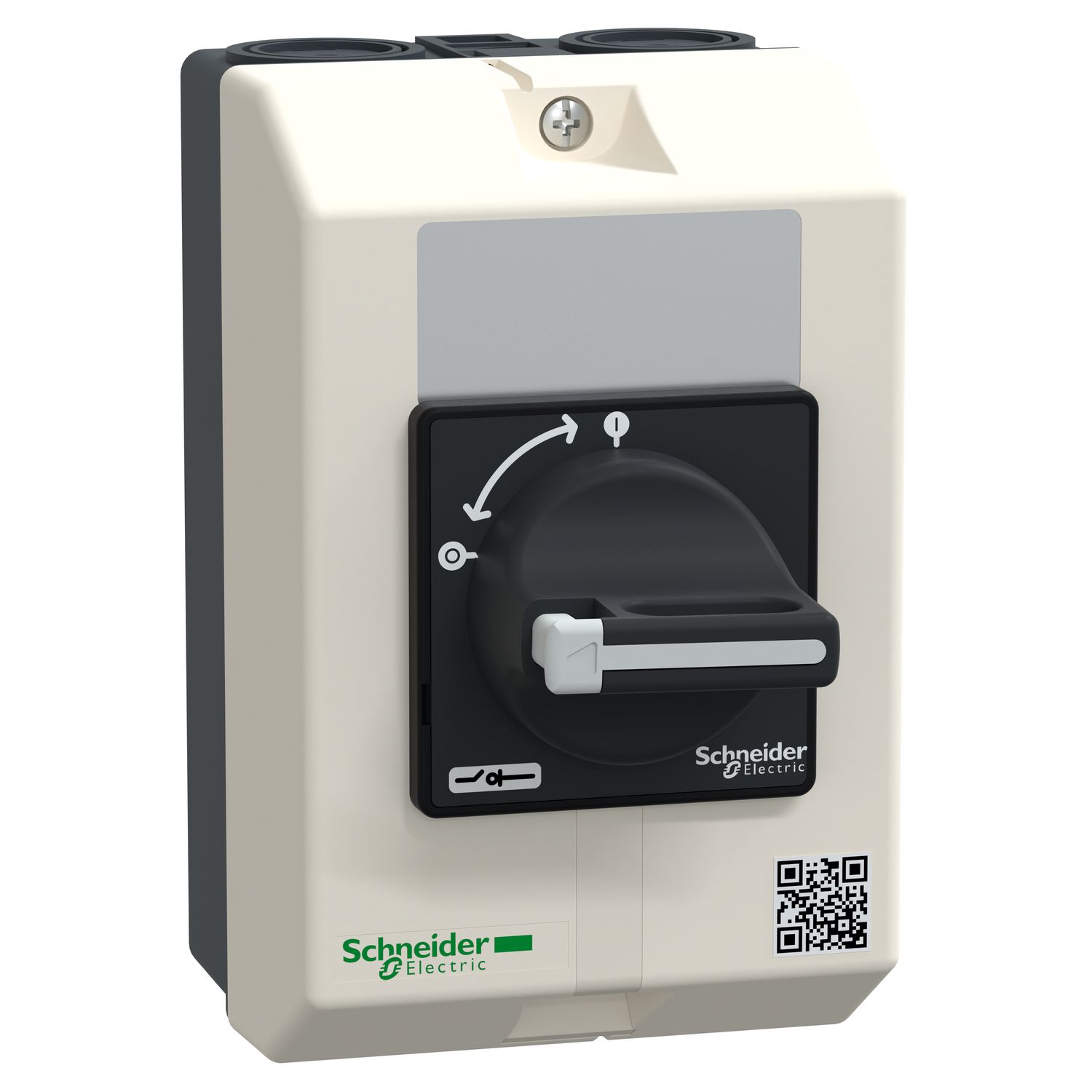

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 10A 690V, for main switching in motor applications up to 4kW@400V AC-23. Enclosure providing IP65 protection, fitted with a black rotary handle and black front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V02 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name VBF
Device application preventive maintenance
Control type rotary handle
Range TeSys
Poles description 3P
Performance level high performance
Product name TeSys VARIO
Product or component type enclosed switch disconnector
Handle colour black
Handle front plate colour black
Rotary handle padlocking 1 to 3 padlocks 4-8 mm
Complementary
[Icw] rated short-time withstand current 300 A at 400 V duration: 1 s
Tightening torque 2.1-2.1 N.m - on screw clamp terminals
Fire resistance 960 °C conforming to IEC 60595-2-1
Compatibility code enclosed switch disconnector
Mechanical durability 100000 cycles
[Ie] rated operational current 8.1 A (AC-23A) at 400 V
Environmental characteristic standard environment
Electrical durability 30000 cycles DC-1...5, 100000 cycles AC-21
Base dimension 60 x 60 mm
Marking 0 - 1
Intermittent duty class 30
Height 146 mm
Rated conditional short-circuit current 10 kA at 400 V - associated fuse 12 A gG, 10 kA at 400 V - associated fuse 12 A aM
Rated operational power in W 3 kW at 400 V (AC-3), 4 kW at 400 V (AC-23)
Breaking capacity 120 A at 400 V (AC-23A), 120 A at 400 V (AC-22A), 120 A at 400 V (AC-21A)
Depth 131 mm
Width 90 mm
Suitability for isolation yes
[Icm] rated short-circuit making capacity 1 kA at 400 V at Ipeak
Connections - terminals screw clamp terminals6-6 mm² - flexible - with cable end, screw clamp terminals10-10 mm² - solid
[Uimp] rated impulse withstand voltage 8 kV
Making capacity 120 A at 400 V AC-23A, 120 A at 400 V AC-22A, 120 A at 400 V AC-21A
Net weight 0.5 kg
[Ithe] conventional enclosed thermal current 10 A
[Ue] rated operational voltage 690 V AC
Environment
Mechanical robustness shocks 11 ms (30 Gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Protective treatment TC
IP degree of protection IP65 conforming to IEC 60529
Ambient air temperature for operation -20-50 °C
Standards IEC 60947-4-1, IEC 60204
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.200 cm
Package 1 Width 15.800 cm
Package 1 Length 14.400 cm
Package 1 Weight 480.000 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.803 kg
Unit Type of Package 3 3
Number of Units in Package 3 56
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 41.827 kg
