SKU:

VCD1

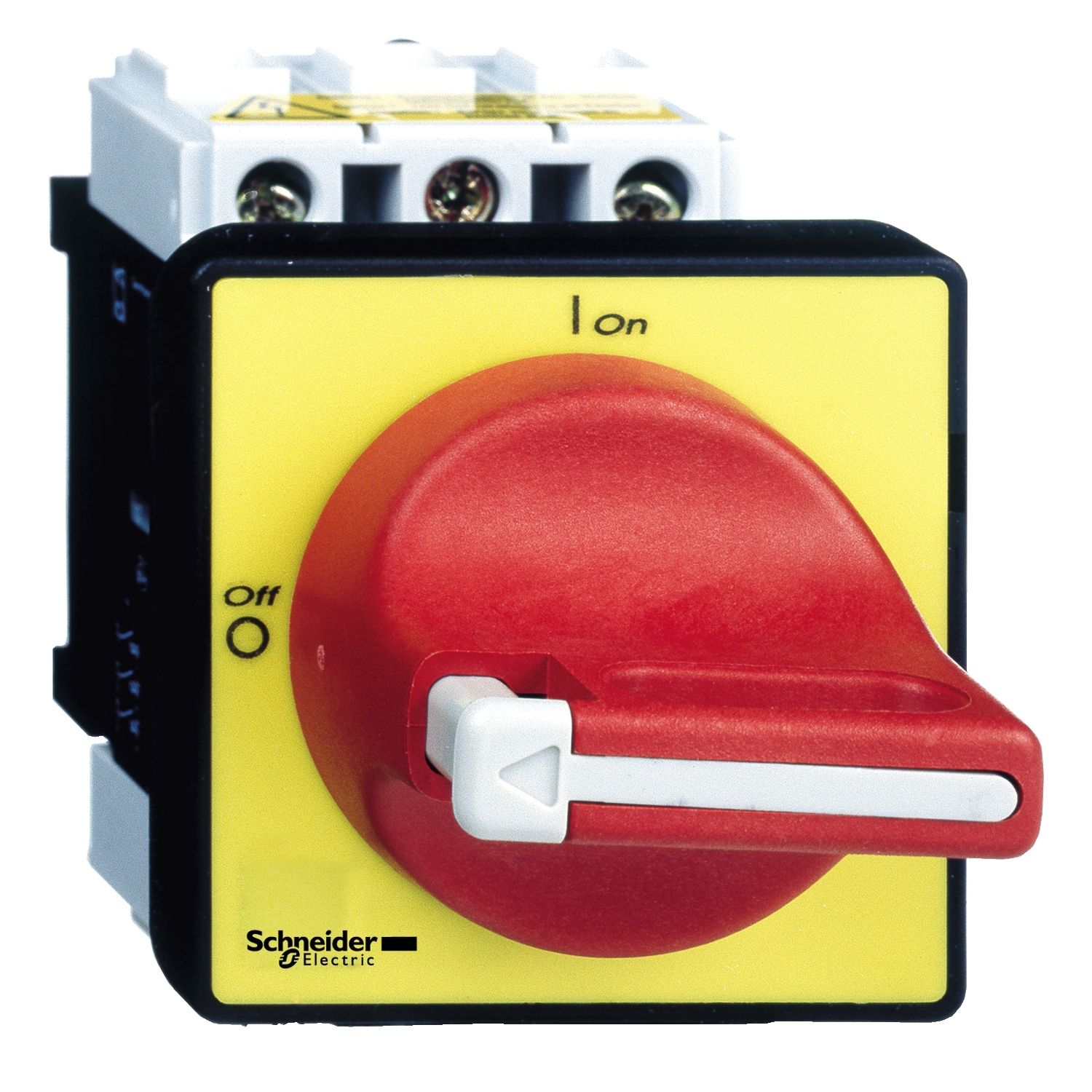

TeSys, TeSys Vario - emergency stop switch disconnector - 32 A - on door

$154.58
TeSys, TeSys Vario - emergency stop switch disconnector - 32 A - on door
  • Multi usage for main and emergency stop switch disconner
  • Convenient to use with 3 options of padlockable operating handle
  • Ensure high protection degree under harsh environment
  • Multi standards certified
  • Compliant with Green Premium
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
TeSys Vario switch disconnector for door mounting, 3 poles, 32A/690V, for motor switching applications up to 11kW@400V AC-23. Complete unit composed of a switch body V1, a red handle with yellow 60x60mm front plate KCD1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameVCD
RangeTeSys
Product nameTeSys VARIO
Product or component typeemergency stop switch disconnector
Complementary
[Icw] rated short-time withstand current384 A at 400 V duration: 1 s
Tightening torquepower circuit: 2.1-2.1 N.m - on screw clamp terminals
Mechanical durability100000 cycles
[Ie] rated operational current21.8 A AC-23 Ue: 400 V
Electrical durability30000 cycles DC-1...5, 100000 cycles AC-21
Control typerotary handle
Base dimension60 x 60 mm
Marking0 - 1
Fixing modehole with 22.5 mm for handle
[Ith] conventional free air thermal current32 A
Intermittent duty class30
Height74 mm
Rotary handle mounting styledirect
Rated conditional short-circuit current10 kA at 400 V - associated fuse 35 A gG, 10 kA at 400 V - associated fuse 35 A aM
Rated operational power in W7.5 kW at 400...415 V (AC-3), 11 kW at 400...415 V (AC-23A), 5.5 kW at 230...240 V (AC-23A), 1.5 kW at 230...240 V (AC-3), 7.5 kW at 690 V (AC-3), 7.5 kW at 500 V (AC-3), 15 kW at 690 V (AC-23A), 11 kW at 500 V (AC-23A)
Breaking capacity250 A at 400 V (AC-23A), 250 A at 400 V (AC-22A), 250 A at 400 V (AC-21A)
Device compositionhandle, switch
Width60 mm
Poles description3P
Mounting supportswitch: door, handle: door
Suitability for isolationyes
[Icm] rated short-circuit making capacity1 kA at 400 V at Ipeak
Contacts type and composition3 NO
Connections - terminalspower circuit: screw clamp terminals6-6 mm² - flexible - with cable end, power circuit: screw clamp terminals10-10 mm² - solid
[Uimp] rated impulse withstand voltage8 kV
Making capacity320 A at 400 V AC-23A, 320 A at 400 V AC-22A, 320 A at 400 V AC-21A
Performance levelhigh performance
Net weight0.215 kg
Handle colourred
[Ithe] conventional enclosed thermal current25 A
Handle front plate colouryellow
Network typeAC, DC
[Ue] rated operational voltage690 V AC 50/60 Hz
Rotary handle padlocking1 to 3 padlocks 4-8 mm
Environment
Fire resistance960 °C conforming to IEC 60695-2-1
Mechanical robustnessshocks 11 ms (30 Gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Compatibility codemain switch disconnector
Protective treatmentTC
IP degree of protectionIP65, IP20 conforming to IEC 60529
Ambient air temperature for operation-20-50 °C
StandardsIEC 60947-3
Product certificationsUKCA, UL, CSA, CCC, GL
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.800 cm
Package 1 Width8.400 cm
Package 1 Length12.100 cm
Package 1 Weight226.000 g
Unit Type of Package 22
Number of Units in Package 224
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight5.834 kg
Unit Type of Package 33
Number of Units in Package 3192
Package 3 Height75.000 cm
Package 3 Width60.000 cm
Package 3 Length80.000 cm
Package 3 Weight57.020 kg
