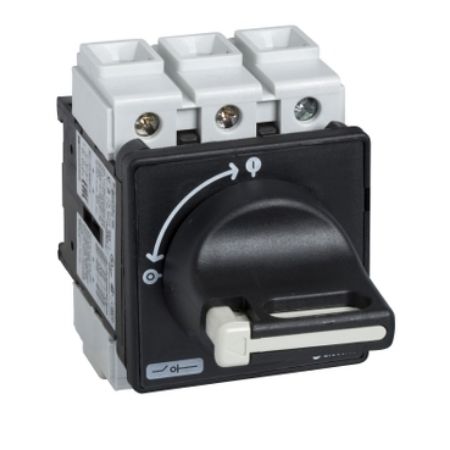

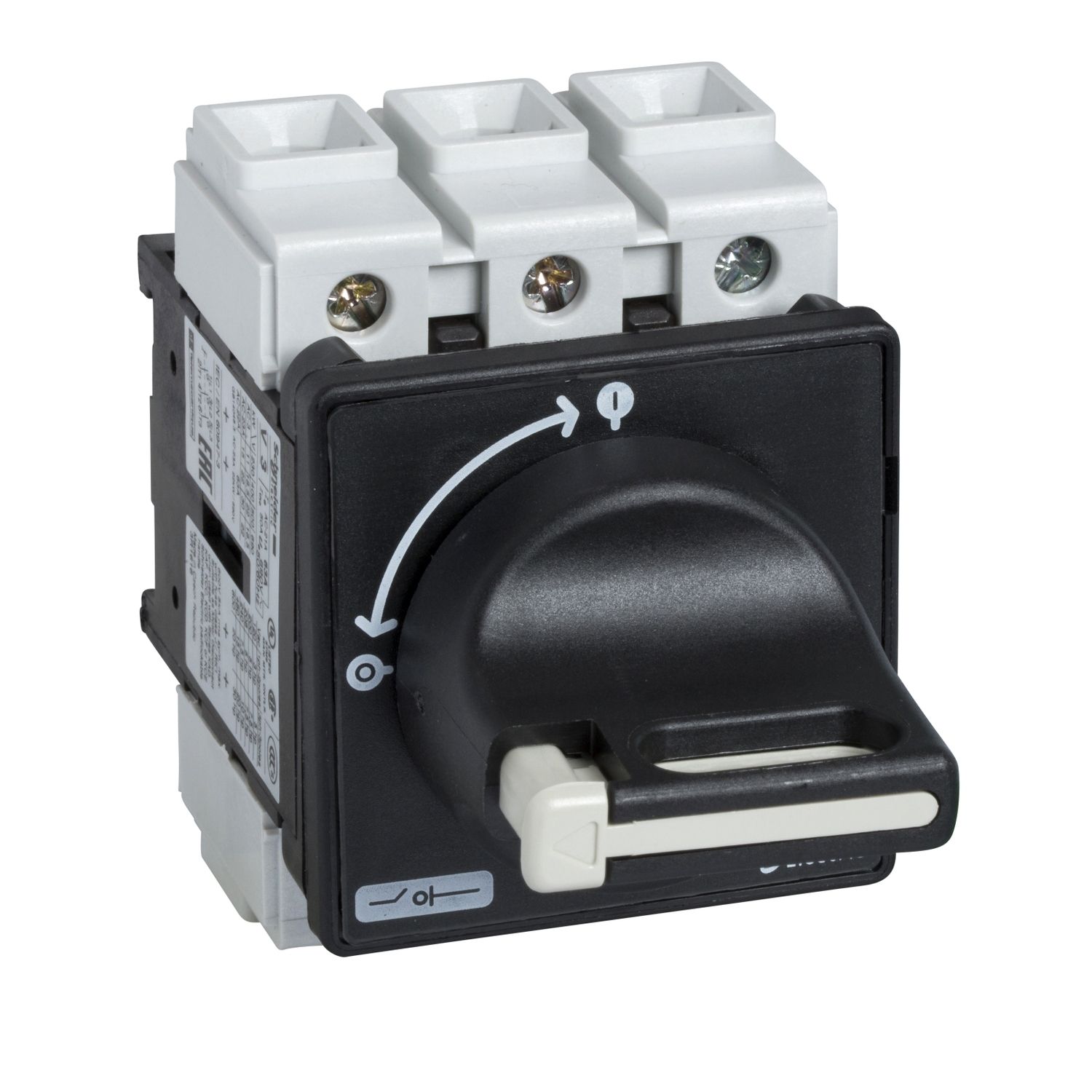

Picture of TeSys, TeSys Vario - switch disconnector - 12 A - on door
SKU:

VBF02

TeSys, TeSys Vario - switch disconnector - 12 A - on door

$98.47
Available for Shipping : 03-Dec-2024
TeSys, TeSys Vario - switch disconnector - 12 A - on door
  • Guarantee security for high-performance applications
  • Convenient to use with 3 options of padlockable operating handle
  • Ensure high protection degree under harsh environment
  • Multi standards certified
  • Compliant with Green Premium
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
TeSys Vario switch disconnector for door mounting, 3 poles, 12A/690V, for motor switching applications up to 4kW@400V AC-23. Complete unit composed of a switch body V02, a black handle with black 60x60mm front plate KAF1PZ. Intended for main switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name VBF
Device application preventive maintenance
Range TeSys
Product name TeSys VARIO
Product or component type switch disconnector
Complementary
[Icw] rated short-time withstand current 300 A at 400 V duration: 1 s
Tightening torque power circuit: 2.1-2.1 N.m - on screw clamp terminals
Mechanical durability 100000 cycles
[Ie] rated operational current 8.1 A AC-23 Ue: 400 V
Electrical durability 30000 cycles DC-5, 30000 cycles DC-4, 30000 cycles DC-3, 30000 cycles DC-2, 30000 cycles DC-1, 100000 cycles AC-21
Control type rotary handle
Base dimension 60 x 60 mm
Marking 0 - 1
Fixing mode by 4 screws for handle
[Ith] conventional free air thermal current 12 A
Intermittent duty class 30
Height 74 mm
Rotary handle mounting style direct
Rated conditional short-circuit current 10 kA at 400 V - associated fuse 12 A gG, 10 kA at 400 V - associated fuse 12 A aM
Rated operational power in W 4 kW at 400...415 V (AC-23A), 3 kW at 230...240 V (AC-23A), 7.5 kW at 690 V (AC-23A), 5.5 kW at 690 V (AC-3), 5.5 kW at 500 V (AC-23A), 1.5 kW at 230...240 V (AC-3), 4 kW at 500 V (AC-3), 3 kW at 400...415 V (AC-3)
Breaking capacity 120 A at 400 V (AC-23A), 120 A at 400 V (AC-22A), 120 A at 400 V (AC-21A)
Device composition handle, switch
Width 60 mm
Poles description 3P
Mounting support switch: door, handle: door
Suitability for isolation yes
[Icm] rated short-circuit making capacity 1 kA at 400 V at Ipeak
Contacts type and composition 3 NO
Connections - terminals power circuit: screw clamp terminals6-6 mm² - flexible - with cable end, power circuit: screw clamp terminals10-10 mm² - solid
[Uimp] rated impulse withstand voltage 8 kV
Making capacity 120 A at 400 V AC-23A, 120 A at 400 V AC-22A, 120 A at 400 V AC-21A
Performance level high performance
Net weight 0.25 kg
Handle colour black
[Ithe] conventional enclosed thermal current 10 A
Handle front plate colour black
Network type AC, DC
[Ue] rated operational voltage 690 V AC 50/60 Hz
Rotary handle padlocking 1 to 3 padlocks 4-8 mm
Environment
Fire resistance 960 °C conforming to IEC 60695-2-1
Mechanical robustness shocks 11 ms (30 Gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Compatibility code main switch disconnector
Protective treatment TC
IP degree of protection IP65, IP20 conforming to IEC 60529
Ambient air temperature for operation -20-50 °C
Standards IEC 60947-3
Product certifications UKCA, CCC, CSA, UL, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 8.400 cm
Package 1 Length 12.000 cm
Package 1 Weight 219.000 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.730 kg
