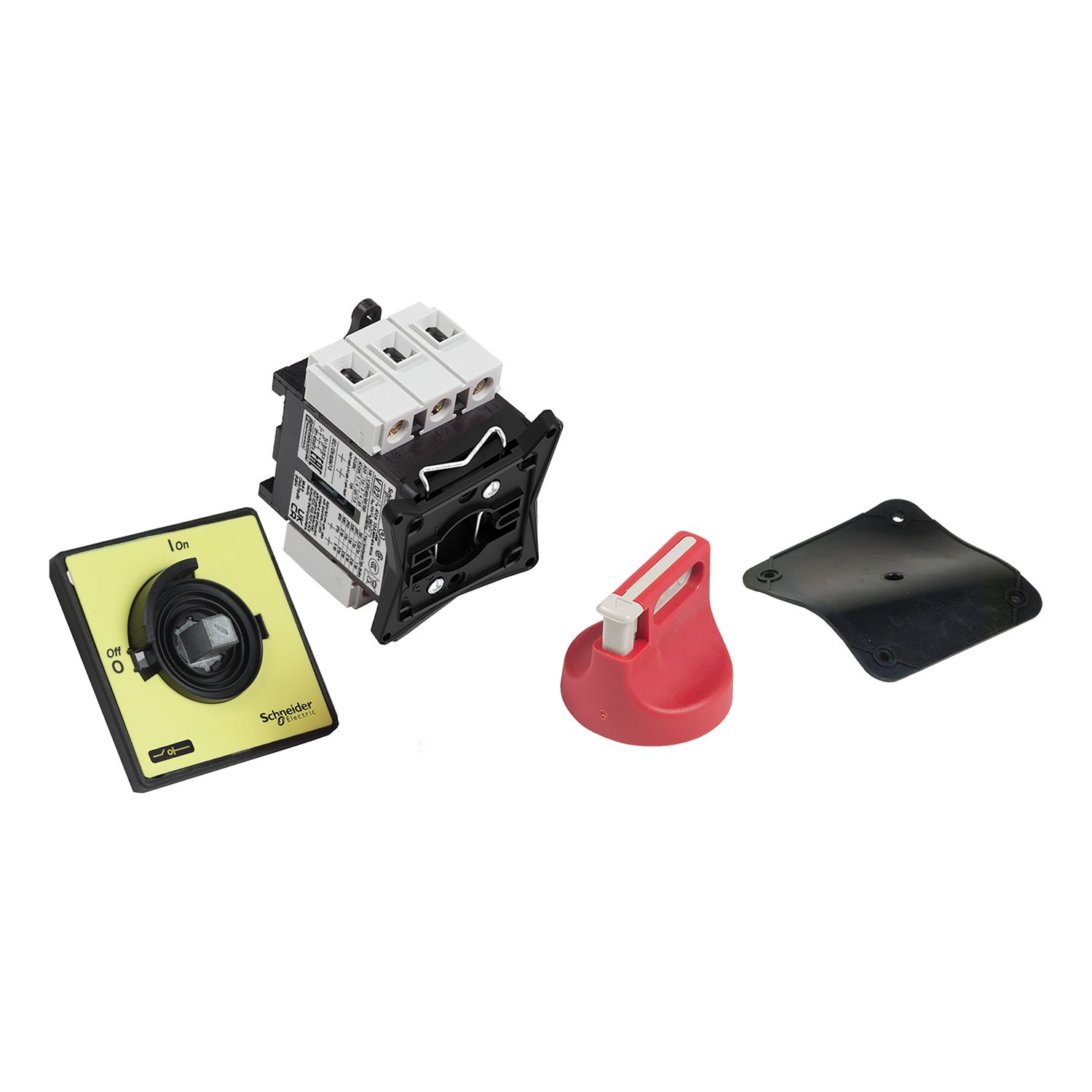

Picture of TeSys, TeSys Vario - emergency stop switch disconnector - 20 A - on door
SKU:

VCF01

TeSys, TeSys Vario - emergency stop switch disconnector - 20 A - on door

$122.60
Available for Shipping : 24-Nov-2024
TeSys, TeSys Vario - emergency stop switch disconnector - 20 A - on door
  • Multi usage for main and emergency stop switch disconner
  • Convenient to use with 3 options of padlockable operating handle
  • Ensure high protection degree under harsh environment
  • Multi standards certified
  • Compliant with Green Premium
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product environmental
Product Page Link
Product Data Sheet
TeSys Vario switch disconnector for door mounting, 3 poles, 20A/690V, for motor switching applications up to 5.5kW@400V AC-23. Complete unit composed of a switch body V01, a red handle with yellow 60x60mm front plate KCF1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name VCF
Range TeSys
Product name TeSys VARIO
Product or component type emergency stop switch disconnector
Complementary
[Icw] rated short-time withstand current 300 A at 400 V duration: 1 s
Tightening torque power circuit: 2.1-2.1 N.m - on screw clamp terminals
Mechanical durability 100000 cycles
[Ie] rated operational current 11 A AC-23 Ue: 400 V
Electrical durability 30000 cycles DC-1...5, 100000 cycles AC-21
Control type rotary handle
Base dimension 60 x 60 mm
Marking 0 - 1
Fixing mode by 4 screws for handle
[Ith] conventional free air thermal current 20 A
Intermittent duty class 30
Height 74 mm
Rotary handle mounting style direct
Rated conditional short-circuit current 10 kA at 400 V - associated fuse 20 A gG, 10 kA at 400 V - associated fuse 20 A aM
Rated operational power in W 5.5 kW at 400...415 V (AC-23A), 4 kW at 230...240 V (AC-23A), 5.5 kW at 690 V (AC-3), 7.5 kW at 500 V (AC-23A), 4 kW at 400...415 V (AC-3), 3 kW at 230...240 V (AC-3), 11 kW at 690 V (AC-23A), 7.5 kW at 500 V (AC-3)
Breaking capacity 200 A at 400 V (AC-23A), 200 A at 400 V (AC-22A), 200 A at 400 V (AC-21A)
Device composition switch, handle
Width 60 mm
Poles description 3P
Mounting support switch: door, handle: door
Suitability for isolation yes
[Icm] rated short-circuit making capacity 1 kA at 400 V at Ipeak
Contacts type and composition 3 NO
Connections - terminals power circuit: screw clamp terminals6-6 mm² - flexible - with cable end, power circuit: screw clamp terminals10-10 mm² - solid
[Uimp] rated impulse withstand voltage 8 kV
Making capacity 200 A at 400 V AC-23A, 200 A at 400 V AC-22A, 200 A at 400 V AC-21A
Performance level high performance
Net weight 0.25 kg
Handle colour red
[Ithe] conventional enclosed thermal current 16 A
Handle front plate colour yellow
Network type DC, AC
[Ue] rated operational voltage 690 V AC 50/60 Hz
Rotary handle padlocking 1 to 3 padlocks 4-8 mm
Environment
Fire resistance 960 °C conforming to IEC 60695-2-1
Mechanical robustness shocks 11 ms (30 Gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Compatibility code main switch disconnector
Protective treatment TC
IP degree of protection IP65, IP20 conforming to IEC 60529
Ambient air temperature for operation -20-50 °C
Standards IEC 60947-3
Product certifications UKCA, UL, CSA, GL, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.500 cm
Package 1 Width 8.500 cm
Package 1 Length 13.000 cm
Package 1 Weight 219.000 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.726 kg
Unit Type of Package 3 3
Number of Units in Package 3 192
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 54.908 kg

Related products

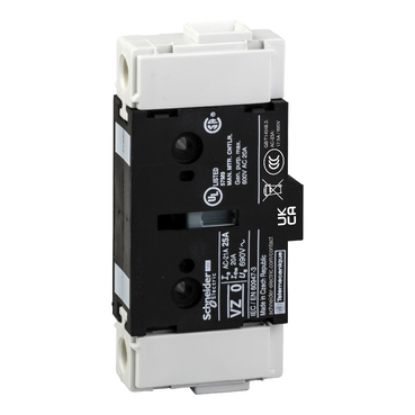

Picture of TeSys, TeSys VARIO - additional pole - 20 A - for V01

TeSys, TeSys VARIO - additional pole - 20 A - for V01

VZ01
$60.29
View Detail
Picture of TeSys, TeSys VARIO - additional neutral block - 40 A - for V02...V2

TeSys, TeSys VARIO - additional neutral block - 40 A - for V02...V2

VZ11
$77.12
View Detail
Picture of TeSys, TeSys VARIO - additional earthing block - 40 A - for V02...V2

TeSys, TeSys VARIO - additional earthing block - 40 A - for V02...V2

VZ14
$42.85
View Detail
Picture of TeSys, TeSys VARIO - auxiliary contact block - 1 NO + 1 NO

TeSys, TeSys VARIO - auxiliary contact block - 1 NO + 1 NO

VZ20
$70.92
View Detail
Picture of TeSys, TeSys VARIO - auxiliary contact block - 1 NC early-break+1 NO late-make

TeSys, TeSys VARIO - auxiliary contact block - 1 NC early-break+1 NO late-make

VZ7
$70.92
View Detail

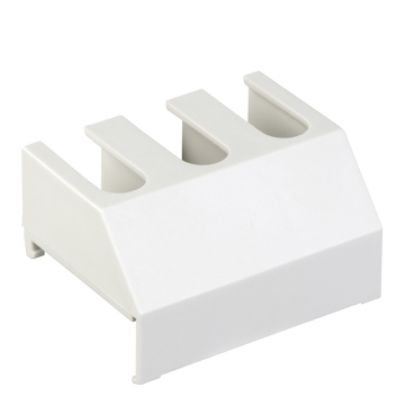

Picture of Terminal shrouds,TeSys Control,for V02-V2
