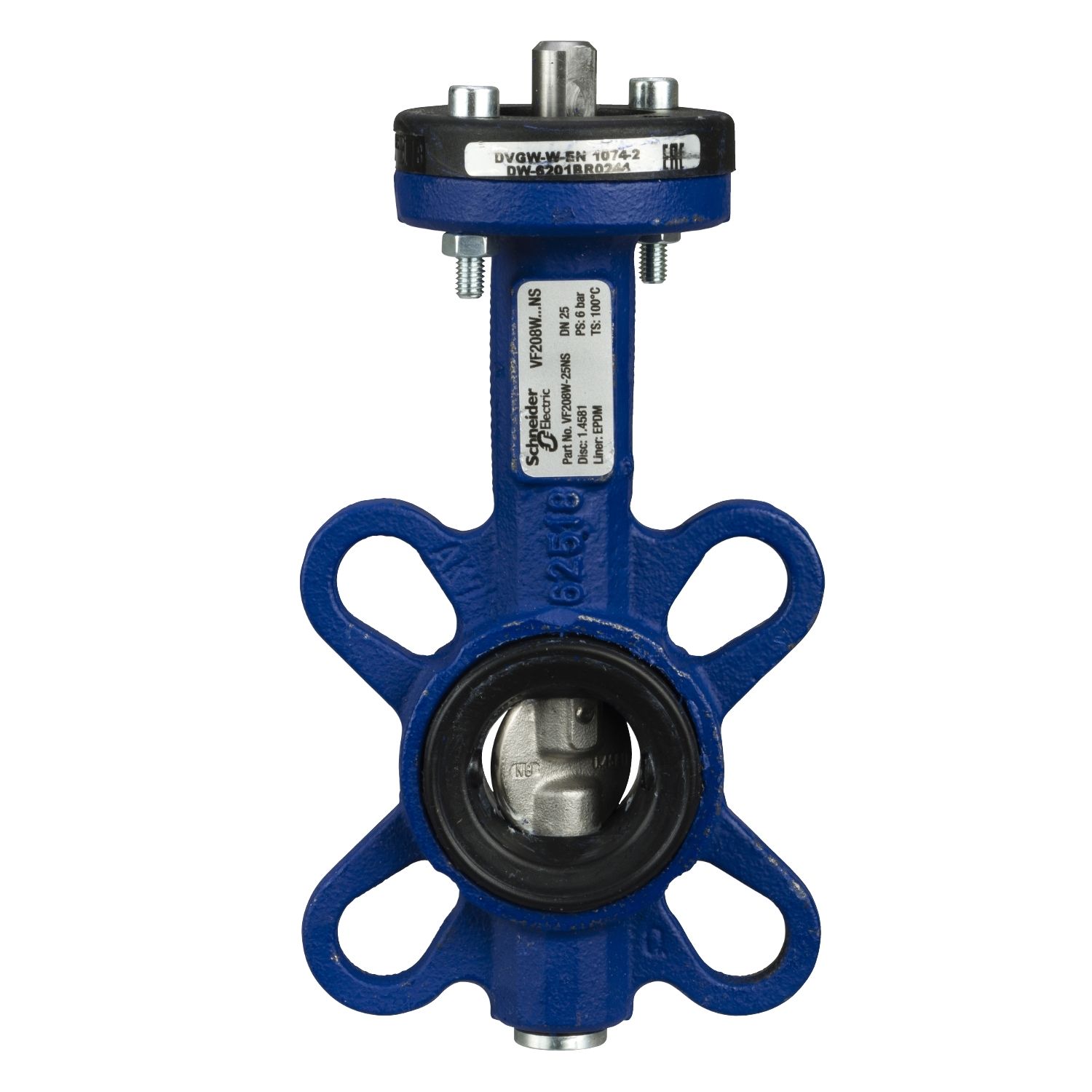

Picture of VF208W Butterfly Valve, 2-Way, DN25, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 26 m³/h, Max ∆P 600 kPa.
SKU:

VF208W-25NS

VF208W Butterfly Valve, 2-Way, DN25, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 26 m³/h, Max ∆P 600 kPa.

Please Contact Sales to buy this Product. click here
VF208W Butterfly Valve, 2-Way, DN25, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 26 m³/h, Max ∆P 600 kPa.
  • Butterfly valve for general duty HVAC applications
  • Condensation barrier reduces water build up on the external surface of the actuator
  • Can be hand actuated or driven under 2-position, floating or modulating control signals
  • Thick EPDM liner provides a tight close off for zero leakage
  • Stainless Steel Disc for suitability on many media solutions including glycol up to 50% concentration
  • Wafer Flange fits between pipe flange faces, PN6, PN10, PN16 bolt patterns
  • PN16, Max ∆P 600 kPa
  • Kvs 26 m³/h
  • Suitable actuator: Type MF20
  • Suitable Hand Operator: 9150065000
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Catalogue
Product environmental
Product Page Link
Product Data Sheet
The VF28W is a new generation butterfly valve for the isolation and control of water for HVAC systems. The valve can be operated either by an electric actuator or hand using a handlever. Nodular iron construction provides a long life and high corrosion resistance. The EPDM soft seats provide tight shut off and zero leakge, for a better energy saving, maintenance free, double sealing of stem, centrical disc bearing. Valve size: DN25, Flange, uncharacterized flow, kvs: 26 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 6 Kpa. EPDM seals provide a working temperature range of -1 °C to + 1 °C, the soft seat seal ensures a tight close off with no leakage. Uncharacterized flow characteristics provide a good flow control, integrated dew point barrier. No linkage kits required.

Products specifications

Attribute nameAttribute value
Main
Operating fluid temperature-10-100 °C
Body materialnodular cast iron EN-JS 1030
Seat leakagePort A: Class IV-S1 (0.005 %)
Product or component typevalve
Targeted regionAustralia., Asia Pacific., Europe
Disc materialstainless steel 316
Stem movementrotary
Valve typebutterfly
Valve modelVF208W-25NS 26E B00
Valve connection typeflanged
Flow characteristicuncharacterized
Pipe size25 mm
Material sealEPDM (ethylene propylene diene monomer)
Pressure classPN16
Medium compatibilityWater, Glycol 50 %, Glycol 30 %, Glycol 25 %
Valve product seriesVF208W
Flow coefficient26 kvs, 30.06 cv
Valve configuration2-Way
Pressure fluid max delta P normal life87 psi
Disc shapefull
Stem materialstainless steel AISI 420
Body size25 mm (1 in)
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.89 cm
Package 1 Width26.67 cm
Package 1 Length19.05 cm
Package 1 Weight1.357 kg
