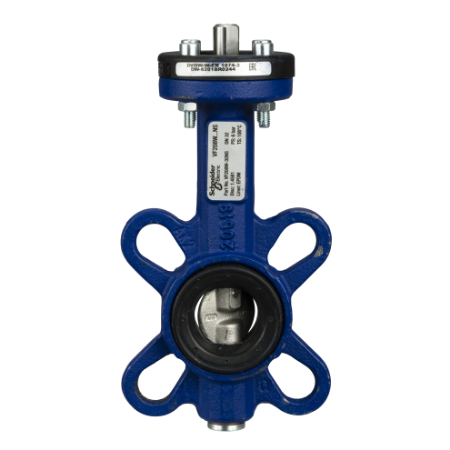

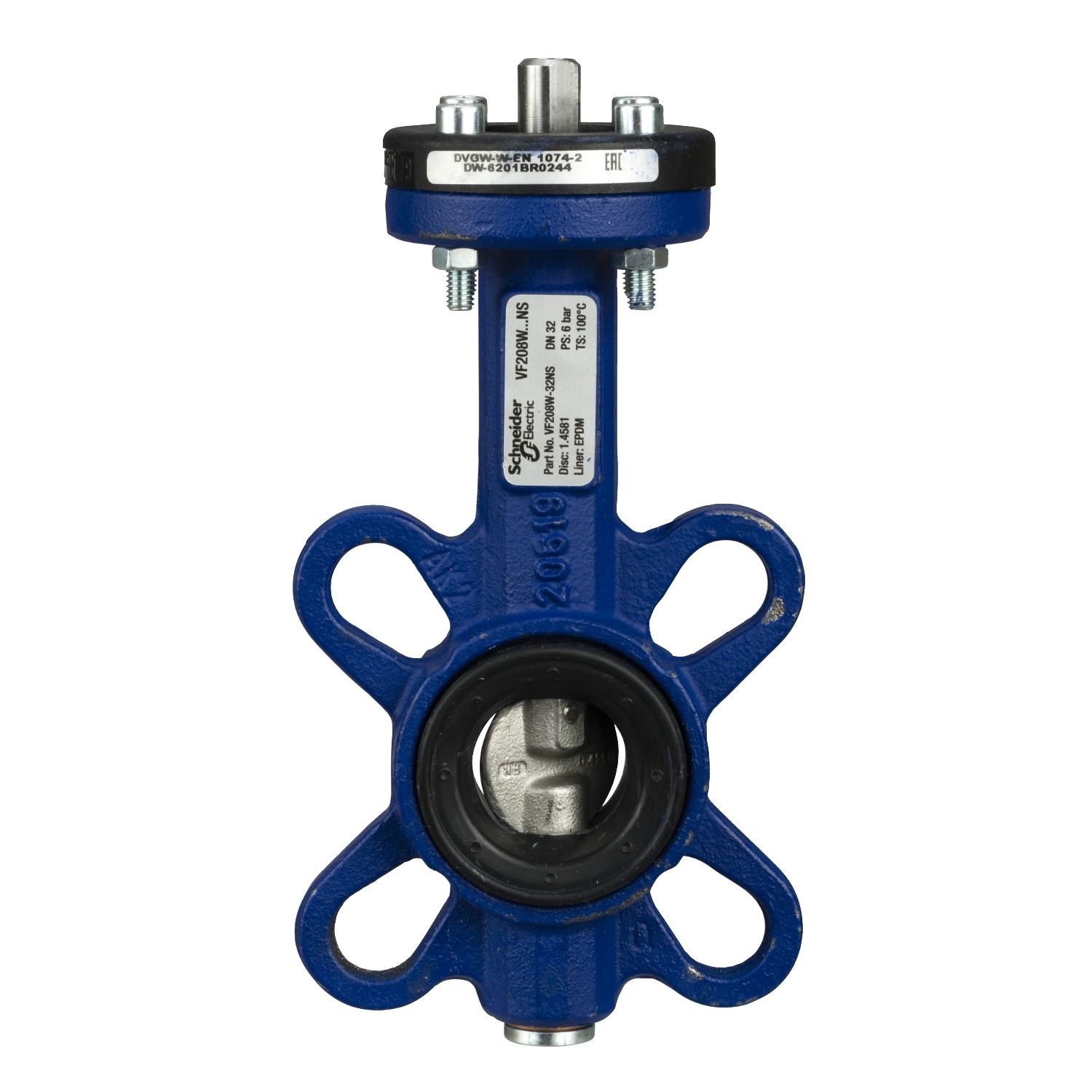

Picture of VF208W Butterfly Valve, 2-Way, DN32, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 26.5 m³/h, Max ∆P 600 kPa.
SKU:

VF208W-32NS

VF208W Butterfly Valve, 2-Way, DN32, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 26.5 m³/h, Max ∆P 600 kPa.

$327.54
Available for Shipping : 10-Dec-2024
VF208W Butterfly Valve, 2-Way, DN32, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 26.5 m³/h, Max ∆P 600 kPa.
  • Butterfly valve for general duty HVAC applications
  • Condensation barrier reduces water build up on the external surface of the actuator
  • Can be hand actuated or driven under 2-position, floating or modulating control signals
  • Thick EPDM liner provides a tight close off for zero leakage
  • Stainless Steel Disc for suitability on many media solutions including glycol up to 50% concentration
  • Wafer Flange fits between pipe flange faces, PN6, PN10, PN16 bolt patterns
  • PN16, Max ∆P 600 kPa
  • Kvs 26.5 m³/h
  • Suitable actuator: Type MF20
  • Suitable Hand Operator: 9150065000
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
Product Page Link
Product Data Sheet
The VF28W is a new generation butterfly valve for the isolation and control of water for HVAC systems. The valve can be operated either by an electric actuator or hand using a handlever. Nodular iron construction provides a long life and high corrosion resistance. The EPDM soft seats provide tight shut off and zero leakge, for a better energy saving, maintenance free, double sealing of stem, centrical disc bearing. Valve size: DN32, Flange, uncharacterized flow, kvs: 26.5 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 6 Kpa. EPDM seals provide a working temperature range of -1 °C to + 1 °C, the soft seat seal ensures a tight close off with no leakage. Uncharacterized flow characteristics provide a good flow control, integrated dew point barrier. No linkage kits required.
