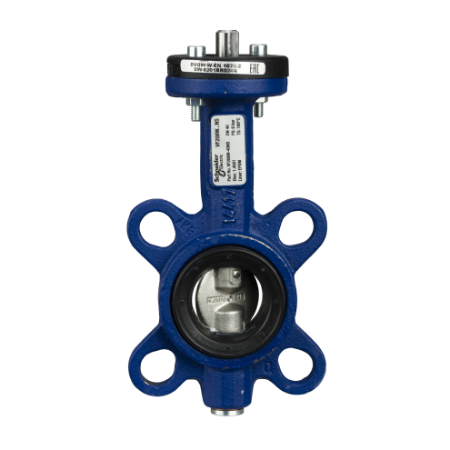

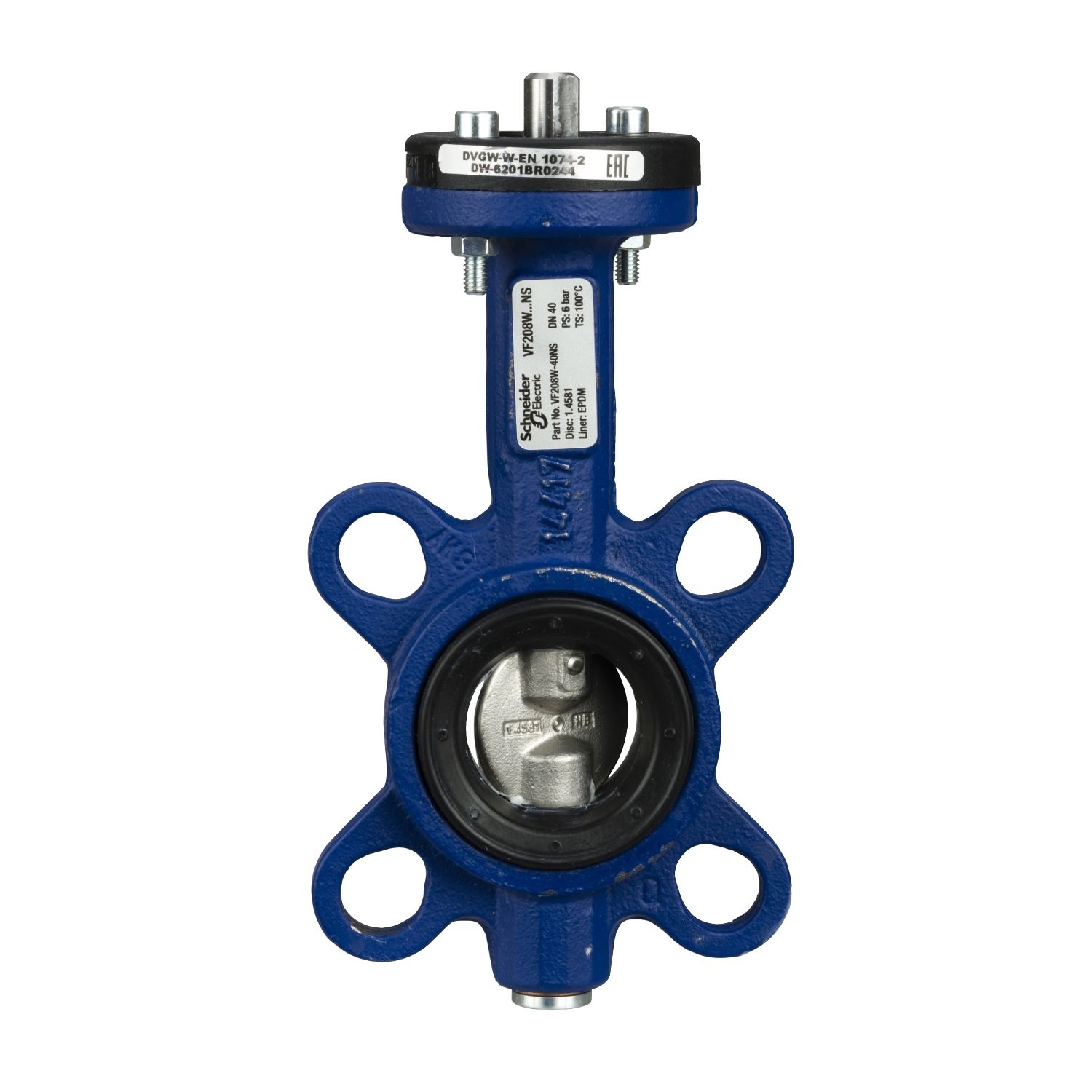

Picture of VF208W Butterfly Valve, 2-Way, DN40, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 50 m³/h, Max ∆P 600 kPa.
SKU:

VF208W-40NS

VF208W Butterfly Valve, 2-Way, DN40, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 50 m³/h, Max ∆P 600 kPa.

$378.32
Available for Shipping : 24-Nov-2024
VF208W Butterfly Valve, 2-Way, DN40, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 50 m³/h, Max ∆P 600 kPa.
  • Butterfly valve for general duty HVAC applications
  • Condensation barrier reduces water build up on the external surface of the actuator
  • Can be hand actuated or driven under 2-position, floating or modulating control signals
  • Thick EPDM liner provides a tight close off for zero leakage
  • Stainless Steel Disc for suitability on many media solutions including glycol up to 50% concentration
  • Wafer Flange fits between pipe flange faces, PN6, PN10, PN16 bolt patterns
  • PN16, Max ∆P 600 kPa
  • Kvs 50 m³/h
  • Suitable actuator: Type MF20
  • Suitable Hand Operator: 9150065000
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
Product Page Link
Product Data Sheet
The VF28W is a new generation butterfly valve for the isolation and control of water for HVAC systems. The valve can be operated either by an electric actuator or hand using a handlever. Nodular iron construction provides a long life and high corrosion resistance. The EPDM soft seats provide tight shut off and zero leakge, for a better energy saving, maintenance free, double sealing of stem, centrical disc bearing. Valve size: DN4, Flange, uncharacterized flow, kvs: 5 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 6 Kpa. EPDM seals provide a working temperature range of -1 °C to + 1 °C, the soft seat seal ensures a tight close off with no leakage. Uncharacterized flow characteristics provide a good flow control, integrated dew point barrier. No linkage kits required.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -10-100 °C
Body material nodular cast iron EN-JS 1030
Seat leakage Port A: Class IV-S1 (0.005 %)
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Disc material stainless steel 316
Stem movement rotary
Valve type butterfly
Valve model VF208W-40NS 50E B00
Valve connection type flanged
Flow characteristic uncharacterized
Pipe size 40 mm
Material seal EPDM (ethylene propylene diene monomer)
Pressure class PN16
Medium compatibility Water, Glycol 50 %, Glycol 30 %, Glycol 25 %
Valve product series VF208W
Flow coefficient 50 kvs, 57.81 cv
Valve configuration 2-Way
Pressure fluid max delta P normal life 87 psi
Disc shape full
Stem material stainless steel AISI 420
Body size 40 mm (1-1/2 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.89 cm
Package 1 Width 26.67 cm
Package 1 Length 19.05 cm
Package 1 Weight 1.651 kg

Related products

Picture of MF20 Butterly Valve Actuator, 3-Wire Floating, 24Vac/dc, 20Nm, Non-Spring Return, IP54

MF20 Butterly Valve Actuator, 3-Wire Floating, 24Vac/dc, 20Nm, Non-Spring Return, IP54

MF20-24F
$818.03
View Detail

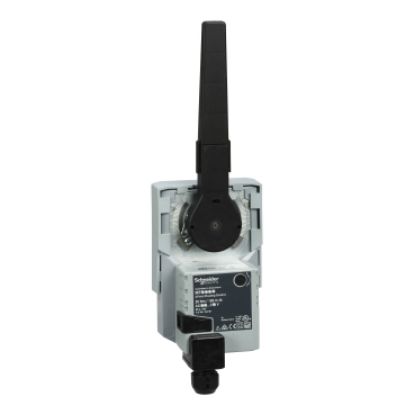

Picture of MF20 Butterfly Valve Actuator, Modulating, 2-10VDC, 24Vac/dc, 20Nm, Non-Spring Return, IP54
