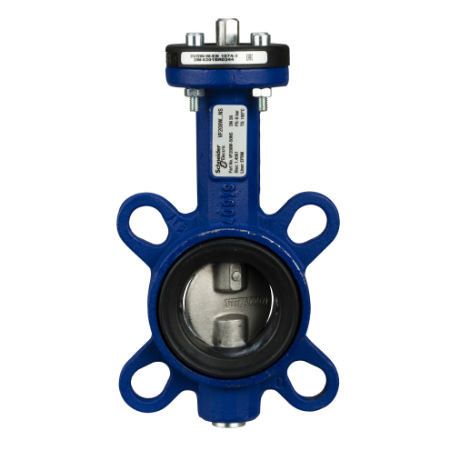

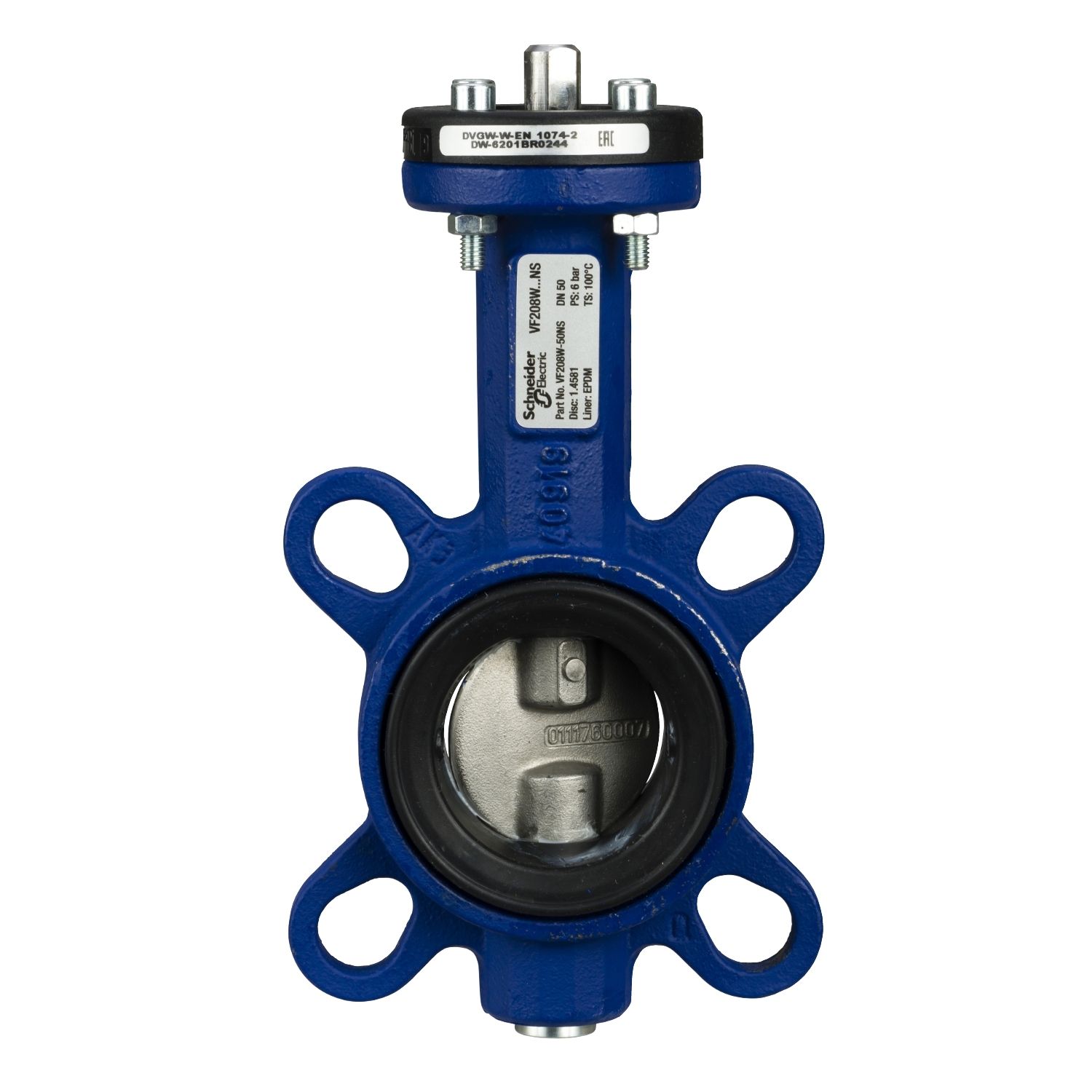

Picture of VF208W Butterfly Valve, 2-Way, DN50, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 115 m³/h, Max ∆P 600 kPa.
SKU:

VF208W-50NS

VF208W Butterfly Valve, 2-Way, DN50, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 115 m³/h, Max ∆P 600 kPa.

$409.57
Available for Shipping : 12-Dec-2024
VF208W Butterfly Valve, 2-Way, DN50, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 115 m³/h, Max ∆P 600 kPa.
  • Butterfly valve for general duty HVAC applications
  • Condensation barrier reduces water build up on the external surface of the actuator
  • Can be hand actuated or driven under 2-position, floating or modulating control signals
  • Thick EPDM liner provides a tight close off for zero leakage
  • Stainless Steel Disc for suitability on many media solutions including glycol up to 50% concentration
  • Wafer Flange fits between pipe flange faces, PN6, PN10, PN16 bolt patterns
  • PN16, Max ∆P 600 kPa
  • Kvs 115 m³/h
  • Suitable actuator: Type MF20
  • Suitable Hand Operator: 9150065000
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
Product Page Link
Product Data Sheet
The VF28W is a new generation butterfly valve for the isolation and control of water for HVAC systems. The valve can be operated either by an electric actuator or hand using a handlever. Nodular iron construction provides a long life and high corrosion resistance. The EPDM soft seats provide tight shut off and zero leakge, for a better energy saving, maintenance free, double sealing of stem, centrical disc bearing. Valve size: DN5, Flange, uncharacterized flow, kvs: 115 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 6 Kpa. EPDM seals provide a working temperature range of -1 °C to + 1 °C, the soft seat seal ensures a tight close off with no leakage. Uncharacterized flow characteristics provide a good flow control, integrated dew point barrier. No linkage kits required.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -10-100 °C
Body material nodular cast iron EN-JS 1030
Seat leakage Port A: Class IV-S1 (0.005 %)
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Medium compatibility Water, Glycol 50 %, Glycol 30 %, Glycol 25 %
Valve product series VF208W
Flow coefficient 115 kvs, 132.97 cv
Disc material stainless steel 316
Valve configuration 2-Way
Stem movement rotary
Pressure fluid max delta P normal life 87 psi
Valve type butterfly
Valve model VF208W-50NS 115E B00
Valve connection type flanged
Flow characteristic uncharacterized
Disc shape full
Stem material stainless steel AISI 420
Pipe size 50 mm
Material seal EPDM (ethylene propylene diene monomer)
Pressure class PN16
Body size 50 mm (2 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.89 cm
Package 1 Width 26.67 cm
Package 1 Length 19.05 cm
Package 1 Weight 2.15 kg
