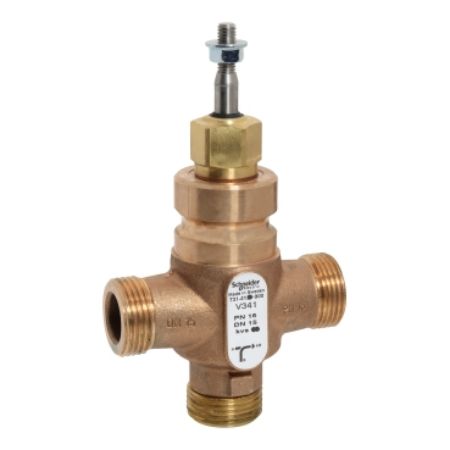

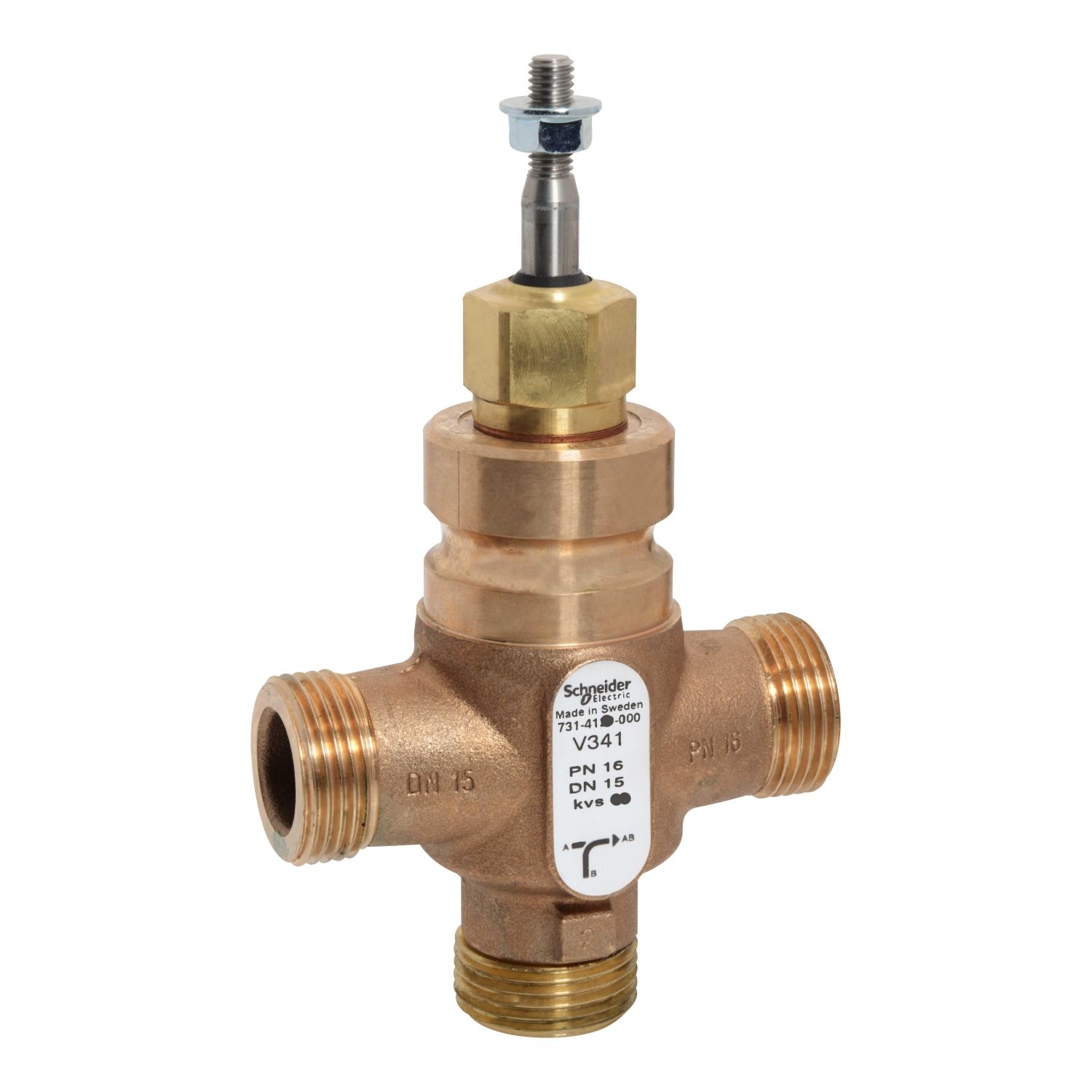

Picture of Venta V341 Globe Valve, 3-Way, PN16, G 1 External Thread, DN15, Kvs 2.5, Bronze Body, Stainless Steel Trim.
SKU:

7314125000

Venta V341 Globe Valve, 3-Way, PN16, G 1 External Thread, DN15, Kvs 2.5, Bronze Body, Stainless Steel Trim.

Please Contact Sales to buy this Product. click here
Venta V341 Globe Valve, 3-Way, PN16, G 1 External Thread, DN15, Kvs 2.5, Bronze Body, Stainless Steel Trim.
  • Self cleaning crown plug design
  • Exceptional control of low flows
  • Bronze body and stainless trim provide a very long life
  • Replacement gland kit ensures a long service life
  • U Bolt Actuator mounting accepts MG350, M310, M400, M800, M1500, M700 SR and MG900 SR actuators
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Product environmental
Catalogue
Product Page Link
Product Data Sheet
The V341 is an externally threaded 3-way bronze globe valve with stainless steel trim designed for demanding heating and cooling applications. The valve uses a crown plug for precise fluid control with a very high rangeability. Stainless Steel plug and seat provides a high pressure differential capability and a low leakage. The crown plug provides precise fluid control with a rangeability of 1:1 and is of a self cleaning design for reliable operation. Valve size: DN15, G External, Flow capacity, Kvs: 2.5 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 6 Kpa. EPDM seals provide a working temperature range of -2 °C to + 15 °C, the soft seat seal ensures a tight close off with no leakage. 2 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). G1 External (Male) Connection.

Products specifications

Attribute nameAttribute value
Main
Operating fluid temperature-20-150 °C
Body materialbronze Rg5
Seating seal materialPort A:metal to metal
Seat leakagePort A: Less than 0.05 % of kvs (Ports B-AB), Port A: Less than 0.02 % of kvs (Ports A-AB)
Product or component typevalve
Targeted regionAustralia., Asia Pacific., Europe
Valve connection sizeG 1B
Seat materialPort B: stainless steel AISI 303, Port A: stainless steel AISI 303
Valve product rangeVenta
Medium compatibilityWater, Glycol 50 %, Glycol 30 %, Glycol 25 %
Control valve rangeabilitygreater than 50:1
Plug materialstainless steel AISI 303
Valve product seriesV341
Flow coefficient2.5 kvs, 2.89 cv
Stem flow actionStem up closes A and opens B to AB
Valve configuration3-Way
Stem movementlinear
Pressure fluid max delta P normal life87 psi
Valve typeglobe
Valve modelV341/15/2.5
Packing materialEPDM (ethylene propylene diene monomer)
Valve connection typeG External
Stem seal materialEPDM (ethylene propylene diene monomer)
Flow characteristicequal percentage
Trim materialstainless steel
Stroke length20 mm
Stem materialstainless steel AISI 303
Pipe size15 mm
Pressure classPN16
Body size15 mm (1/2 in)
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.0 cm
Package 1 Width10.0 cm
Package 1 Length18.0 cm
Package 1 Weight1.062 kg

Related products

SpaceLogic M310 Actuator, Non-Spring Return, 24Vac/dc, 300N, IP54

8800210030
Please Contact Sales to buy this Product. click here
View Detail
Picture of SpaceLogic M400 Actuator, Non-Spring Return, 24Vac/dc, 400N, IP54

SpaceLogic M400 Actuator, Non-Spring Return, 24Vac/dc, 400N, IP54

8800230030
Please Contact Sales to buy this Product. click here
View Detail
Picture of SpaceLogic M400-S2 Actuator, Non-Spring Return, 24Vac/dc, 400N, 2 x SPDT Aux Relay, IP54

SpaceLogic M400-S2 Actuator, Non-Spring Return, 24Vac/dc, 400N, 2 x SPDT Aux Relay, IP54

8800231030
Please Contact Sales to buy this Product. click here
View Detail

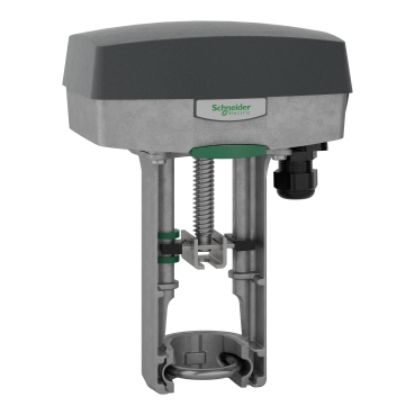

Picture of SpaceLogic M800 Actuator, Non-Spring Return, 24Vac/dc, 800N, IP54
