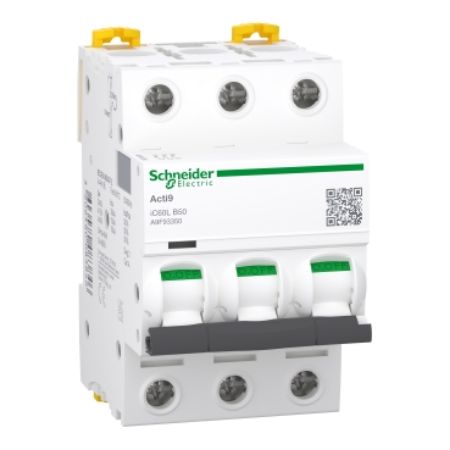

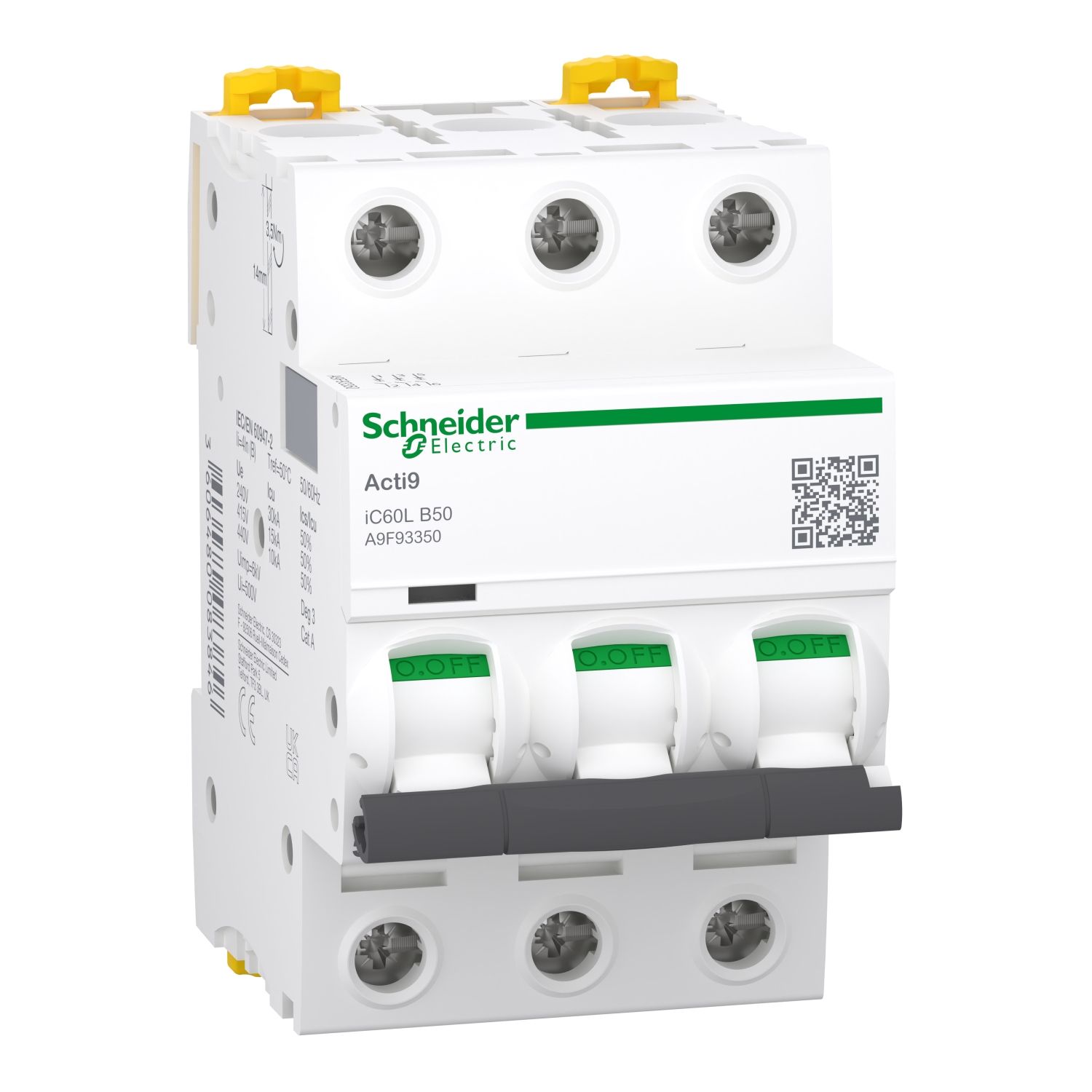

Miniature circuit breaker (MCB), Acti9 iC60L, 3P, 50A, B curve, 15kA (IEC/EN 60947-2)

$258.78

Qty:

Product Selector

Miniature circuit breaker (MCB), Acti9 iC60L, 3P, 50A, B curve, 15kA (IEC/EN 60947-2)

Suitability for industrial isolation according to IEC/EN 60947-2 standard

Combine short-circuit and overload currents protection

Visitrip system for fast detection of faulty outgoers for shorter repair times

VisiSafe system for offering enhanced security when it comes to circuit protection

Option to add auxiliaries, remote monitoring and residual current device (Vigi)

Faster, better and more flexible installation of device thanks to comb busbar

Fast closing independent of the speed of actuation of the toggle

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 18-Oct-2024

Declaration of conformity

Product environmental

Product Page Link

Product Data Sheet

This Acti9 iC60L is a low voltage miniature circuit breaker (MCB). It has 3P with 3 protected poles, rated current 50A and B tripping curve. The rated short circuit breaking capacity goes up to 15kA at 380VAC to 415VAC conforming to EN/IEC 60947-2 standard. It complies with industrial standard EN/IEC 60947-2. This miniature circuit breaker is for protection against short circuit and overload current in all applications. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. It is DIN rail mountable. Its width is 6 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 85mm x (D) 78.5mm. The weight is 0.375kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

Products specifications

Attribute name	Attribute value
Main
Device application	distribution
Suitability for isolation	yes conforming to IEC 60947-2, yes conforming to EN 60947-2
Number of protected poles	3
Trip unit technology	thermal-magnetic
Network type	AC, DC
Device short name	iC60L
Breaking capacity	20 kA Icu at <= 180 V DC conforming to EN/IEC 60947-2, 70 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2, 70 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2, 30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2, 15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
Range	Acti9
Curve code	B
Range of product	iC60
Poles description	3P
Utilisation category	category A conforming to IEC 60947-2, category A conforming to EN 60947-2
Product name	Acti9 iC60
Product or component type	miniature circuit-breaker
Breaking capacity code	L
Standards	EN 60947-2, IEC 60947-2
[In] rated current	50 A
Complementary
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-2, 6 kV conforming to EN 60947-2
Compatibility code	iC60
Electrical durability	10000 cycles
Connections - terminals	single terminal (top or bottom) 1-25 mm² flexible, single terminal (top or bottom) 1-35 mm² rigid
Comb busbar and distribution block compatibility	top or bottom: YES
Earth-leakage protection	separate block
Height	85 mm
[Ics] rated service breaking capacity	20 kA 100 % conforming to IEC 60947-2 - 125...180 V DC, 20 kA 100 % conforming to EN 60947-2 - 125...180 V DC, 35 kA 50 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz, 35 kA 50 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz, 5 kA 50 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz, 7.5 kA 50 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz, 15 kA 50 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz, 5 kA 50 % conforming to EN 60947-2 - 440 V AC 50/60 Hz, 7.5 kA 50 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz, 15 kA 50 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
Market segment	residential, small commercial
[Ui] rated insulation voltage	500 V AC 50/60 Hz conforming to IEC 60947-2, 500 V AC 50/60 Hz conforming to EN 60947-2
Net weight	0.375 kg
Magnetic tripping limit	4 x In +/- 20 %
9 mm pitches	6
Tightening torque	3.5-3.5 N.m top or bottom
Colour	white
Connection pitch	18 mm between phases
Mechanical durability	20000 cycles
Power losses per pole	4.0 W
Mounting mode	fixed
Control type	toggle
Wire stripping length	14 mm for top or bottom connection
[Ue] rated operational voltage	125...180 V DC, 12...133 V AC 50/60 Hz, 440 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 220...240 V AC 50/60 Hz
Depth	78.5 mm
Width	54 mm
Local signalling	trip indicator
Mounting support	DIN rail
Contact position indicator	yes
Total power losses	12.0 W
Network frequency	50/60 Hz
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-85 °C
Tropicalisation	2 conforming to IEC 60068-1
Operating altitude	0...2000 m
Overvoltage category	IV
Pollution degree	3 conforming to IEC 60947-2, 3 conforming to EN 60947-2
IP degree of protection	IP20 conforming to EN 60529, IP20 conforming to IEC 60529
Ambient air temperature for operation	-35-70 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7.1 cm
Package 1 Width	5.3 cm
Package 1 Length	9.4 cm
Package 1 Weight	401.0 g
Unit Type of Package 2	2
Number of Units in Package 2	4
Package 2 Height	8.1 cm
Package 2 Width	10.1 cm
Package 2 Length	22.3 cm
Package 2 Weight	1.668 kg
Unit Type of Package 3	3
Number of Units in Package 3	44
Package 3 Height	30.0 cm
Package 3 Width	30.0 cm
Package 3 Length	40.0 cm
Package 3 Weight	19.011 kg
