SKU:

A9S66163

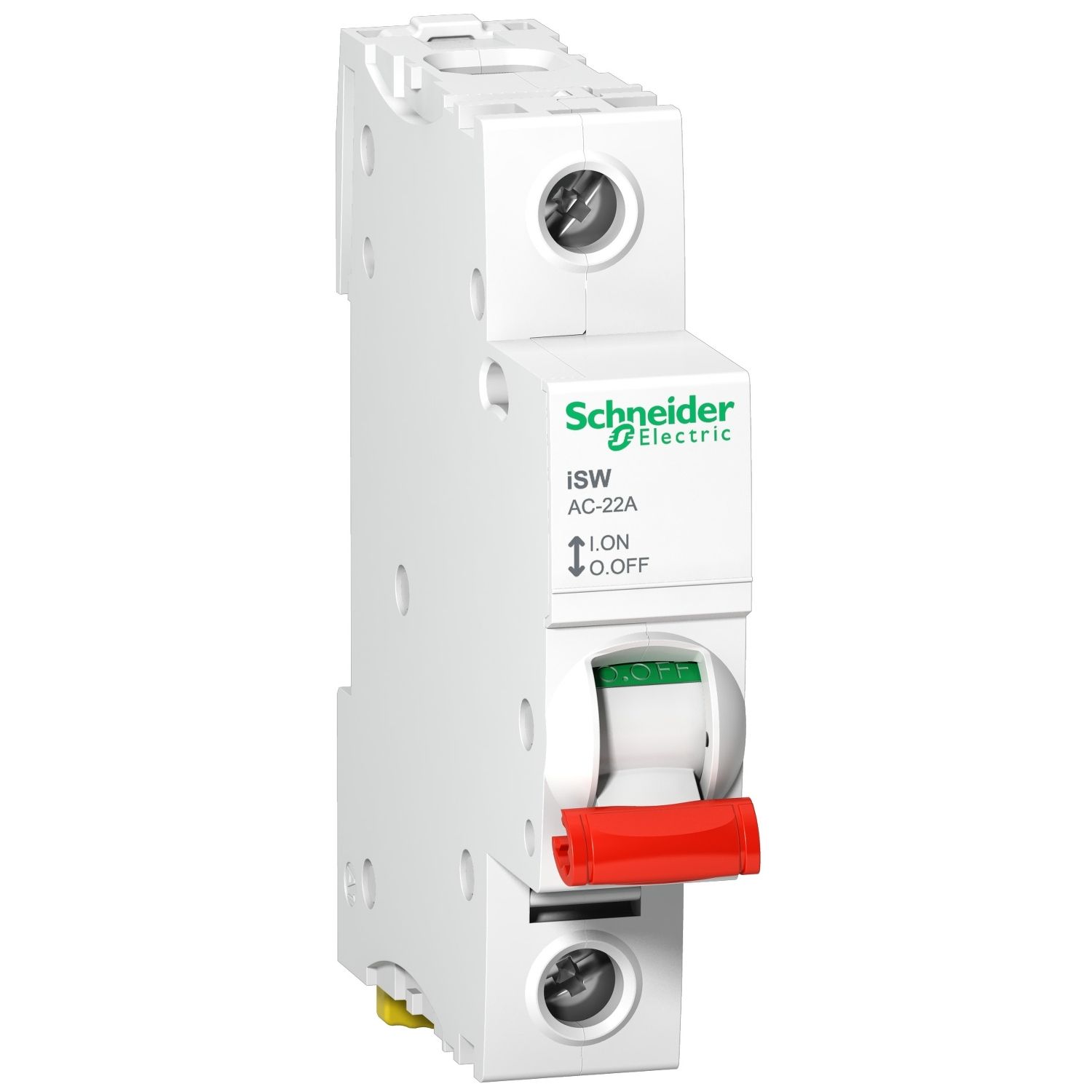

Acti9, Switch disconnector iSW - 1P - 63 A - 240 V

$11.56

Qty:

Available for Shipping : 24-Nov-2024

Product Selector

Acti9, Switch disconnector iSW - 1P - 63 A - 240 V

Suitable for industrial isolation according to IEC/EN 60947-3 standard

Can be accessorized with a OF auxiliary contact

Be the first to review this product

Manufacturer: Schneider Electric

Declaration of conformity

Product environmental

Product Page Link

Product Data Sheet

This Acti9 iSW is a modular and reliable switch disconnector. it is a 1P, rated current is 63A, and operating voltage is 240VAC. Electrical endurance goes up to 15000 cycles, and Mechanical endurance goes up to 20000 cycles. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 85mm x (D) 73mm. This switch disconnector is used for control and isolation. This product is compliant with EN/IEC 60947-3, NZS 60947-3, AS 60947-3 and BS EN 60947-3.

Products specifications

Attribute name	Attribute value
Main
Device short name	iSW
Device application	control, isolation
Suitability for isolation	yes
Range	Acti9
Range of product	iSW 40...125
Poles description	1P
Utilisation category	AC-22A
Product name	Acti9 iSW
Product or component type	switch disconnector
Complementary
[Icw] rated short-time withstand current	1260 A
Connection pitch	18 mm between devices
[Uimp] rated impulse withstand voltage	6 kV
Compatibility code	iSW
Mechanical durability	20000 cycles
[Ie] rated operational current	63 A at 240 V AC 50/60 Hz
Tightening torque	3.5 N.m
Colour	white
Electrical durability	15000 cycles
Mounting mode	fixed
Wire stripping length	14 mm
Control type	toggle
Connections - terminals	tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible with ferrule, tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible, tunnel type terminals (top or bottom) - <= 1 x 50 mm² - rigid
Comb busbar and distribution block compatibility	top or bottom: YES
Height	85 mm
[Ue] rated operational voltage	240 V AC 50/60 Hz
Depth	73 mm
Width	18 mm
Local signalling	ON/OFF indication
[Icm] rated short-circuit making capacity	5 kA switch-disconnector alone
[Ui] rated insulation voltage	250 V AC 50/60 Hz
9 mm pitches	2
Mounting support	DIN rail
Contact position indicator	yes
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-85 °C
Pollution degree	3
IP degree of protection	IP20
Tropicalisation	2
Ambient air temperature for operation	-25-60 °C
Standards	NZS 60947-3, IEC 60947-3, EN 60947-3, BS EN 60947-3, AS 60947-3
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	1.500 cm
Package 1 Width	8.000 cm
Package 1 Length	6.000 cm
Package 1 Weight	85.000 g
Unit Type of Package 2	2
Number of Units in Package 2	12
Package 2 Height	8.000 cm
Package 2 Width	21.500 cm
Package 2 Length	9.500 cm
Package 2 Weight	1.060 kg
Unit Type of Package 3	3
Number of Units in Package 3	60
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	6.437 kg
