A9S66263

Acti9, Switch disconnector iSW - 2P - 63 A - 415 V

$41.17
Available for Shipping : 12-Nov-2024

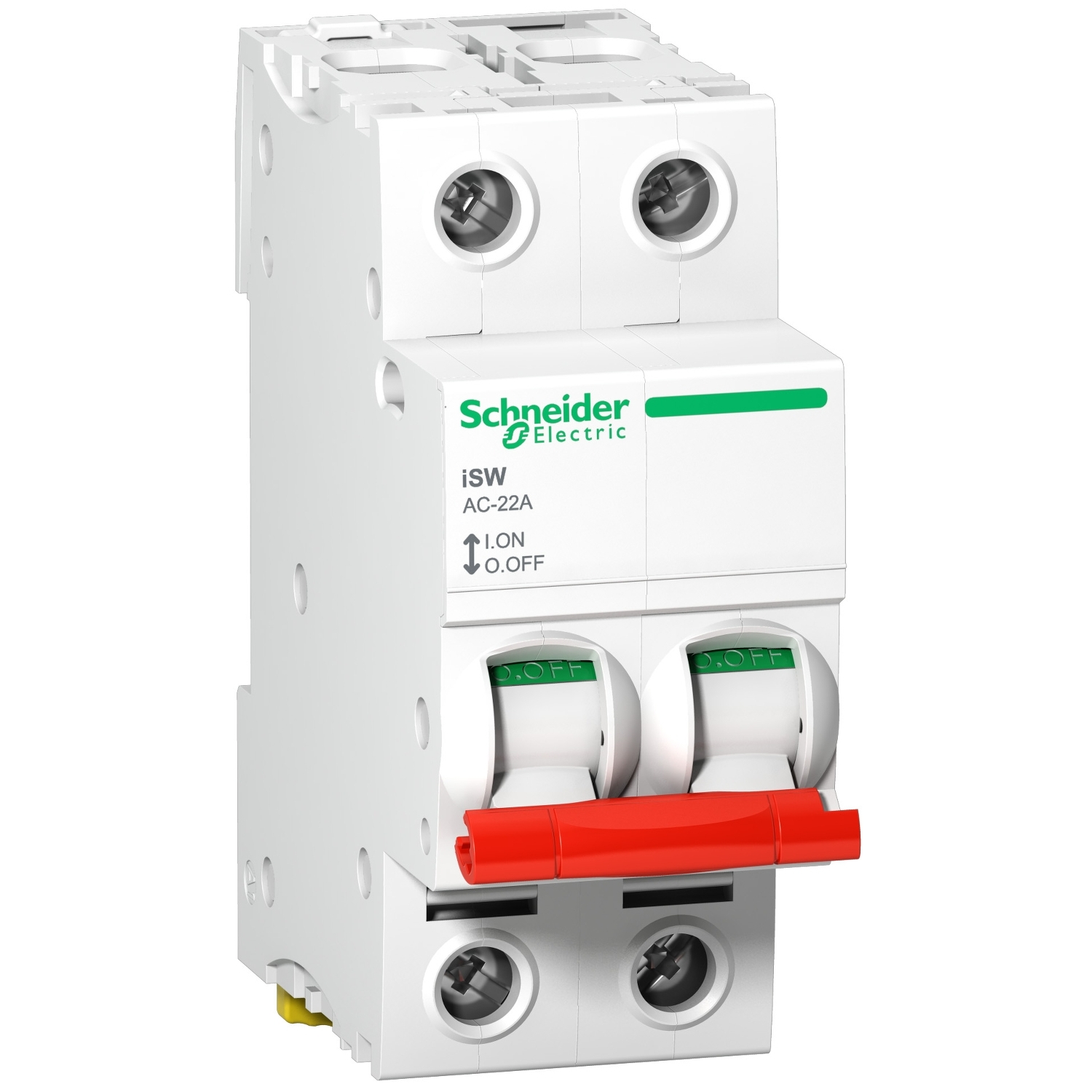

Acti9, Switch disconnector iSW - 2P - 63 A - 415 V
  • Suitable for industrial isolation according to IEC/EN 60947-3 standard
  • Can be accessorized with a OF auxiliary contact
Manufacturer: Schneider Electric
This Acti9 iSW is a modular and reliable switch disconnector. it is a 2P, rated current is 63A, and operating voltage is 415VAC. Electrical endurance goes up to 15000 cycles, and Mechanical endurance goes up to 20000 cycles. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 85mm x (D) 73mm. This switch disconnector is used for control and isolation. This product is compliant with EN/IEC 60947-3, NZS 60947-3, AS 60947-3 and BS EN 60947-3.

Products specifications

Attribute name Attribute value
Main
Device short name iSW
Device application control, isolation
Suitability for isolation yes
Range Acti9
Range of product iSW 40...125
Poles description 2P
Utilisation category AC-22A
Product name Acti9 iSW
Product or component type switch disconnector
Complementary
[Icw] rated short-time withstand current 1260 A
Connection pitch 18 mm between phases
[Uimp] rated impulse withstand voltage 6 kV
Compatibility code iSW
Mechanical durability 20000 cycles
[Ie] rated operational current 63 A at 415 V AC 50/60 Hz
Tightening torque 3.5 N.m
Colour white
Electrical durability 15000 cycles
Mounting mode fixed
Wire stripping length 14 mm
Control type toggle
Connections - terminals tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible with ferrule, tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible, tunnel type terminals (top or bottom) - <= 1 x 50 mm² - rigid
Comb busbar and distribution block compatibility top or bottom: YES
Height 85 mm
[Ue] rated operational voltage 415 V AC 50/60 Hz
Depth 73 mm
Width 36 mm
Local signalling ON/OFF indication
[Icm] rated short-circuit making capacity 5 kA switch-disconnector alone
[Ui] rated insulation voltage 500 V AC 50/60 Hz
9 mm pitches 4
Mounting support DIN rail
Contact position indicator yes
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Pollution degree 3
IP degree of protection IP20
Tropicalisation 2
Ambient air temperature for operation -25-60 °C
Standards EN 60947-3, BS EN 60947-3, IEC 60947-3, AS 60947-3, NZS 60947-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 3.5 cm
Package 1 Length 9.0 cm
Package 1 Weight 165.0 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 8.0 cm
Package 2 Width 9.5 cm
Package 2 Length 22.0 cm
Package 2 Weight 1.05 kg
Unit Type of Package 3 3
Number of Units in Package 3 66
Package 3 Height 30.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 12.851 kg
