SKU:

A9S66463

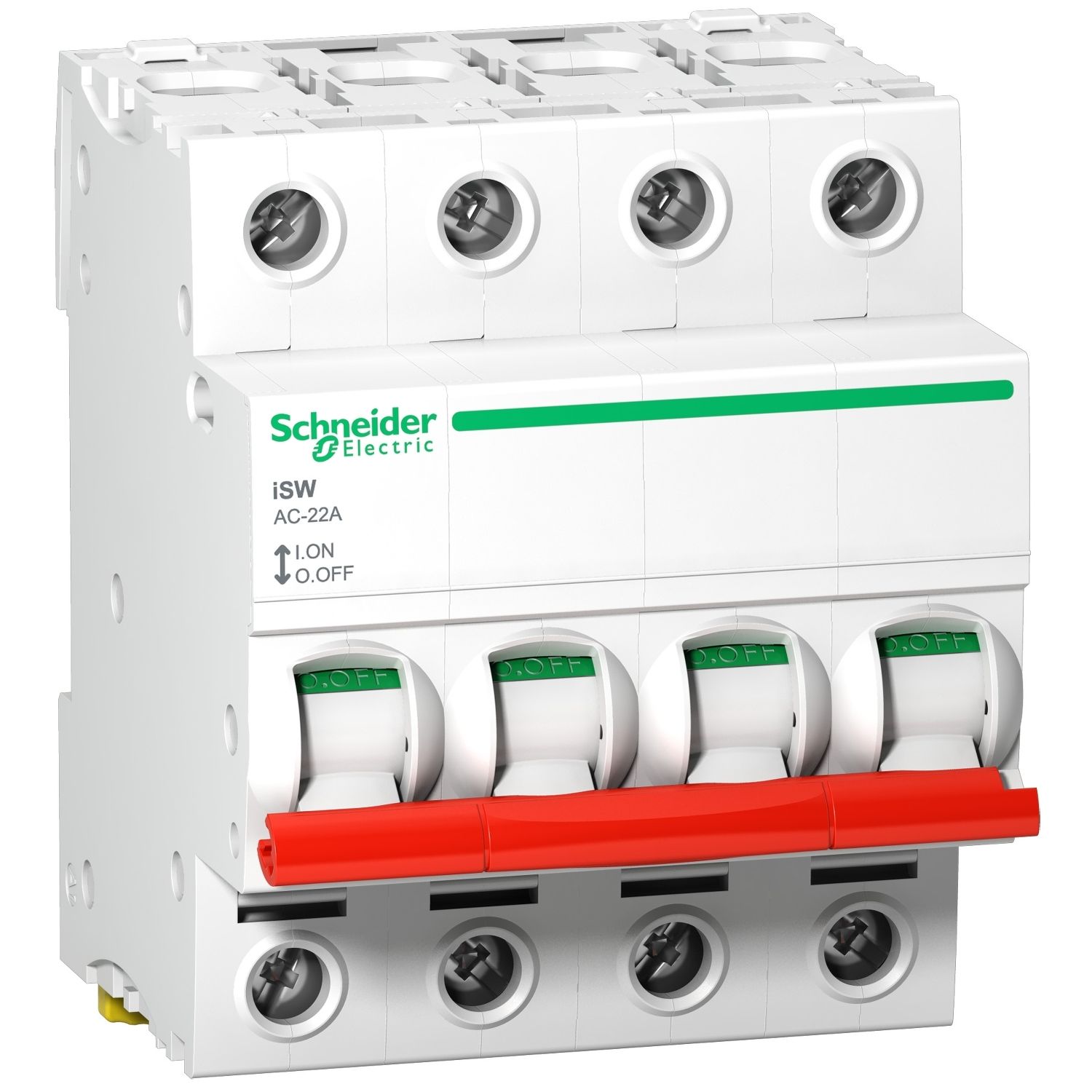

Acti9, Switch disconnector iSW - 4P - 63 A - 415 V

$61.16

Qty:

Available for Shipping : 17-Nov-2024

Product Selector

Acti9, Switch disconnector iSW - 4P - 63 A - 415 V

Suitable for industrial isolation according to IEC/EN 60947-3 standard

Can be accessorized with a OF auxiliary contact

Be the first to review this product

Manufacturer: Schneider Electric

Declaration of conformity

Product environmental

Product Page Link

Product Data Sheet

This Acti9 iSW is a modular and reliable switch disconnector. it is a 4P, rated current is 63A, and operating voltage is 415VAC. Electrical endurance goes up to 15000 cycles, and Mechanical endurance goes up to 20000 cycles. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 8. The dimensions are (W) 72mm x (H) 85mm x (D) 73mm. This switch disconnector is used for control and isolation. This product is compliant with EN/IEC 60947-3, NZS 60947-3, AS 60947-3 and BS EN 60947-3.

Products specifications

Attribute name	Attribute value
Main
Device short name	iSW
Device application	isolation, control
Poles description	4P
Suitability for isolation	yes
Range	Acti9
Utilisation category	AC-22A
Product name	Acti9 iSW
Product or component type	switch disconnector
Range of product	iSW 40...125
Complementary
[Ue] rated operational voltage	415 V AC 50/60 Hz
[Icw] rated short-time withstand current	1260 A
Depth	73 mm
Width	72 mm
Connection pitch	18 mm between phases
[Uimp] rated impulse withstand voltage	6 kV
Local signalling	ON/OFF indication
Compatibility code	iSW
Mechanical durability	20000 cycles
[Ie] rated operational current	63 A at 415 V AC 50/60 Hz
Tightening torque	3.5 N.m
Colour	white
Electrical durability	15000 cycles
[Icm] rated short-circuit making capacity	5 kA switch-disconnector alone
Mounting mode	fixed
[Ui] rated insulation voltage	500 V AC 50/60 Hz
Wire stripping length	14 mm
Control type	toggle
Connections - terminals	tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible with ferrule, tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible, tunnel type terminals (top or bottom) - <= 1 x 50 mm² - rigid
Comb busbar and distribution block compatibility	top or bottom: YES
9 mm pitches	8
Mounting support	DIN rail
Contact position indicator	yes
Height	85 mm
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-85 °C
Pollution degree	3
IP degree of protection	IP20
Tropicalisation	2
Standards	AS 60947-3, IEC 60947-3, EN 60947-3, BS EN 60947-3, NZS 60947-3
Ambient air temperature for operation	-25-60 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7.5 cm
Package 1 Width	9 cm
Package 1 Length	7.5 cm
Package 1 Weight	335 g
Unit Type of Package 2	2
Number of Units in Package 2	3
Package 2 Height	8.5 cm
Package 2 Width	10 cm
Package 2 Length	22 cm
Package 2 Weight	1.046 kg
