SKU:

ATV340U07N4E

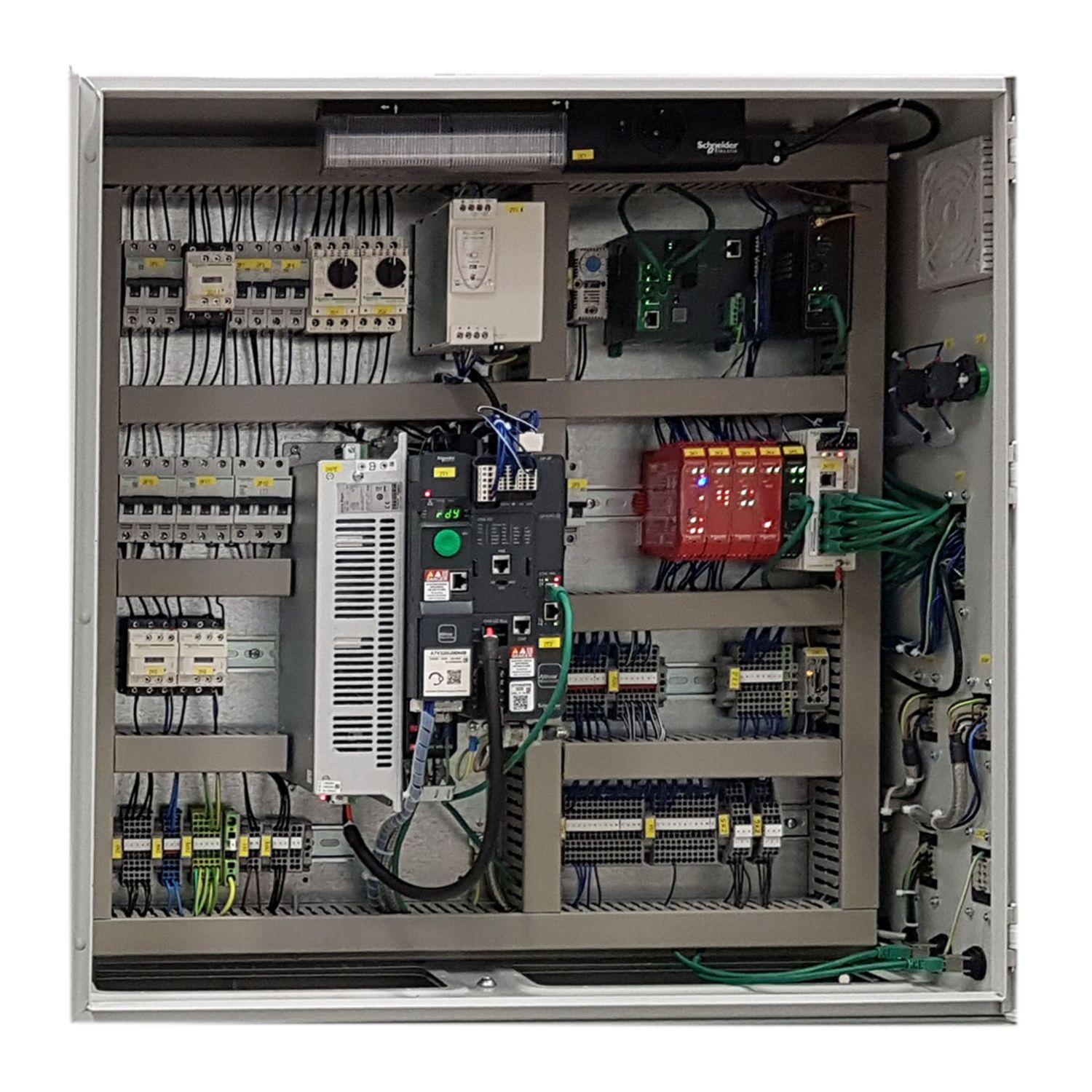

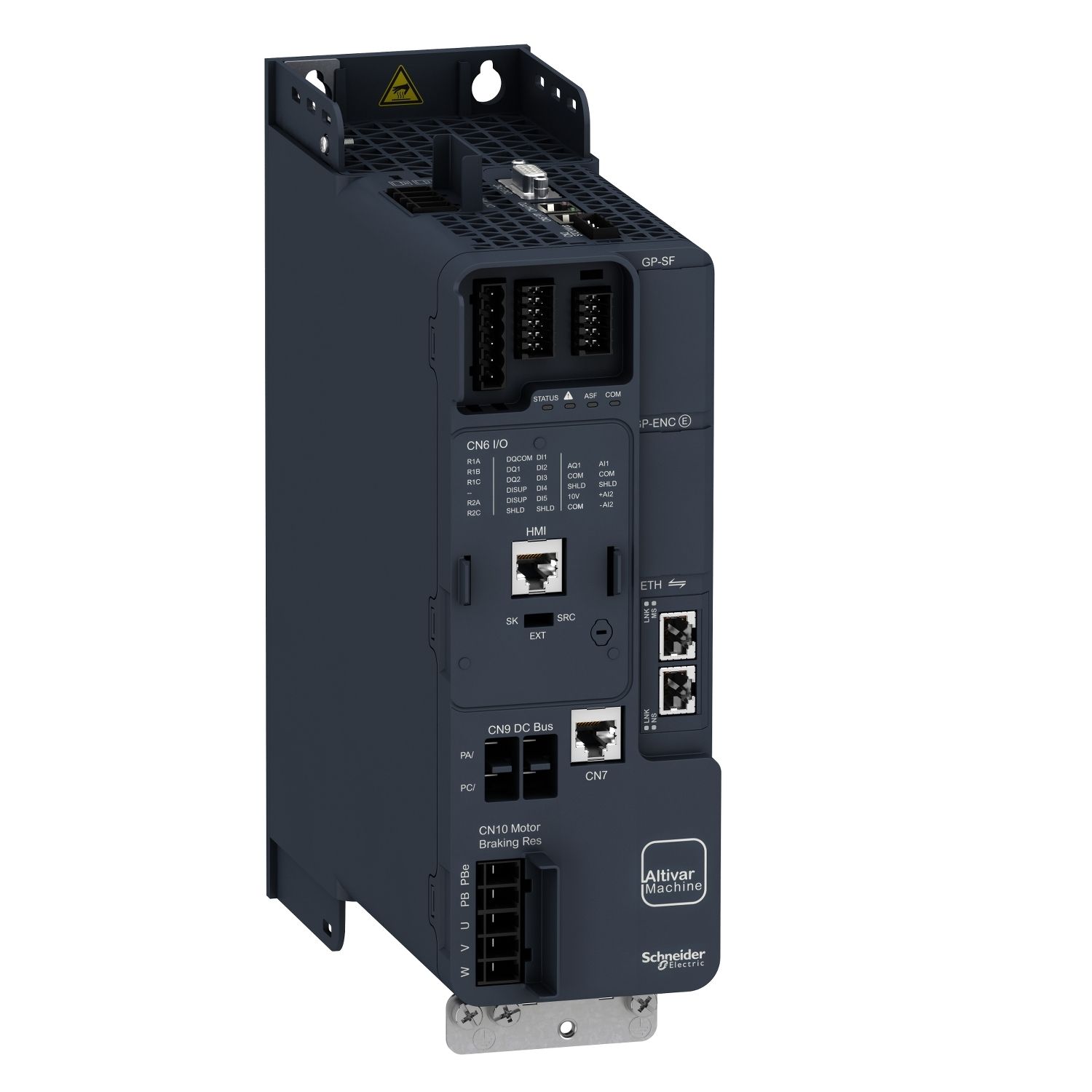

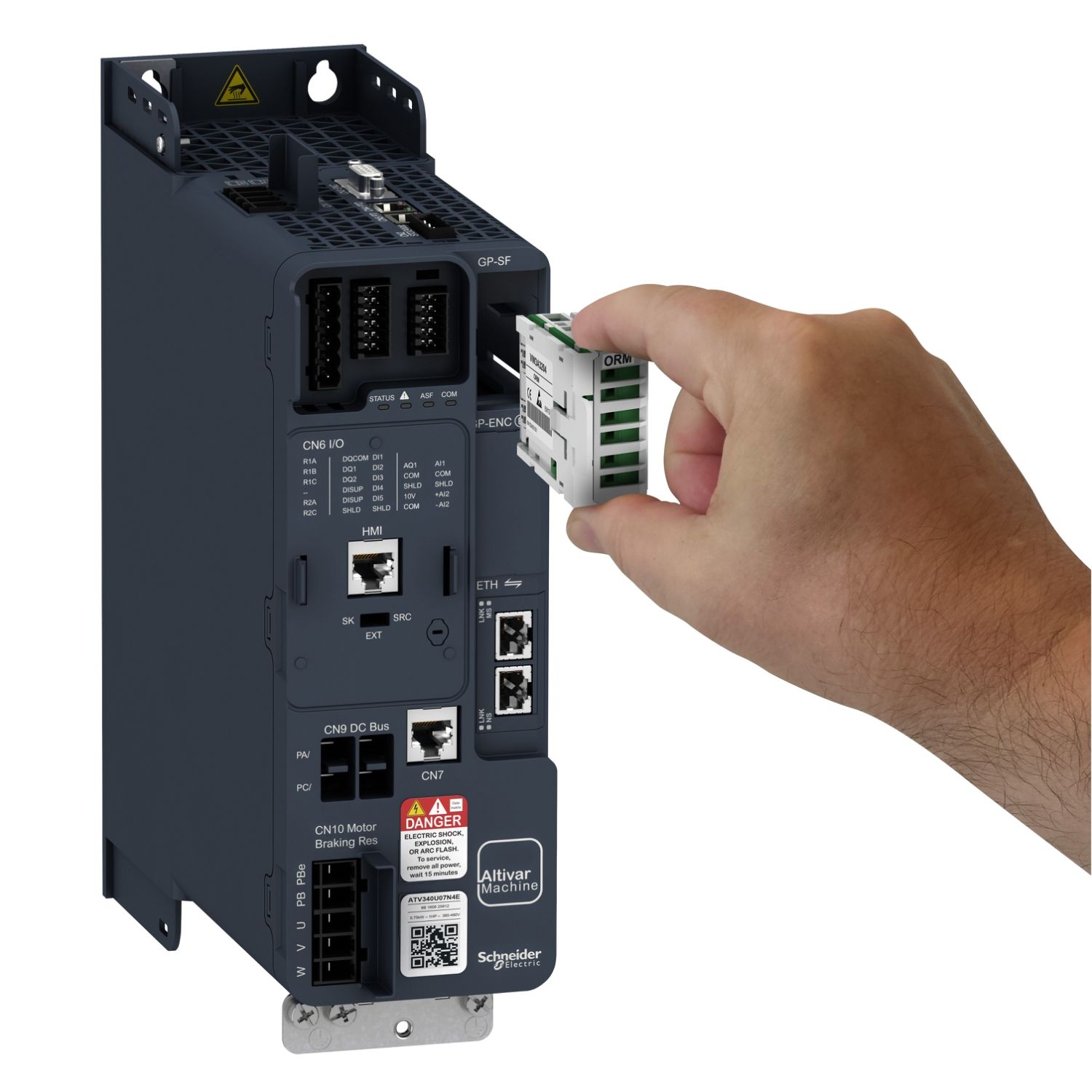

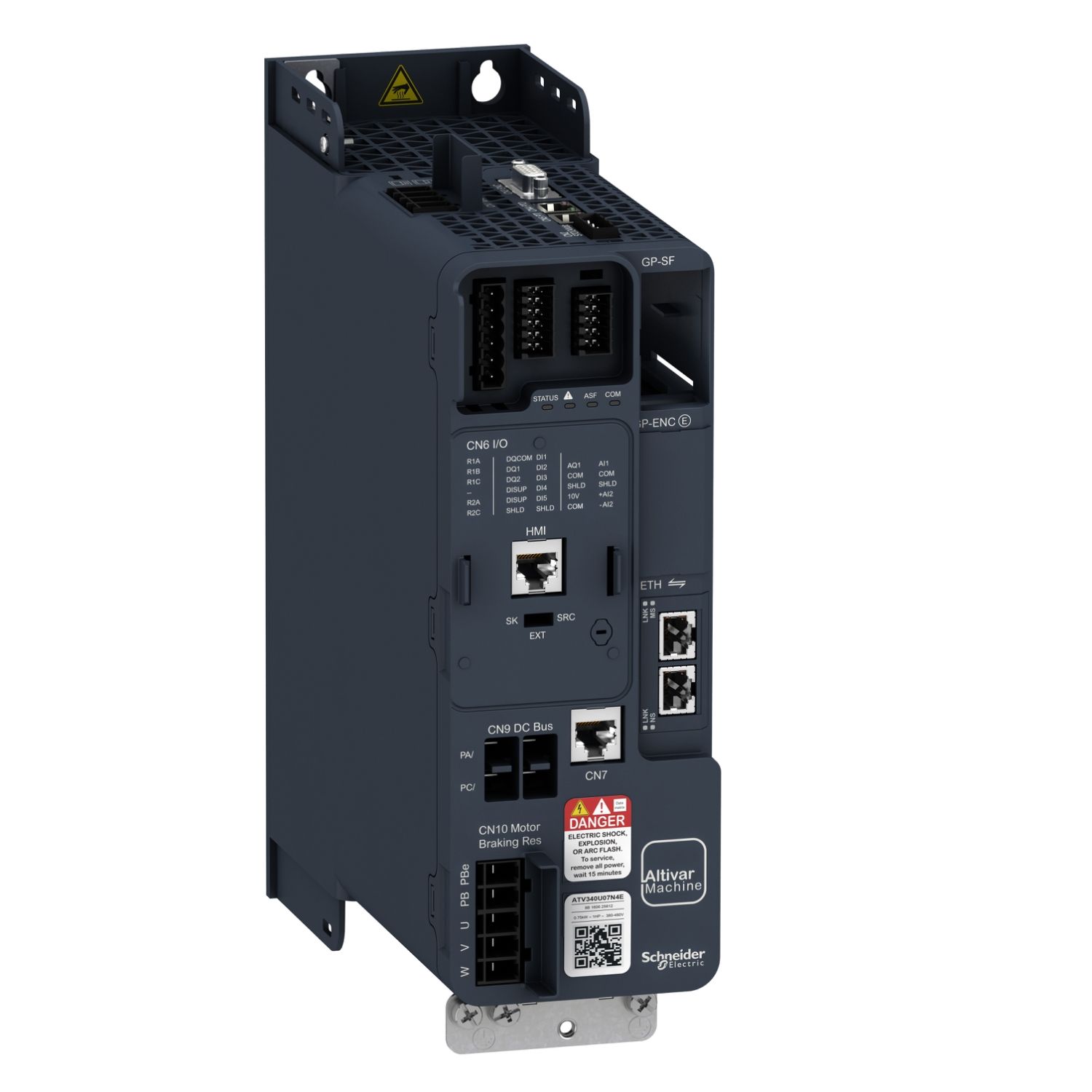

variable speed drive, Altivar Machine ATV340, 0.75kW, heavy duty, 400V, 3 phases, Ethernet

$1,078.52

Qty:

Available for Shipping : 24-Nov-2024

Product Selector

variable speed drive, Altivar Machine ATV340, 0.75kW, heavy duty, 400V, 3 phases, Ethernet

Be the first to review this product

Manufacturer: Schneider Electric

Instruction sheet

Declaration of conformity

Catalogue

End of life manual

Product environmental

User guide

Product Page Link

Product Data Sheet

This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 0.75kW / 1hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 °C is needed. This product integrates Modbus serial line communication protocols as standard. This drive features multi-protocol Ethernet embedded, it consists of Ethernet IP and Modbus TCP communication interfaces. it weighs 1.7kg and its dimensions are, 85mm wide, 270mm high, 232.5mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TÜV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It complies with directives such as RoHS relating to environmental protection.

Products specifications

Attribute name	Attribute value
Main
[Us] rated supply voltage	380...480 V - 15...10 %, 380...480 V
Number of output phases	3
Design of frequency changer	U converter
Product specific application	machine
Nominal output current	2.2 A
Communication port protocol	EtherNet/IP, Modbus serial, Modbus TCP
IP degree of protection	IP20
Relative symmetric network frequency tolerance	5 %
Variant	standard version
EMC filter	class C3 EMC filter integrated
Mounting mode	cabinet mount
Motor power kW	0.75 kW for heavy duty, 1.1 kW for normal duty
Range of product	Altivar Machine ATV340
Supply frequency	50...60 Hz +/- 5 %
Motor power hp	1 hp for heavy duty, 1.5 hp for normal duty
Number of input phases	3
Network number of phases	3 phases
Relative symmetric mains voltage tolerance	10 %
Product or component type	variable speed drive
Complementary
Synchronous motor control profile	permanent magnet motor, reluctance motor
Braking to standstill	by DC injection
Capacity of DC link	195.0 µF
Supporting protocol for SUCONET	False
Output voltage	<= power supply voltage
Brake chopper integrated	True
Continuous output current	2.8 A at 4 kHz for normal duty, 2.2 A at 4 kHz for heavy duty
Supporting protocol for DeviceNet	False
Minimum switching current	relay output R2C: 5 mA at 24 V DC, relay output R1B: 5 mA at 24 V DC
Physical interface	2-wire RS 485
Operating element present	True
Supporting protocol for PROFINET IO	False
Motor starter type	variable speed drive
Supporting protocol for Data-Highway	False
Connector type	3 RJ45, connector(s)2 x RJ45, Ethernet IP/Modbus TCP on front face, connector(s)1 x RJ45, Modbus serial for HMI on front face, connector(s)1 x RJ45, Modbus serial on front face
Number of HW interfaces serial RS232	0
Accuracy	+/- 1 % AQ1 for a temperature variation 60 °C analog output, +/- 0.6 % AI1, AI2 for a temperature variation 60 °C analog input
Number of HW interfaces serial RS485	1
Supporting protocol for PROFIBUS	False
Input/output type	programmable as logic input/output DQ2: 0-1 kHz, <= 30 V DC, 100 mA, programmable as logic input/output DQ1: 0-1 kHz, <= 30 V DC, 100 mA
Data format	8 bits, configurable odd, even or no parity
With safety function Safe torque off (STO)	True
Relay output number	2
With safety function Safe Speed Monitor (SSM)	False
Supporting protocol for SafetyBUS P	False
Supporting protocol for AS-Interface Safety at Work	False
Encoder protocol	TTL/HTL, SSI 5V, SSI 24V, RS 422, resolver, EnDat 2.2, 1 Vpp
Acceleration and deceleration ramps	linear adjustable separately from 0.01...9999 s, S, U or customized
Height	270.0 mm
Number of HW interfaces serial RS422	0
Optical interface present	False
Supporting protocol for TCP/IP	True
Supporting protocol for Foundation Fieldbus	False
Sampling duration	2 ms +/- 0.5 ms (DQ1, DQ2) - discrete input/output, 5 ms +/- 1 ms (AQ1) - analog output, 1 ms +/- 1 ms (AI1, AI2) - analog input, 5 ms +/- 1 ms (PTI) - pulse input, 2 ms +/- 0.5 ms (DI1...DI5) - discrete input
Supporting protocol for PROFIsafe	False
Analogue input type	AI2 software-configurable voltage: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits, AI1 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits, AI1 software-configurable temperature probe or water level sensor, AI1 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits
With safety function Safe Stop 1 (SS1)	True
With sft fct Safe Stop 2 (SS2)	False
Housing material	plastic
Supporting protocol for LON	False
Supporting protocol for BACnet	False
Specific application	machine
Safety function	STO (safe torque off) SIL 3
Discrete input number	5
Number of addresses	1-247
With safety function Safe Operating Stop (SOS)	False
Method of access	slave Modbus TCP, slave Modbus RTU
With safety function Safely Limited Position (SLP)	False
With safety function Safe Position (SP)	False
Supporting protocol for DeviceNet Safety	False
Discrete output number	2
Supporting protocol for MODBUS	True
Analogue input number	2
Switching frequency	14...16 kHz with derating factor, 2...16 kHz adjustable
With safety function Safe Direction (SDI)	False
Net weight	1.7 kg
EMC limit value (complied)	True
Apparent power	2.2 kVA at 480 V (heavy duty), 2.2 kVA at 480 V (normal duty)
Supporting protocol for INTERBUS	False
Asynchronous motor control profile	optimized torque mode, variable torque standard, constant torque standard
Discrete output type	programmable output DQ1, DQ2 30 V DC 100 mA
Line current	3.4 A at 380 V without line choke (heavy duty), 1.6 A at 480 V with external line choke (heavy duty), 1.9 A at 380 V with external line choke (heavy duty), 2.1 A at 480 V with external line choke (normal duty), 2.6 A at 380 V with external line choke (normal duty), 2.6 A at 480 V without line choke (heavy duty), 2.6 A at 480 V (heavy duty), 3.4 A at 380 V (heavy duty), 2.1 A at 480 V (normal duty), 2.6 A at 380 V (normal duty)
Analogue output type	software-configurable current AQ1: 0...20 mA impedance 500 Ohm, resolution 10 bits, software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits
Discrete input logic	positive logic (source) (STOA, STOB), < 5 V (state 0), > 11 V (state 1), positive logic (source) (PTI), < 0.6 V (state 0), > 2.5 V (state 1), negative logic (sink) (DI1...DI5), > 16 V (state 0), < 10 V (state 1), positive logic (source) (DI1...DI5), < 5 V (state 0), > 11 V (state 1), 16 preset speeds
Prospective line Isc	5 kA
With safety function Safely Limited Speed (SLS)	True
Number of HW interfaces other	0
Number of HW interfaces serial TTY	0
Protection type	break on the control circuit: drive, exceeding limit speed: drive, input supply loss: drive, line supply undervoltage: drive, line supply overvoltage: drive, DC Bus overvoltage: drive, motor phase loss: drive, short-circuit between motor phases: drive, short-circuit between motor phase and earth: drive, output overcurrent between motor phases: drive, output overcurrent between motor phase and earth: drive, overcurrent: drive, overheating: drive, safe torque off: drive, thermal protection: drive, motor phase loss: motor, safe torque off: motor, thermal protection: motor
Discrete input type	programmable, DI1...DI5 safe torque off, 24 V DC (30 V), impedance: 3.5 kOhm, PTI programmable as pulse input: 0-30 kHz, 24 V DC (30 V)
Power loss static current independent	16.0 W
Nominal switching frequency	4 kHz
With safety function Safe programmable logic	False
Number of inputs, bidirectional, not potential-free	0
Number of inputs, potential-free	0
Supporting protocol for EtherNet/IP	True
Refresh time	relay output (R1, R2): 5 ms (+/- 0.5 ms)
Analogue output number	2
Pollution degree	2 conforming to IEC 61800-5-1
Input compatibility	STOA, STOB: discrete input level 1 PLC conforming to IEC 61131-2, PTI: pulse input level 1 PLC conforming to IEC 65A-68, DI1...DI5: discrete input level 1 PLC conforming to IEC 61131-2
Supporting protocol for PROFINET CBA	False
Base load current at low overload	2.8 A
Supporting protocol for ASI	False
Number of HW interfaces USB	0
Supporting protocol for SERCOS	False
Transmission frame	RTU
Speed drive output frequency	0.1-599 Hz
Base load current at high overload	2.2 A
Maximum output voltage	480 V
With safety function Safe brake management (SBC/SBT)	True
Maximum output frequency	0.599 kHz
Electrical connection	control: screw terminal 0.2...2.5 mm²/AWG 24...AWG 12, motor: screw terminal 1.5...4 mm²/AWG 14...AWG 12, DC bus: screw terminal 4...6 mm²/AWG 12...AWG 10, line side: screw terminal 1.5...4 mm²/AWG 14...AWG 12, screw terminal, clamping capacity: 0.2...2.5 mm² for control, screw terminal, clamping capacity: 1.5...4 mm² for motor, screw terminal, clamping capacity: 4...6 mm² for DC bus, screw terminal, clamping capacity: 1.5...4 mm² for line side
Supporting protocol for other bus systems	False
Computer port	True
Discrete and process manufacturing	packaging shrinking wrapping, material handling automatic storage / retrieval system, hoisting standard crane - hoist, packaging other application, packaging elevator, packaging conveyor, packaging grouping boxing, packaging feed conveyor - medium performance, packaging filling bottles - synchronized operation, material working (wood, ceramic, stone, pvc, metal) slitter, material working (wood, ceramic, stone, pvc, metal) grinding, material working (wood, ceramic, stone, pvc, metal) polishing, material working (wood, ceramic, stone, pvc, metal) cutting - high accuracy, material handling palletizer - high performance, material handling grouping conveyor, hoisting other application, hoisting tower crane
Application in industrial area permitted	True
Depth	232.5 mm
Supporting protocol for KNX	False
Transmission rate	38.4 kbit/s, 19.2 kbit/s, 9.6 kbit/s, 4.8 kbit/s
Width	85.0 mm
Number of HW interfaces parallel	0
Power loss per device current dependent	49.0 W
Motor slip compensation	can be suppressed, not available in permanent magnet motor law, adjustable, automatic whatever the load
Application in domestic and commercial area permitted	False
Supporting protocol for CAN	False
Maximum transient current	4 A during 2 s (heavy duty), 3.8 A during 2 s (normal duty), 3.3 A during 60 s (heavy duty), 3.1 A during 60 s (normal duty)
1 phase low current possible	False
Relay output type	relay outputs R2C electrical durability 100000 cycles, relay outputs R2A, relay outputs R1C electrical durability 100000 cycles, relay outputs R1A
Type of polarization	no impedance
Maximum associated fuse rating	8.0 A
Nominal output power	0.75 kW
Vibration resistance	1 gn (f= 9-200 Hz) conforming to IEC 60721-3-3 class 3M3, 1.5 mm peak to peak (f= 2-19 Hz) conforming to IEC 60721-3-3 class 3M3
Supporting protocol for INTERBUS-Safety	False
Exchange mode	half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
4 quadrant operation possible	True
Maximum switching current	relay output R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC, relay output R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC, relay output R2C on resistive load, cos phi = 1 : 5 A at 30 V DC, relay output R2C on resistive load, cos phi = 1 : 5 A at 250 V AC, relay output R1C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC, relay output R1C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC, relay output R1C on resistive load, cos phi = 1 : 3 A at 30 V DC, relay output R1C on resistive load, cos phi = 1 : 3 A at 250 V AC
Number of HW interfaces industrial Ethernet	2
Number of HW interfaces PROFINET	0
Power dissipation in W	forced convection: 33 W at 380 V, switching frequency 4 kHz (normal duty), natural convection: 33 W at 380 V, switching frequency 4 kHz (normal duty), forced convection: 28 W at 380 V, switching frequency 4 kHz (heavy duty), natural convection: 28 W at 380 V, switching frequency 4 kHz (heavy duty)
Network frequency	50...60 Hz
Environment
Maximum deflection under vibratory load (during storage)	1.5 mm at 2...9 Hz
Operating position	vertical +/- 10 degree
Assembly style	with heat sink
Isolation	between power and control terminals
Type of cooling	forced convection
Ambient air temperature for storage	-40-70 °C
NEMA degree of protection	not applicable
Maximum acceleration under vibratory load (during storage)	5 m/s² at 9...200 Hz
Volume of cooling air	18.0 m3/h
Maximum acceleration under shock impact (during operation)	70 m/s² at 22 ms
Maximum acceleration under shock load (during transport)	70 m/s² at 22 ms
Maximum acceleration under vibratory load (during transport)	5 m/s² at 9...200 Hz
Environmental class (during storage)	class 1S2 according to EN 60721-3-1, class 1C3 according to EN 60721-3-1
Overvoltage category	class III
Operating altitude	<= 3000 m with current derating above 1000m
Permitted relative humidity (during operation)	class 3K5 according to EN 60721-3
Permitted relative humidity (during storage)	class 1K5 according to EN 60721-3
Maximum deflection under vibratory load (during transport)	1.5 mm at 2...9 Hz
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...9 Hz
Product certifications	CTick, EAC, TÜV, CSA, UL
Ambient air transport temperature	-40-70 °C
Maximum acceleration under shock load (during storage)	70 m/s² at 22 ms
Permitted relative humidity (during transport)	class 2K5 according to EN 60721-3
Noise level	52.7 dB
Maximum acceleration under vibrational stress (during operation)	5 m/s² at 9...200 Hz
Marking	CE
Environmental class (during transport)	class 2S1 according to EN 60721-3-2, class 2C3 according to EN 60721-3-2
Ambient air temperature for operation	50-60 °C with derating factor (vertical position), -15-50 °C without derating (vertical position), -15-60 °C
Electromagnetic compatibility	conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Pollution degree	2
Environmental class (during operation)	class 3S3 according to IEC 60721-3-3, class 3C3 according to IEC 60721-3-3
Linearity error	AQ1: +/- 0.2 % for analog output, AI1, AI2: +/- 0.15 % of maximum value for analog input
Regulation loop	adjustable PID regulator
Power range	0.55-1 kW at 480-500 V 3 phases, 0.55-1 kW at 380-440 V 3 phases
Shock resistance	15 gn for 11 ms, class 3M3 conforming to IEC 60721-3-3
Insulation resistance	> 1 MOhm 500 V DC for 1 minute to earth
Standards	UL 508C, UL 618000-5-1, IEC 13849-1, IEC 61508, IEC 60721-3, IEC 61800-5-1, IEC 61800-3

Maximum input current	3.4 A
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	10.700 cm
Package 1 Width	37.500 cm
Package 1 Length	31.500 cm
Package 1 Weight	2.485 kg
Unit Type of Package 2	2
Number of Units in Package 2	14
Package 2 Height	75.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	47.790 kg
