SKU:

BVS480XDPDR

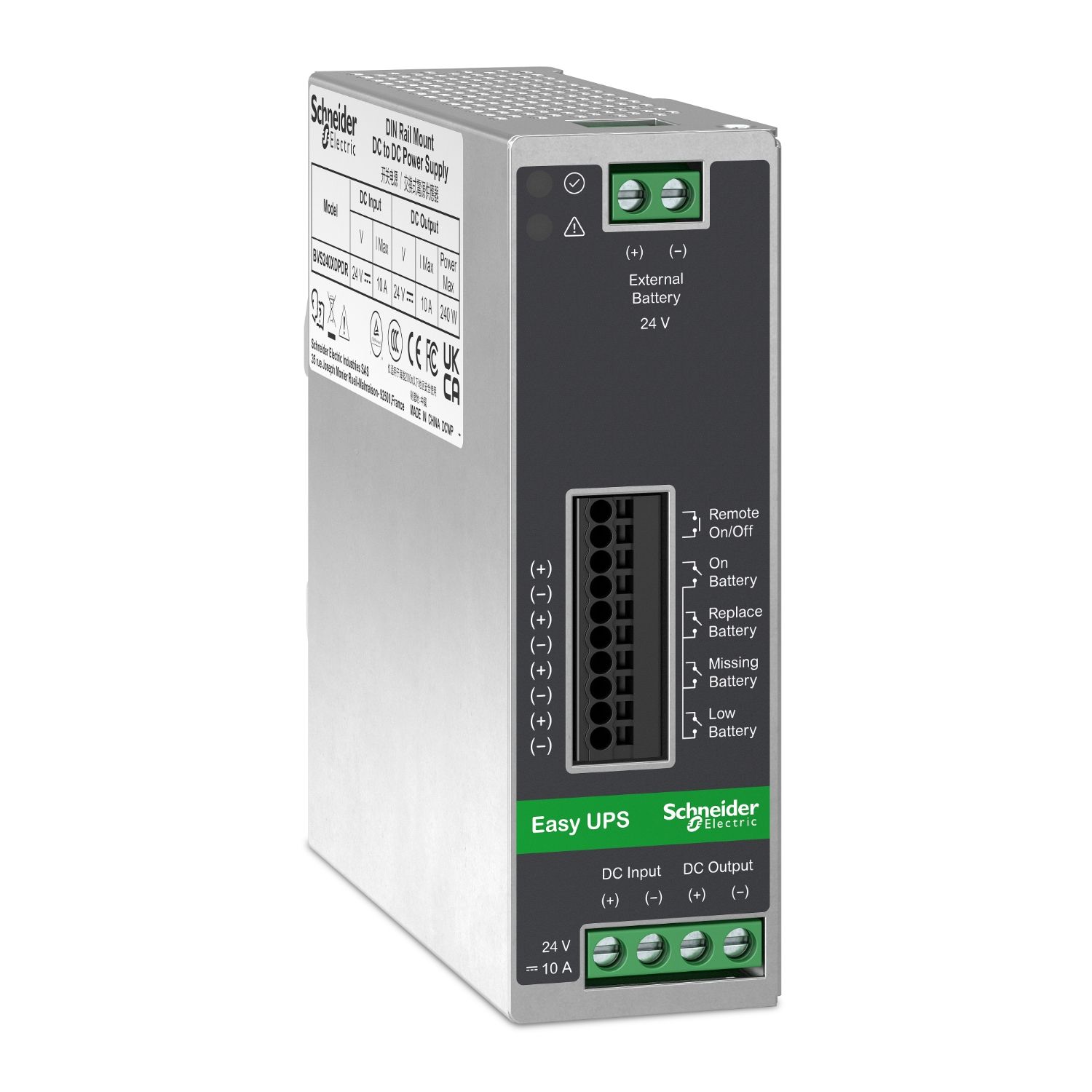

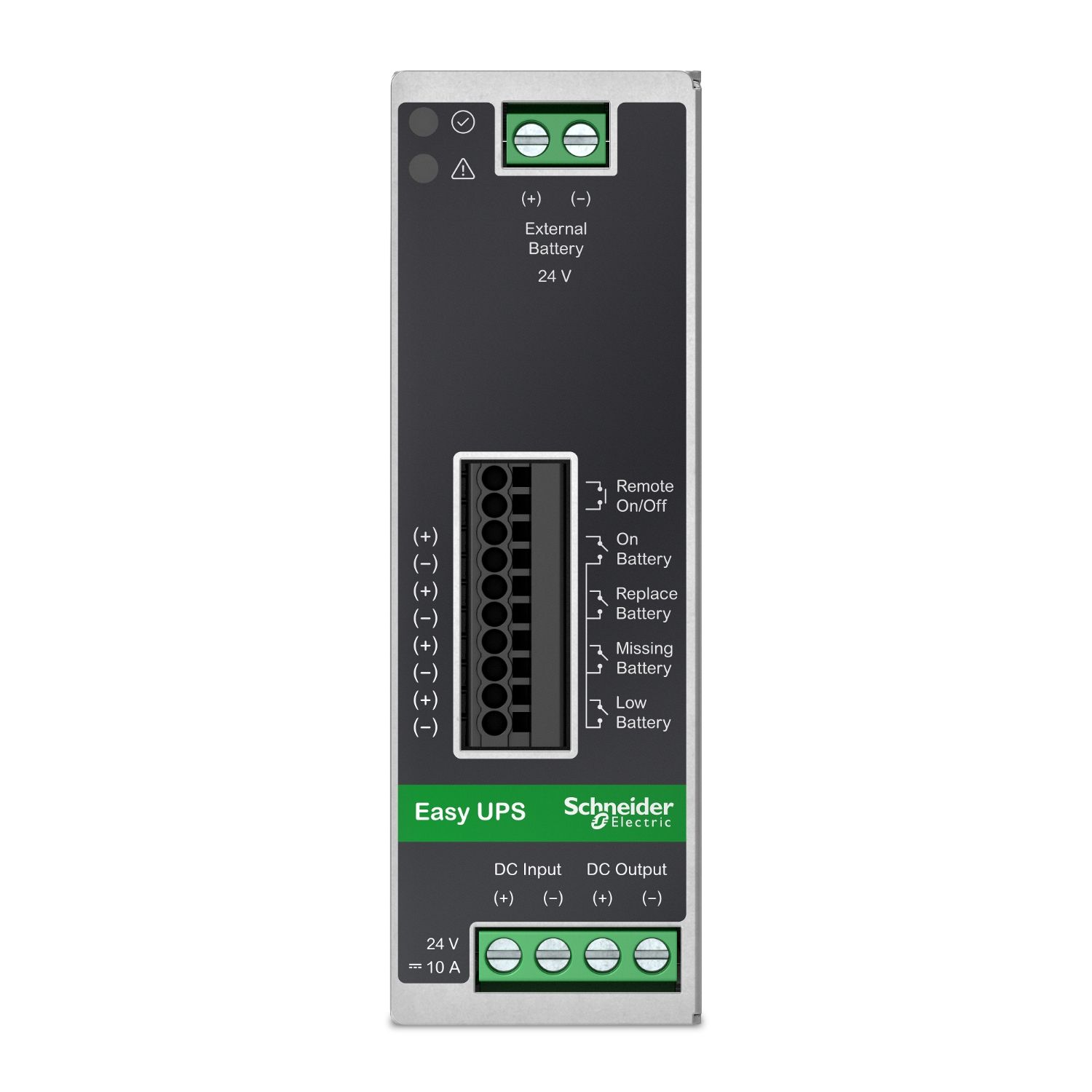

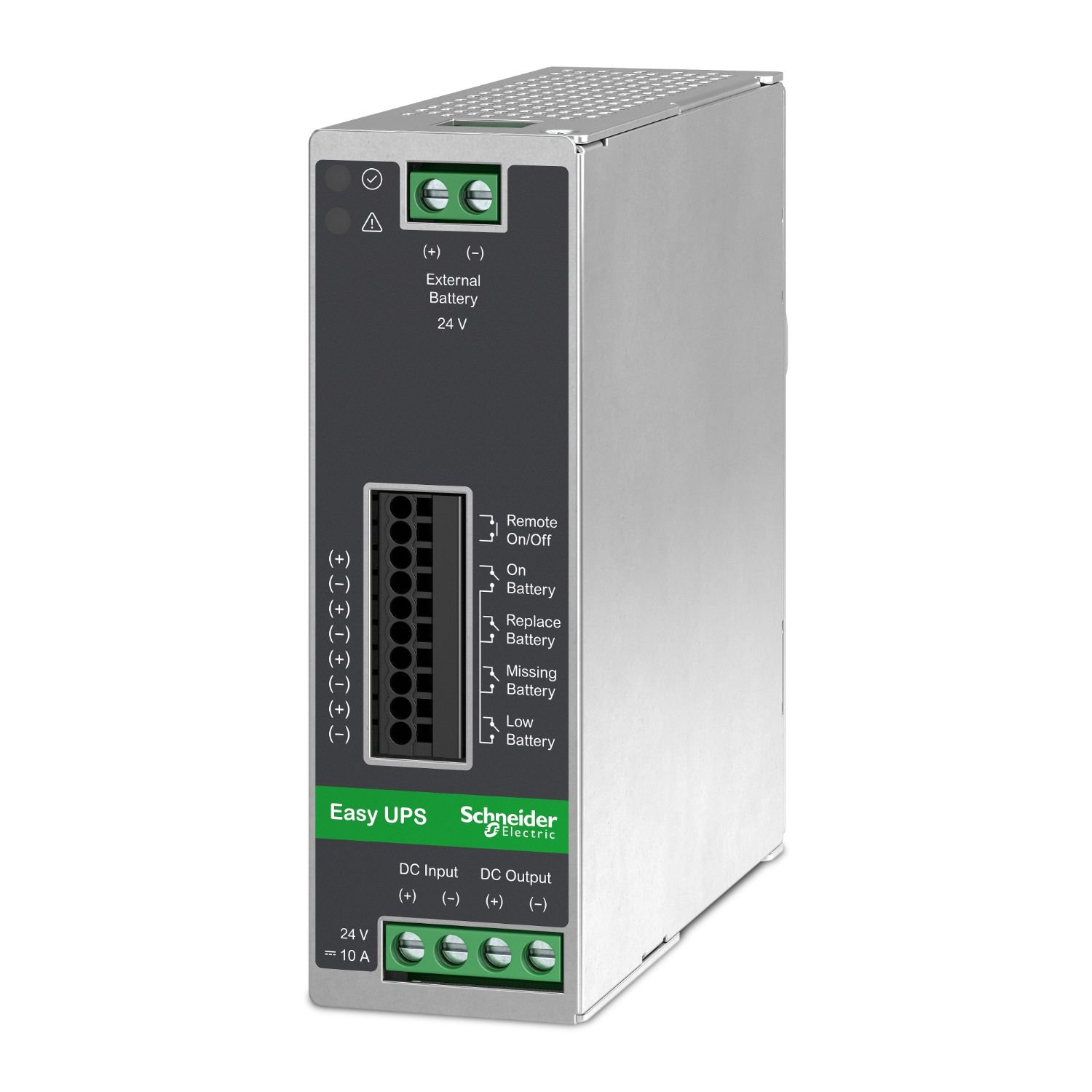

Easy UPS control module, 24V DC-DC, DIN Rail, Industrial, 20A

$464.32
Available for Shipping : 24-Nov-2024
Easy UPS control module, 24V DC-DC, DIN Rail, Industrial, 20A
Manufacturer: Schneider Electric
The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. This model is a 480W UPS that offers DC input to DC output for industrial equipment support. It features 0-5V signaling relay contacts, up to 4 total external battery pack support, LED indicators and EPO switch for better control over the indutrial controls infrastructure. It comes with a 2-year standard warranty.

Products specifications

Attribute name Attribute value
Main
Rated power in W 480 W
Main Input Voltage 24 V DC
Product or component type uninterruptible power supply (UPS)
Connections - terminals 1 2 pins
Output voltage 24 V DC
Number of input connectors 1 terminal block 2-wire
Number of power module 1
Wave type DC
Maximum input current 20 A
UPS size S
Output overload operation 60 seconds at 130% and 30 seconds at 145%
Environmental
Operating altitude 0...3000 m
Acoustic level 40 dB
Relative humidity 0-95 % non-condensing
Ambient air temperature for storage -15-70 °C
IP degree of protection IP20
Storage altitude 0-3000 m
Ambient air temperature for operation -15-50 °C
Storage Relative Humidity 0-95 % non-condensing
Physical
Depth 119 mm
Width 40 mm
Colour metal grey
Mounting position horizontal
Mounting mode DIN rail mount
Net weight 0.5 kg
Height 129 mm
Input
Input protection type protected against short-circuit, against reverse polarity, integrated fuse (not interchangeable)
Input voltage limits 21.6...28.8 V 24 V DC
Output
Maximum output current 20 A
Efficiency 95 %
Conformance
Standards IEC 61010-1, CSA-C22.2 No 62368-1-14, IEC 62368-1, UL 60950-1
Product certifications TÜV, CE
Batteries & Runtime
Battery type external battery system
Battery voltage 24 V
General
Provided equipment user manual
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 190 mm
Package 1 Width 57 mm
Package 1 Length 188 mm
Package 1 Weight 0.7 kg
